Roof Drip Side Moulding

w/ Roof rack:

Front Leg Cover

Rear Leg Cover

Rear Leg Cover

Roof Rack

Front Leg Cover

11 (115, 8)

11 (115, 8)

11 (115, 8)

11 (115, 8)

: Specified torque

N·m (kgf·cm, ft·lbf)

BO–52

–

BODY

ROOF DRIP SIDE MOULDING

3605

ROOF DRIP SIDE MOULDING

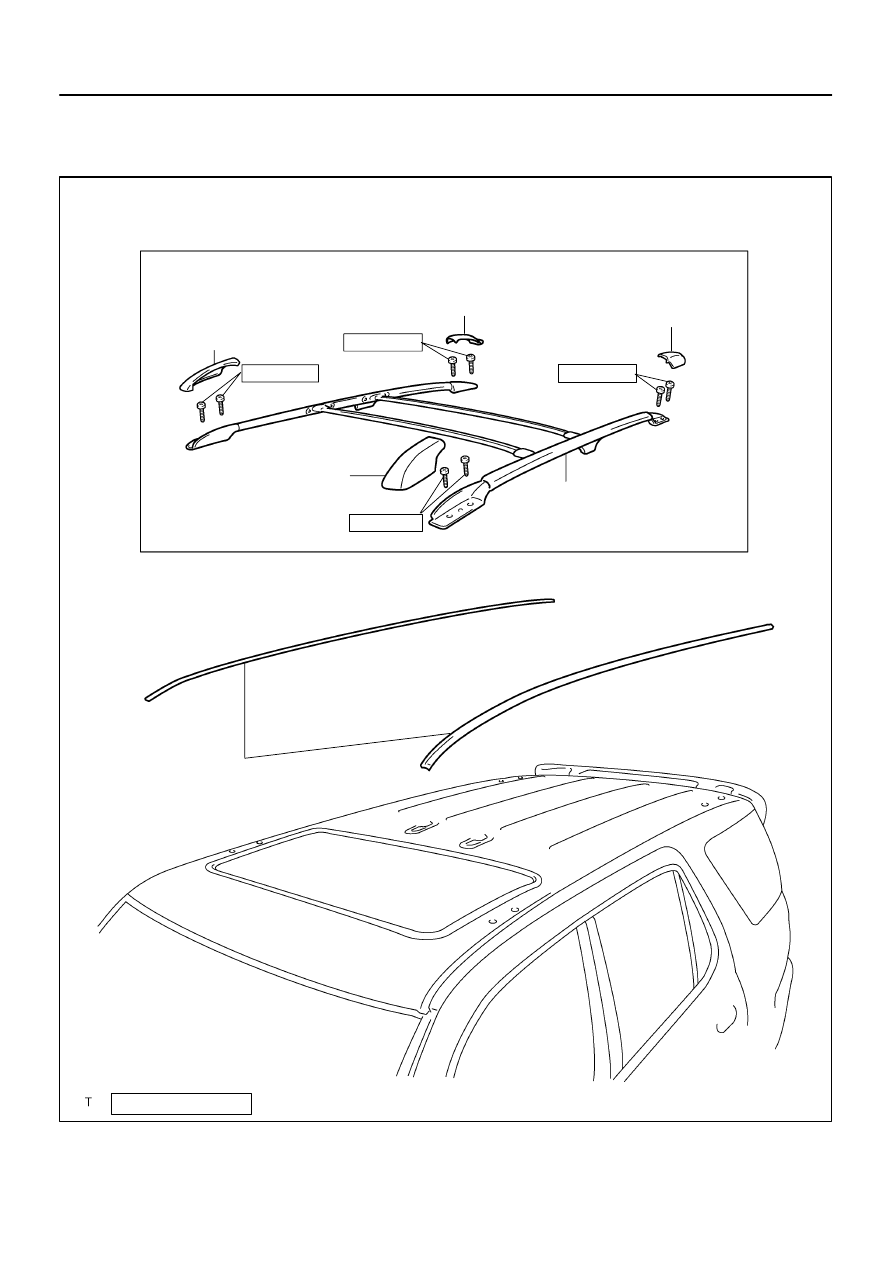

COMPONENTS

BO46D–01

N18625

N18626

–

BODY

ROOF DRIP SIDE MOULDING

BO–53

3606

REMOVAL

1.

w/ Roof rack:
REMOVE ROOF RACK (See page

BO–173

)

2.

REMOVE ENDS OF ROOF DRIP SIDE MOULDING

(a)

Apply protective tape to the outer surface to keep the sur-
face from being scratched.

(b)

Using a heat light, heat the moulding to 20 – 30

°

C (68 –

86

°

F)

NOTICE:
Do not heat the moulding excessively.
(c)

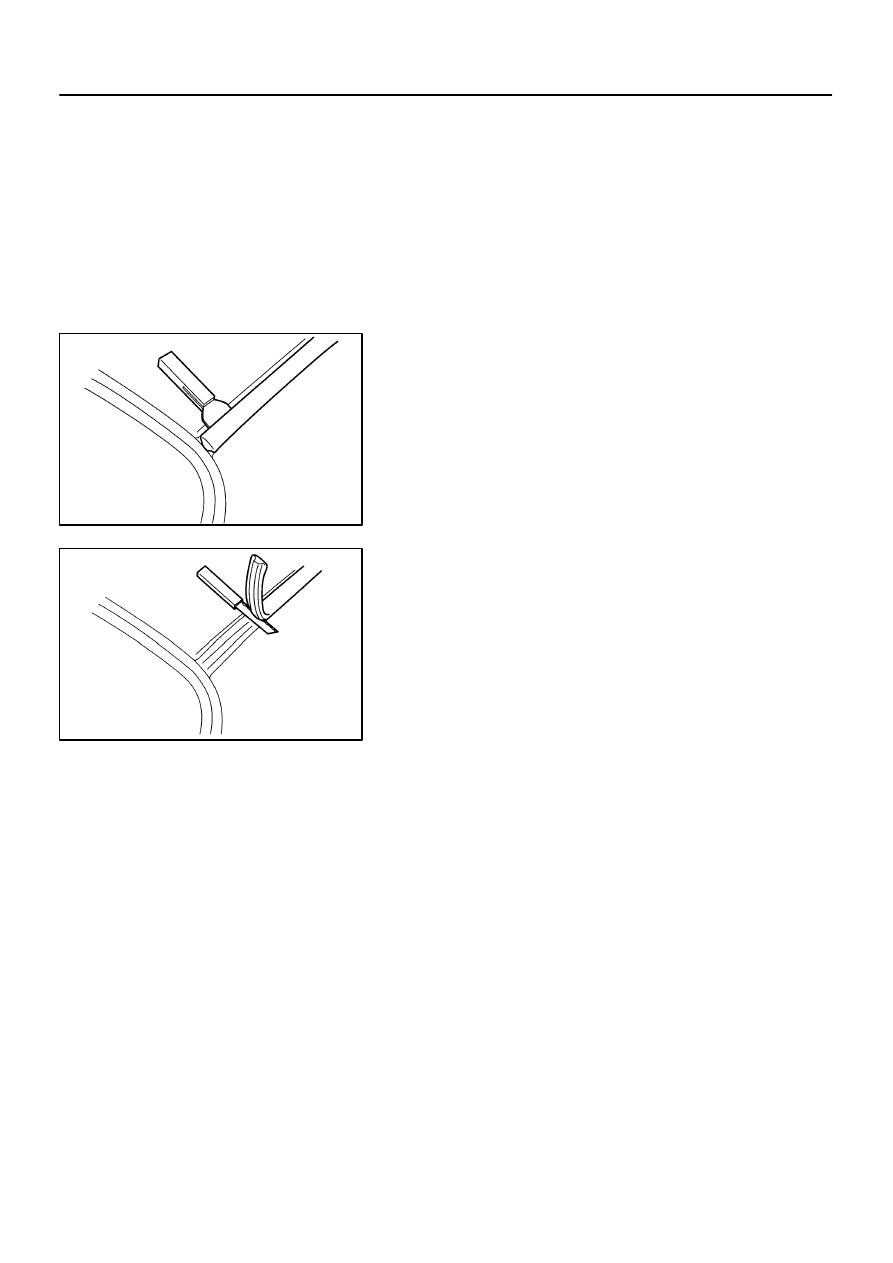

Using a scraper, pull off the roof drip side moulding from
the front and rear ends.

HINT:
Tape the scraper tip before use.

3.

REMOVE ROOF DRIP SIDE MOULDING

(a)

Pull off the moulding by cutting the adhesive with a knife
at the front and rear ends.

(b)

Remove the moulding.

NOTICE:
Do not damage the body with the knife.

BO46E–01

H16712

Adhesive Tape

Adhesive Tape

BO–54

–

BODY

ROOF DRIP SIDE MOULDING

3607

INSTALLATION

1.

CLEAN CONTACT SURFACE OF BODY

(a)

Using a heat light, heat the moulding surface to 40 – 60

°

C (104 – 140

°

F).

NOTICE:
Do not heat the body excessively.
(b)

Using a knife, cut away any rough areas on the body.

NOTICE:
Be careful not to damage the body.
(c)

Wipe off stains with cleaner.

2.

If reusing the moulding:
CLEAN MOULDING

(a)

Using a heat light, heat the moulding surface to 20 – 30

°

C (68 – 86

°

F).

NOTICE:
Do not heat the moulding excessively.
(b)

Using a knife, cut the remaining adhesive from the mould-
ing.

NOTICE:
Be careful not to damage the moulding.
(c)

Wipe off stains with cleaner.

(d)

Apply a new adhesive tape to the moulding as shown in
the illustration.

3.

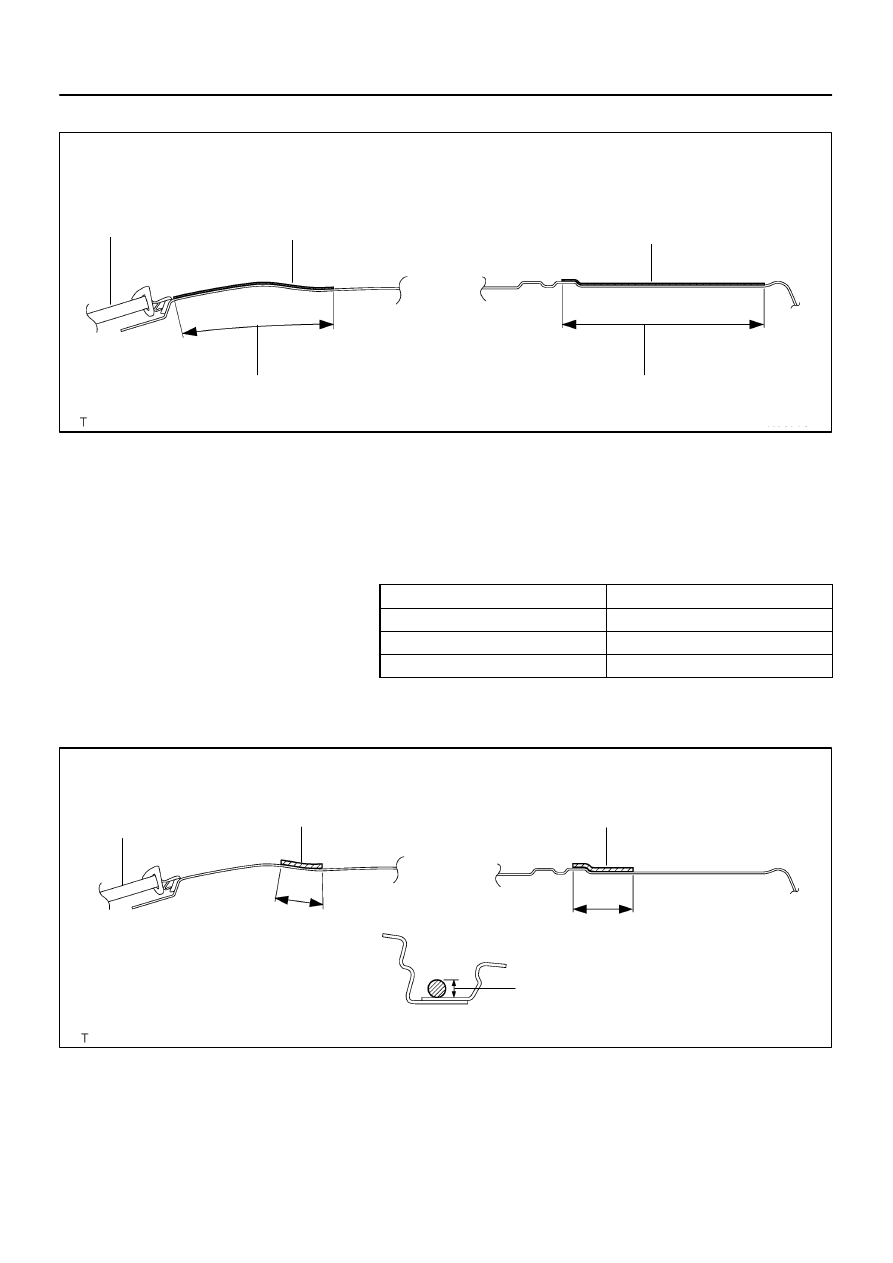

COAT CONTACT SURFACE OF BODY WITH PRIMER
”M”

Using a brush, coat the contact surface on the body with Primer
M as shown in the illustration.
NOTICE:

Allow 3 minutes or more to dry the primer coated sur-
face.

Do not coat the adhesive.

H16711

Windshield Glass

Primer M

Apply Primer M on
panel in this range

Apply Primer M on
panel in this range

Primer M

H16713

Windshield Glass

Adhesive

20 mm
(0.79 in.)

6 mm (0.24 in.)

Adhesive

20 mm
(0.79 in.)

–

BODY

ROOF DRIP SIDE MOULDING

BO–55

3608

Do not keep any of the opened Primer M for later use.

4.

APPLY ADHESIVE

(a)

Cut off the tip of cartridge nozzle.
Part No. 08850–00801 or equivalent.

HINT:
After cutting off the tip, use all adhesive within the time de-
scribed in the table below.

Temperature

Tackfree time

35

°

C (95

°

F)

15 minutes

20

°

C (68

°

F)

100 minutes

5

°

C (41

°

F)

8 minutes

(b)

Load the cartridge into the sealer gun.

(c)

Apply adhesive to the hatched area in the illustration for
both front and rear of the vehicle.

5.

INSTALL ROOF DRIP SIDE MOULDING

(a)

Using a heat light, heat the moulding to 20 – 30

°

C (68 –

86

°

F)

NOTICE:
Do not heat the moulding excessively.
