BO–48

–

BODY

BODY OUTSIDE MOULDING

3601

4.

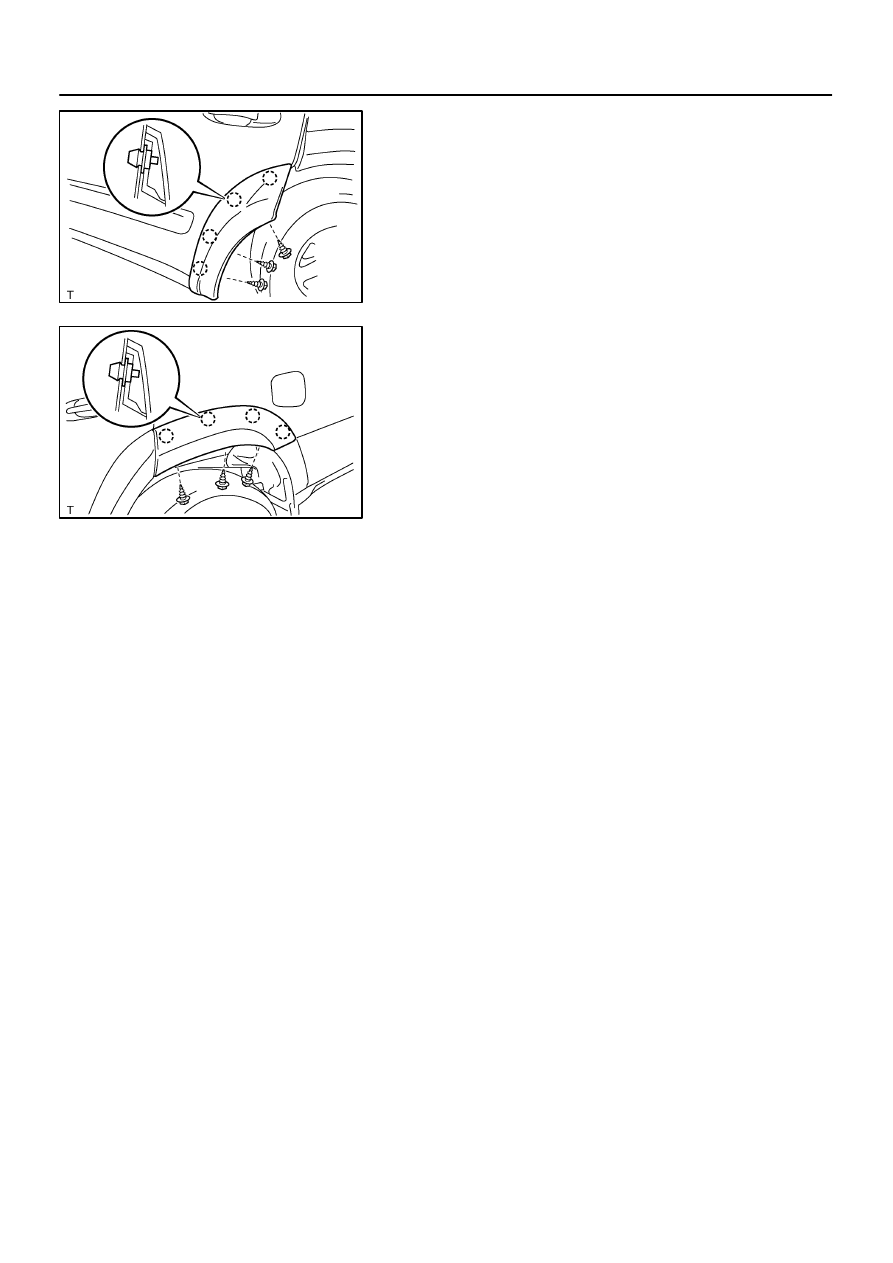

REMOVE REAR DOOR OUTSIDE MOULDING SUB–
ASSEMBLY

(a)

Remove the 3 screws.

(b)

Using a moulding remover, remove the rear door outside
moulding sub–assembly.

HINT:
Tape the moulding remover tip before use.
(c)

Remove the 3 screws and quarter opening retainer.

5.

REMOVE QUARTER OUTSIDE MOULDING

(a)

Remove the 3 screws.

(b)

Using a moulding remover, remove the quarter outside
moulding.

HINT:
Tape the moulding remover tip before use.
6.

REMOVE REAR BUMPER EXTENSION

(a)

Remove the 4 screws and rear mudguard.

(b)

Remove the rear bumper cover.

(c)

Remove the 4 nuts and rear bumper extension.

BO46A–02

H16701

Adhesive
Tape

–

BODY

BODY OUTSIDE MOULDING

BO–49

3602

INSTALLATION

1.

INSTALL REAR BUMPER EXTENSION

(a)

Install the rear bumper extension with the 4 nuts.
Torque: 5.0 N·m (50 kgf·cm, 43 in.·lbf)

(b)

Install the rear bumper cover.

(c)

Install the rear mudguard with the 4 screws.

2.

INSTALL QUARTER OUTSIDE MOULDING

Install the quarter outside moulding with the 3 screws.
3.

INSTALL REAR DOOR OUTSIDE MOULDING SUB–
ASSEMBLY

(a)

Install the quarter opening retainer with the 3 screws.

(b)

Install the rear door outside moulding sub–assembly with
the 3 screws.

4.

INSTALL REAR DOOR OUTSIDE MOULDING

(a)

Clean the rear door mounting surface.
(1)

Using a heat light, heat the rear door mounting sur-
face to 40 – 60

°

C (104 – 140

°

F)

(2)

Remove the adhesive tape from the rear door.

(3)

Wipe off the stain with cleaner.

(b)

If reusing the moulding:
Clean the rear door outside moulding.
(1)

Using a heat light, heat the moulding to 20 – 30

°

C

(68 – 86

°

F)

NOTICE:
Do not heat the moulding excessively.

(2)

Remove the adhesive tape from the moulding.

(3)

Wipe off the stains with cleaner.

(4)

Apply new adhesive tapes to the moulding.

(c)

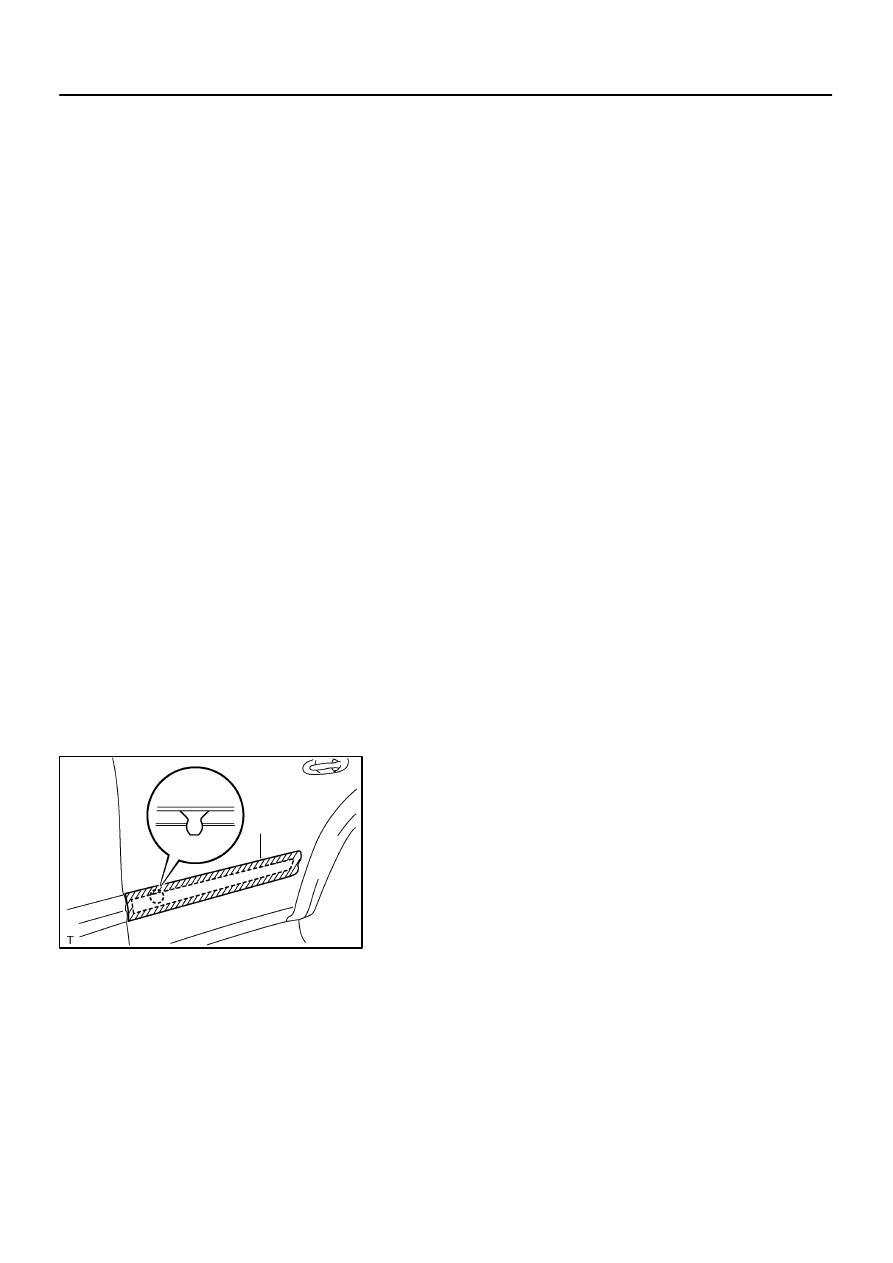

Install the rear door outside moulding.
(1)

Using a heat light, heat the rear door panel and
moulding

Rear door panel: 40 – 60

°

C (104 – 140

°

F)

Moulding: 20 – 30

°

C (68 – 86

°

F)

NOTICE:
Do not heat the rear door and moulding.

(2)

Lift the moulding release sheet from face of mould-
ing.

NOTICE:
When the moulding release sheet is removed, make sure
that no dirt or dust can get onto the uncoated area.

(3)

Align the boss with the corresponding hole in rear
door, and press firmly on the moulding.

5.

INSTALL FRONT DOOR OUTSIDE MOULDING

(a)

Clean the front door mounting surface.
(1)

Using a heat light, heat the front door mounting sur-
face to 40 – 60

°

C (104 – 140

°

F)

(2)

Remove the adhesive tape from the front door.

(3)

Wipe off the stain with cleaner.

H16700

Adhesive
Tape

BO–50

–

BODY

BODY OUTSIDE MOULDING

3603

(b)

If reusing the moulding:
Clean the front door outside moulding.
(1)

Using a heat light, heat the mounting to 20 – 30

°

C

(68 – 86

°

F)

NOTICE:
Do not heat the moulding excessively.

(2)

Remove the adhesive tape from the moulding.

(3)

Wipe off the stains with cleaner.

(4)

Apply new adhesive tapes to the moulding.

(c)

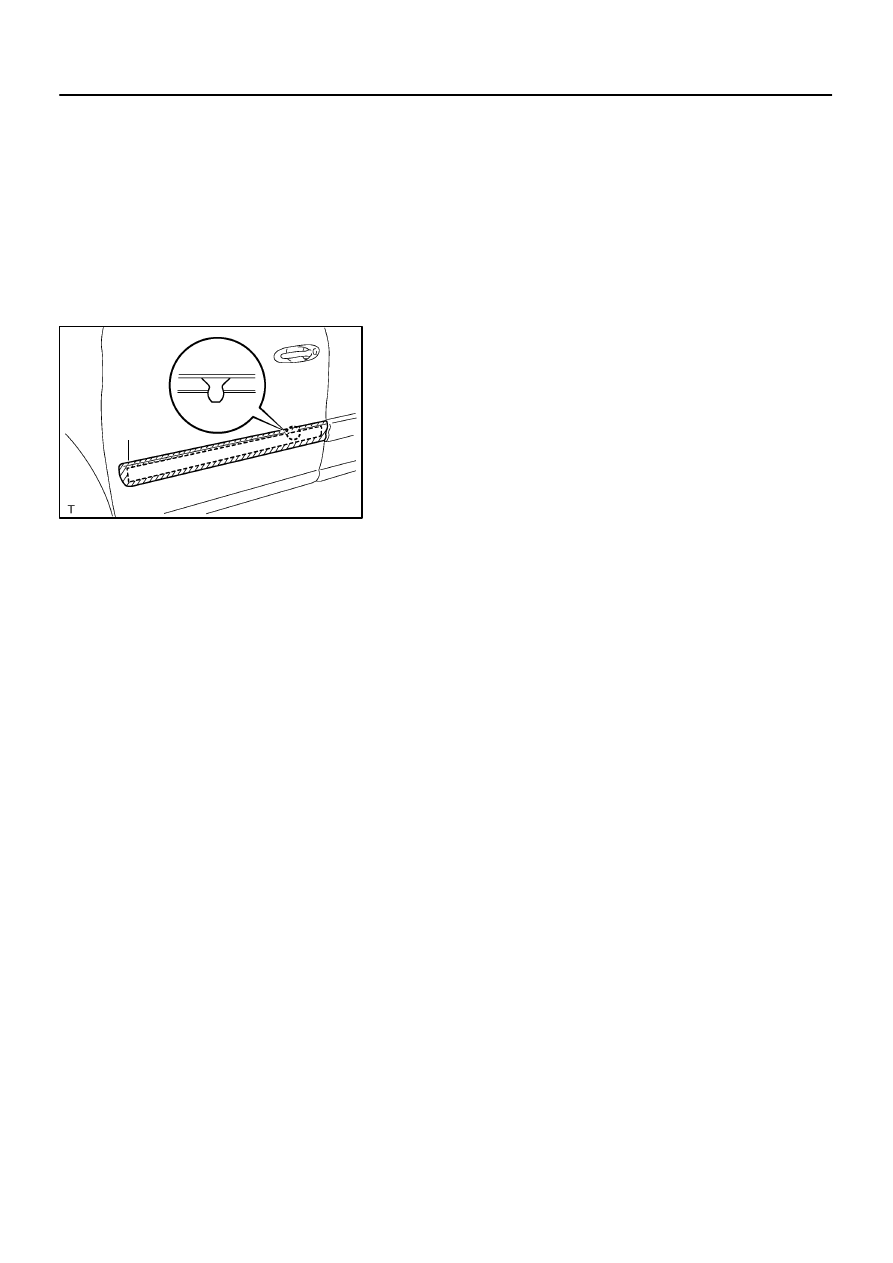

Install the front door outside moulding.
(1)

Using a heat light, heat the front door panel and
moulding

Front door panel: 40 – 60

°

C (104 – 140

°

F)

Moulding: 20 – 30

°

C (68 – 86

°

F)

NOTICE:
Do not heat the front door and moulding.

(2)

Lift the moulding release sheet from face of mould-
ing.

NOTICE:
When the moulding release sheet is removed, make sure
that no dirt or dust can get onto the uncoated area.

(3)

Align the boss with the corresponding hole in front
door, and press firmly on the moulding.

6.

INSTALL FRONT FENDER MOULDING

(a)

Install the front fender moulding with the 5 screws.

(b)

Install the front mudguard with the 3 screws.

BO46B–03

H24862

Rear Fender Wheel
Opening Moulding

Rear Mudguard

 Non–reusable Part

–

BODY

WHEEL ARCH MOULDING

BO–51

3604

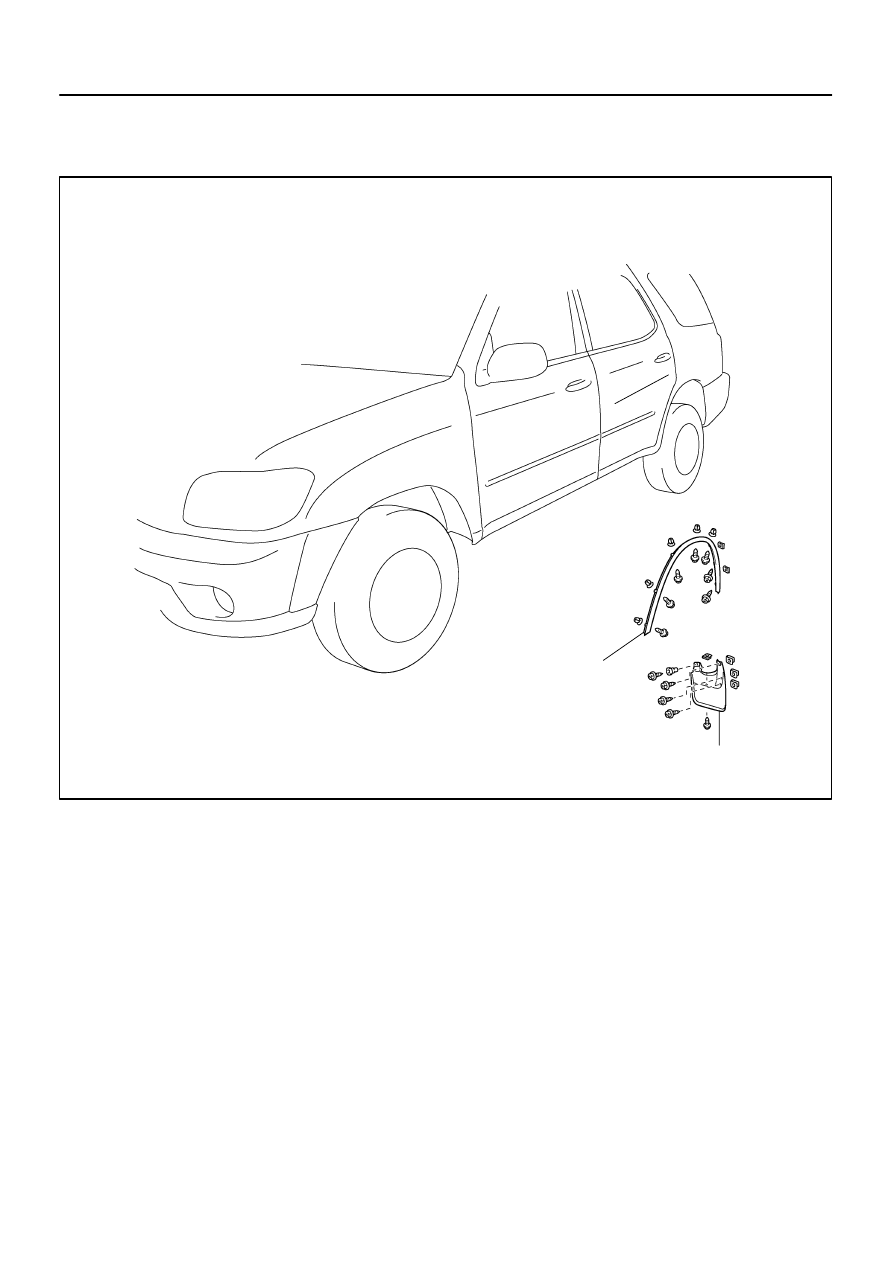

WHEEL ARCH MOULDING

COMPONENTS
