BO466–01

BE3367

2.0 – 2.5 mm
(0.079 – 0.098 in.)

0.7 – 0.75 mm
(0.028 – 0.0295 in.)

BO–44

–

BODY

REAR WIPER AND WASHER

3597

ADJUSTMENT

ADJUST WASHER NOZZLE
Using a tool like the one shown in the illustration, change the
direction of the nozzle hole to adjust the point where washer
fluid hits the back door glass.

BO467–02

H16696

Mark

Mark to Upward

H16697

10 mm

(0.39 in.)

H16698

–

BODY

REAR WIPER AND WASHER

BO–45

3598

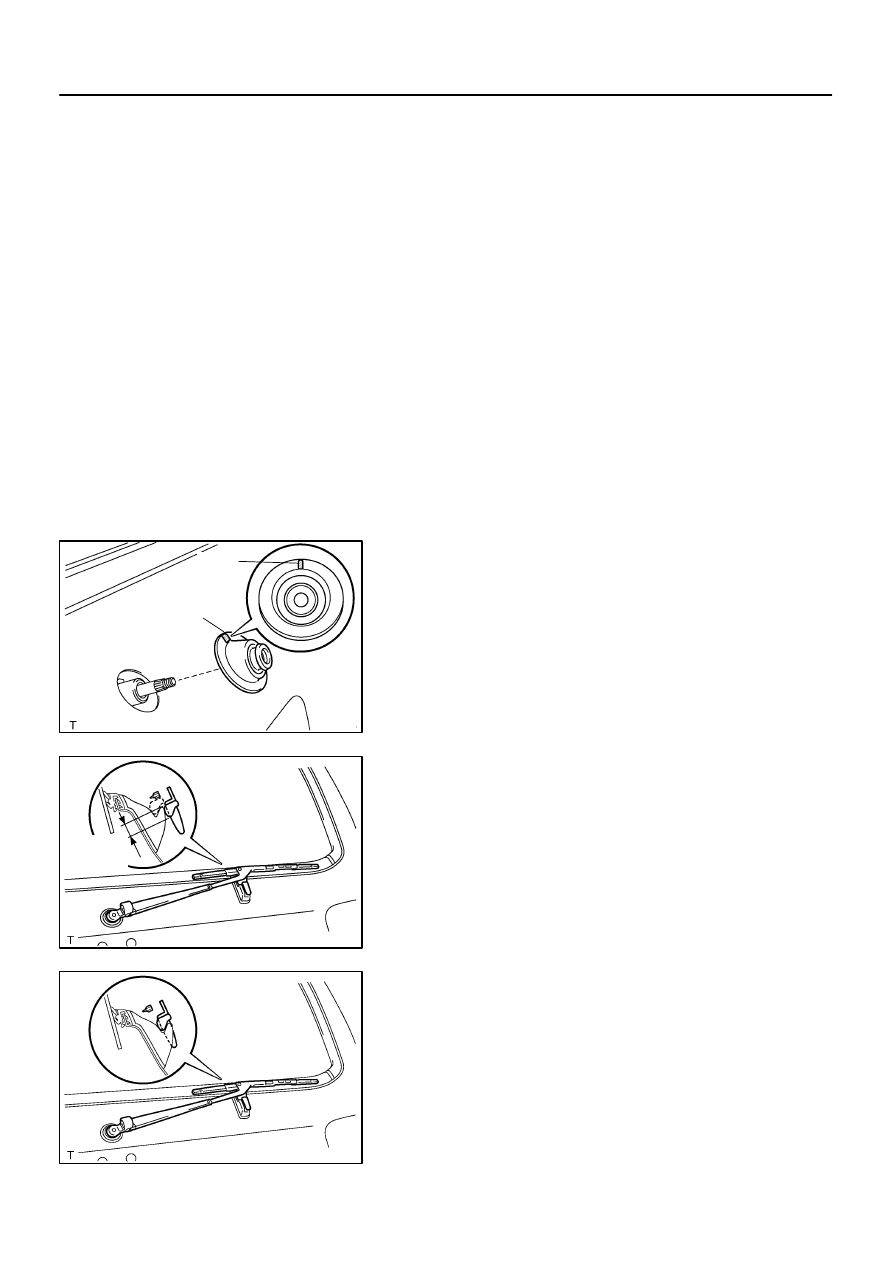

INSTALLATION

1.

INSTALL WASHER NOZZLE

2.

INSTALL REAR WIPER MOTOR

(a)

Install the rear wiper motor, then torque the 3 bolts.
Torque: 5.5 N·m (56 kgf·cm, 49 in.·lbf)

(b)

Engage the connector and clamp.

(c)

Connect the connector.

3.

INSTALL POWER WINDOW REGULATOR
Torque: 5.5 N·m (56 kgf·cm, 49 in.·lbf)

4.

INSTALL BACK DOOR GLASS
Torque: 8.0 N·m (82 kgf·cm, 71 in.·lbf)

5.

INSTALL NO. 2 SERVICE HOLE COVER

6.

INSTALL NO. 1 SERVICE HOLE COVER

7.

INSTALL BACK DOOR TRIM BOARD

8.

INSTALL BACK DOOR SIDE GARNISH

9.

INSTALL BACK DOOR CENTER GARNISH

10.

INSTALL BACK DOOR PULL STRAP

11.

INSTALL STEP LINER

12.

INSTALL REAR WIPER ARM

(a)

Install the rear wiper motor grommet as shown in the il-
lustration.

(b)

Operate the wiper once and turn the wiper switch OFF.

(c)

Install the wiper arm as shown in the illustration, then
torque the nut.
Torque: 5.5 N·m (56 kgf·cm, 49 in.·lbf)

(d)

Set the wiper arm to rise–up position as shown in the il-
lustration.

(e)

Close the cover.

13.

PERFORM INITIALIZATION (See page

IN–20

)

Back door power window control system needs initialization
when disconnecting the cable from the negative battery termi-
nal.

BO468–03

H24888

Quarter Opening
Retainer

Rear Door Outside Moulding
Sub–Assembly

Front Fender Moulding

Rear Bumper
Protector

Rear Bumper
Extension

Rear Bumper Seal

Quarter Outside
Moulding

Rear Mudguard

Rear Door Outside Moulding

Front Door Outside Moulding

Front Mudguard

: Specified torque

N·m (kgf·cm, ft·lbf)

5.0 (50, 43 in.·lbf)

 Non–reusable part

Rivet

BO–46

–

BODY

BODY OUTSIDE MOULDING

3599

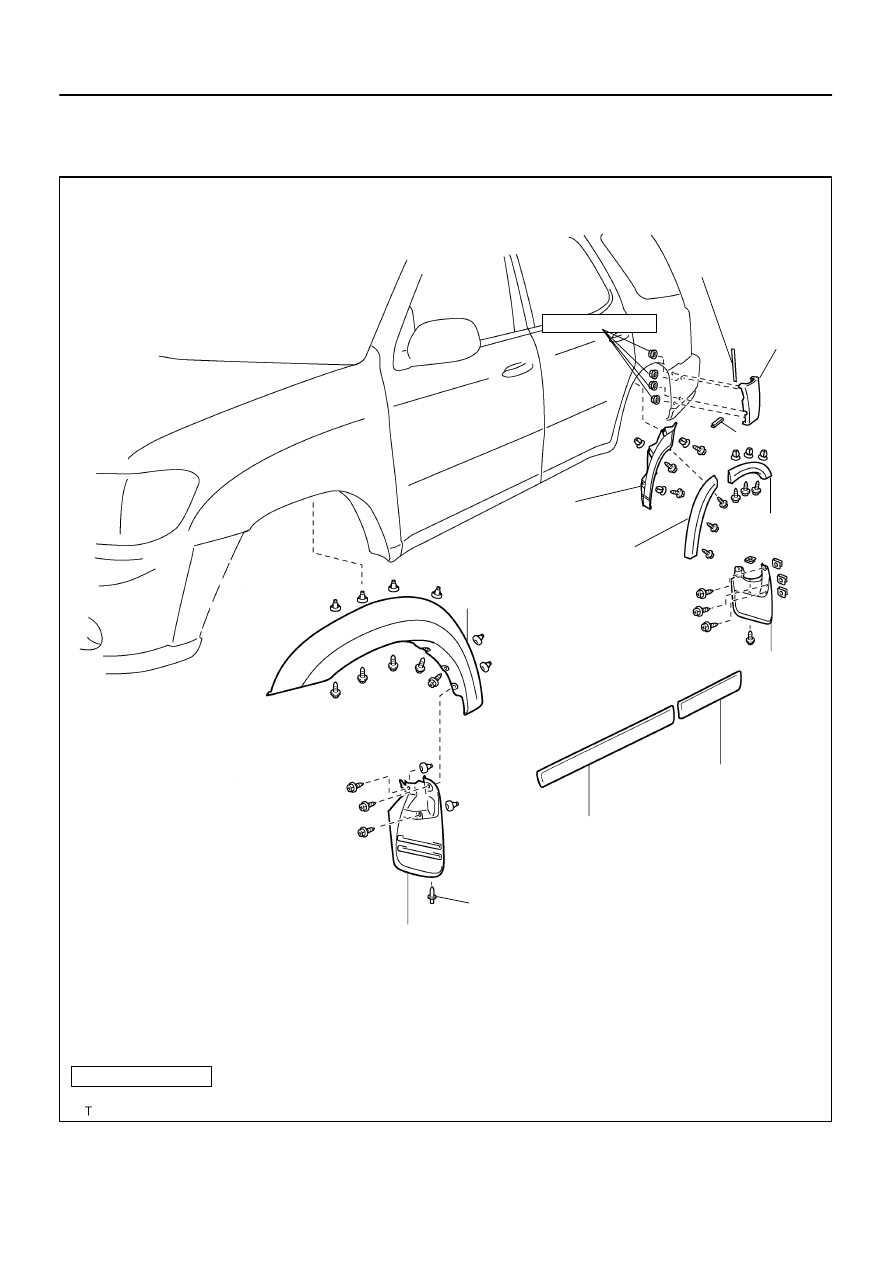

BODY OUTSIDE MOULDING

COMPONENTS

BO469–02

H16699

H16700

Adhesive
Tape

H16701

Adhesive
Tape

–

BODY

BODY OUTSIDE MOULDING

BO–47

3600

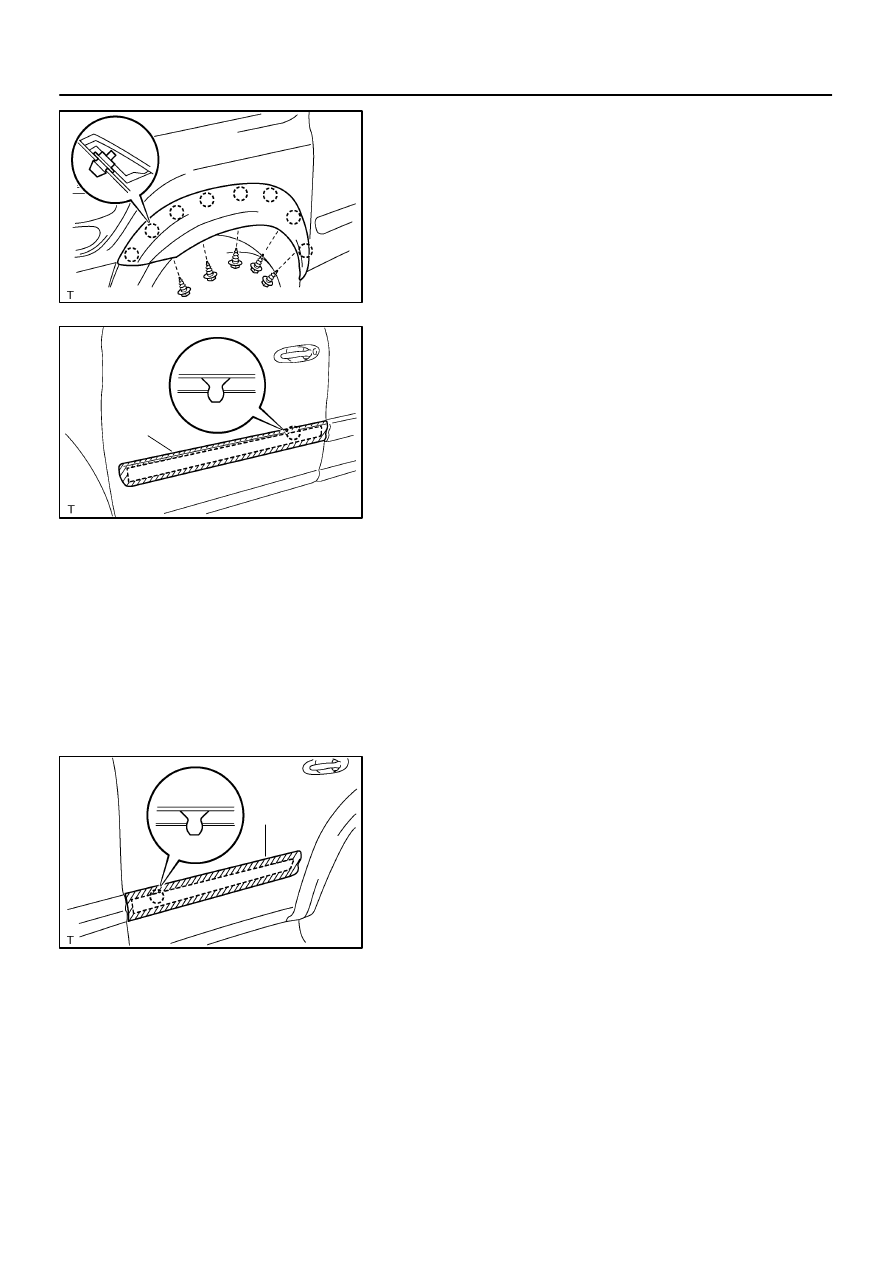

REMOVAL

1.

REMOVE FRONT FENDER MOULDING

(a)

Remove the 3 screws and front mudguard.

(b)

Remove the 5 screws.

(c)

Using a moulding remover, remove the front fender
moulding.

HINT:
Tape the moulding remover tip before use.

2.

REMOVE FRONT DOOR OUTSIDE MOULDING

(a)

Apply protective tape to the outer surface as shown in the
illustration, to keep the surface from being scratched.

(b)

Using a heat light, heat the moulding to 40–60

°

C (104 –

140

°

F)

NOTICE:
Do not heat moulding excessively.
(c)

Tie both piano wire ends to wooden blocks or similar ob-
jects.

(d)

Cut the adhesive tape by pulling the piano wire.

NOTICE:

If reusing the moulding, take care not to damage the
moulding.

Do not damage the door panel.

(e)

Remove the moulding.

3.

REMOVE REAR DOOR OUTSIDE MOULDING

(a)

Apply protective tape to the outer surface as shown in the
illustration, to keep the surface from being scratched.

(b)

Using a heat light, heat the moulding to 40 – 60

°

C (104

– 140

°

F)

NOTICE:
Do not heat moulding excessively.
(c)

Tie both piano wire ends to wooden blocks or similar ob-
jects.

(d)

Cut the adhesive tape by pulling the piano wire.

NOTICE:

If reusing the moulding, take care not to damage the
moulding.

Do not damage the door panel.

(e)

Remove the moulding.
