BODY ELECTRICAL

GARAGE DOOR OPENER SYSTEM

BE–129

3533

GARAGE DOOR OPENER SYSTEM

REGISTRATION PROCEDURE

1.

NEW CODE REGISTRATION

NOTICE:

If pressing the switch of the original transmitter to
register the code, the system might operate.

When registering the transmitter codes such as for
garage or gate, check that there is nobody around
those places.

(a)

Press the switch of the item to be registered for 20 se-
conds.

HINT:
When transferring to registration mode, garage door indicator
(green) blinks in 1 Hz cycle.

(b)

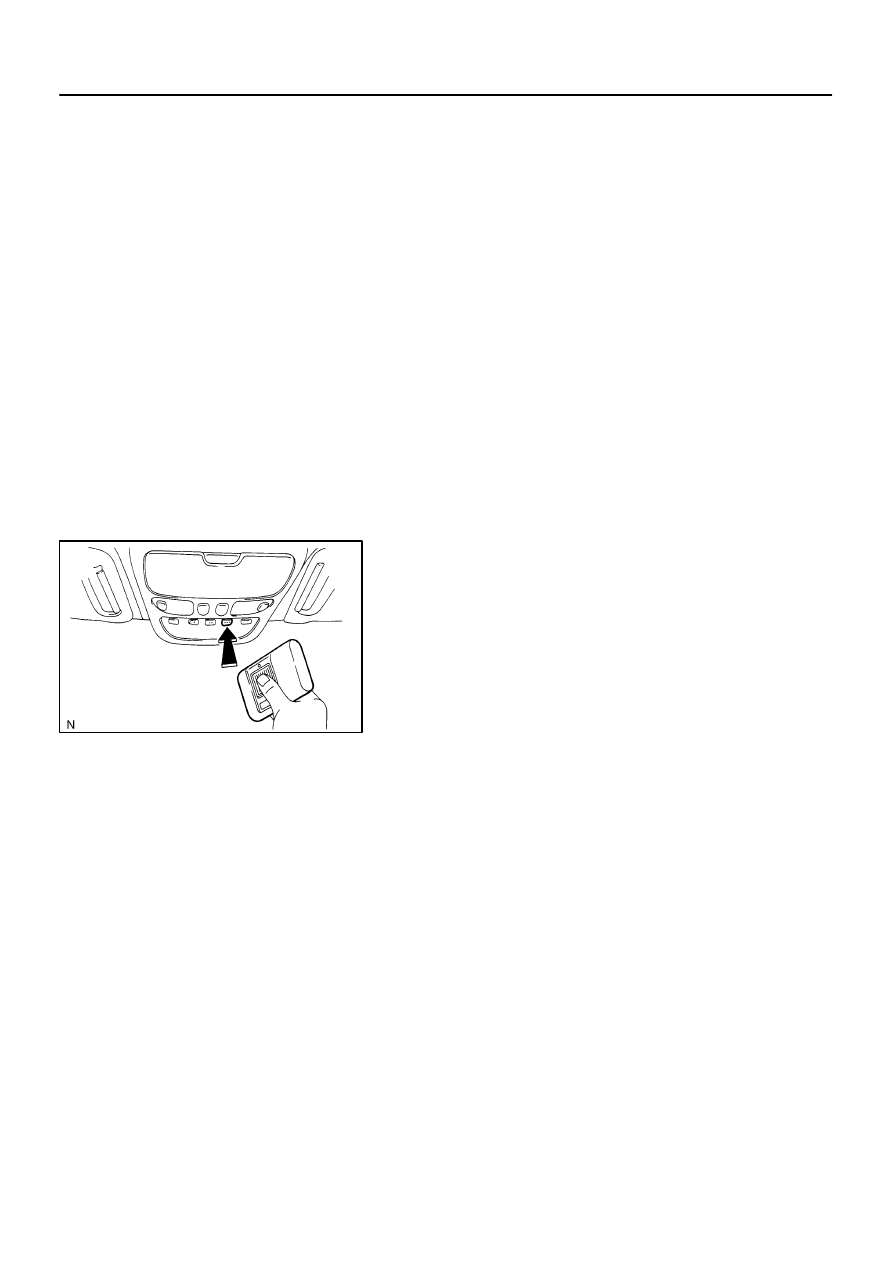

Bring the original transmitter to within 1–inch area around
the garage door opener and press the switch (code trans-
mitting).

HINT:
When code registration is complete correctly, the garage door
indicator (green) blinks in 5.6 Hz cycle.

I03487

GARAGE DOOR
OPENER SWITCH

LEARN MODE

INDICATOR
OPERATION

ORIGINAL
TRANSMITTER

PRESSED

ENTER

EXIT

ON

OFF

20 sec.

INDICATOR flashes
at a rate of 1 Hz

INDICATOR
 flashes at a
rate of 5.6 Hz

RELEASED

ON

OFF

BE–130

–

BODY ELECTRICAL

GARAGE DOOR OPENER SYSTEM

3534

New code registration timing chart

If a code can not be registered, observe the following condi-
tions.
HINT:

If the battery of original transmitter is consumed.

Press the switch of the transmitter repeatedly in registra-
tion mode, as some transmitters stop transmitting for 1 to
2 seconds.

This system is not applicable to the garage door opener
which had been made before 1982.

2.

CODE DELETION

(a)

Press the switches at both ends of the garage door open-
er simultaneously for 20 seconds.

HINT:
When transferring to deletion mode, garage door indicator
(green) blinks in 6 Hz cycle.
(b)

When releasing the switch within 10 seconds after trans-
ferring to deletion mode, all the registered codes will be
erased.

HINT:
Press the switch until 6 Hz cycle blinking stops, so that the de-
fault code for check is set.

I21535

INDICATOR
OPERATION

GARAGE DOOR
OPENER SWITCH
(Switch at either end)

ON

OFF

ERASE/DEFAULT
MODE

PRESSED

LOAD DEFAULT

INDICATOR flashes at a rate of 5.6 HZ

10 SEC.

20 SEC.

RELEASED

ON

OFF

Enter in erase mode to
erase all 3 channels

LOAD DEFAULT

NEW CODE REGISTRATION

–

BODY ELECTRICAL

GARAGE DOOR OPENER SYSTEM

BE–131

3535

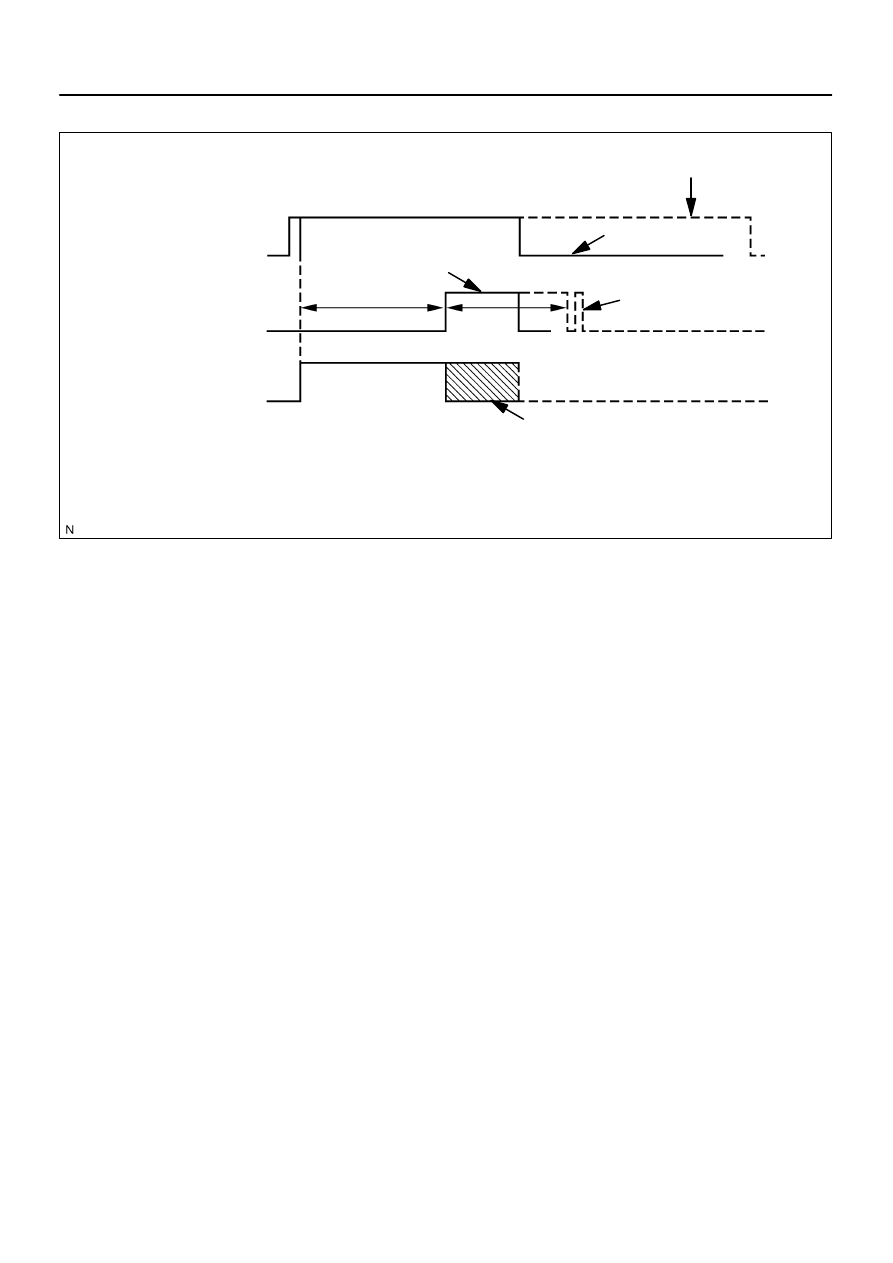

Code deletion timing chart

BE0G3–10

I28422

Instrument Panel J/B

 ECU–IG Fuse

 GAUGE Fuse

Overhead Module

 GAUGE Door Opener Switch

BE–132

–

BODY ELECTRICAL

GARAGE DOOR OPENER SYSTEM

3536

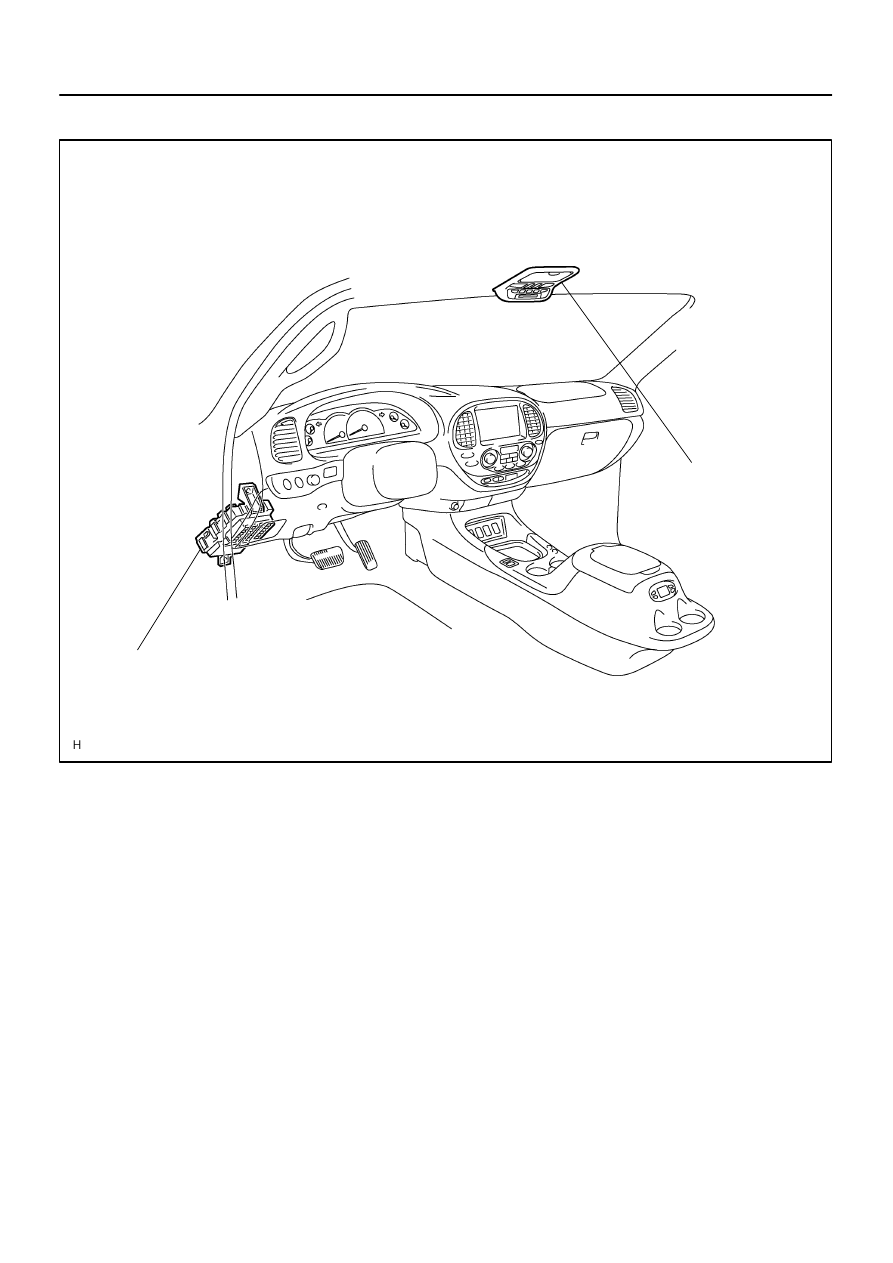

LOCATION
