GARAGE DOOR OPENER SYSTEM

BE–133

3537

REMOVAL

1.

REMOVE FRONT PERSONAL LIGHT LENS

2.

REMOVE FRONT PERSONAL LIGHT

(a)

Remove the 3 screws.

(b)

Disconnect the 2 connectors.

3.

REMOVE GARAGE DOOR OPENER SWITCH

I18597

BE26F–03

I18598

I18599

BE–134

–

BODY ELECTRICAL

GARAGE DOOR OPENER SYSTEM

3538

INSPECTION

1.

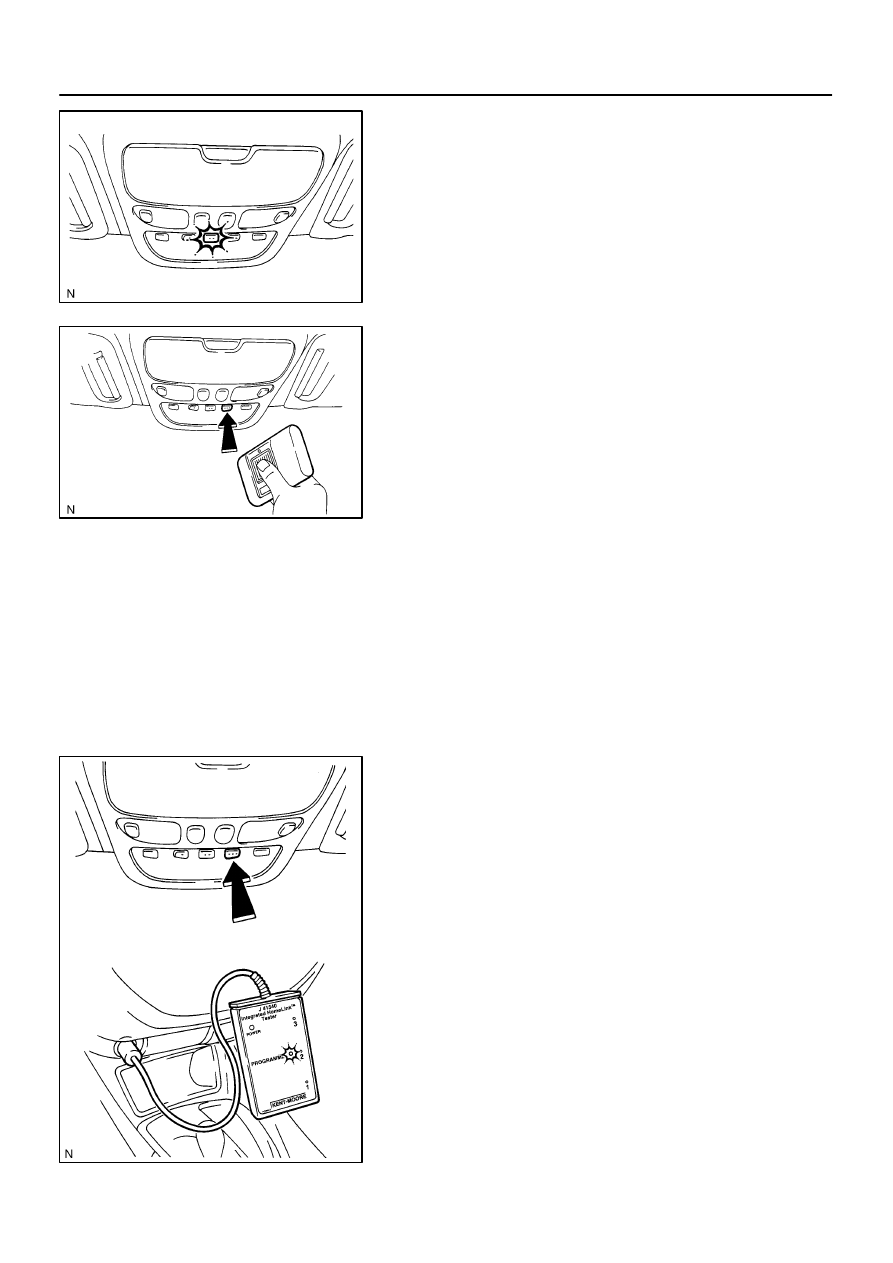

INSPECT GARAGE DOOR OPENER SWITCH

(a)

Press the switch and check that each garage door indica-
tor (green) comes on.

(b)

Even if only one switch does not come on, replace it.

2.

INSPECT GARAGE DOOR OPENER REGISTRATION
AND TRANSMITTING

HINT:
Use the home link tester made by KENT MORE for this test.
As it is necessary to record the code of the hand held transmit-
ter, customer’s code will be erased. When the inspection is
complete, please register the customer’s again.
(a)

Check that the inspection code of the hand held transmit-
ter can be recorded (See page

BE–129

).

If the code can not be registered, replace the garage door open-
er.

(b)

Press the switch which an inspection code has been reg-
istered for and check that garage door indicator (green)
of the home link tester comes on.

If the garage door indicator (green) does not come on, replace
the garage door opener.

I21538

Wire Harness Side:

I21537

Wire Harness Side:

–

BODY ELECTRICAL

GARAGE DOOR OPENER SYSTEM

BE–135

3539

3.

w/ Sliding Roof:

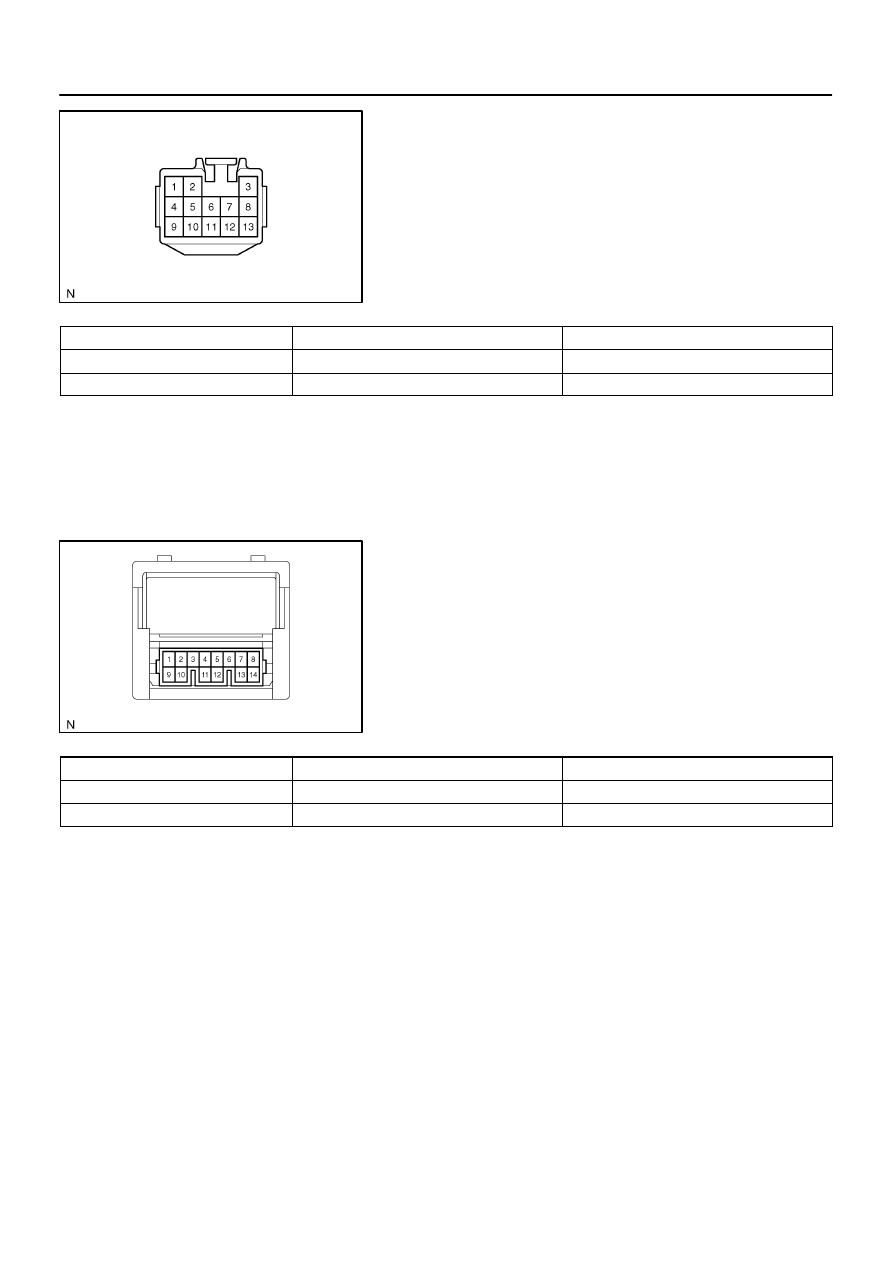

INSPECT GARAGE DOOR OPENER SWITCH CIRCUIT

Disconnect the connector from the switch and inspect the con-
nector on the wire harness side, as shown.

Tester connection

Condition

Specified condition

1 – Ground

Always

Continuity

3 – Ground

Always

Battery positive voltage

If the circuit is not as specified, inspect the power source or wire
harness.

4.

w/o Sliding Roof:
INSPECT GARAGE DOOR OPENER SWITCH CIRCUIT

Disconnect the connector from the switch and inspect the con-
nector on the wire harness side, as shown.

Tester connection

Condition

Specified condition

9 – Ground

Always

Battery positive voltage

13 – Ground

Always

Continuity

If the circuit is not as specified, inspect the power source or wire
harness.

BE0G6–01

BE–136

–

BODY ELECTRICAL

GARAGE DOOR OPENER SYSTEM

3540

INSTALLATION

1.

INSTALL GARAGE DOOR OPENER

2.

INSTALL FRONT PERSONAL LIGHT

(a)

Connect the 2 connectors.

(b)

Install the 3 screws.

3.

INSTALL FRONT PERSONAL LIGHT LENS
