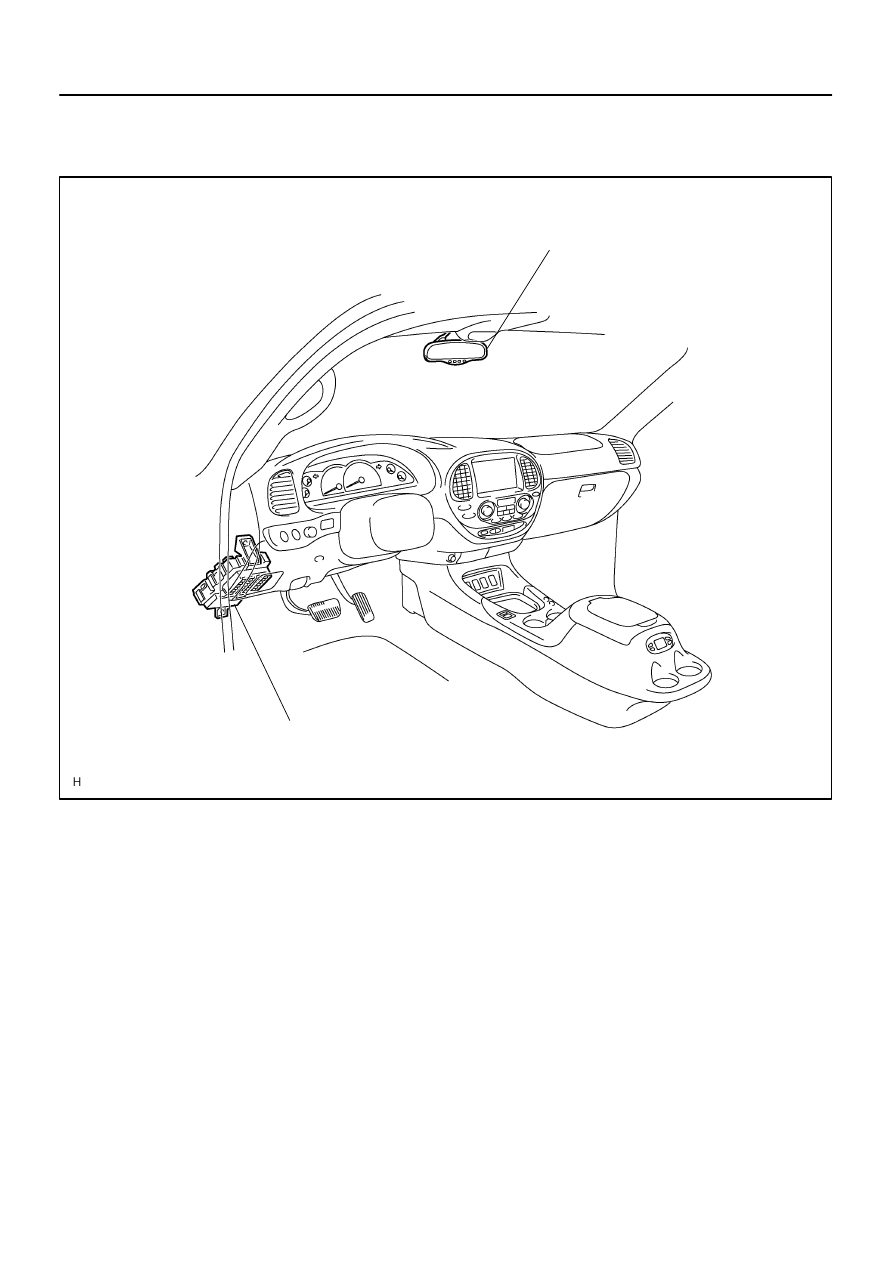

BE2D8–03

I28420

Electro Chromic Inner Mirror

Instrument Panel J/B

 ECU–IG Fuse

–

BODY ELECTRICAL

ELECTRO CHROMIC MIRROR SYSTEM

BE–121

3525

ELECTRO CHROMIC MIRROR SYSTEM

LOCATION

BE2D9–02

I24349

A

7

6

BE–122

–

BODY ELECTRICAL

ELECTRO CHROMIC MIRROR SYSTEM

3526

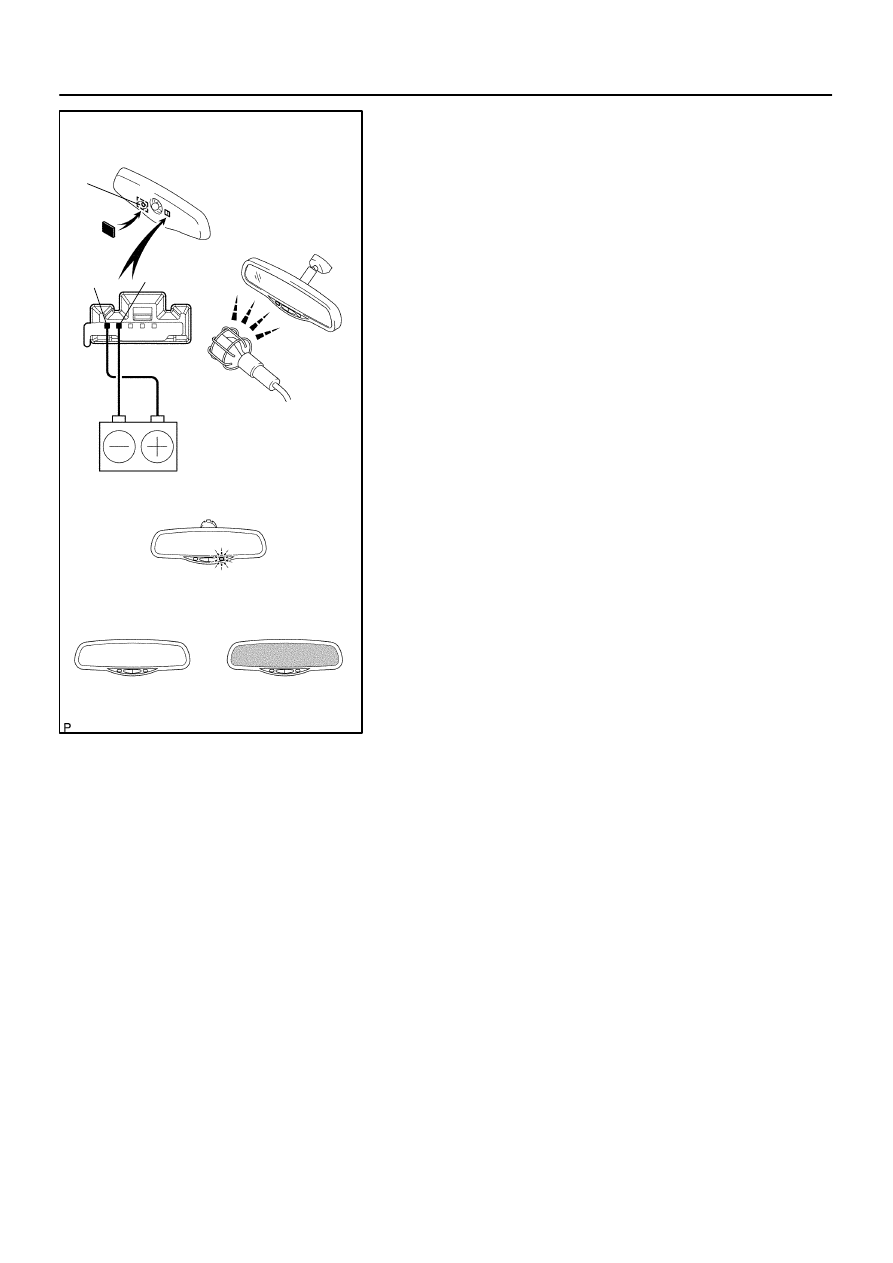

INSPECTION

INSPECT ELECTRO CHROMIC INNER MIRROR OPERA-
TION
(a)

Cover the sensor A so that the sensor does not receive
any light.

(b)

Connect the positive (+) lead the battery to terminal 7 and
the negative (–) lead to terminal 6.

(c)

Shine an electric light on the mirror, and check that there
is battery positive voltage and mirror surface becomes
bright to dark.

If operation is not as specified, replace the inner mirror.

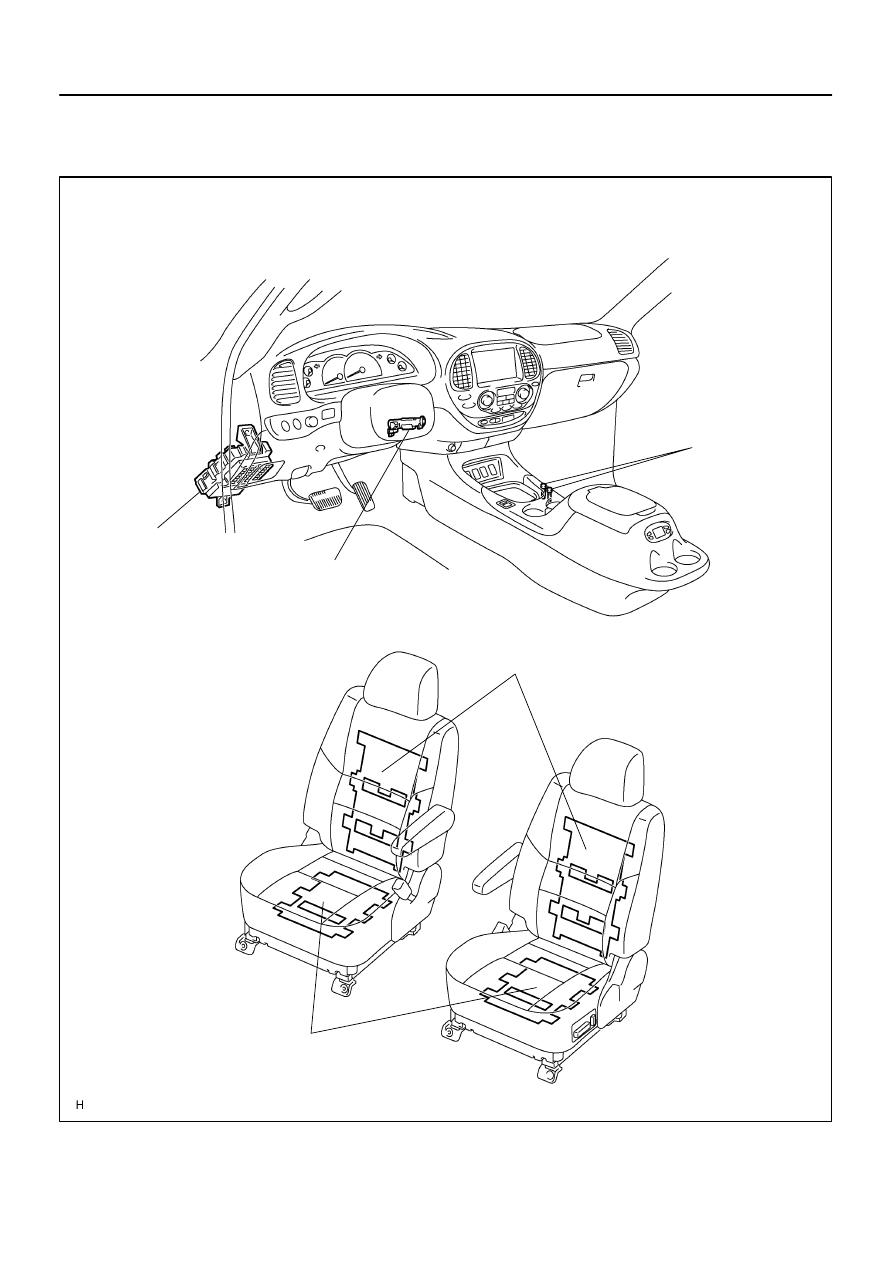

BE0GH–22

I28421

Ignition Switch

Seat Heater Switch

Instrument Panel J/B

 SEAT HEATER Relay

 SEAT HTR Fuse

Seat Heater Cushion

Seat Heater Back

–

BODY ELECTRICAL

SEAT HEATER SYSTEM

BE–123

3527

SEAT HEATER SYSTEM

LOCATION

BE2D7–03

I18566

Left Side Heater Switch

Right Side Heater Switch

I18567

6

4

6

4

BE–124

–

BODY ELECTRICAL

SEAT HEATER SYSTEM

3528

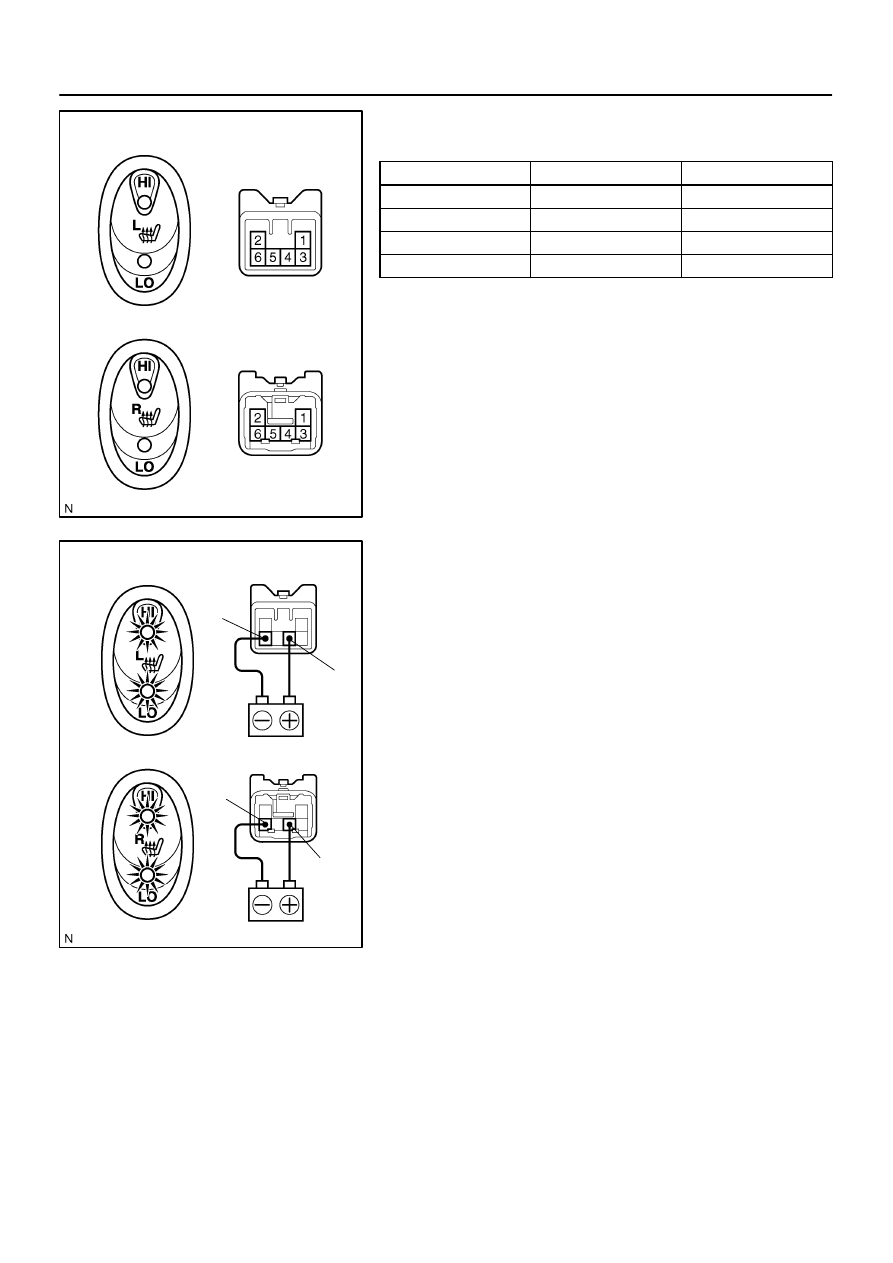

INSPECTION

1.

INSPECT SEAT HEATER SWITCH CONTINUITY

Switch position

Tester connection

Specified condition

Right side

3 – 4 – 6

Continuity

OFF

–

No continuity

Left side

3 – 4 – 6

Continuity

Illumination circuit

1 – 2

Continuity

If continuity is not as specified, replace the switch.

2.

INSPECT SEAT HEATER INDICATOR LIGHT OPERA-
TION

(a)

Connect the positive (+) lead from the battery to terminal
4 and the negative (–) lead to terminal 6.

(b)

Push the seat heater switch (right or left side) and check
that the indicator light comes on.

If operation is not as specified, replace the switch.
