Toyota Sequoia (2005). Manual - part 883

I18585

4

5

I18586

5

6

I18587

5

6

I24873

1

3

I24874

1

3

–

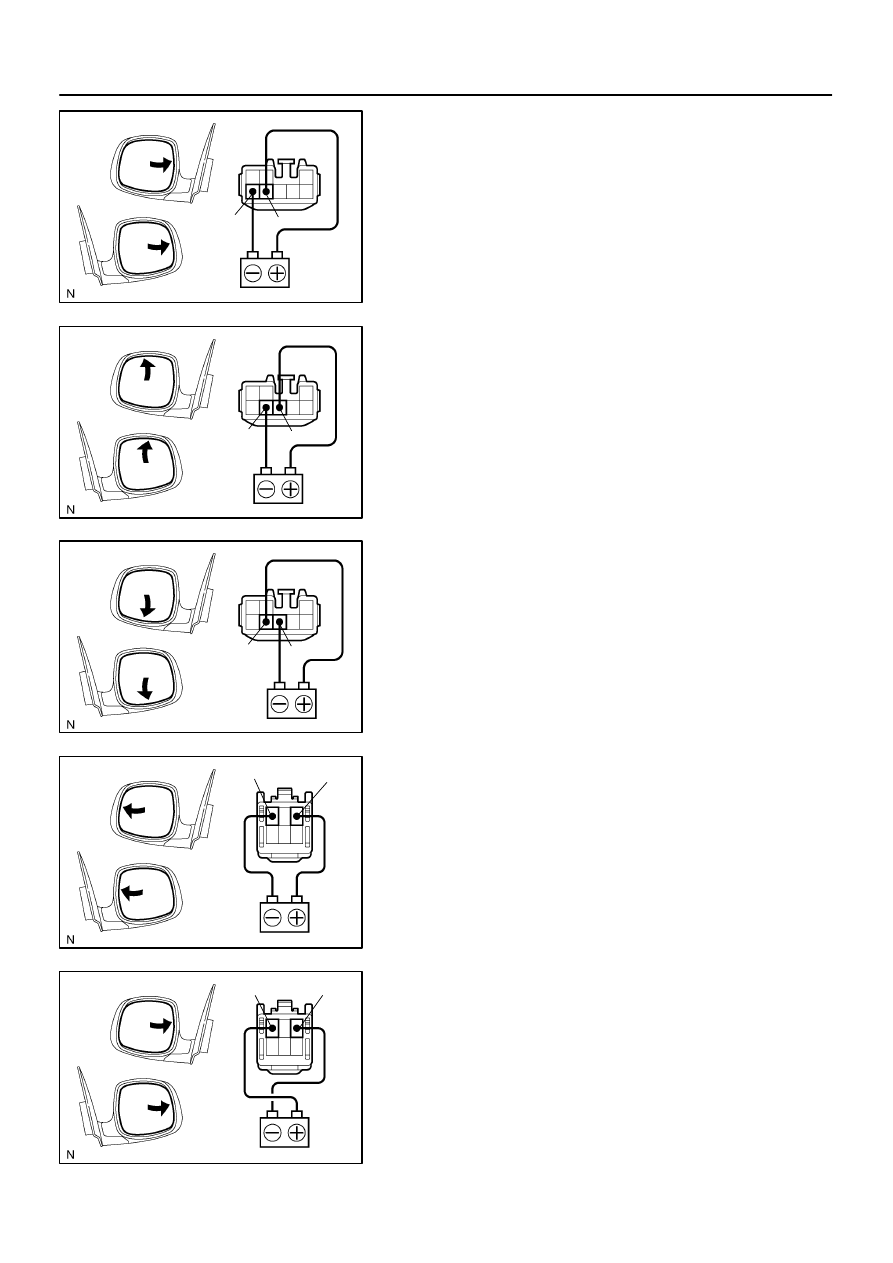

BODY ELECTRICAL

POWER MIRROR CONTROL SYSTEM

BE–117

3521

(b)

Reverse the polarity and check that the mirror turns right-
ward.

(c)

Connect the positive (+) lead from the battery to terminal
6 and the negative (–) lead to terminal 5. Check that the
mirror turns upward.

(d)

Reverse the polarity and check that the mirror turns down-
ward.

If operation is not as specified, replace the mirror assembly.

5.

w/o Retract Mirror and Driving Position Memory:
INSPECT MIRROR MOTOR OPERATION

(a)

Connect the positive (+) lead from the battery to terminal
3 and the negative (–) lead to terminal 1. Check that the
mirror turns leftward.

(b)

Reverse the polarity and check that the mirror turns right-
ward.

I24875

1

2

I24876

1

2

I28510

7

8

I28511

7

8

I28512

8

9

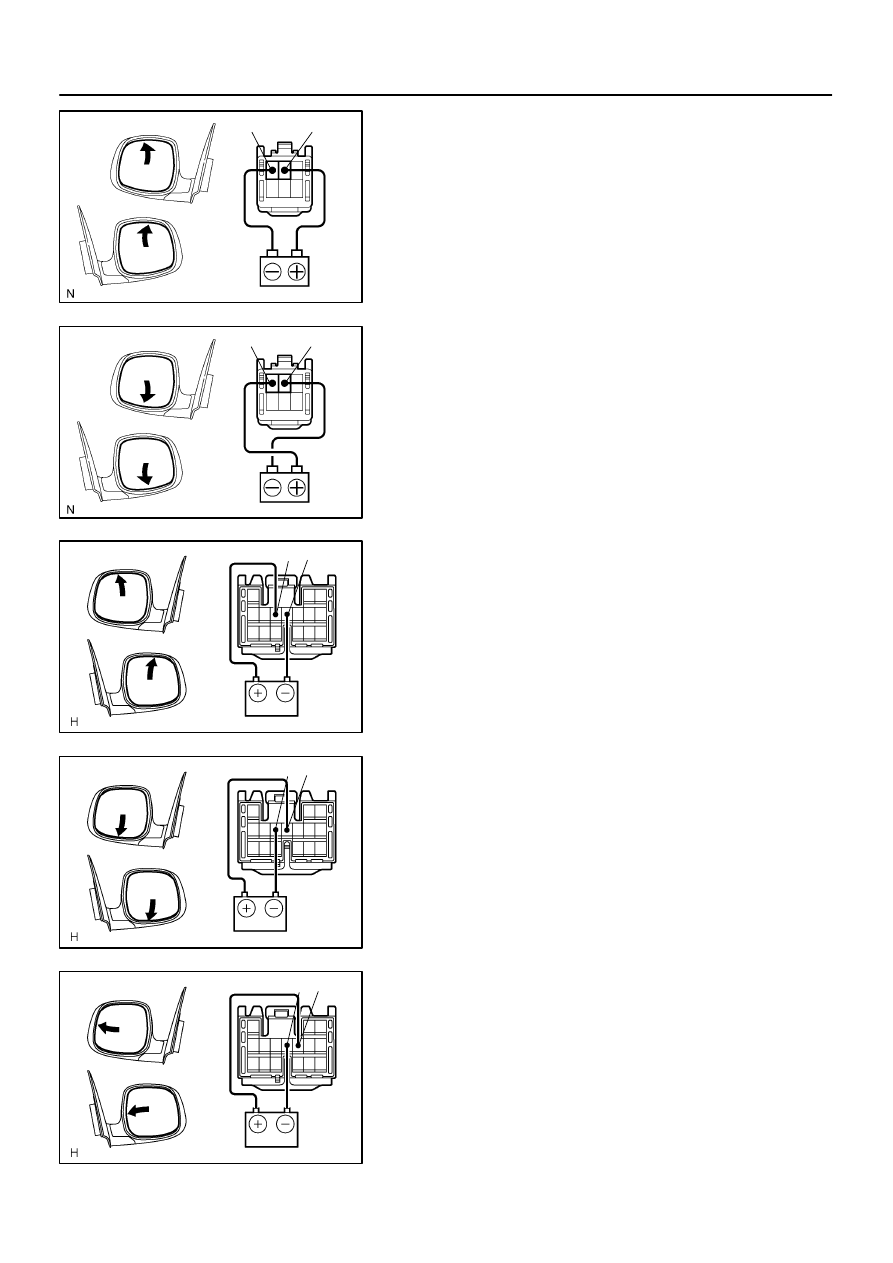

BE–118

–

BODY ELECTRICAL

POWER MIRROR CONTROL SYSTEM

3522

(c)

Connect the positive (+) lead from the battery to terminal
2 and the negative (–) lead to terminal 1. Check that the
mirror turns upward.

(d)

Reverse the polarity and check that the mirror turns down-
ward.

If operation is not as specified, replace the mirror assembly.

6.

w/ Retract Mirror and Driving Position Memory:
INSPECT MIRROR MOTOR OPERATION

(a)

Connect the positive (+) lead from the battery to terminal
7 and the negative (–) lead to terminal 8. Check that the
mirror turns upward.

(b)

Reverse the polarity and check that the mirror turns down-
ward.

(c)

Connect the positive (+) lead from the battery to terminal
8 and the negative (–) lead to terminal 9. Check that the
mirror turns leftward.

I28513

8

9

I18582

Retract
Position

Drive
Position

(a)

(b)

(c)

I24381

Connector Front View:

I18582

Retract
Position

Drive
Position

(a)

(b)

(c)

–

BODY ELECTRICAL

POWER MIRROR CONTROL SYSTEM

BE–119

3523

(d)

Reverse the polarity and check that the mirror turns right-
ward.

7.

w/o Driving Position Memory:
INSPECT ELECTRICAL RETRACT MOTOR OPERA-
TION

(a)

Driving position:
(1)

Connect the positive (+) lead from the battery to ter-
minal 1 and the negative (–) lead to terminal 2.
Check that the mirror moves to the retract position.

(2)

Reverse the polarity and check that the mirror does
not operate.

If operation is not as specified, replace the mirror assembly.
(b)

Between driving position and retract position:
(1)

Connect the positive (+) lead from the battery to ter-
minal 1 and the negative (–) lead to terminal 2.
Check that the mirror moves to the retract position.

(2)

Reverse the polarity and check that the mirror
moves to the return position (Stops at the driving
position).

If operation is not as specified, replace the mirror assembly.
(c)

Retract position:
(1)

Connect the positive (+) lead from the battery to ter-
minal 1 and the negative (–) lead to terminal 2.
Check that the mirror does not operate.

(2)

Reverse the polarity and check that the mirror
moves to the return position (Stops at the driving
position).

If operation is not as specified, replace the mirror assembly.

8.

w/ Driving Position Memory:
INSPECT ELECTRICAL RETRACT MOTOR OPERA-
TION

(a)

Driving position:
(1)

Connect the positive (+) lead from the battery to ter-
minal 13 and the negative (–) lead to terminal 14.
Check that the mirror moves to the retract position.

(2)

Reverse the polarity and check that the mirror does
not operate.

If operation is not as specified, replace the mirror assembly.

I28520

Connector Front View:

BE–120

–

BODY ELECTRICAL

POWER MIRROR CONTROL SYSTEM

3524

(b)

Between driving position and retract position:
(1)

Connect the positive (+) lead from the battery to ter-
minal 13 and the negative (–) lead to terminal 14.
Check that the mirror moves to the retract position.

(2)

Reverse the polarity and check that the mirror
moves to the return position (Stops at the driving
position).

If operation is not as specified, replace the mirror assembly.
(c)

Retract position:
(1)

Connect the positive (+) lead from the battery to ter-
minal 13 and the negative (–) lead to terminal 14.
Check that the mirror does not operate.

(2)

Reverse the polarity and check that the mirror
moves to the return position (Stops at the driving
position).

If operation is not as specified, replace the mirror assembly.
