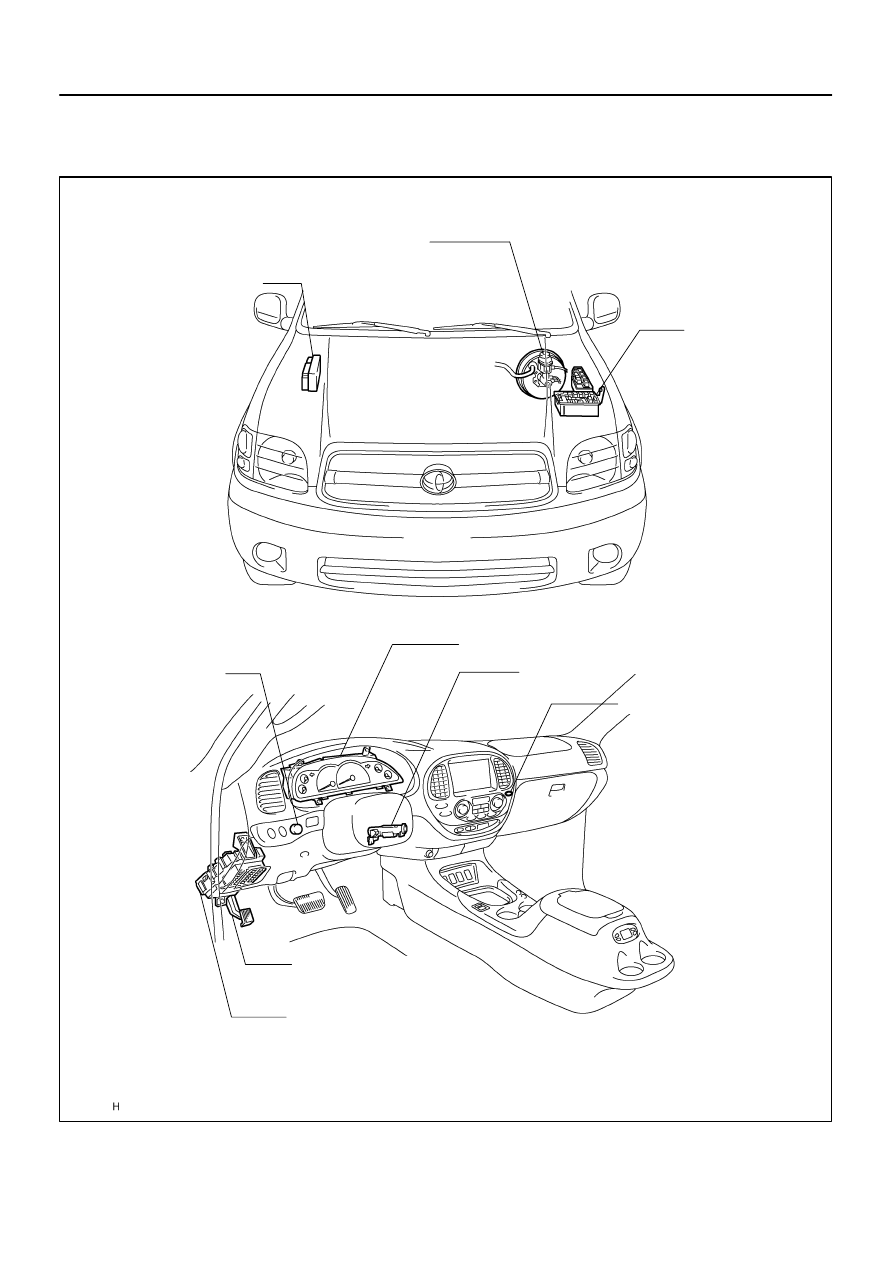

Brake Master Cylinder

 Brake Fluid Level Warning Switch

Engine Room R/B

 ECU–B Fuse

Light Control Rheostat

Combination Meter Assembly

Instrument Panel J/B

 IGN 2 Fuse

 GAUGE Fuse

Parking Brake Switch

Ignition Switch

Passenger Seat Belt Warning

Skid Control ECU

–

BODY ELECTRICAL

COMBINATION METER

BE–53

3457

COMBINATION METER

LOCATION

I28426

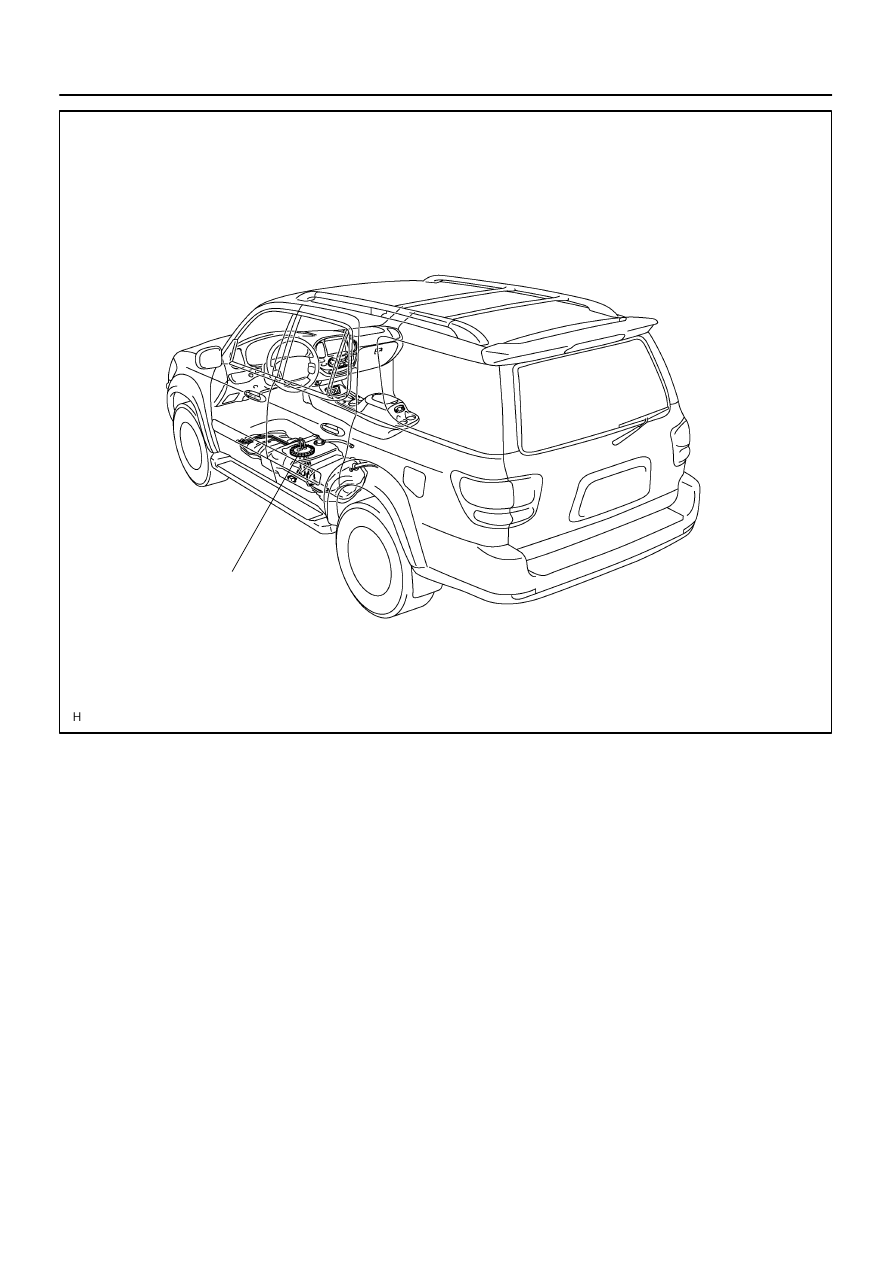

Fuel Tank

 Fuel Sender Gauge

BE–54

–

BODY ELECTRICAL

COMBINATION METER

3458

BE2MR–01

N06031

–

BODY ELECTRICAL

COMBINATION METER

BE–55

3459

INSPECTION

1.

INSPECT SPEEDOMETER ON–VEHICLE

Using a speedometer tester, inspect the speedometer for allow-
able indication error and check odometer operation.
HINT:
Tire wear and tire over or under inflation will increase the indica-
tion error.

USA (mph)

CANADA (km/h)

Standard  indication

Allowable  range

Standard  indication

Allowable range

20

19 – 22

20

17.5 – 21.5

40

39 – 42.5

40

38 – 42

60

59.5 – 63.5

60

58 – 63

80

79.5 – 84

80

78 – 84

100

100 – 105

100

98.5 – 104.5

–

120

119 – 125

–

140

139 – 145

–

160

159 – 167

If error is excessive, replace the speedometer.
2.

INSPECT TACHOMETER

(a)

Connect a tune–up test tachometer, and start the engine.

NOTICE:

Reversing the connection of the tachometer will dam-
age the transistors and diodes inside.

When removing or installing the tachometer, be care-
ful not to drop or subject it to heavy shocks.

(b)

Compare the tester and tachometer indications.

DC 13.5 V  20

°

C at (68

°

F)

Standard indication

Allowable range

700

630 – 770

1,000

900 – 1,100

2,000

1,850 – 2,150

3,000

2,800 – 3,200

4,000

3,800 – 4,200

5,000

4,800 – 5,200

6,000

5,750 – 6,250

If error is excessive, replace the tachometer.

3.

INSPECT FUEL RECEIVER GAUGE OPERATION

(a)

Disconnect the connector from the sender gauge.

(b)

Turn the ignition switch ON and check that the receiver
gauge needle indicates EMPTY.

I21530

Ignition
Switch

Battery

(Wire Harness Side)

(3.4W)

Fuel Gauge

Z05730

Warning Light

Ignition
Switch

Battery

1 2 3

4 5

Wire
Harness Side:

I28772

I01278

BE–56

–

BODY ELECTRICAL

COMBINATION METER

3460

(c)

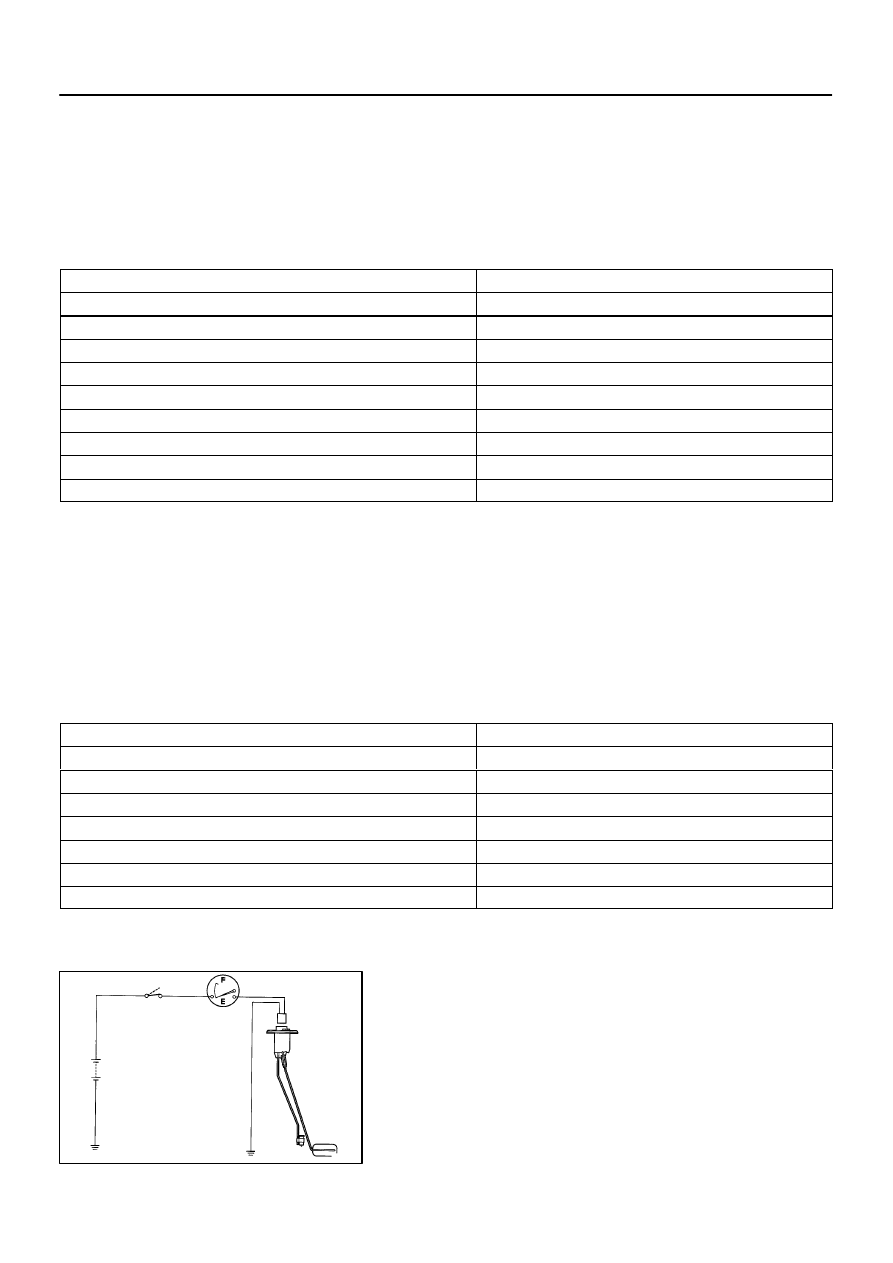

Connect terminals 2 and 3 on the wire harness side con-
nector through a 3.4 watts test bulb.

(d)

Turn the ignition switch ON, check that the bulb comes on
and the receiver gauge needle moves towards the full
side.

HINT:
Because of silicon oil in the gauge, it will take a short time for
the needle to stabilize.
If operation is not as specified, inspect the receiver gauge resis-
tance.
4.

INSPECT FUEL LEVEL WARNING LIGHT OPERATION

(a)

Disconnect the connector from the sender gauge.

(b)

Connect terminals 2 and 3 on the wire harness side con-
nector.

(c)

Turn the ignition switch ON and check that the warning
light comes on.

If the warning light does not come on, test the bulb or inspect
the wire harness.

5.

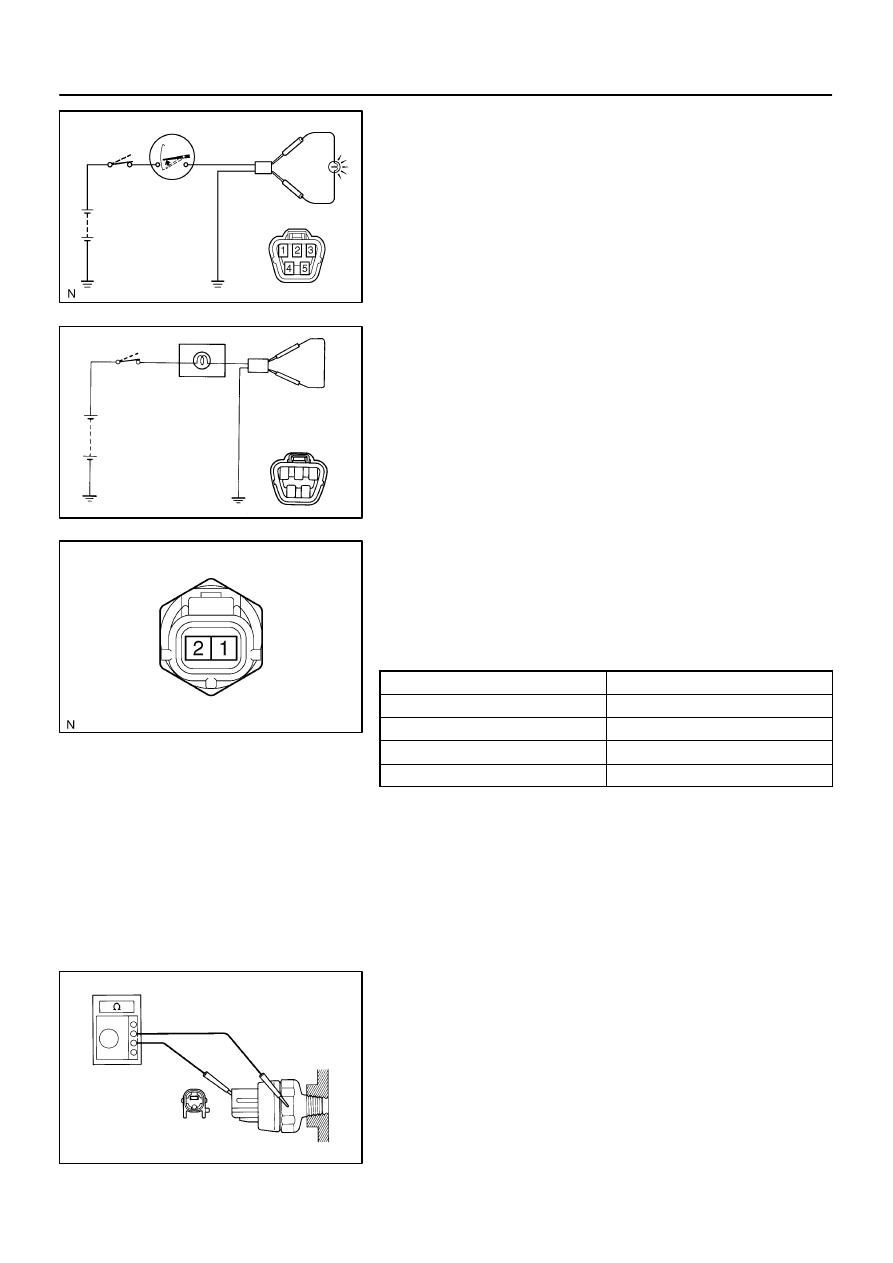

INSPECT ENGINE COOLANT TEMPERATURE SEND-
ER GAUGE RESISTANCE

(a)

Disconnect the engine coolant temperature sender
gauge.

(b)

Measure the resistance between terminals 1 and 2 of the
connector according to the value(s) in the table below.

Temperature

°

C (

°

F)

Resistance (

Ω

)

–20 (–4)

13,840 to 16,330

20 (68)

2,320 to 2,590

80 (176)

310 to 326

110 (230)

139.9 to 143.5

If resistance value is not as specified, replace the engine cool-
ant sender gauge.

6.

INSPECT OIL PRESSURE SENDER OPERATION

(a)

Disconnect the connector from the oil pressure sender.

(b)

Check that no continuity exists between terminal and
ground with the engine stopped.

(c)

Check that continuity exists between terminal and ground
with the engine running.

HINT:
Oil pressure should be over 24.5 kPa (0.25 kgf/cm

2

, 3.55 psi).

If operation is not as specified, replace the oil pressure sender.
