I01279

Warning Light

Ignition
Switch

Battery

I19428

2 1

OFF

ON

N01212

BE1217

Warning Light

Ignition
Switch

Battery

–

BODY ELECTRICAL

COMBINATION METER

BE–57

3461

7.

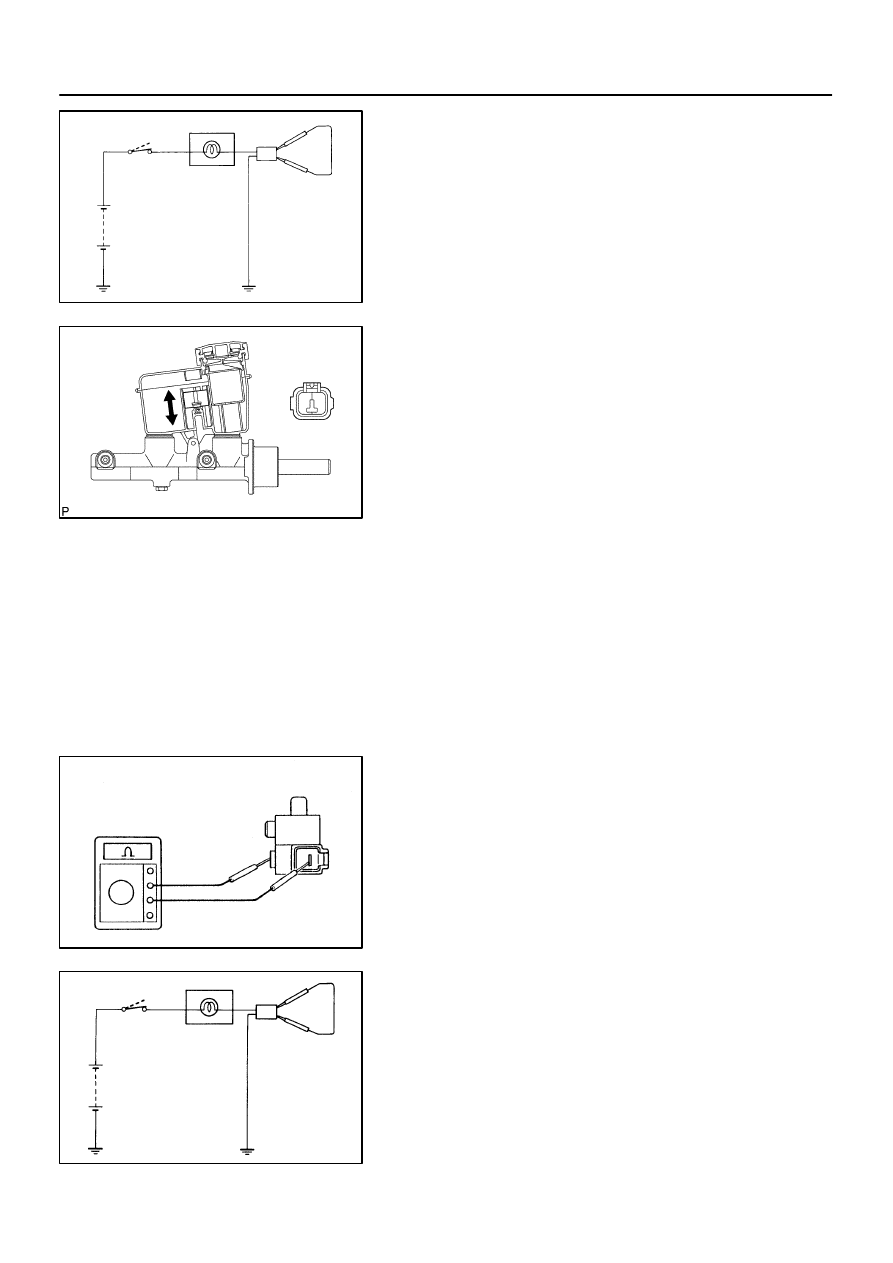

INSPECT BRAKE WARNING LIGHT OPERATION

(a)

Disconnect the connector from the brake fluid warning
switch.

(b)

Release the parking brake pedal.

(c)

Connect the terminals on the harness side of the level
warning switch connector.

(d)

Start the engine and check that the warning light comes
on.

If the warning light does not come on, test the bulb or wire har-
ness.
8.

INSPECT BRAKE FLUID LEVEL WARNING SWITCH
CONTINUITY

(a)

Remove the reservoir tank cap and strainer.

(b)

Disconnect the connector.

(c)

Check that no continuity exists between the terminals with
the switch OFF (float up).

(d)

Use siphon, etc. to drain fluid out of the reservoir tank.

(e)

Check that continuity exists between the terminals with
the switch ON (float down).

(f)

Pour the fluid back in the reservoir tank.

If continuity is not as specified, replace the switch.

9.

INSPECT PARKING BRAKE SWITCH CONTINUITY

(a)

Check that continuity exists between the terminal and
switch body with the switch ON (switch pin released).

(b)

Check that no continuity exists between the terminal and
switch body with the switch OFF (switch pin pushed in).

If operation is not as specified, replace the switch or inspect
ground point.

10.

INSPECT WASHER LEVEL WARNING LIGHT OPERA-
TION

(a)

Disconnect the connectors from the combination meter.

(b)

Connect the negative (–) lead from the battery to terminal
16.

(c)

Turn the ignition switch ON and check that the warning
light comes on.

If the warning light does not come on, test the bulb.

N07797

OFF

ON

BE0044

Warning Light

Ignition
Switch

Battery

I28507

4

10

BE–58

–

BODY ELECTRICAL

COMBINATION METER

3462

11.

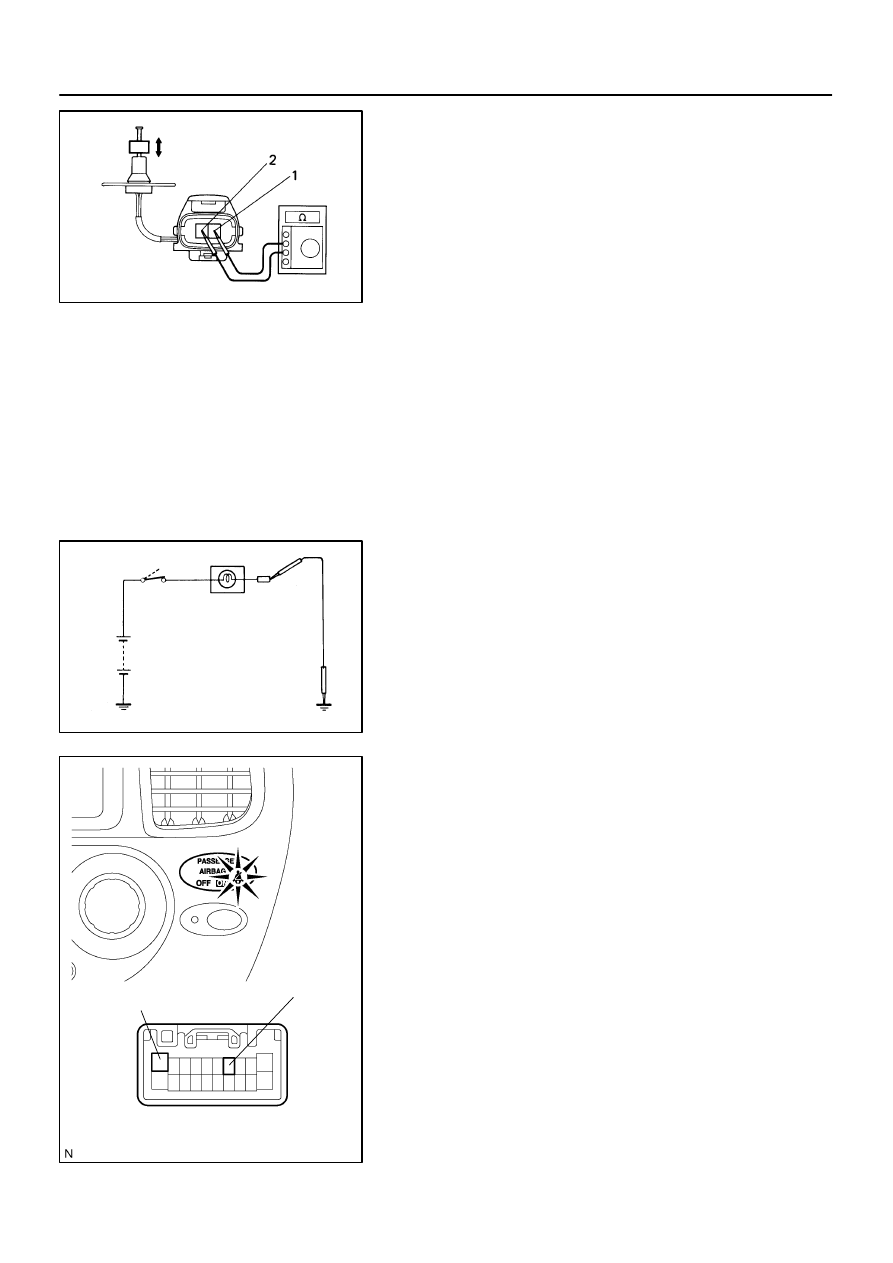

INSPECT WASHER LEVEL SWITCH CONTINUITY

(a)

Check that there is no continuity between terminals with
the switch OFF (float up).

(b)

Check that there is continuity between terminals with the
switch ON (float down).

If operation is not as specified, replace the jar & pump assem-
bly.

12.

INSPECT BUCKLE SWITCH CONTINUITY
(See page

DI–1126

)

13.

INSPECT OPEN DOOR WARNING LIGHT OPERATION

(a)

Disconnect the connector from the door courtesy switch
and ground terminal on the wire harness side connector.

(b)

Check that the warning light comes on.

If the warning light does not come on, test the bulb.

14.

INSPECT PASSENGER SEAT BELT WARNING LIGHT

(a)

Remove the center cluster finish panel.

(b)

Disconnect the connectors from the center cluster in-
tegration.

(c)

Connect the positive (+) lead from the battery to terminal
4 and the negative (–) lead to terminal 10, and check that
the warning light comes on.

If the warning light does not come on, inspect the bulb or wire
harness (See page

DI–1126

).

–

BODY ELECTRICAL

COMBINATION METER

BE–59

3463

15.

INSPECT DRIVER’S SEAT BELT WARNING BUZZER

(a)

Check warning buzzer function.
(1)

Turn the ignition switch ON and check that the driver’s seat belt warning buzzer sounds if the
driver’s seat belt is not fastened.

(2)

Check that the buzzer stops after about 6 seconds.

16.

INSPECT KEY REMINDER WARNING BUZZER

(a)

Check warning buzzer function.
(1)

Turn the ignition switch OFF and check that the key reminder warning buzzer sounds if the igni-
tion key is inserted into the key cylinder and the front driver side door is opened.

17.

MAINTENANCE LIQUID RESETTING PROCEDURE

Indicator Condition:

State

Condition

Specified State

Blinking

The vehicle has traveled 4,500 miles after the

previous setting

The indicator blinks for 12 seconds after the igni-

tion switch is turned on (including 3 seconds for a

valve check).

Continuously Illuminated

The vehicle has traveled 5,000 miles after the

previous setting

The indicator is continuously illuminated after the

ignition switch is turned on.

(a)

Set the display window to ODO.

(b)

Turn the ignition switch off.

(c)

Pressing the reset switch, turn the ignition switch to the ON position (keep pressing for at least 5 se-
conds).

(d)

Reset procedure is completed.

HINT:

If the ignition switch is turned off during the reset procedure, reset mode is canceled.

If the reset switch is turned off during the reset procedure, reset mode is canceled and the display
shows the condition prior to the reset procedure.

BE260–05

I28409

Instrument Panel J/B

 ECU–IG Fuse

 GAUGE Fuse

Overhead Module

 Compass

BE–60

–

BODY ELECTRICAL

COMPASS

3464

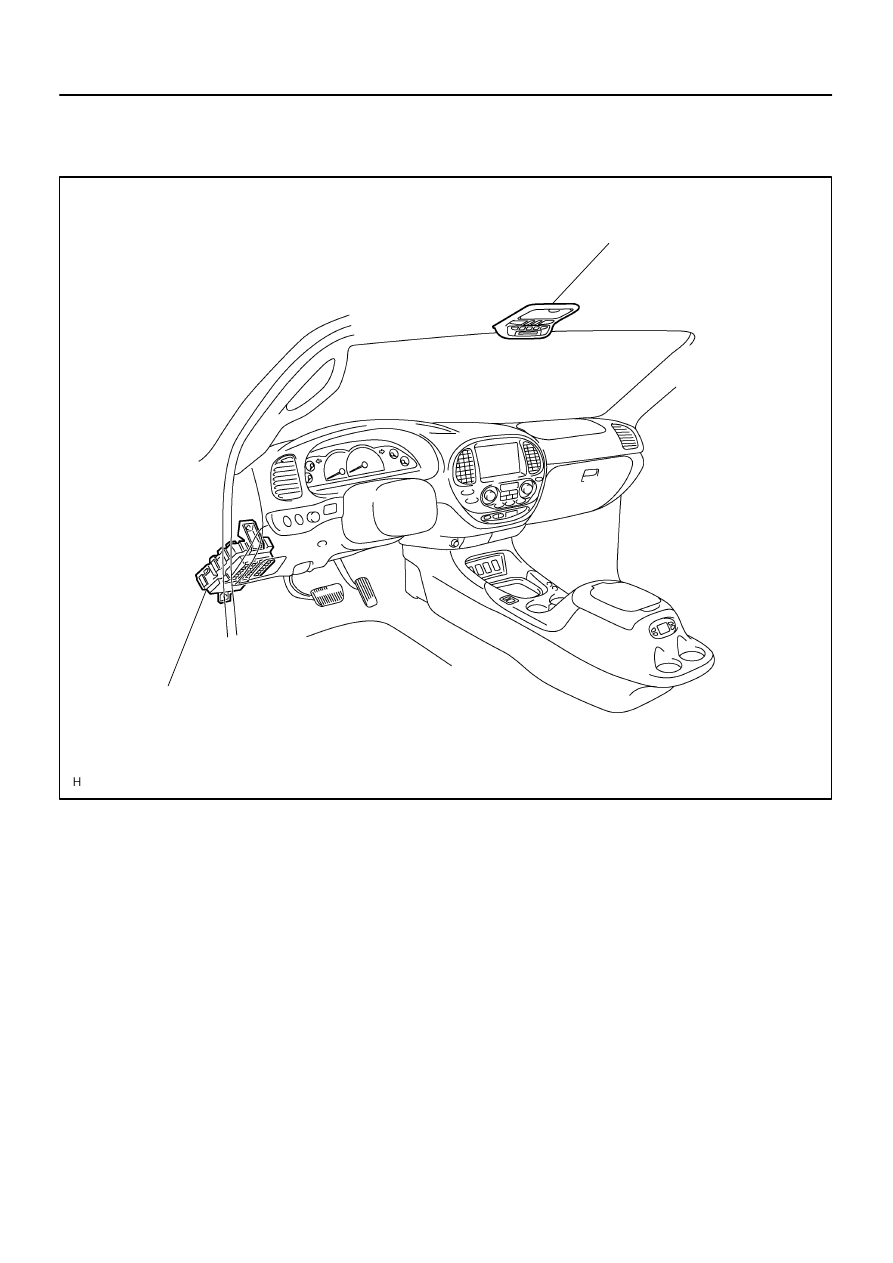

COMPASS

LOCATION
