Toyota Sequoia (2005). Manual - part 865

I05027

1

2

3

5

5

2

1

3

BE25V–04

–

BODY ELECTRICAL

BACK–UP LIGHT SYSTEM

BE–45

3449

INSPECTION

1.

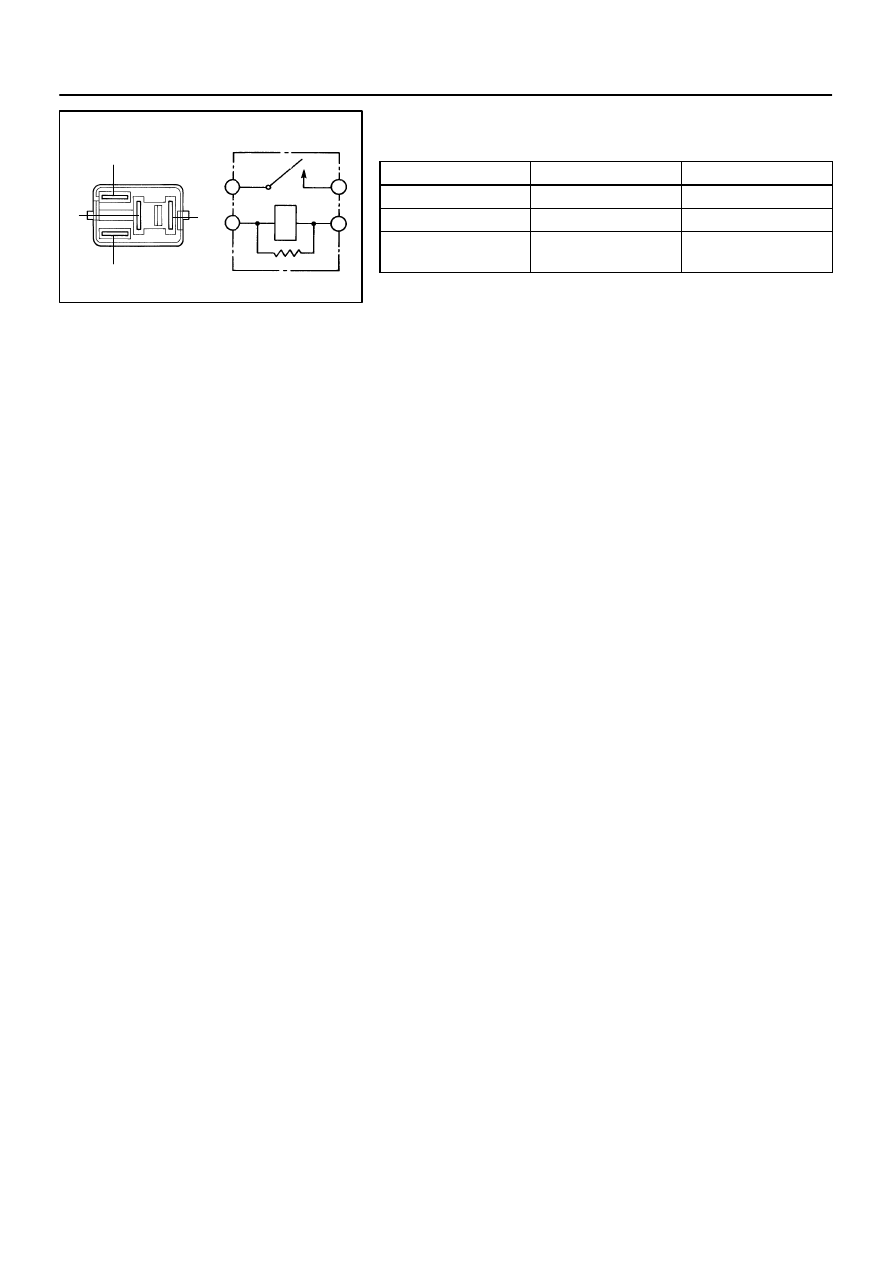

INSPECT BACK–UP LIGHT RELAY CONTINUITY

Condition

Tester connection

Specified condition

Constant

1 – 2

Continuity

Constant

3 – 5

No continuity

Apply B+ between

terminals 1 and 2.

3 – 5

Continuity

If continuity is not as specified, replace the relay.
2.

INSPECT PARK/NEUTRAL POSITION SWITCH (See
page

DI–576

)

BE039–08

I28406

High Mounted Stop Light

Stop Light Switch

Instrument Panel J/B

 STOP Fuse

Stop Light

BE–46

–

BODY ELECTRICAL

STOP LIGHT SYSTEM

3450

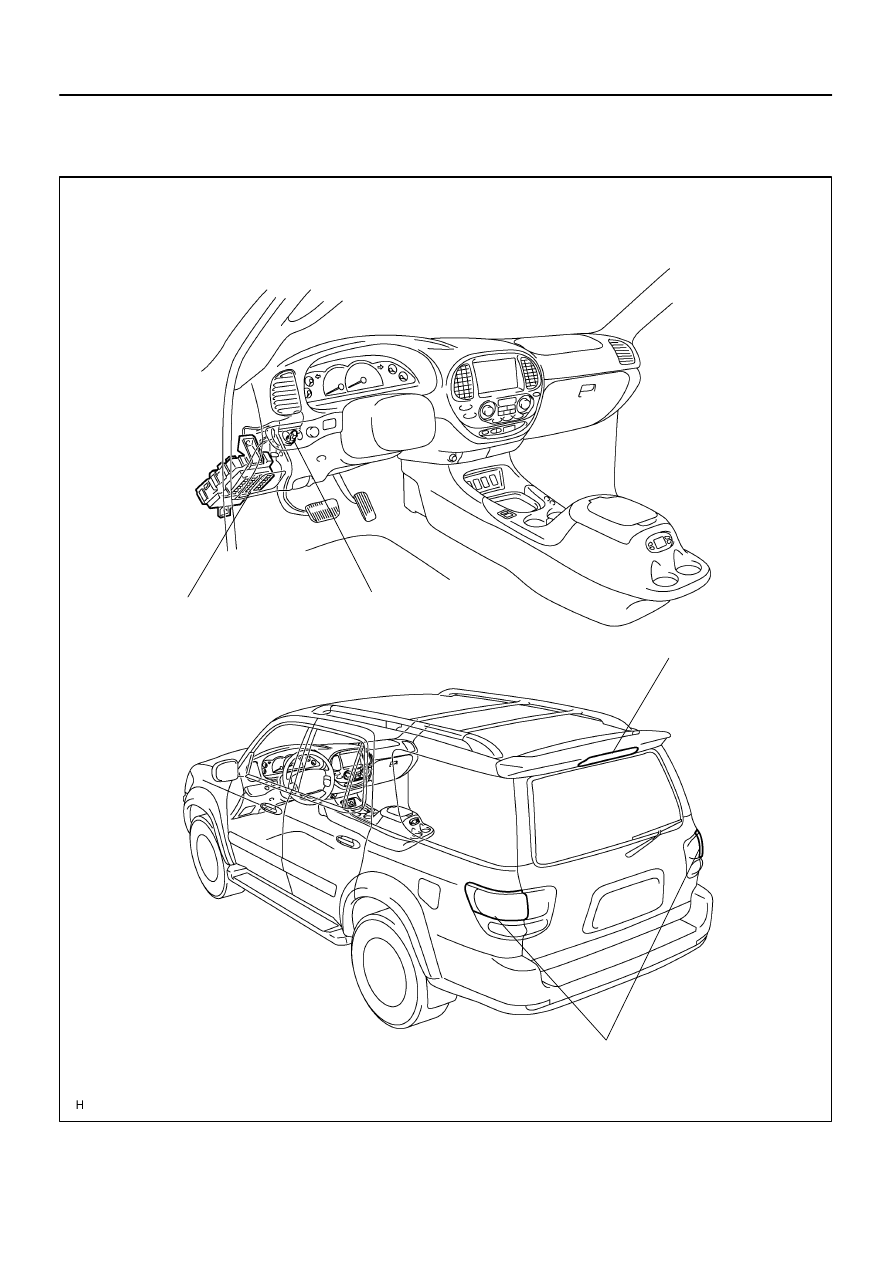

STOP LIGHT SYSTEM

LOCATION

BE25W–04

I21525

Free     Pushed in

I18556

I04053

–

BODY ELECTRICAL

STOP LIGHT SYSTEM

BE–47

3451

INSPECTION

1.

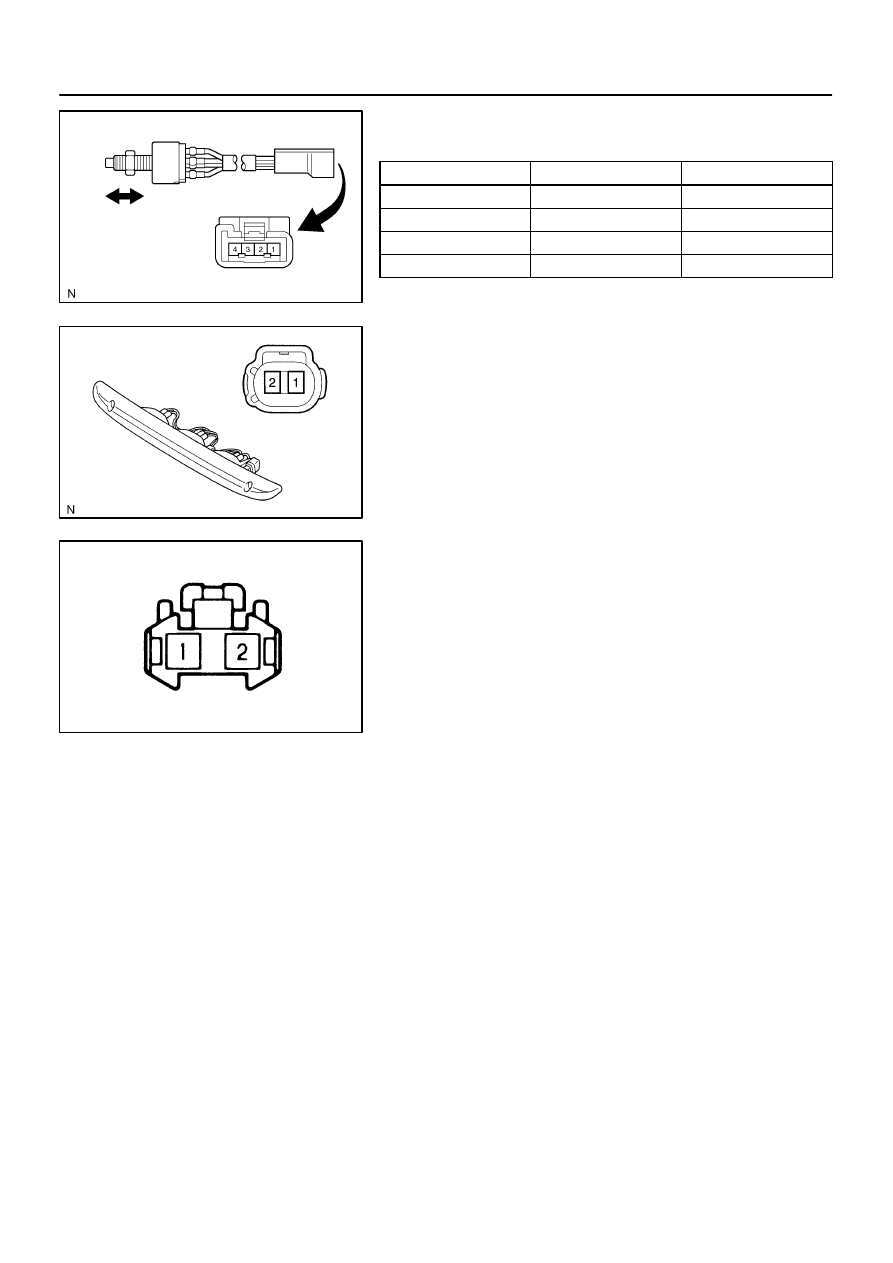

INSPECT STOP LIGHT SWITCH CONTINUITY

Switch position

Tester connection

Specified condition

Switch pin free

1 – 4

Continuity

Switch pin pushed in

1 – 4

No continuity

Switch pin free

2 – 3

No continuity

Switch pin pushed in

2 – 3

Continuity

If continuity is not as specified, replace the switch.

2.

w/  Rear Spoiler:
INSPECT HI–MOUNTED STOP LIGHT ASSEMBLY
CONTINUITY

Using the ohmmeter, check that continuity exists between ter-
minal 1 and terminal 2.
If continuity is not as specified, replace the light assembly.

3.

w/o Rear Spoiler:
INSPECT HI–MOUNTED STOP LIGHT ASSEMBLY
CONTINUITY

Using the ohmmeter, check that continuity exists between ter-
minal 1 and terminal 2.
If continuity is not as specified, replace the light assembly.

BE03B–10

I28408

Wiper Motor

Rear Wiper Motor

Ignition Switch

Washer Tank

Front Washer Motor

Rear Washer Motor

Combination Switch

 Wiper and Washer Switch

Instrument Panel J/B

 WSH Fuse

 WIP Fuse

BE–48

–

BODY ELECTRICAL

WIPER AND WASHER SYSTEM

3452

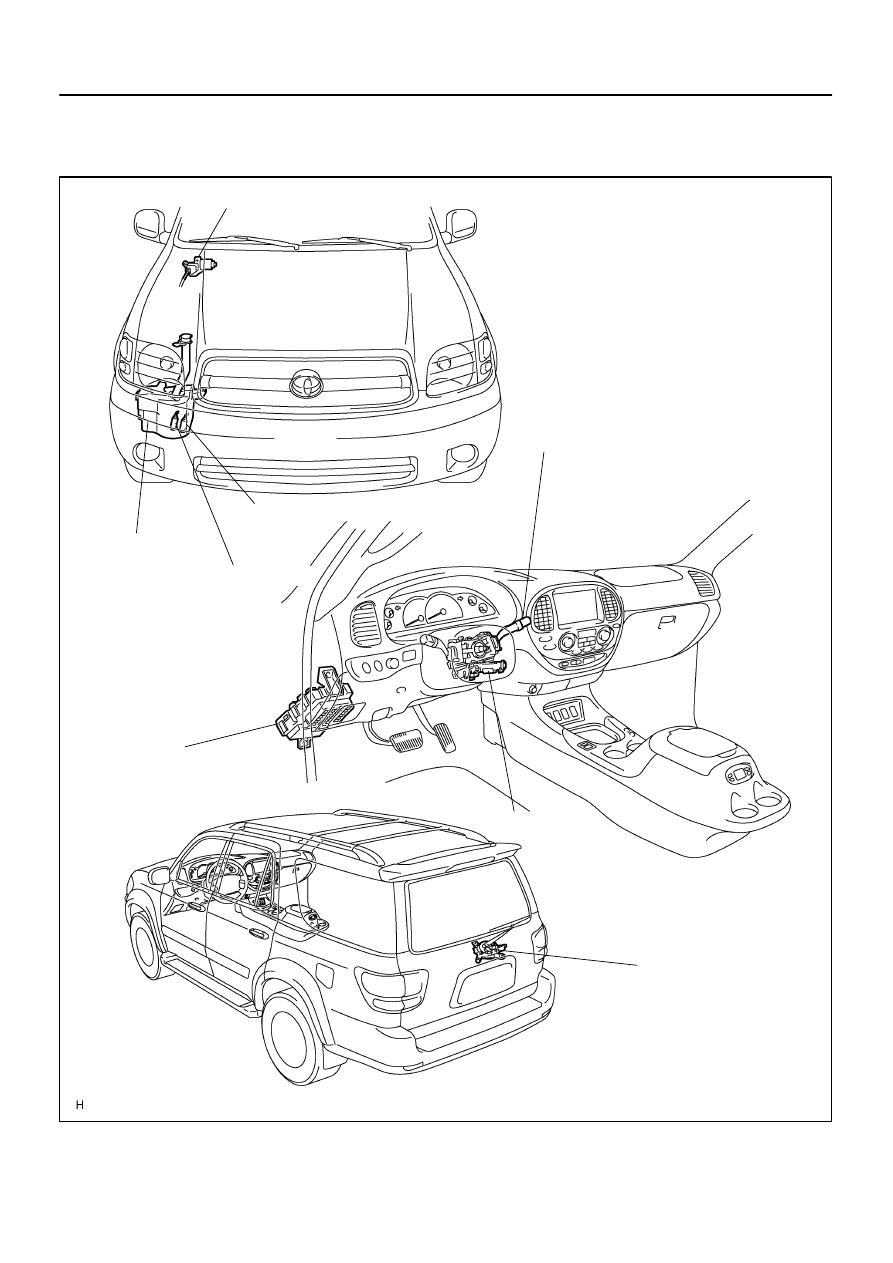

WIPER AND WASHER SYSTEM

LOCATION
