Toyota Sequoia (2005). Manual - part 864
I28730
3
2
N08313
2
N08314
1
2
N20159
ON
OFF
Ohmmeter
I04056
–
BODY ELECTRICAL
INTERIOR LIGHT SYSTEM
BE–41
3445
(c)

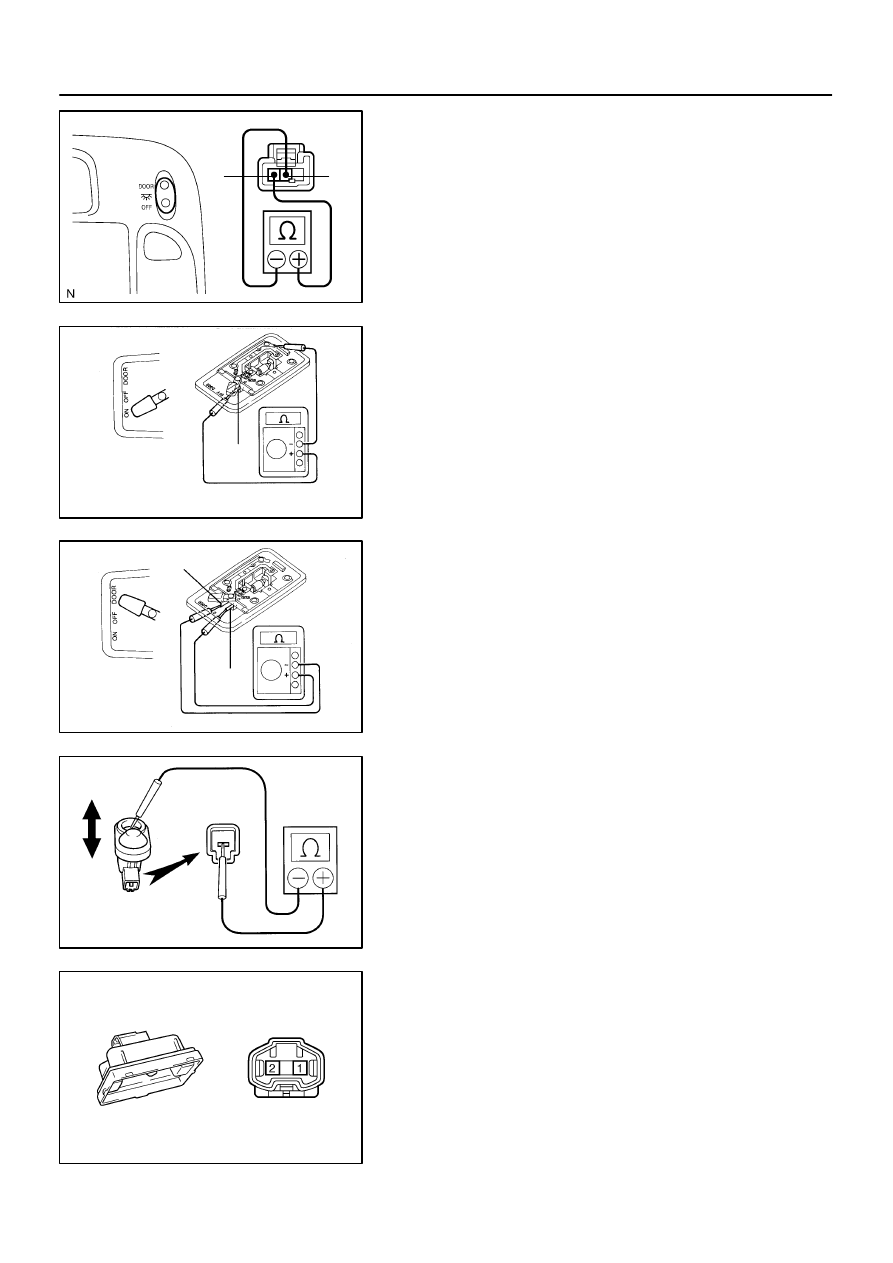

Turn the light switch to DOOR, check that continuity exists
between terminals 2 and 3.
If continuity is not as specified, replace the light assembly or
bulb.
5.
INSPECT LUGGAGE ROOM LIGHT SWITCH CONTI-
NUITY
(a)
Disconnect the connector from the interior light assembly.
(b)
Turn the interior light switch ON, check that continuity ex-
ists between terminal 2 and body ground.
If continuity is not as specified, replace the light assembly or
bulb.
(c)
Turn the interior light switch to DOOR, check that continu-
ity exists between terminals 1 and 2.
If continuity is not as specified, replace the light assembly or
bulb.
6.
INSPECT DOOR COURTESY LIGHT SWITCH CONTI-
NUITY
(a)
Check that continuity exists between terminals and the
switch body with the switch ON (switch pin released:
opened door).
(b)
Check that no continuity exists between terminals and the
switch body with the switch OFF (switch pin pushed in:
closed door).
If continuity is not as specified, replace the switch.
7.
INSPECT DOOR COURTESY LIGHT CONTINUITY
Check that continuity exists between terminals.
If continuity is not as specified, replace the light assembly or
bulb.
