Toyota Sequoia (2005). Manual - part 827

H23911

Lances

H23912

RS–14

–

SUPPLEMENTAL RESTRAINT SYSTEM

SRS AIRBAG

3297

(2)

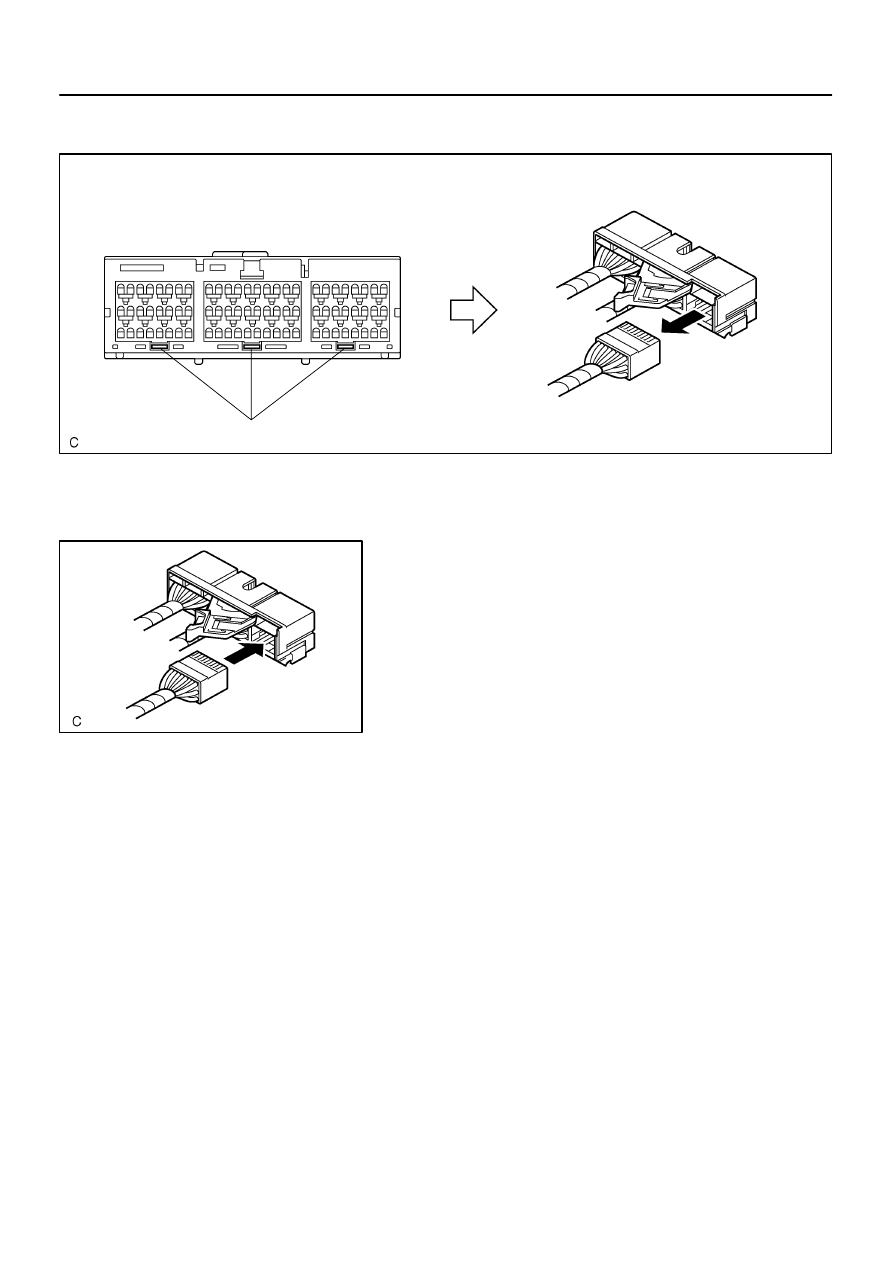

Release the fitting lances and remove the holder.

(c)

Install the holder.
(1)

Install the connectors to the holder. (When locking,
a click sound can be heard.)

HINT:
The retainer is locked when the holder is connected.

H23913

Connection is completed

Lever

Holder (with connectors)

–

SUPPLEMENTAL RESTRAINT SYSTEM

SRS AIRBAG

RS–15

3298

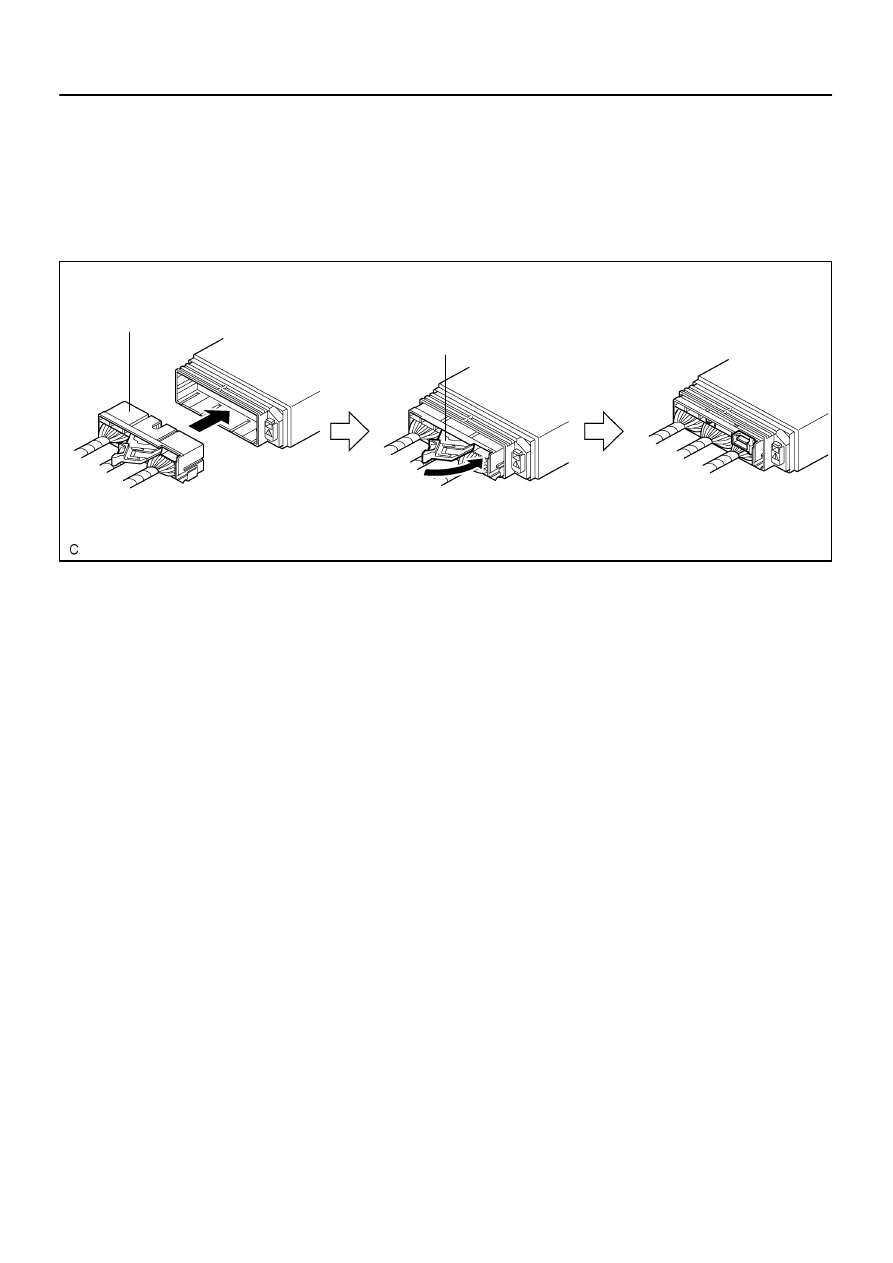

21.

CONNECTION OF CONNECTOR FOR AIRBAG SENSOR ASSY CENTER

(a)

Firmly insert the holder (with connectors) until it can not be pushed any further.

(b)

Push the lever to connect the holder (with connectors). (When locking, a click sound can be heard.)

HINT:
The holder slides when connecting. Be sure not to hold the holder while connecting, as it may result in an
insecure fit.

H24685

Housing Lock (White Part)

A

CPA (Yellow Part)

Connector
lock is
released

H24686

RS–16

–

SUPPLEMENTAL RESTRAINT SYSTEM

SRS AIRBAG

3299

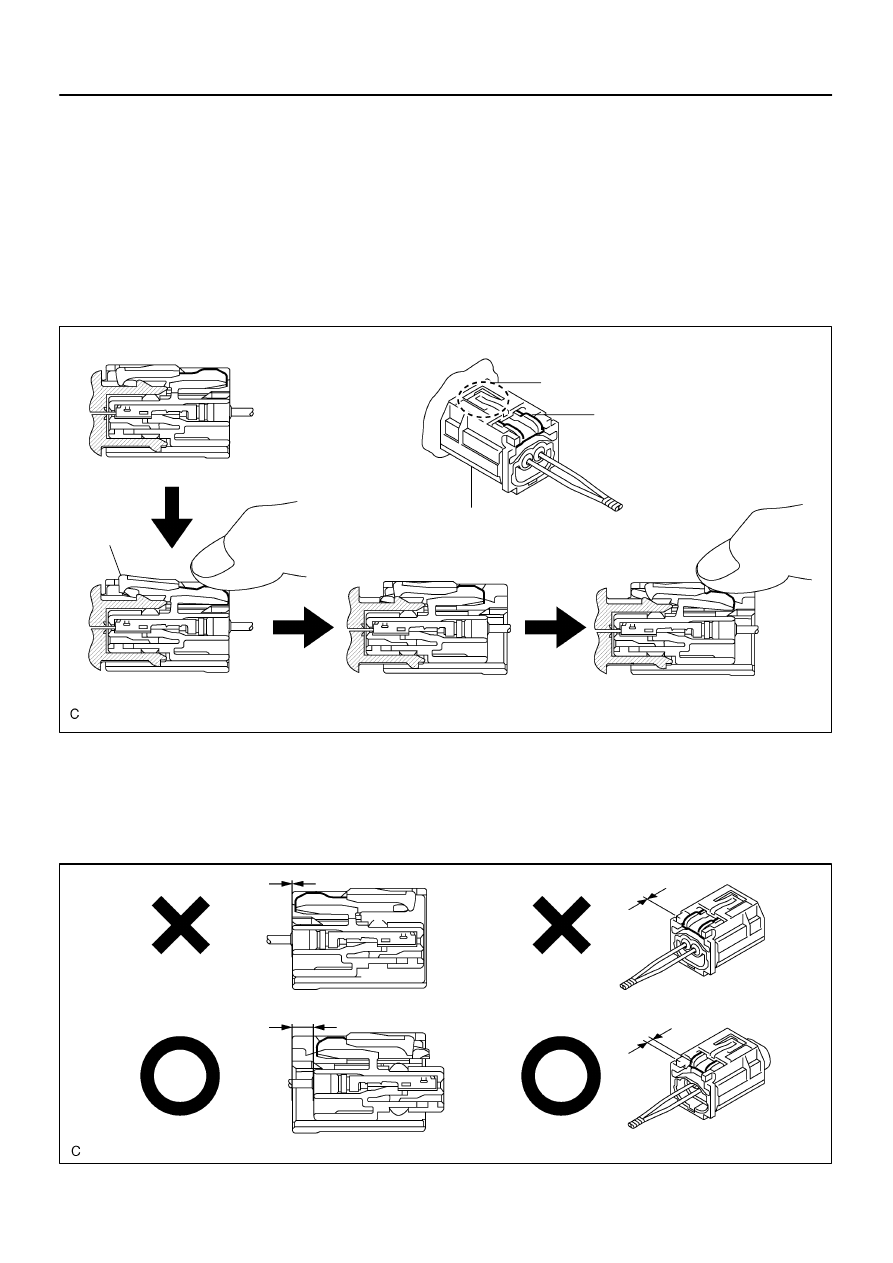

22.

DISCONNECTION OF CONNECTOR FOR FRONT AIRBAG SENSOR

(a)

Push down the housing lock (white part) and slide the CPA (yellow part). (At this time, the connector
cannot be disconnected yet).

(b)

Push down the housing lock (white part) again and disconnect the connector.

HINT:
Do not push down the A part shown in the illustration when disconnecting.

(c)

After disconnecting the connector, check that the position of the housing lock (the white part) is as
shown in the illustration.

H24687

H24688

Housing Lock
(White Part)

A

CPA (Yellow Part)

Connection is
completed

–

SUPPLEMENTAL RESTRAINT SYSTEM

SRS AIRBAG

RS–17

3300

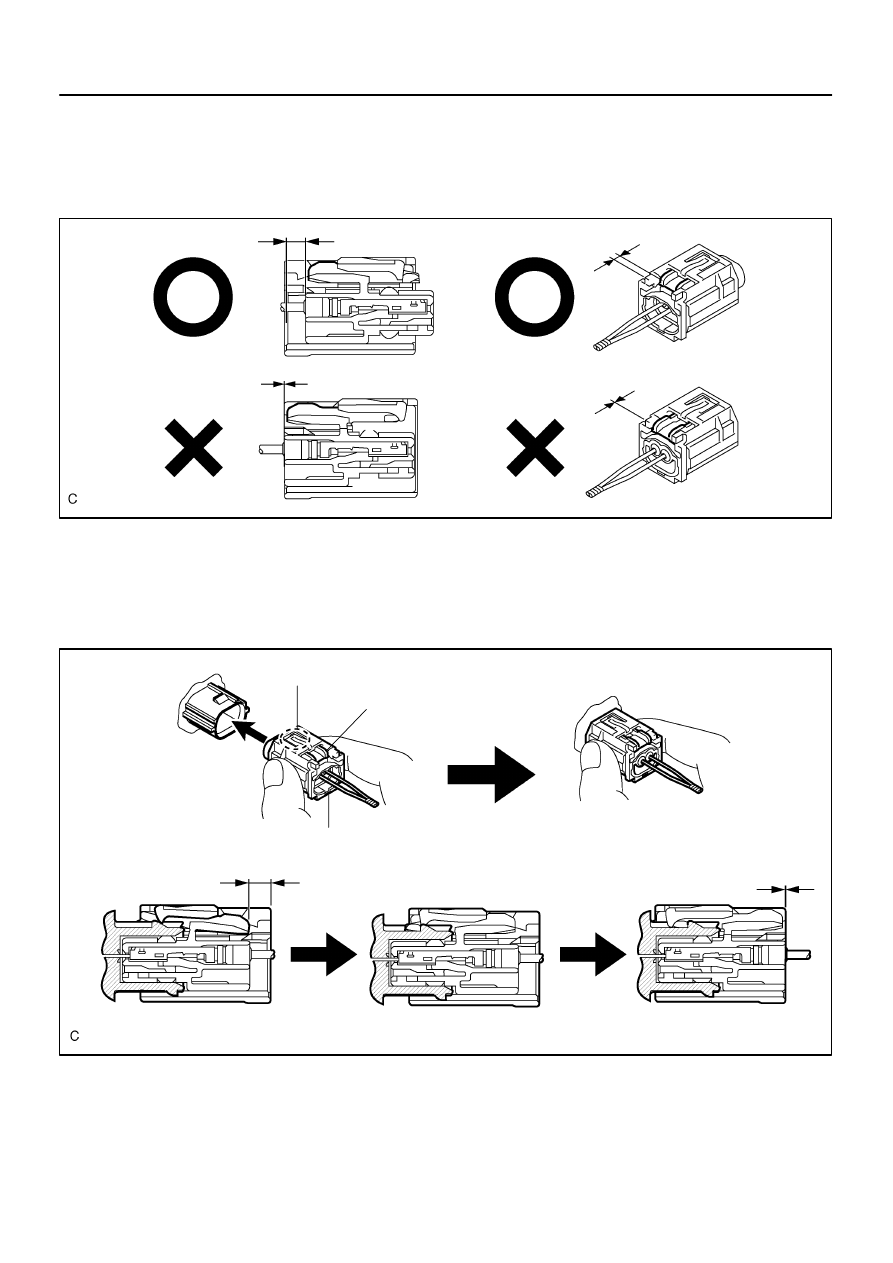

23.

CONNECTION OF CONNECTOR FOR FRONT AIRBAG SENSOR

(a)

Before connecting the connectors, check that the position of the housing lock (the white part) is as
shown in the illustration.

(b)

Be sure to engage the connectors until they are locked. (When locking, make sure that a click sound
can be heard.)

HINT:
When connecting them, the housing lock (white part) slides. Be sure not to hold the housing lock (white part)
and A part, as it may result in an insecure fit.
