RS–6

–

SUPPLEMENTAL RESTRAINT SYSTEM

SRS AIRBAG

3289

14.

RSCA OFF SWITCH

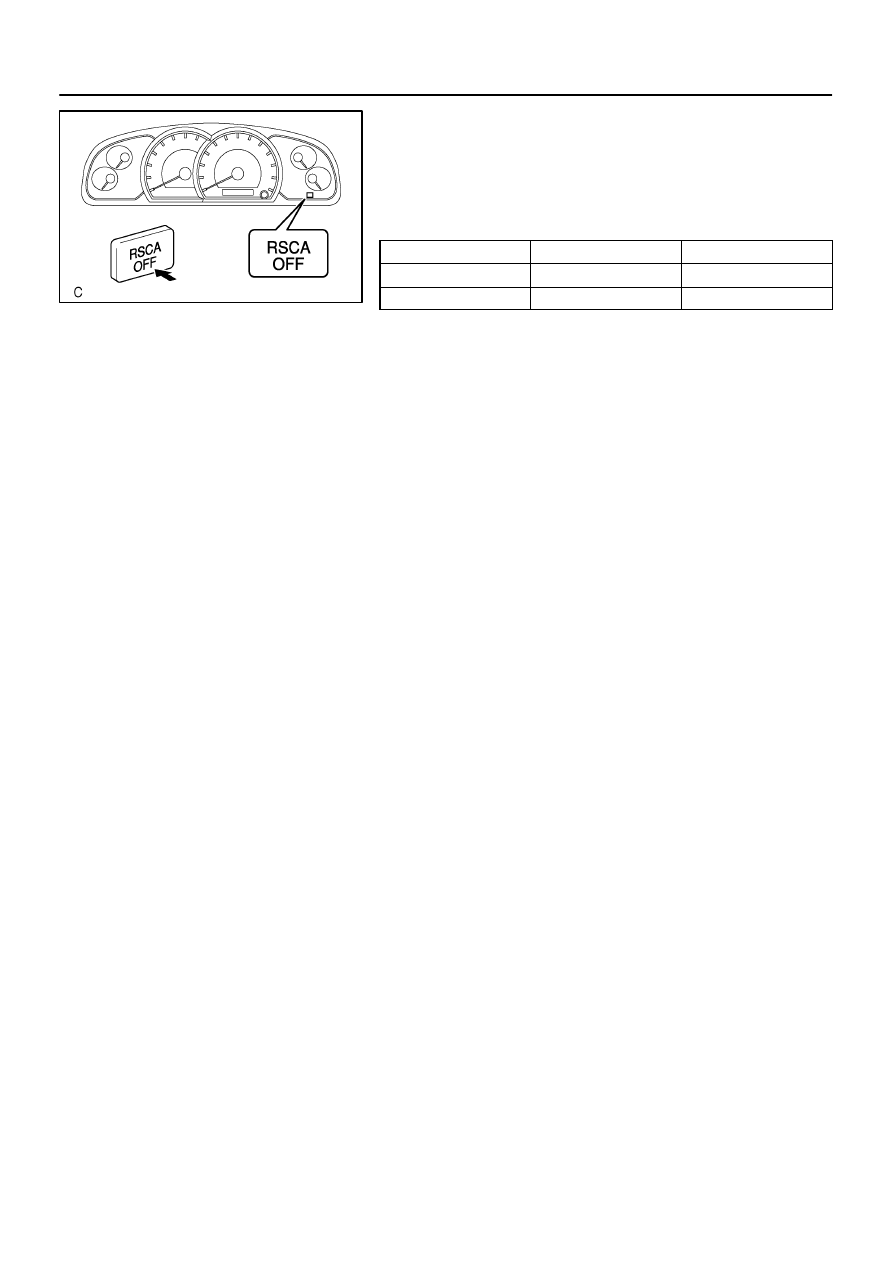

The RSCA OFF switch is located on the switch base. The cur-
tain shield airbag can be switched ON and OFF by pushing the
RCSA OFF switch. Also, the RCSA OFF indicator lamp comes
on to inform the passenger that the curtain shield airbag is dis-
abled.

Switch Position

Curtain Shield Airbag

Indicator Light

ON

Operative

OFF

OFF

Disabled

ON

H23944

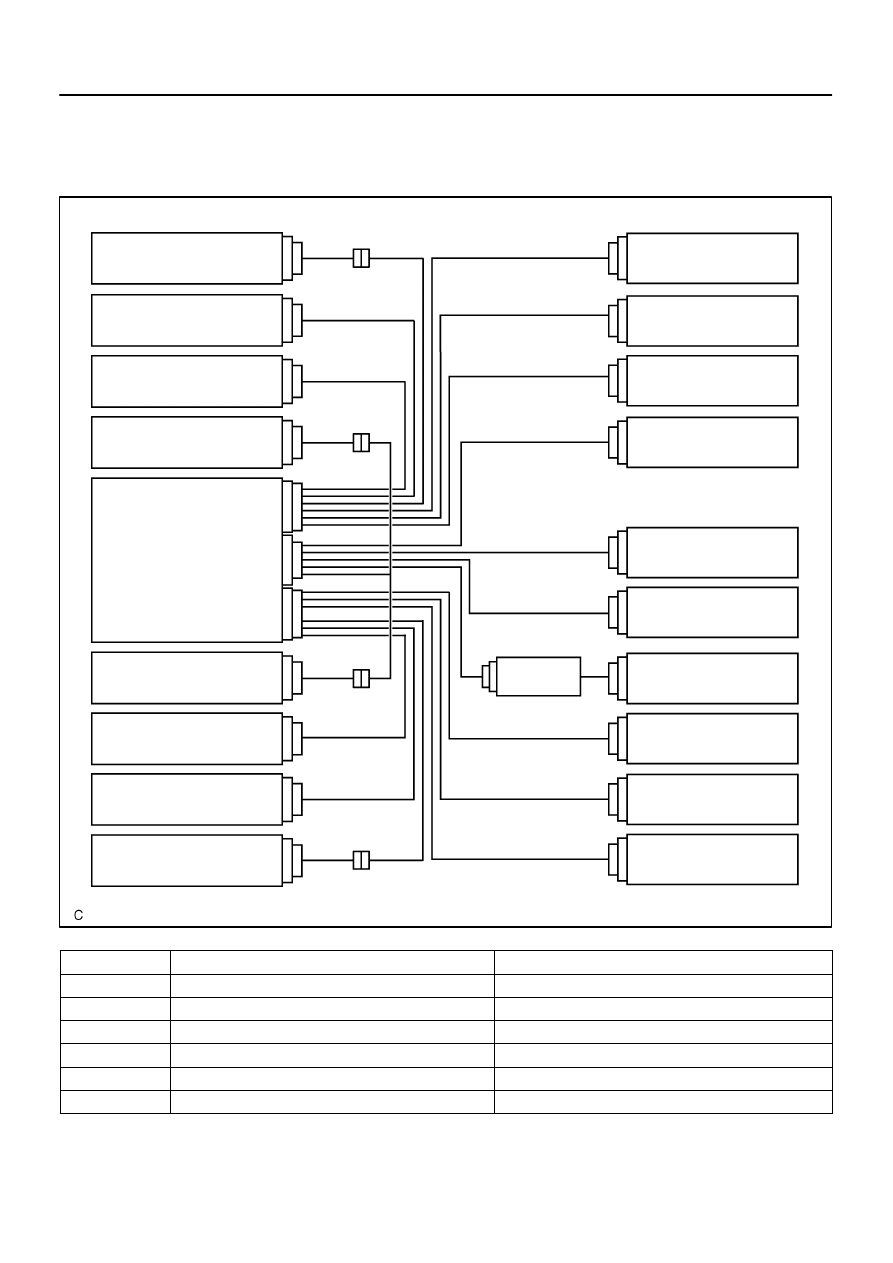

Side Airbag

Sensor Assembly RH (*1)

Airbag Sensor

Assembly

Front Seat Outer

Belt Assembly RH

Front Seat Airbag

Assembly RH (Squib) (*1)

14

13

Front Airbag Sensor

LH

Side Airbag

Sensor Assembly LH (*1)

Seat Position

Airbag Sensor

Front Seat Airbag

Assembly LH (Squib)

Curtain Shield Airbag

Assembly LH (Squib) (*1)

Front Airbag Sensor

RH

Front Passenger

Airbag Assembly (Squib)

Front Seat Outer

Belt Assembly LH (*1)

Spiral Cable

Curtain Shield Airbag

Assembly RH (Squib) (*1)

10

9

8

7

6

5

4

3

2

1

4

3

6

5

8

7

10

9

12

11

16

15

18

17

18

17

20

19

22

21

32

31

30

29

28

27

26

25

34

33

36

35

28

27

30

29

32

31

24

23

Occupant

Classification ECU

Curtain Shield Airbag

Sensor Assembly RH (*1)

Curtain Shield Airbag

Sensor Assembly LH (*1)

Steering Wheel

Pad (Squib)

RCSA OFF Switch (*1)

RCSA OFF Switch

 (Light) (*1)

(*1) w/ Side Airbag and Curtain Shield Airbag

–

SUPPLEMENTAL RESTRAINT SYSTEM

SRS AIRBAG

RS–7

3290

15.

SRS CONNECTORS

HINT:
SRS connectors are located as shown in the following illustration.

No.

Connector Type

Application

(1)

Terminal Twin–Lock Mechanism

Connectors 2, 4, 6, 8, 10, 18, 21, 25, 26, 27, 28

(2)

Activation Prevention Mechanism

Connectors 2, 4, 22, 24, 26, 28, 30, 32

(3)

Half Connection Prevention Mechanism

Connectors 6, 8, 10, 17, 21, 25, 27

(4)

Connector Lock Mechanism (1)

Connectors 23, 29, 31

(5)

Connector Lock Mechanism (2)

Connectors 2, 4

(6)

Improper Connection Prevention Lock Mechanism

Connectors 1, 3

Z05953

Spacer

Housing

Female

Male

R10587

When Connector is Connected

When Connector is Disconnected

Short Spring Plate

Housing

Housing

Terminal

Connectors

Short Spring Plate

Squib

Closed Circuit

Squib

Short Spring Plate ON

Contacting Male Terminal

Short Spring Plate

RS–8

–

SUPPLEMENTAL RESTRAINT SYSTEM

SRS AIRBAG

3291

(a)

All connectors in the SRS, except the seat position airbag
sensor connector and occupant classification ECU con-
nectors, are colored yellow to distinguish them from other
connectors. These connectors have special functions,
and are specially designed for the SRS. All SRS connec-
tors use durable gold–plated terminals, and are placed in
the locations shown on the previous page to ensure high
reliability.

(1)

Terminal Twin–Lock Mechanism
Each connector has a two–piece component con-
sisting of a housing and a spacer. This design al-
lows the terminal to be locked securely by two lock-
ing devices (the retainer and the lance) to prevent
terminals from coming out.

(2)

Activation Prevention Mechanism

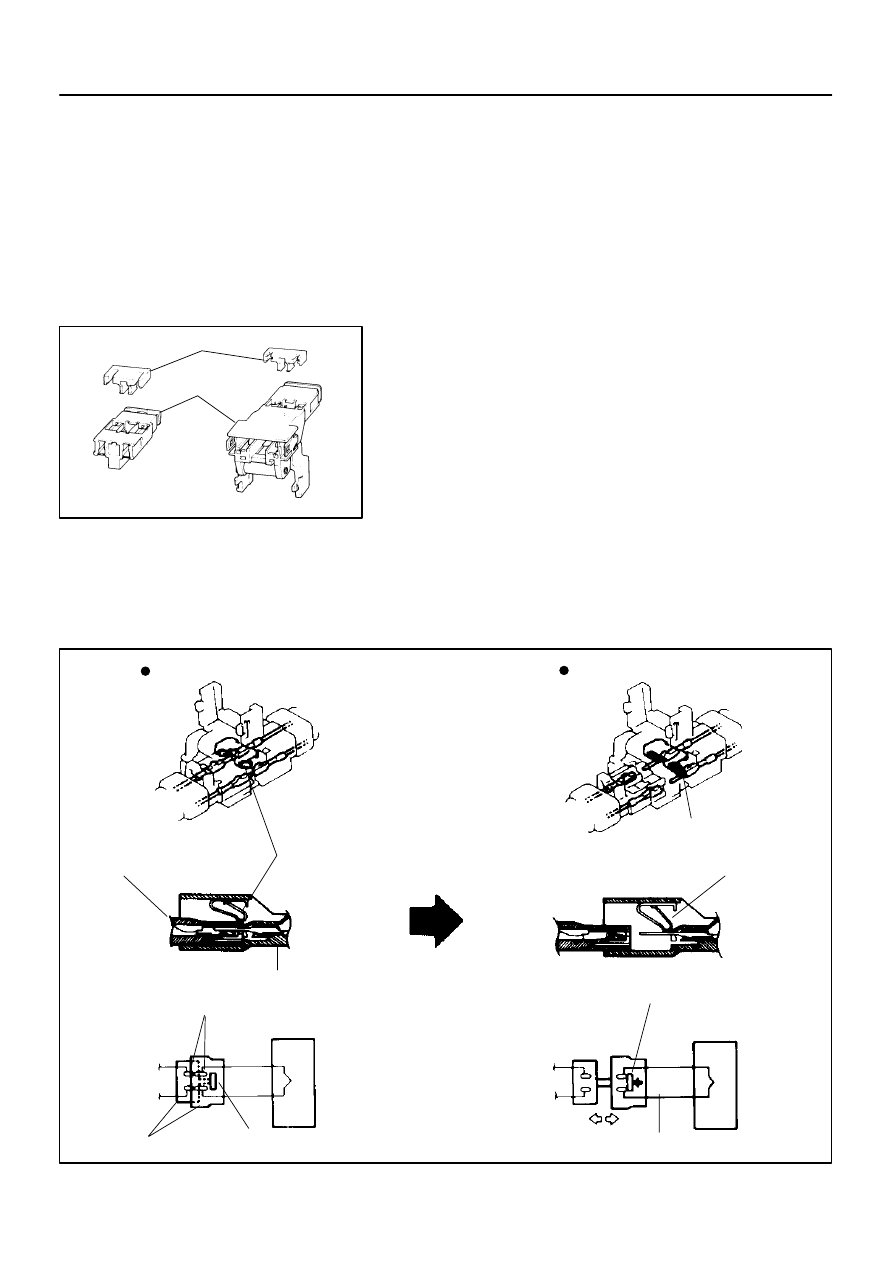

Each connector contains a short spring plate. When
the connector is disconnected, the short spring
plate automatically connects the positive (+) termi-
nal and negative (–) terminal of the squib.

C51019

H20054

Stopper

Locking Part

Spring

Slider

Locking Arm

Rebounded by Slider
(Spring)

Stopper

H20055

Claw

Groove

Lock Button

–

SUPPLEMENTAL RESTRAINT SYSTEM

SRS AIRBAG

RS–9

3292

(3)

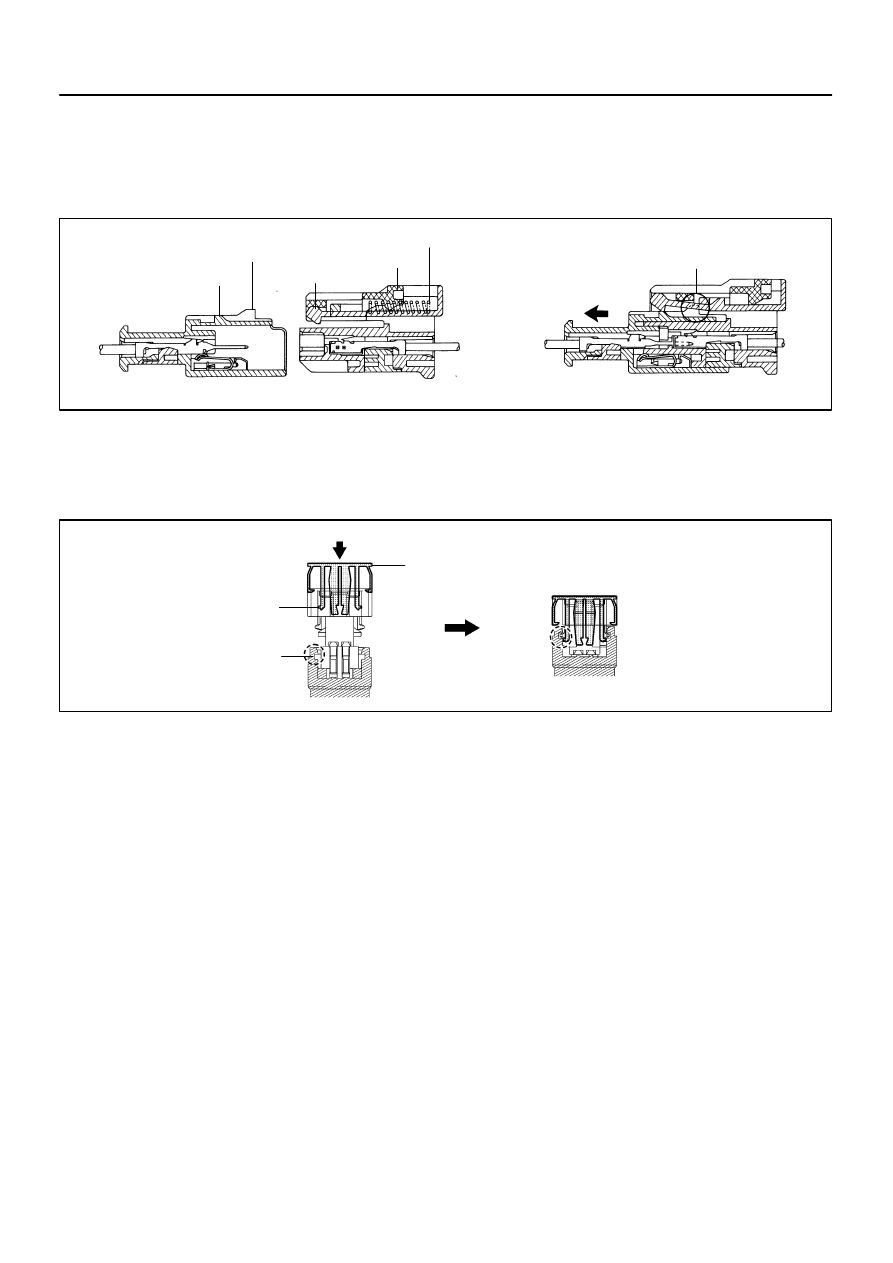

Half connection prevention mechanism:
If the connector is not completely connected, the
connector is disconnected due to the spring opera-
tion to the extent that no continuity exists.

(4)

Connector lock mechanism (1):
Locking the connector lock button securely con-
nects the connector.
