F13621

Fulcrum
Length

SST

SR–54

–

STEERING

POWER STEERING GEAR

3281

19.

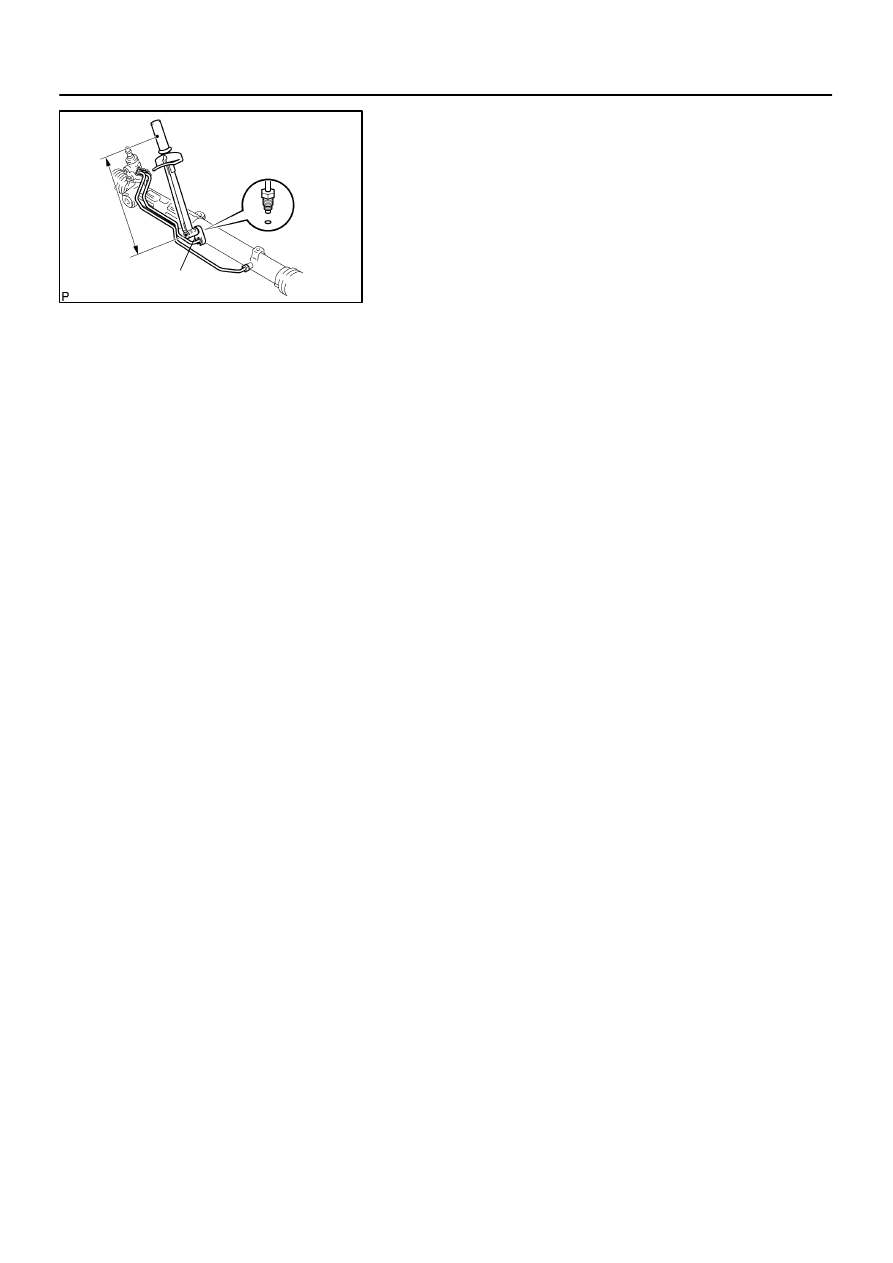

INSTALL 2 TURN PRESSURE TUBES

(a)

Coat 4 new O–rings with power steering fluid and install
them on the turn pressure tubes.

(b)

Using SST, install the 2 turn pressure tubes.
SST

09023–38401

Torque: 13 N·m (135 kgf·cm, 10 ft·lbf)

HINT:

Use a torque wrench with a fulcrum length of 250 mm
(9.84 in.).

This torque value is effective in case that SST is parallel
to a torque wrench.

SR02S–08

F06730

B

C

A

B

D

D

F13617

Fulcrum
Length

SST

–

STEERING

POWER STEERING GEAR

SR–55

3282

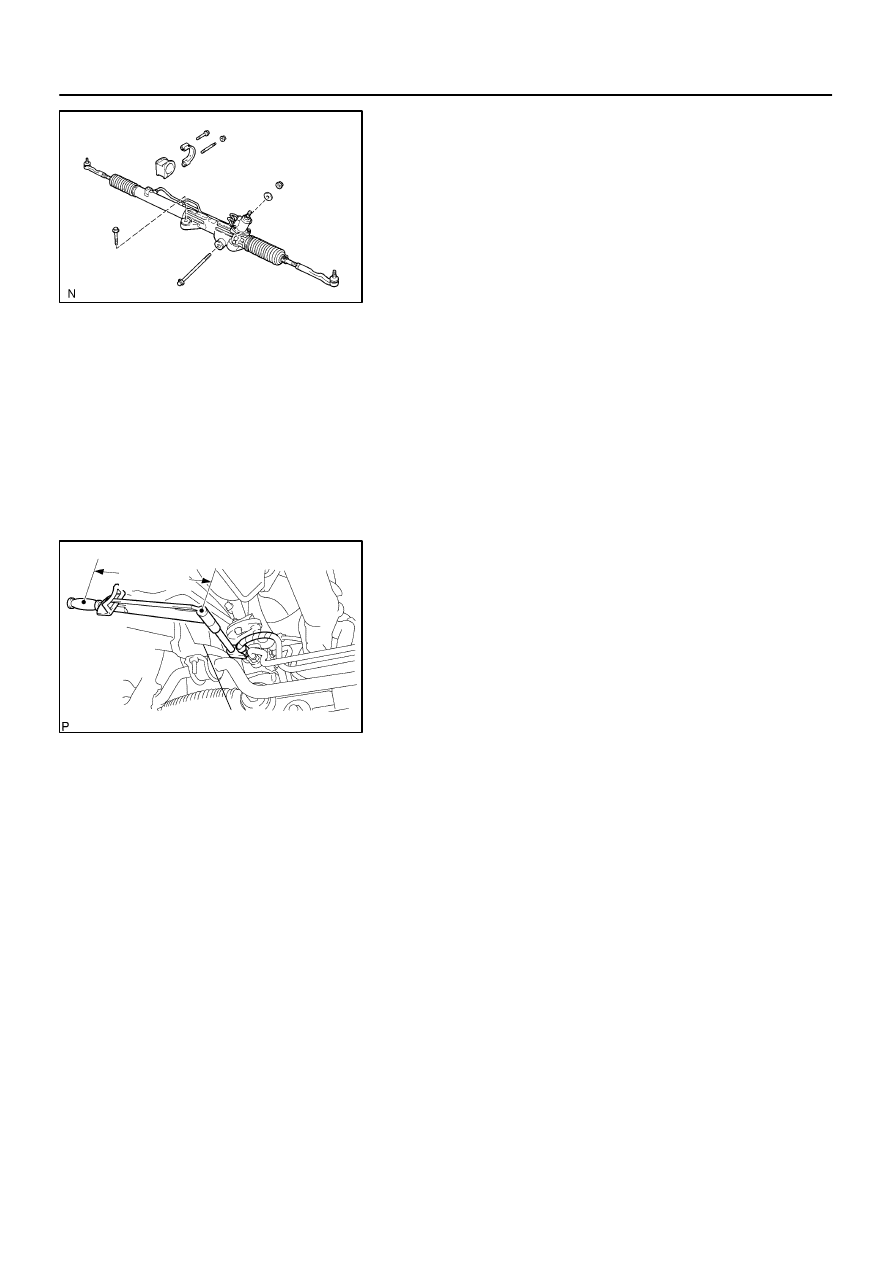

INSTALLATION

1.

INSTALL GROMMET AND BRACKET

2.

INSTALL PS GEAR ASSEMBLY

(a)

Install the PS gear assembly with the gear assembly set
bolt ”A”.
Torque: 165 N·m (1,700 kgf·cm, 123 ft·lbf)

(b)

Install the gear assembly set bolt ”B”, washer and nut ”B”.
Torque: 130 N·m (1,350 kgf·cm, 96 ft·lbf)

(c)

Install the stud bolt ”C” to the bracket.
Torque: 20 N·m (200 kgf·cm, 15 ft·lbf)

(d)

Install the bolt ”D” and nut ”D” to the bracket.
Torque: 165 N·m (1,700 kgf·cm, 123 ft·lbf)

3.

CONNECT PRESSURE FEED AND RETURN TUBES

Using SST, connect the tubes.

SST

09023–12701

Torque: 22 N·m (227 kgf·cm, 16 ft·lbf)

HINT:

Use a torque wrench with a fulcrum length of 300 mm
(11.81 in.).

This torque value is effective in case that SST is parallel
to a torque wrench.

4.

CONNECT CLAMP PLATE

Connect the clamp plate and install the bolt.

Torque: 29 N·m (290 kgf·cm, 21 ft·lbf)

5.

CONNECT NO. 2 INTERMEDIATE SHAFT ASSEMBLY
(See page

SR–23

)

6.

CONNECT RH AND LH TIE ROD ENDS
(See page

SA–86

)

7.

POSITION FRONT WHEEL FACING STRAIGHT
AHEAD

HINT:
Do it with the front of the vehicle jacked up.
8.

CENTER SPIRAL CABLE (See page

SR–23

)

9.

INSTALL STEERING WHEEL

(a)

Align the matchmark on the wheel with the one on the
steering column main shaft.

(b)

Temporarily tighten the wheel set nut.

(c)

Connect the connector.

10.

BLEED POWER STEERING SYSTEM
(See page

SR–4

)

11.

CHECK STEERING WHEEL CENTER POINT

SR–56

–

STEERING

POWER STEERING GEAR

3283

12.

TORQUE STEERING WHEEL SET NUT
Torque: 50 N·m (510 kgf·cm, 37 ft·lbf)

13.

INSTALL STEERING WHEEL PAD (See page

SR–23

)

14.

CHECK FRONT WHEEL ALIGNMENT
(See page

SA–4

)

15.

CONNECT CABLE TO NEGATIVE BATTERY TERMI-
NAL

16.

PERFORM YAW RATE AND DECELERATION SENSOR
ZERO POINT CALIBRATION (See page

DI–897

)

17.

PERFORM INITIALIZATION (See page

IN–20

)

Some systems need initialization when disconnecting the cable
from the negative battery terminal.

RS0B6–09

–

SUPPLEMENTAL RESTRAINT SYSTEM

SRS AIRBAG

RS–1

3284

SRS AIRBAG

PRECAUTION

CAUTION:

The vehicle is equipped with SRS, which consists of a driver airbag, front passenger airbag,
side airbag and curtain shield airbag. Failure to carry out service operations in the correct se-
quence could cause the SRS to unexpectedly deploy during servicing, possibly leading to a
serious accident. Further, if a mistake is made in servicing the SRS, it is possible that the SRS
may fail to operate when required. Before performing servicing (including removal or installa-
tion of parts, inspection or replacement), be sure to read the following items carefully, then fol-
low the correct procedures indicated in the repair manual.

Wait at least 90 seconds after the ignition switch is turned to the ”LOCK” position and the nega-
tive (–) terminal cable is disconnected from the battery.
(The SRS is equipped with a back–up power source, so that if work is started within 90 seconds
after disconnecting the negative (–) terminal cable of the battery, the SRS may be deployed.)

Do not expose the steering wheel pad, front passenger airbag assembly, side airbag assembly,
curtain shield airbag assembly, airbag sensor assembly, front airbag sensor, side airbag sen-
sor assembly, curtain shield airbag sensor assembly, seat position sensor assembly or occu-
pant classification ECU directly to hot air or flames.

Be sure to perform the initialization of the occupant classification ECU if any of the following
conditions occur (see page

DI–1128

). If the initialization is not performed, the SRS may not oper-

ate properly.

The occupant classification ECU is replaced.

Accessories (seatback tray, seat cover, etc.) are installed to the vehicle.

The passenger seat is removed from the vehicle, and then reinstalled or replaced.

The passenger airbag ON/OFF indicator light (”OFF”) comes on when the passenger seat
is not occupied.

The vehicle is brought to the workshop for repair due to an accident or collision.

NOTICE:

Malfunction symptoms of the SRS are difficult to confirm, so DTCs are the most important
source of information when troubleshooting. When troubleshooting the SRS, always inspect
DTCs before disconnecting the battery.

Even in the case of a minor collision when the SRS does not deploy, the steering wheel pad,
front passenger airbag assembly, side airbag assembly, curtain shield airbag assembly, airbag
sensor assembly, front airbag sensor, side airbag sensor assembly, curtain shield airbag sen-
sor assembly, seat position sensor assembly and occupant classification ECU should be in-
spected. (see page

RS–22

,

RS–35

,

RS–49

,

RS–64

,

RS–72

,

RS–83

,

RS–88

,

RS–93

,

RS–98

,

RS–106

 and

RS–112

).

Before repair work, remove the airbag sensor if any kind of shock is likely to occur to the airbag
sensor during the operation.

Never use SRS parts from another vehicle. When replacing the parts, replace them with new
ones.

Never disassemble or repair the steering wheel pad, front passenger airbag assembly, side air-
bag assembly, curtain shield airbag assembly, airbag sensor assembly, front airbag sensor,
side airbag sensor assembly, curtain shield airbag sensor assembly, seat position sensor as-
sembly or occupant classification ECU in order to reuse it.
