SUPPLEMENTAL RESTRAINT SYSTEM

SRS AIRBAG

3293

(5)

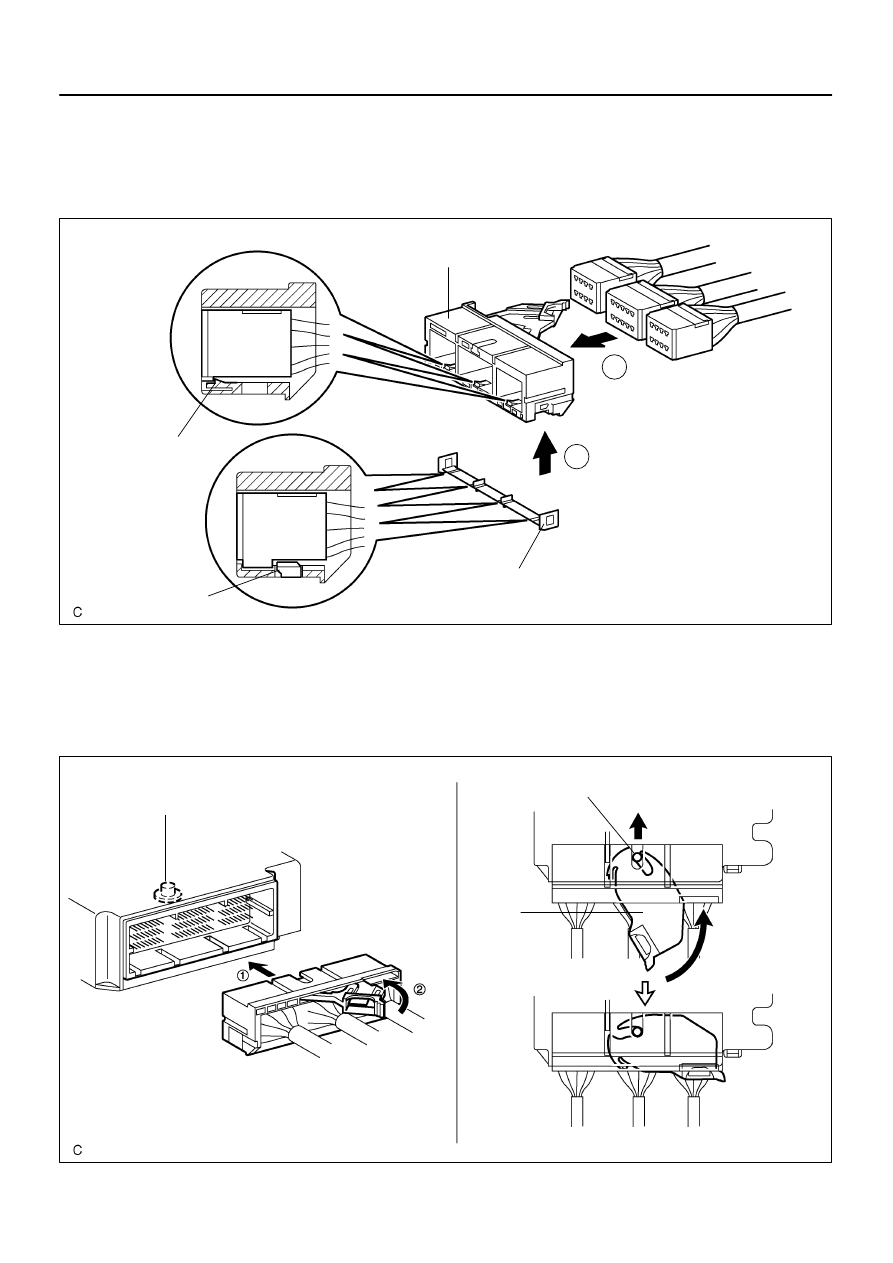

Connector lock mechanism (2):
Both the primary lock with holder lances and the
secondary lock with retainer prevent the connectors
from becoming disconnected.

(6)

Improper connection prevention lock mechanism:
When connecting the holder, the lever is pushed
into the end by rotating around the A axis to lock the
holder securely.

H23907

(a)

(b)

Lock Button
(Yellow Part)

Lock Button
(Yellow Part)

H23908

Lock Button
(Yellow Part)

–

SUPPLEMENTAL RESTRAINT SYSTEM

SRS AIRBAG

RS–11

3294

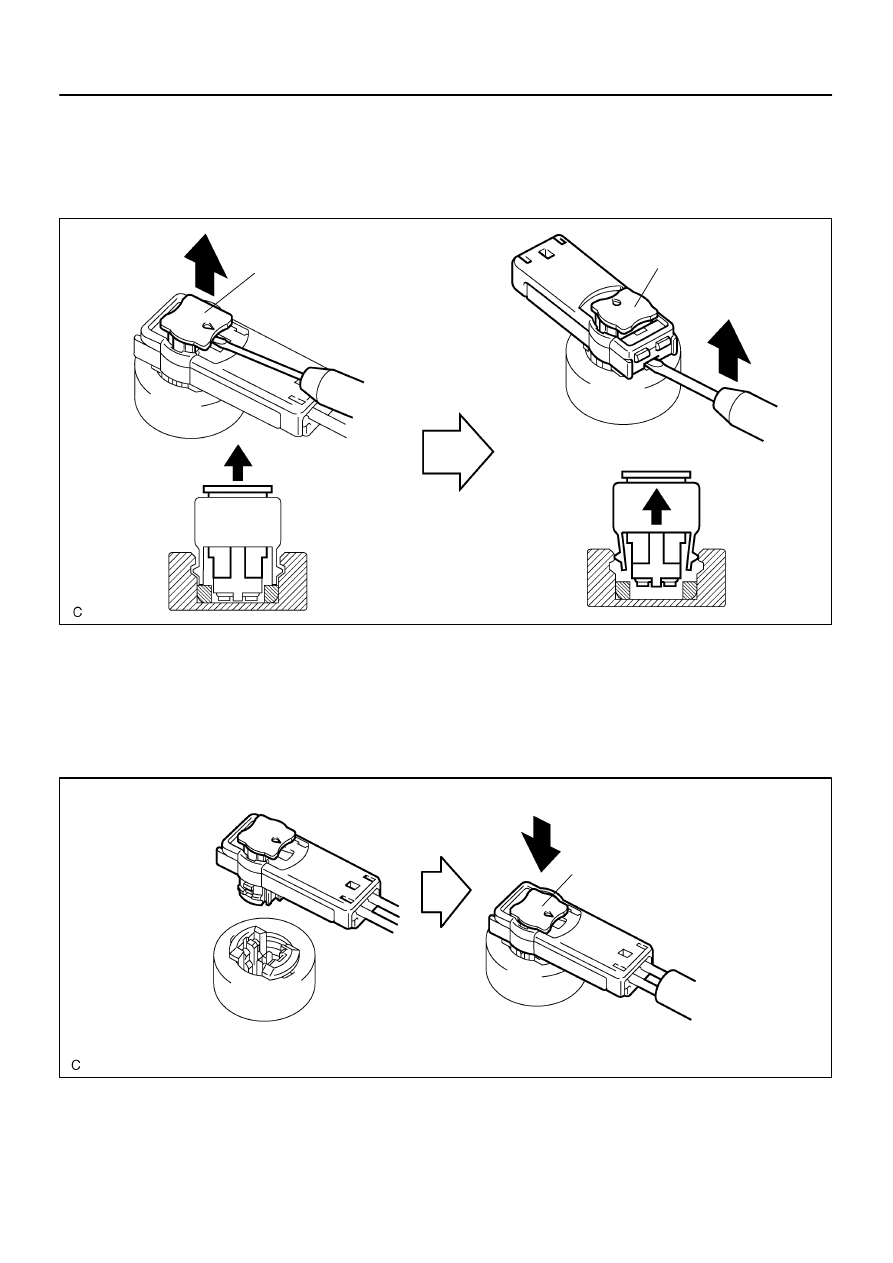

16.

DISCONNECTION OF CONNECTORS FOR STEERING WHEEL PAD AND CURTAIN SHIELD AIR-
BAG ASSEMBLY

(a)

Release the lock button (yellow part) of the connector using a screwdriver.

(b)

Insert the screwdriver tip between the connector and the base, and then raise the connector.

17.

CONNECTION OF CONNECTORS FOR STEERING WHEEL PAD AND CURTAIN SHIELD AIRBAG
ASSEMBLY

(a)

Connect the connector.

(b)

Push down securely on the lock button (yellow part) of the connector. (When locking, a click sound can
be heard.)

H01586

Slider

Slider

Disconnection is completed

H01587

Slider

Connection is completed

Slider

RS–12

–

SUPPLEMENTAL RESTRAINT SYSTEM

SRS AIRBAG

3295

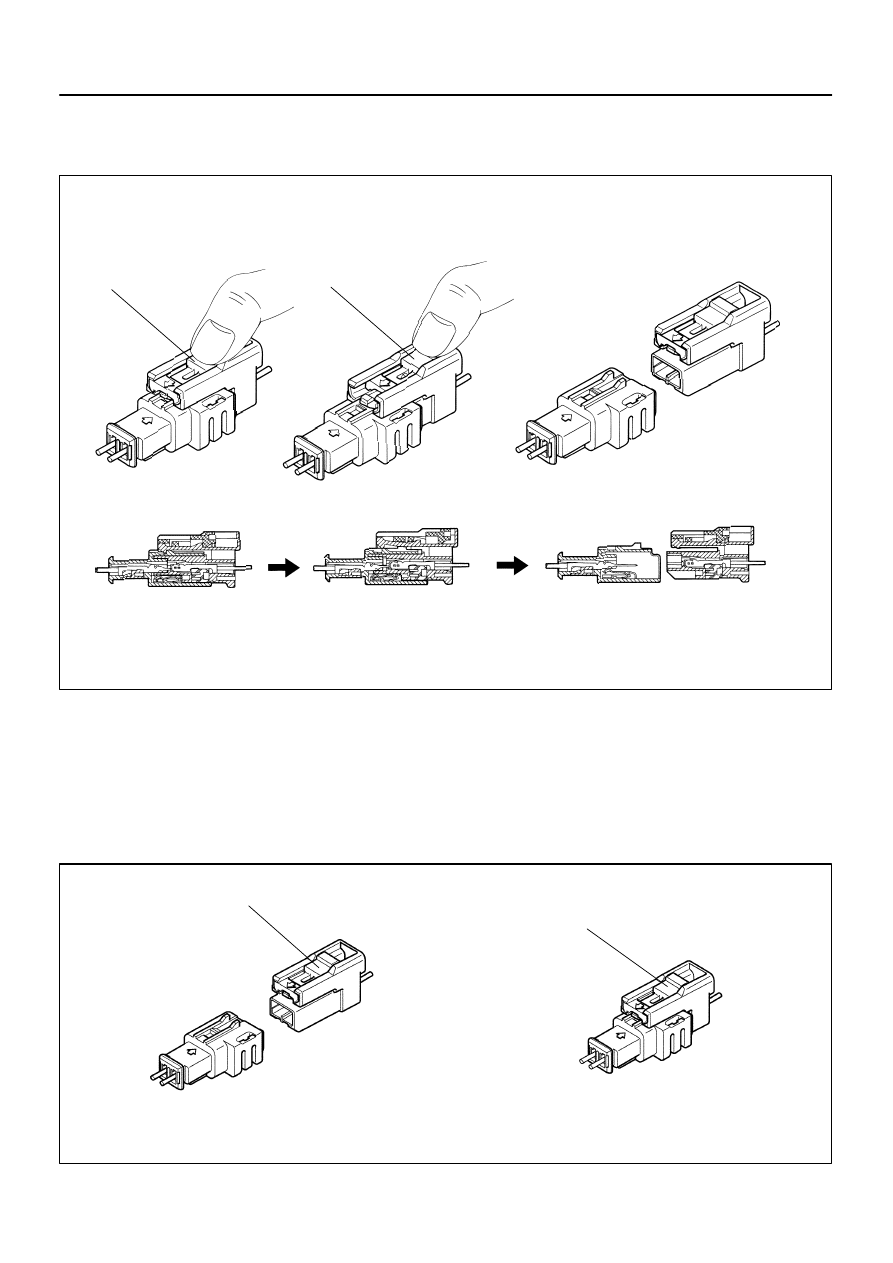

18.

DISCONNECTION OF FRONT PASSENGNR AIRBAG ASSEMBLY

(a)

Place a finger on the slider, slide the slider to release the lock, and then disconnect the connector.

19.

CONNECTION OF FRONT PASSENGNR AIRBAG ASSEMBLY

(a)

Connect the connector as shown in the illustration. (When locking, make sure that the slider returns
to its original position and a click sound can be heard.)

HINT:
When connecting, the slider will slide. Be sure not to touch the slider while connecting, as it may result in
an insecure fit.

H23909

A

Disconnection is completed

Holder (with connectors)

H23910

Retainer

–

SUPPLEMENTAL RESTRAINT SYSTEM

SRS AIRBAG

RS–13

3296

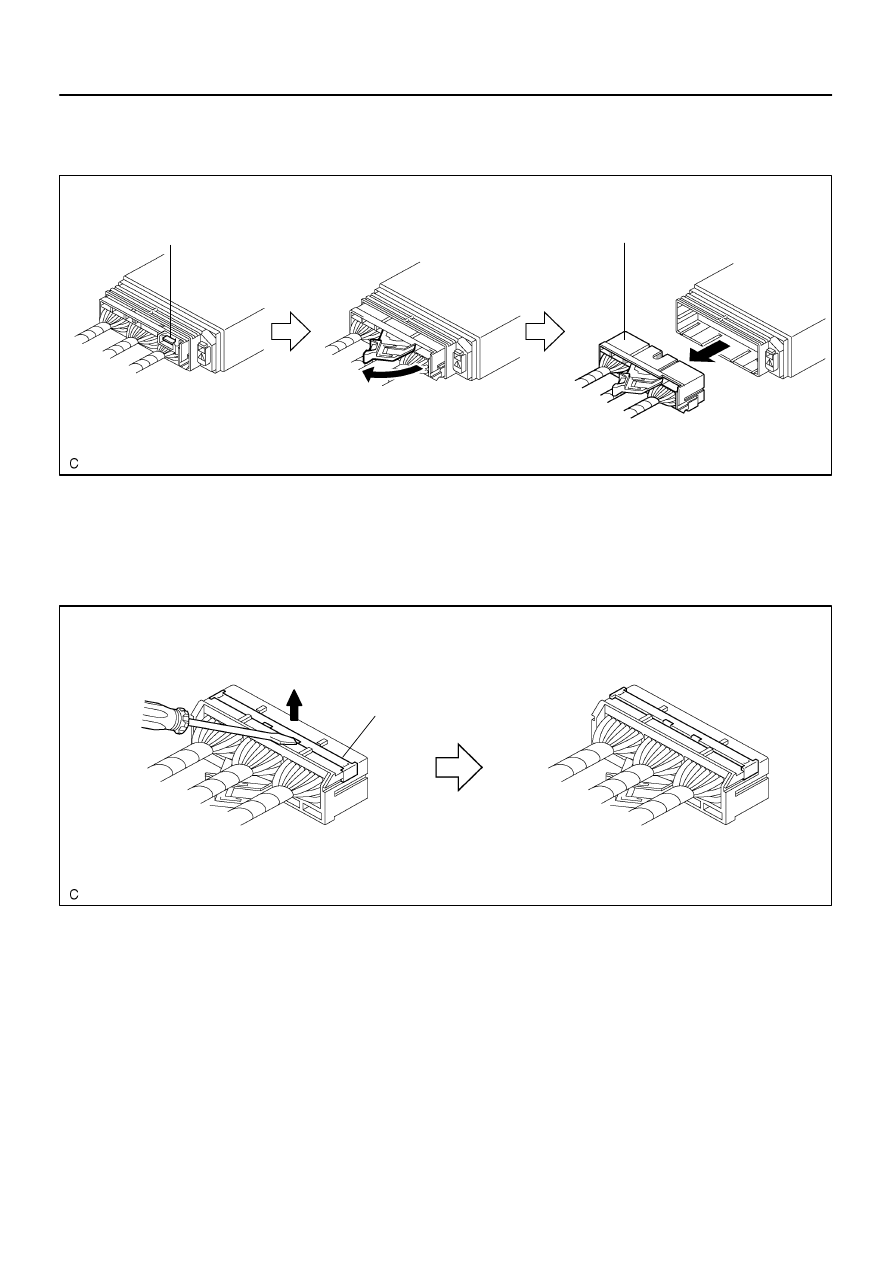

20.

DISCONNECTION OF CONNECTOR FOR AIRBAG SENSOR ASSY CENTER

(a)

Pull the lever by pushing part A as shown in the illustration and disconnect the holder (with connectors).

HINT:
Perform the following procedures when replacing the holder.
(b)

Remove the holder.
(1)

Using a screwdriver, unlock the retainer.
