RS–18

–

SUPPLEMENTAL RESTRAINT SYSTEM

SRS AIRBAG

3301

24.

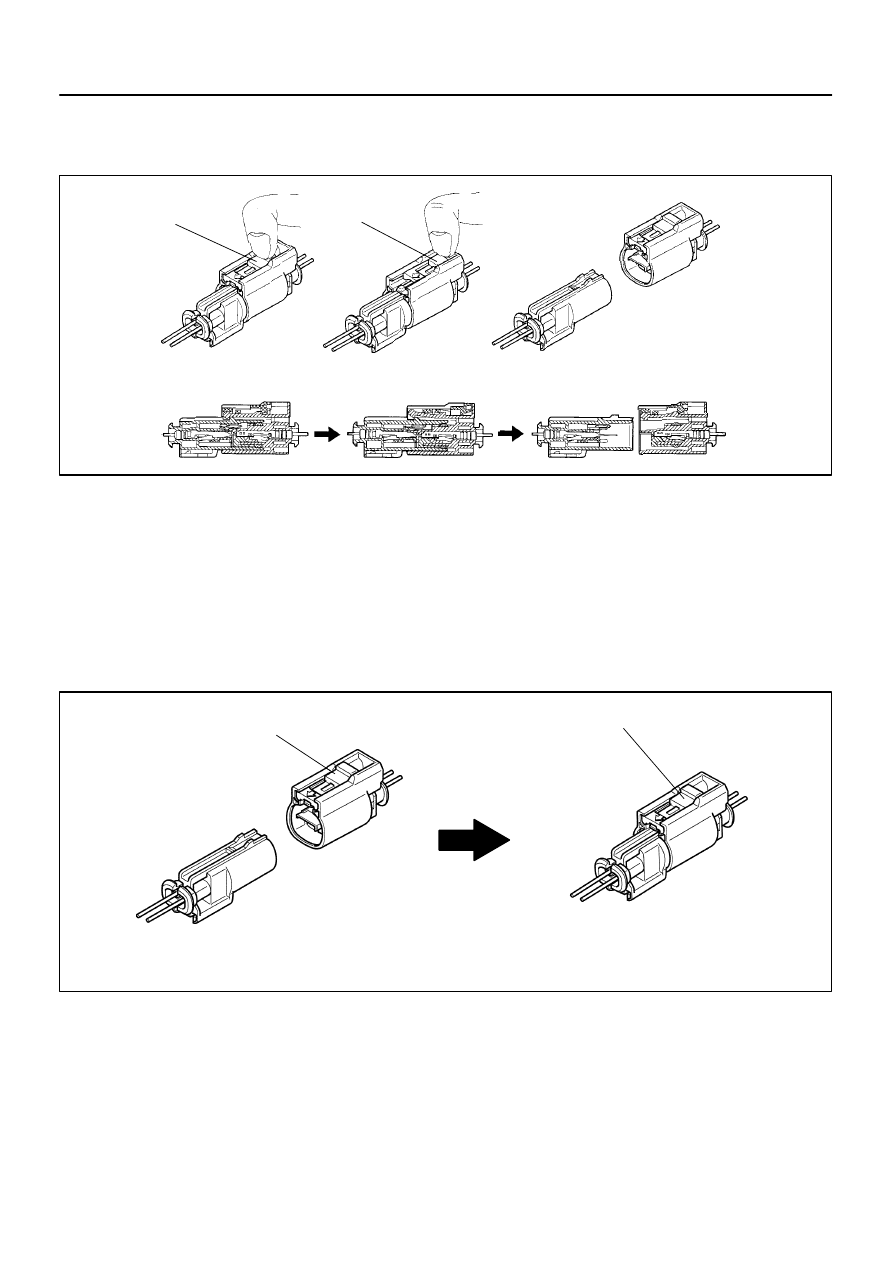

DISCONNECTION OF CONNECTOR FOR SIDE AIRBAG ASSEMBLY

(a)

Place a finger on the slider, slide the slider to release the lock, and then disconnect the connector.

25.

CONNECTION OF CONNECTOR FOR SIDE AIRBAG ASSEMBLY

(a)

Connect the connector as shown in the illustration. (When locking, make sure that the slider returns
to its original position and a click sound can be heard.)

HINT:
When connecting, the slider will slide. Be sure not to touch the slider while connecting, as it may result in
an insecure fit.

H02763

Outer

H02764

Lock of connector is released

Disconnection is completed

H02768

Outer

Outer

Connection is completed

–

SUPPLEMENTAL RESTRAINT SYSTEM

SRS AIRBAG

RS–19

3302

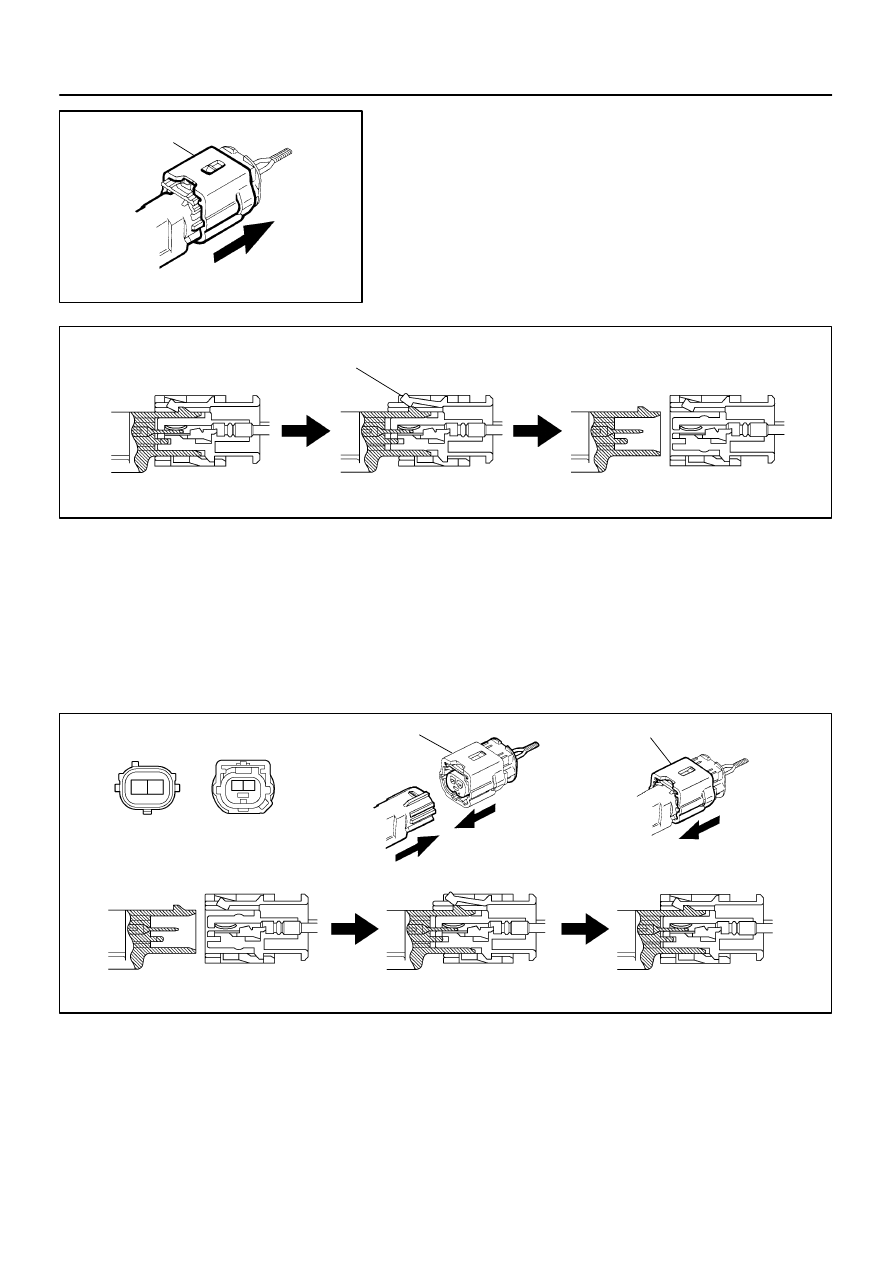

26.

DISCONNECTION OF CONNECTORS FOR SIDE AIR-
BAG SENSOR AND CURTAIN SHIELD AIRBAG SEN-
SOR

(a)

While holding both outer flank sides, slide the outer in the
direction shown by the arrow.

(b)

When the connector lock is released, the connectors are
disconnected.

HINT:
Be sure to hold both outer flank sides. Holding the top and bot-
tom sides will make disconnection difficult.

27.

CONNECTION OF CONNECTORS FOR SIDE AIRBAG SENSOR AND CURTAIN SHIELD AIRBAG
SENSOR

(a)

Connect the connector as shown in the illustration. (When locking, make sure that the outer returns
to its original position and a click sound can be heard.)

HINT:
When connecting, the outer will slide. Be sure not to hold the outer while connecting, as it may result in an
insecure fit.

RS0B8–15

H23200

Spiral Cable

Steering Column Cover Lower

Steering Wheel Pad

N·m (kgf·cm, ft·lbf) : Specified torque

Steering Wheel

Steering Wheel Cover Lower No. 2

Steering Wheel Cover Lower No. 3

8.8 (90, 78 in.·lbf)

8.8 (90, 78 in.·lbf)

Torx

®

 Screw

Torx

®

 Screw

RS–20

–

SUPPLEMENTAL RESTRAINT SYSTEM

STEERING WHEEL PAD AND SPIRAL CABLE

3303

STEERING WHEEL PAD AND SPIRAL CABLE

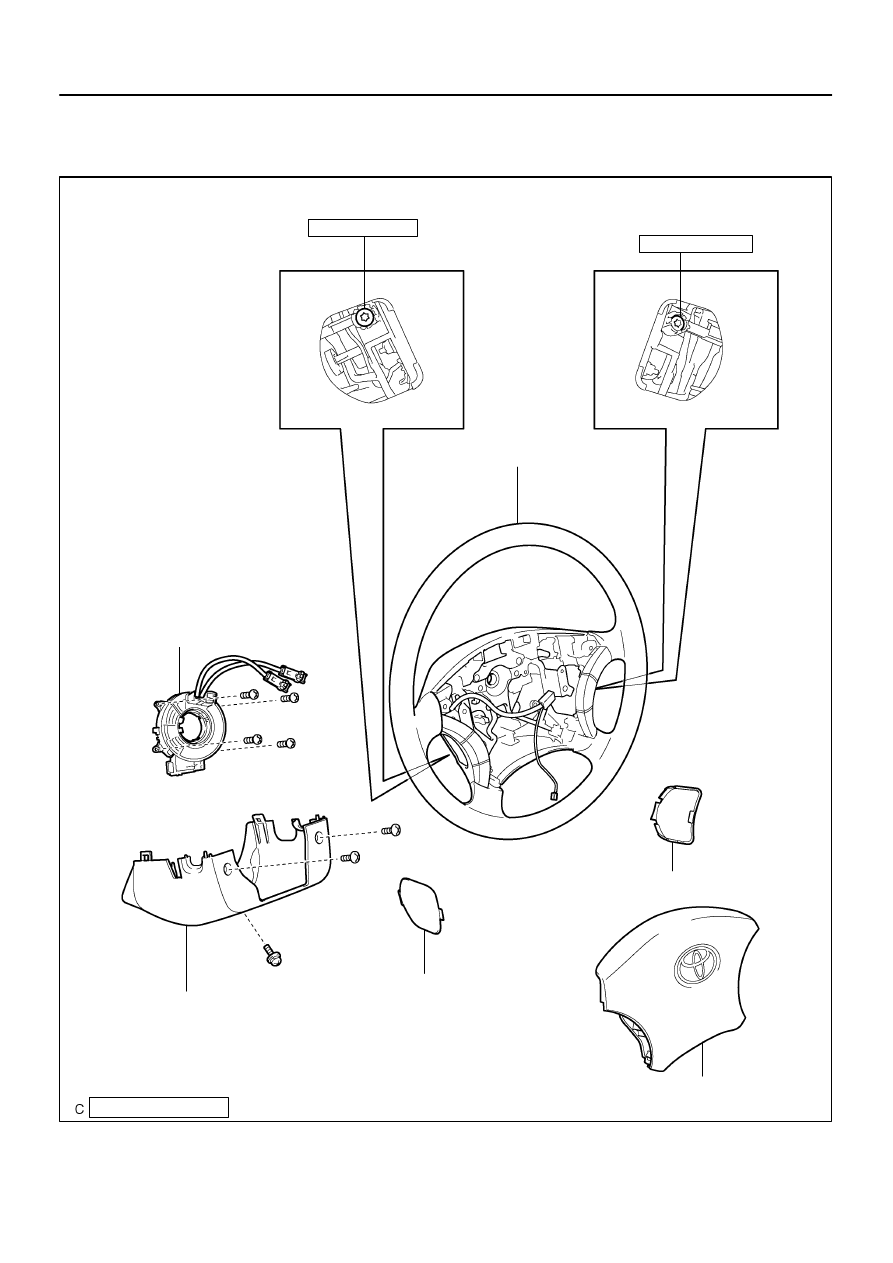

COMPONENTS

RS0B9–13

–

SUPPLEMENTAL RESTRAINT SYSTEM

STEERING WHEEL PAD AND SPIRAL CABLE

RS–21

3304

REMOVAL

NOTICE:

If the wiring connector of the SRS is disconnected and the ignition switch is in the ON or ACC
position, DTCs will be recorded.

Never use airbag parts from another vehicle. When replacing parts, replace them with new
ones.

1.

PRECAUTION (SEE PAGE

RS–1

 and

RS–3

)

2.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
3.

REMOVE STEERING WHEEL PAD (SEE PAGE

SR–14

)

4.

REMOVE STEERING WHEEL (SEE PAGE

SR–14

)

5.

REMOVE STEERING COLUMN COVER LOWER (SEE PAGE

SR–14

)

6.

REMOVE SPIRAL CABLE (SEE PAGE

SR–14

)
