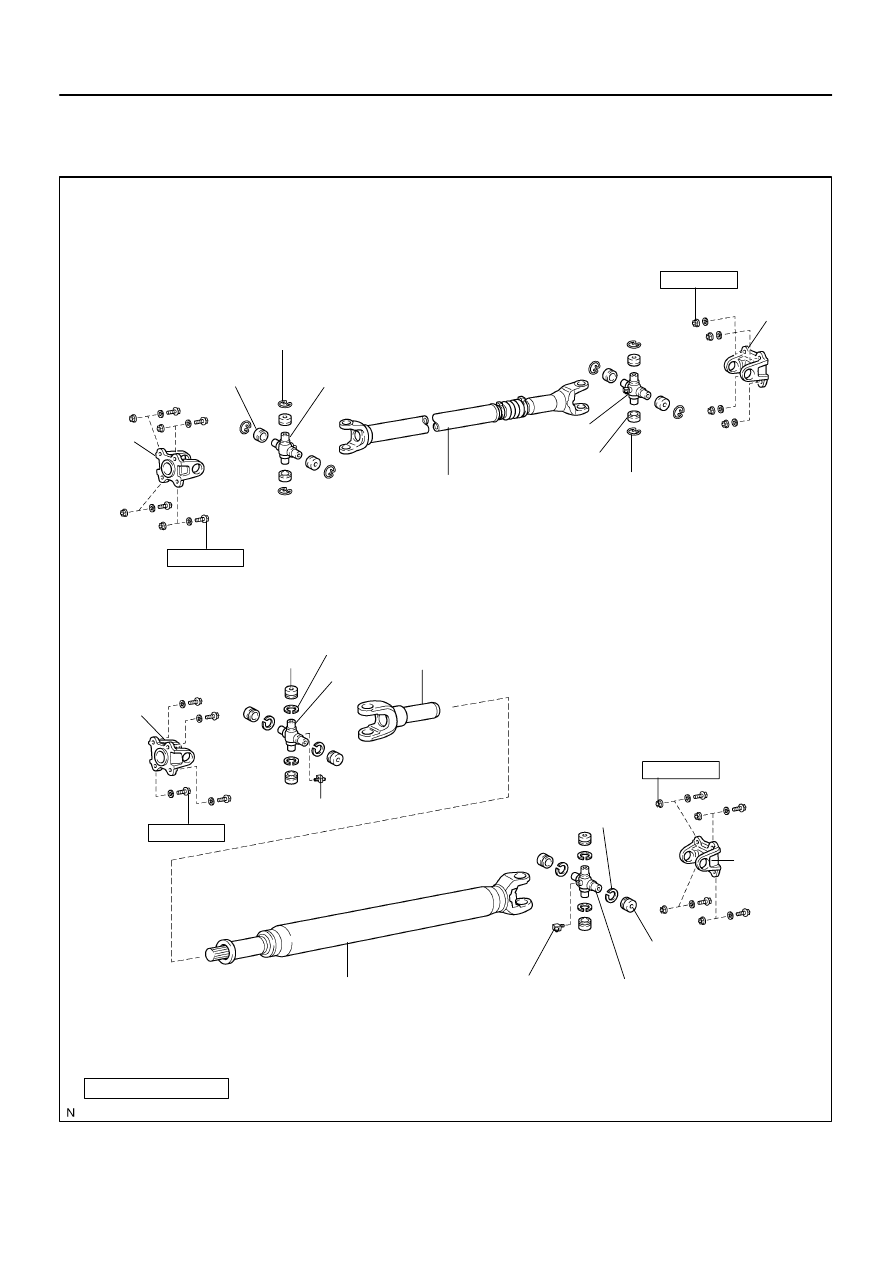

PR01M–05

F19351

Front propeller shaft:

Rear propeller shaft:

N·m ( kgf·cm, ft·lbf )

 Non–reusable part

: Specified torque

74 (750, 54)

88 (897, 65)

Flange Yoke

Flange Yoke

 Snap Ring

 Spider Bearing

 Spider

 Snap Ring

 Spider Bearing

 Spider

Front Propeller Shaft

88 (897, 65)

Flange Yoke

 Snap Ring

 Spider Bearing

 Spider

88 (897, 65)

Rear Propeller Shaft

 Snap Ring

 Spider Bearing

 Spider

Flange Yoke

Grease Fitting

Grease Fitting

Sleeve Yoke

PR–6

–

PROPELLER SHAFT

PROPELLER SHAFT ASSEMBLY (4WD)

2989

PROPELLER SHAFT ASSEMBLY (4WD)

COMPONENTS

PR05N–04

Z15303

Matchmarks

Q07228

Matchmarks

F13575

Matchmarks

–

PROPELLER SHAFT

PROPELLER SHAFT ASSEMBLY (4WD)

PR–7

2990

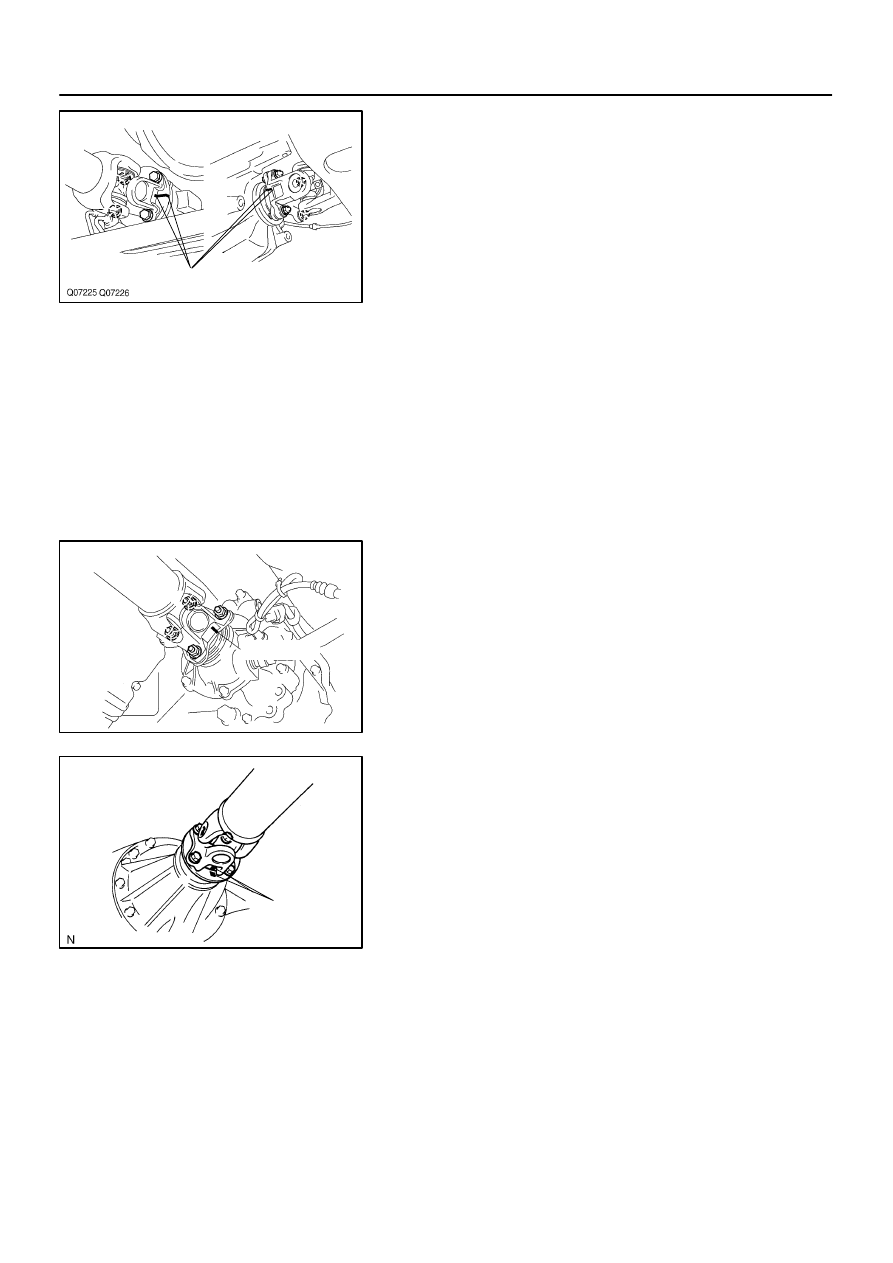

REMOVAL

1.

REMOVE FRONT PROPELLER SHAFT

(a)

Place matchmarks on the differential and propeller shaft
flange.

(b)

Remove the 4 nuts, washers and bolts, and disconnect
the propeller shaft from the differential.

(c)

Suspend the front side of the propeller shaft.

(d)

Place matchmarks on the transfer and propeller shaft
flanges.

(e)

Remove the 4 nuts and washers.

(f)

Remove the propeller shaft from the transfer.

2.

REMOVE REAR PROPELLER SHAFT

(a)

Place matchmarks on the transfer and propeller shaft
flanges.

(b)

Remove the 4 nuts and washers, and disconnect the pro-
peller shaft from the transfer.

(c)

Suspend the front side of the propeller shaft.

(d)

Place matchmarks on the differential and propeller shaft
flanges.

(e)

Remove the 4 nuts, washers and bolts.

(f)

Remove the propeller shaft from the differential.

PR07M–02

Z04240

Z04241

PR–8

–

PROPELLER SHAFT

PROPELLER SHAFT ASSEMBLY (4WD)

2991

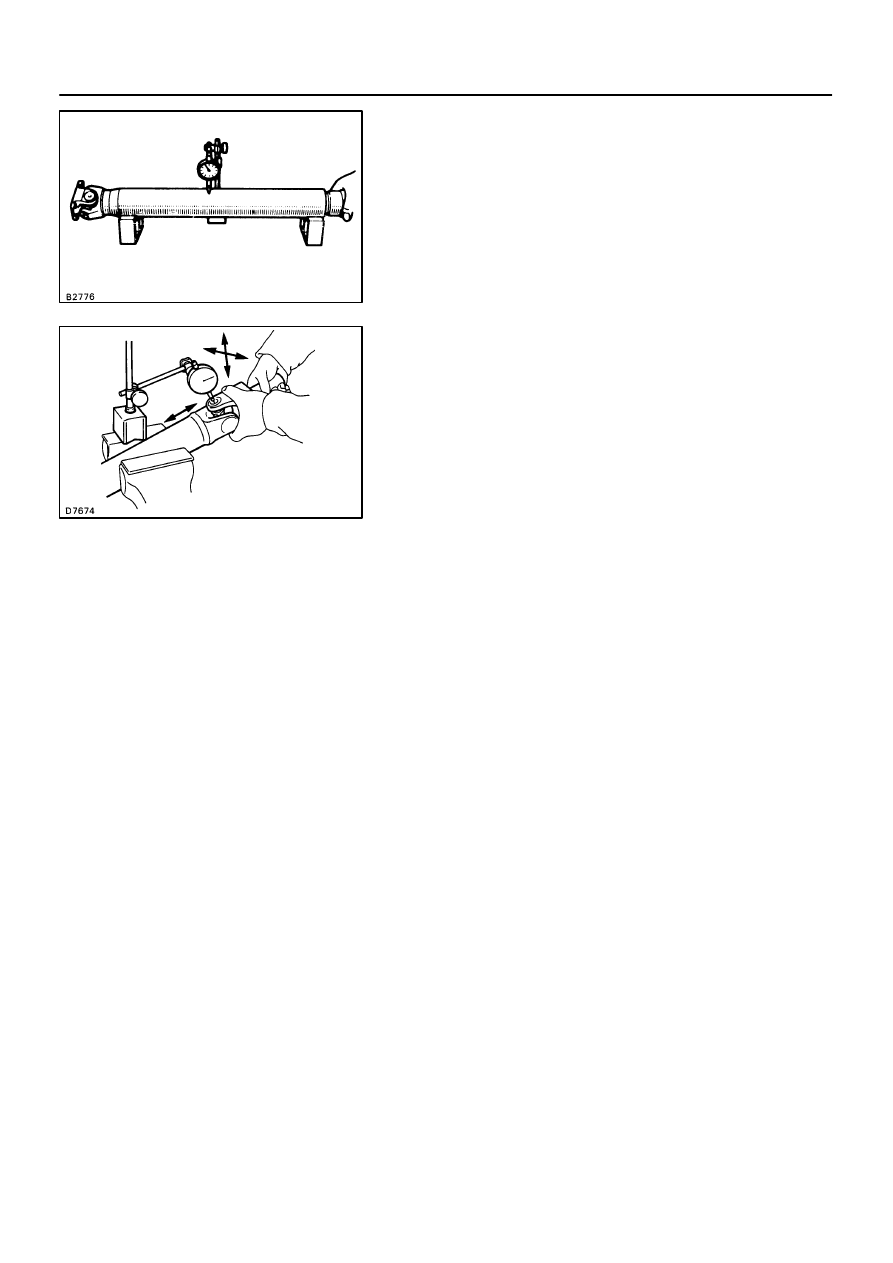

INSPECTION

NOTICE:
Be careful not to grip the propeller shaft tube too tightly in
a vise as this will cause deformation.
1.

INSPECT PROPELLER SHAFT AND INTERMEDIATE
SHAFT FOR DAMAGE OR RUNOUT

Using a dial indicator, check the runout of each shaft.

Maximum runout:



0.8 mm (0.031 in.)

If shaft runout is greater than the maximum, replace the shaft.

2.

INSPECT SPIDER BEARING

(a)

Inspect the spider bearing for wear or damage.

(b)

Using a dial indicator, check the spider bearing axial play
by turning the yoke of flange while holding the shaft tight-
ly.
Maximum bearing axial play: 0.05 mm (0.0020 in.)

If the spider bearing axial play exceeds the maximum, replace
the spider bearing (See page

PR–10

).

PR07N–02

Z15303

Matchmarks

F13575

Matchmarks

Q07228

Matchmarks

–

PROPELLER SHAFT

PROPELLER SHAFT ASSEMBLY (4WD)

PR–9

2992

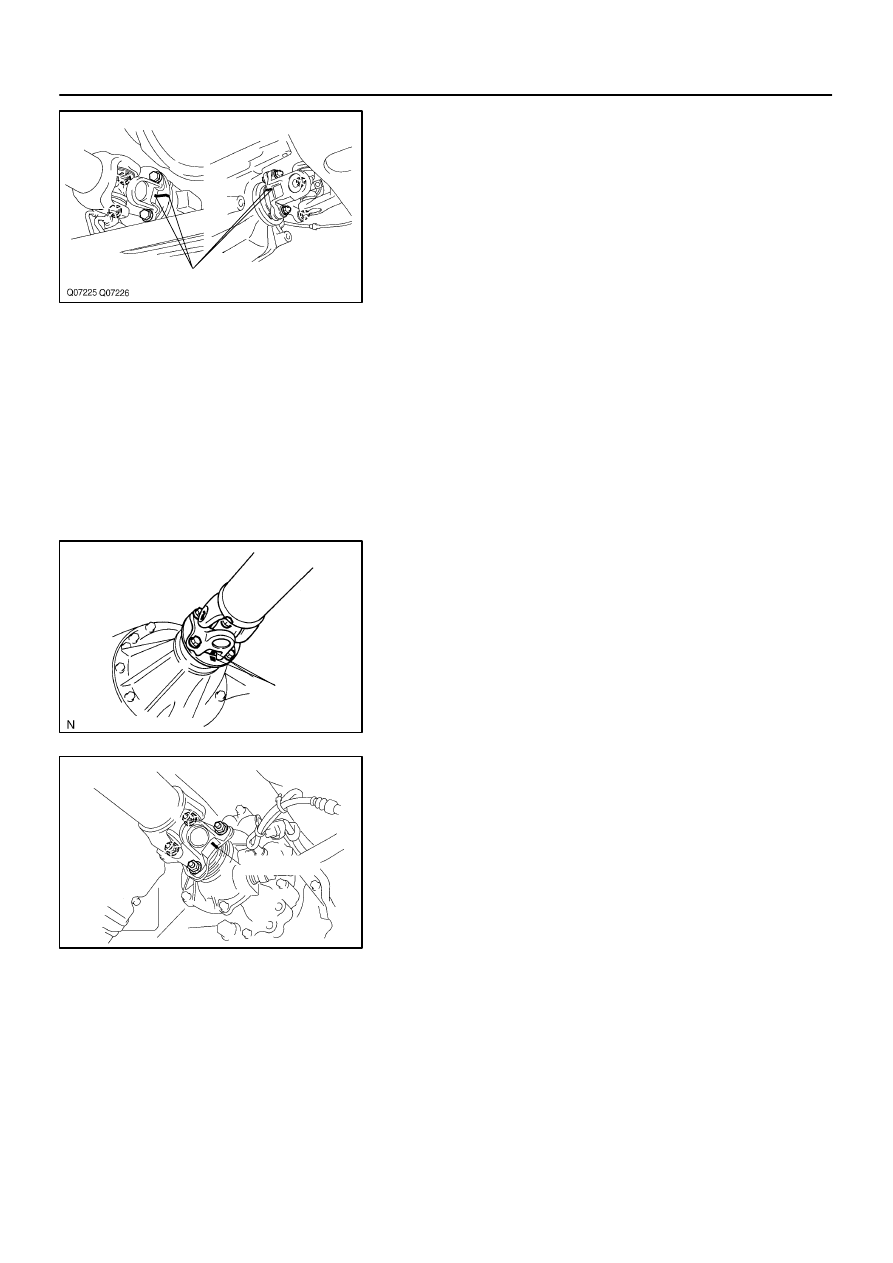

INSTALLATION

1.

INSTALL FRONT PROPELLER SHAFT

(a)

Align the matchmarks on the propeller shaft flanges and
differential, and connect the flanges with the 4 bolts,
washers and nuts.

(b)

Torque the 4 bolts.
Torque: 74 N·m (750 kgf·cm, 54 ft·lbf)

(c)

Align the matchmarks on the propeller shaft flanges and
transfer, and connect the flanges with the 4 washers and
nuts.

(d)

Torque the 4 nuts.
Torque: 88 N·m (897 kgf·cm, 65 ft·lbf)

2.

INSTALL REAR PROPELLER SHAFT

(a)

Align the matchmarks on the propeller shaft flanges and
differential, and connect the flanges with the 4 bolts,
washers and nuts.

(b)

Torque the 4 bolts.
Torque: 88 N·m (897 kgf·cm, 65 ft·lbf)

(c)

Align the matchmarks on the propeller shaft flanges and
transfer, and connect the flanges with the 4 washers and
nuts.

(d)

Torque the 4 nuts.
Torque: 88 N·m (897 kgf·cm, 65 ft·lbf)
