PROPELLER SHAFT

SPIDER BEARING

2993

SPIDER BEARING

REPLACEMENT

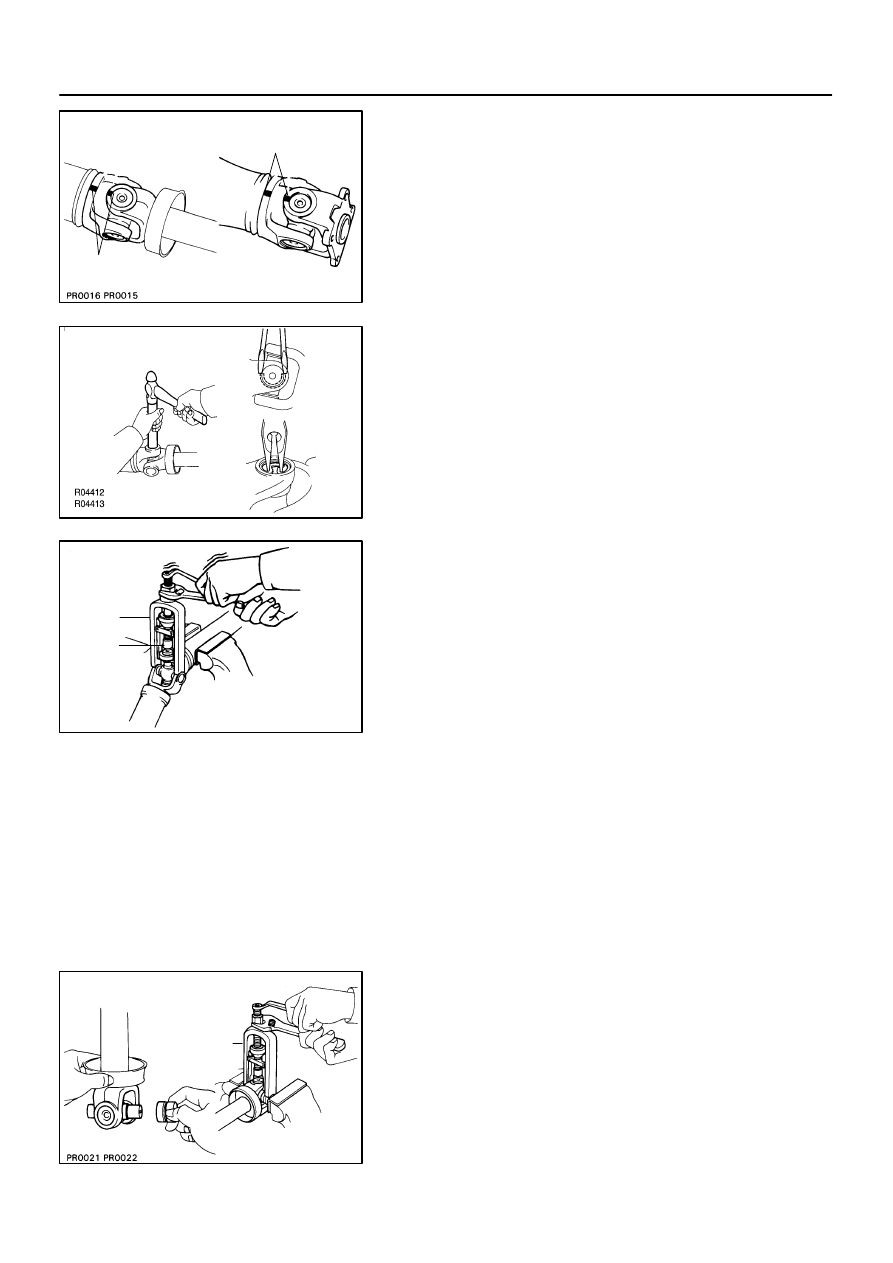

1.

PLACE MATCHMARKS ON SHAFT AND YOKE

2.

REMOVE SNAP RING

(a)

Using a brass bar and a hammer, slightly tap in the bear-
ing outer race.

(b)

4WD rear propeller shaft:
Using 2 screwdrivers, remove the 4 snap rings from the
grooves.

(c)

2WD and 4WD front propeller shaft:
Using needle nose pliers, remove the 4 snap rings from
the grooves.

3.

REMOVE SPIDER BEARING

(a)

Using SST, push out the bearing from the flange yoke.
SST

09332–25010

HINT:
Sufficiently raise the part indicated by ”A” so that it does not
come into contact with the bearing.
(b)

Clamp the bearing outer race in a vise and tap off the
flange with a hammer.

HINT:
Remove the bearing on the opposite side in the same proce-
dure.

(c)

Install the 2 removed bearing outer races to the spider,
and clamp them in a vise.

(d)

Using SST, push out the bearing from the sleeve yoke.
SST

09332–25010

(e)

Clamp the outer bearing race in a vise and tap off the yoke
with a hammer.

HINT:
Remove the bearing on the opposite side in the same proce-
dure.

F19908

Color

Bearing
Cap

Drill Mark

Yoke

Z00735

PR0027

SST

PR0028

–

PROPELLER SHAFT

SPIDER BEARING

PR–11

2994

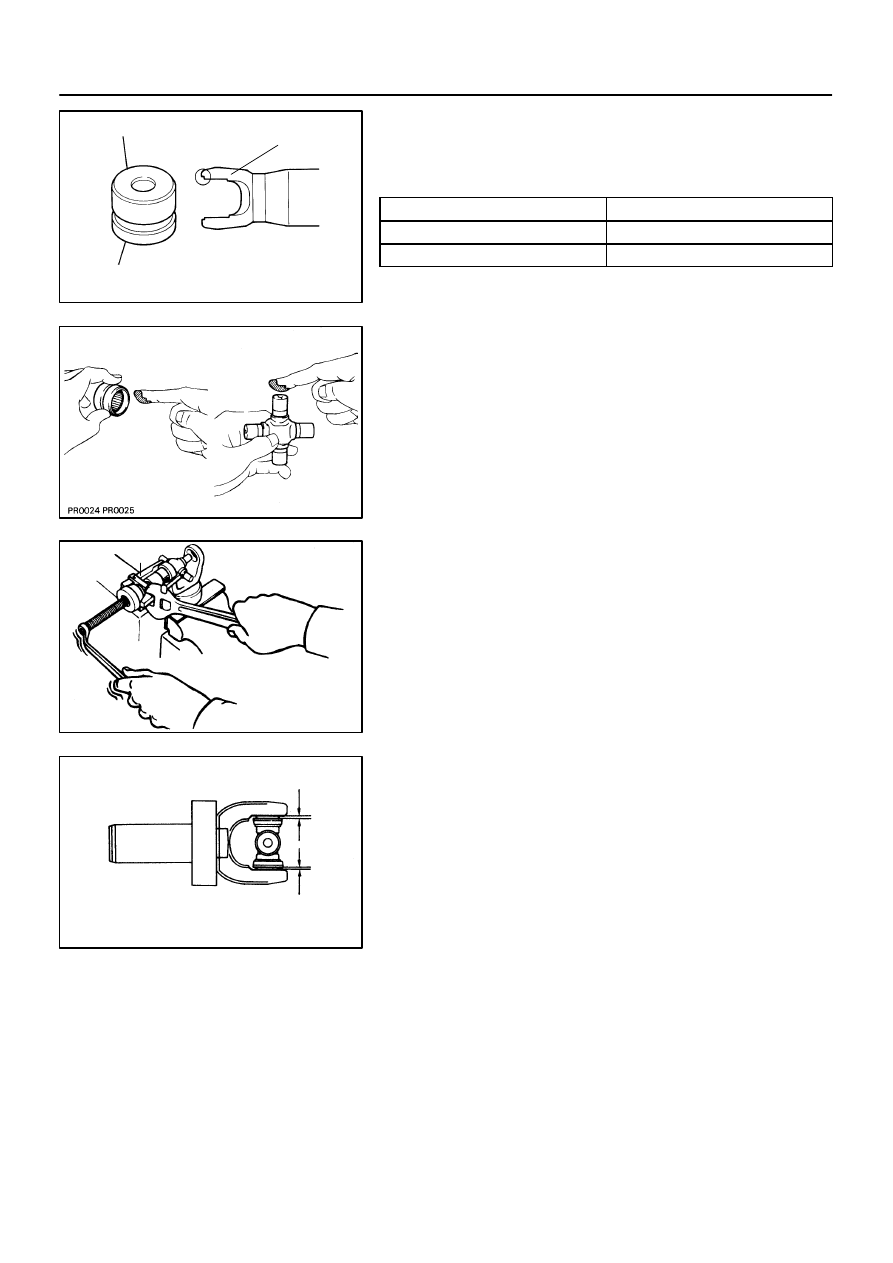

4.

4WD, REAR PROPELLER SHAFT:
 SELECT SPIDER BEARING

Select an appropriate bearing according to the drill mark on the
yoke.

Yoke

Bearing

With drill mark

With color mark (White)

No drill mark

No color mark

5.

INSTALL SPIDER BEARING

(a)

Apply MP grease to a new spider and bearings.

HINT:
Be careful not to apply too much grease.
(b)

Align the matchmarks on the yoke and shaft.

(c)

Fit the spider into the yoke.

(d)

Using SST, install the bearing on the spider.
SST

09332–25010

(e)

Using SST, adjust both bearings so that the snap ring
grooves are at maximum and equal in width.

F07987

R16053

PR–12

–

PROPELLER SHAFT

SPIDER BEARING

2995

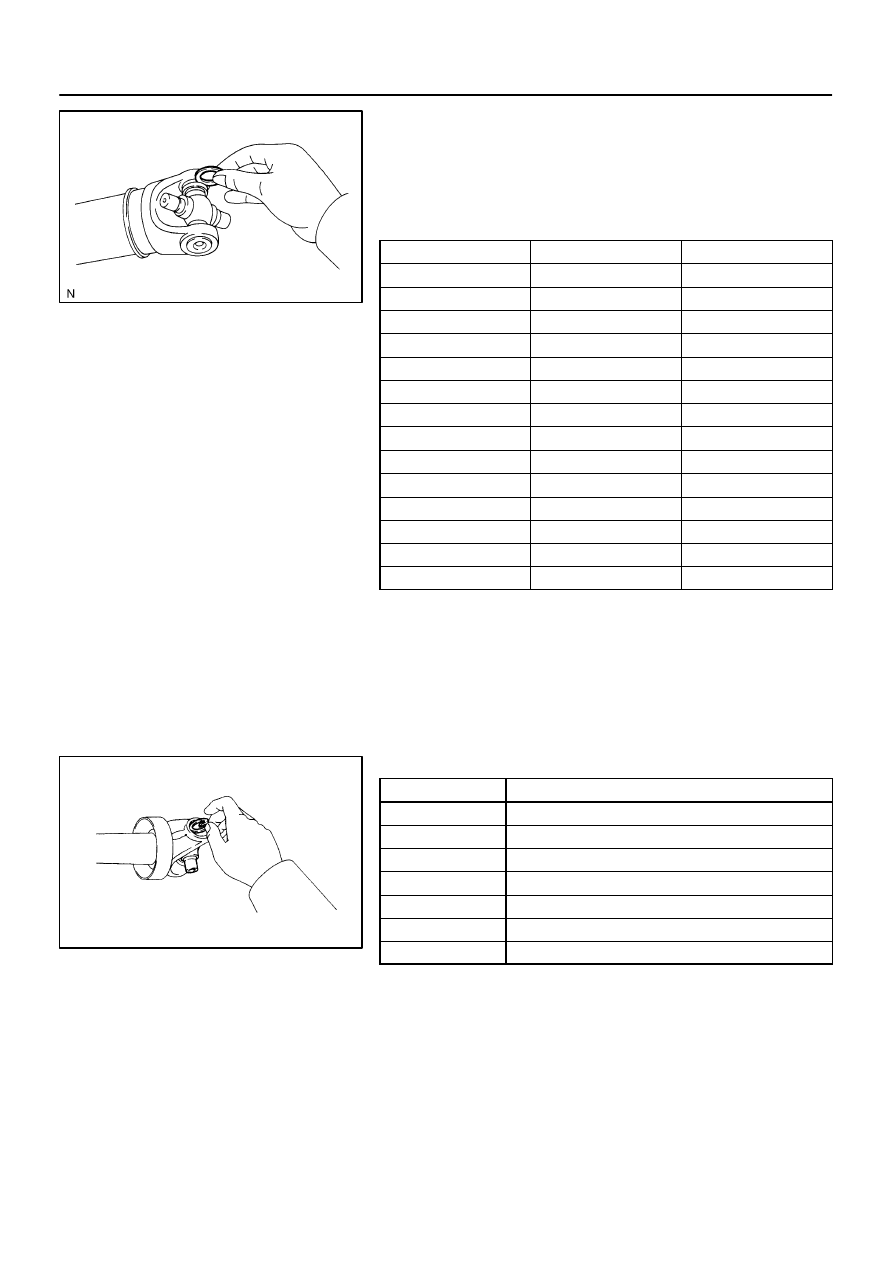

6.

INSTALL SNAP RINGS

(a)

Install 2 new snap rings of equal thickness which will allow
for 0 to 0.05 mm (0 to 0.0020 in.) axial play.

HINT:
Do not reuse the snap rings.
4WD rear propeller shaft:



Color

Mark

Thickness  mm (in.)

None

–

2.00 (0.0784)

Light brown

–

2.03 (0.0799)

Blue

–

2.06 (0.0811)

None

–

2.09 (0.0823)

–

1

1.99 (0.0783)

–

2

2.01 (0.0791)

–

3

2.03 (0.0799)

–

4

2.05 (0.0807)

–

5

2.07 (0.0815)

–

6

2.09 (0.0823)

–

7

2.11 (0.0831)

–

8

2.13 (0.0839)

–

9

2.15 (0.0846)

–

10

2.17 (0.0854)

2WD and 4WD front propeller shaft:

Color

Thickness  mm (in.)

Blue

1.638 (0.0645)

Yellow

1.588 (0.0625)

Silver

1.537 (0.0605)

Copper

1.511 (0.0595)

Black

1.486 (0.0585)

Red

1.435 (0.0565)

Green

1.384 (0.0545)

(b)

Using a hammer, tap the yoke until there is no clearance
between the bearing outer race and snap ring.

R04428

F19333

SPIDER GREASE FITTING ASSEMBLY DIRECTION
FOR 4WD REAR PROPELLER SHAFT

No. 3

No. 4

Sleeve Yoke

No. 4

Sleeve Yoke

No. 3

Fill up the No. 3, 4 and sleeve yoke grease fittings with MP grease.

The figure on the left shows the locations
of the grease fittings from the front.

–

PROPELLER SHAFT

SPIDER BEARING

PR–13

2996

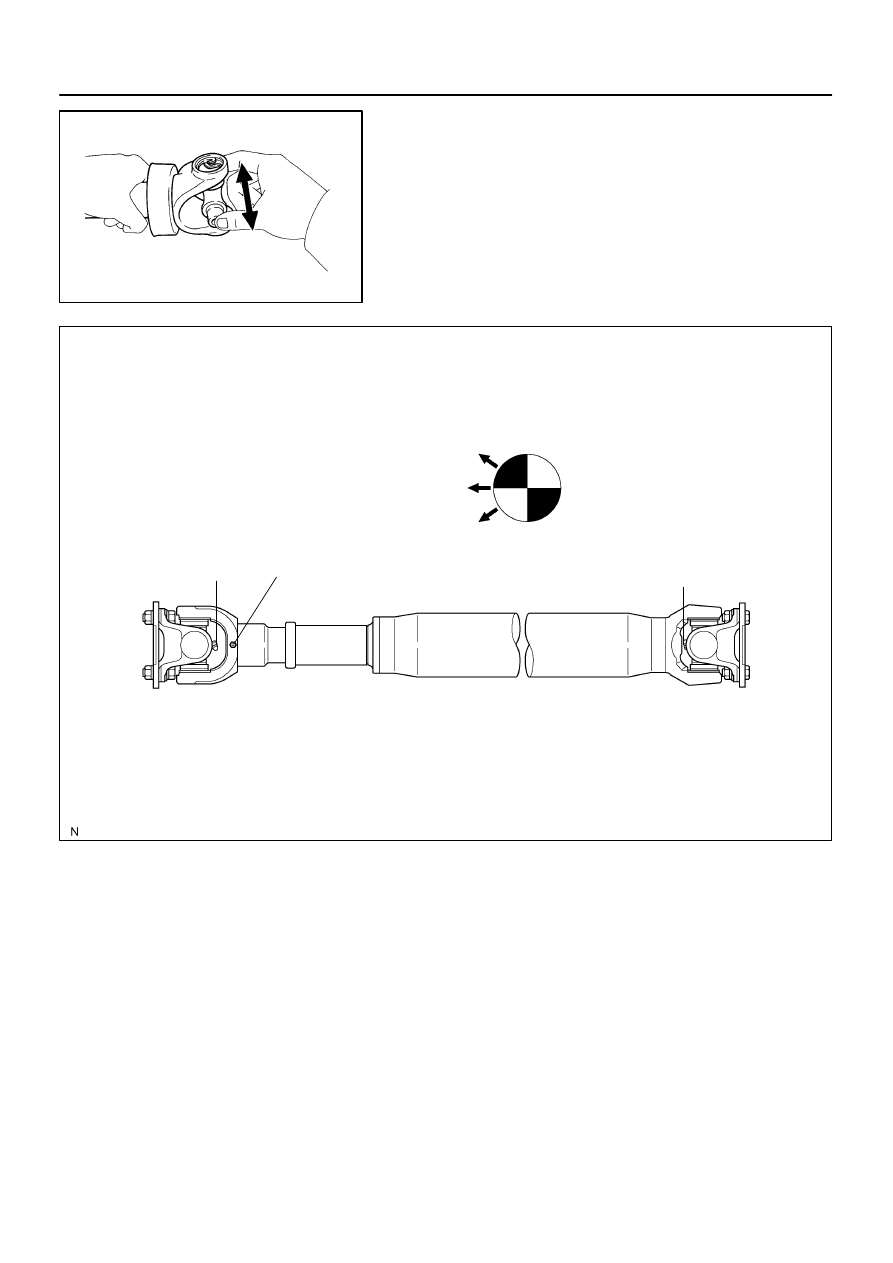

7.

CHECK SPIDER BEARING

(a)

Check that the spider bearing moves smoothly.

(b)

Check the spider bearing axial play.
Maximum bearing axial play: 0.05 mm (0.0020 in.)

HINT:

Install new spider bearings on the flange side in the pro-
cedure described above.

When replacing the rear propeller shaft spider on 4WD
vehicle, be sure that the grease fitting assembly hole is
facing in the direction shown in the illustration below.
