Toyota Sequoia (2005). Manual - part 749

PR01G–06

F19802

Non–reusable part

N·m (kgf·cm, ft·lbf) : Specified torque

Spider Bearing

Snap Ring

Spider

Sleeve Yoke

Spider

Propeller Shaft

Spider Bearing

Snap Ring

Flange Yoke

88 (897, 65)

.

PR–2

–

PROPELLER SHAFT

PROPELLER SHAFT ASSEMBLY (2WD)

2985

PROPELLER SHAFT ASSEMBLY (2WD)

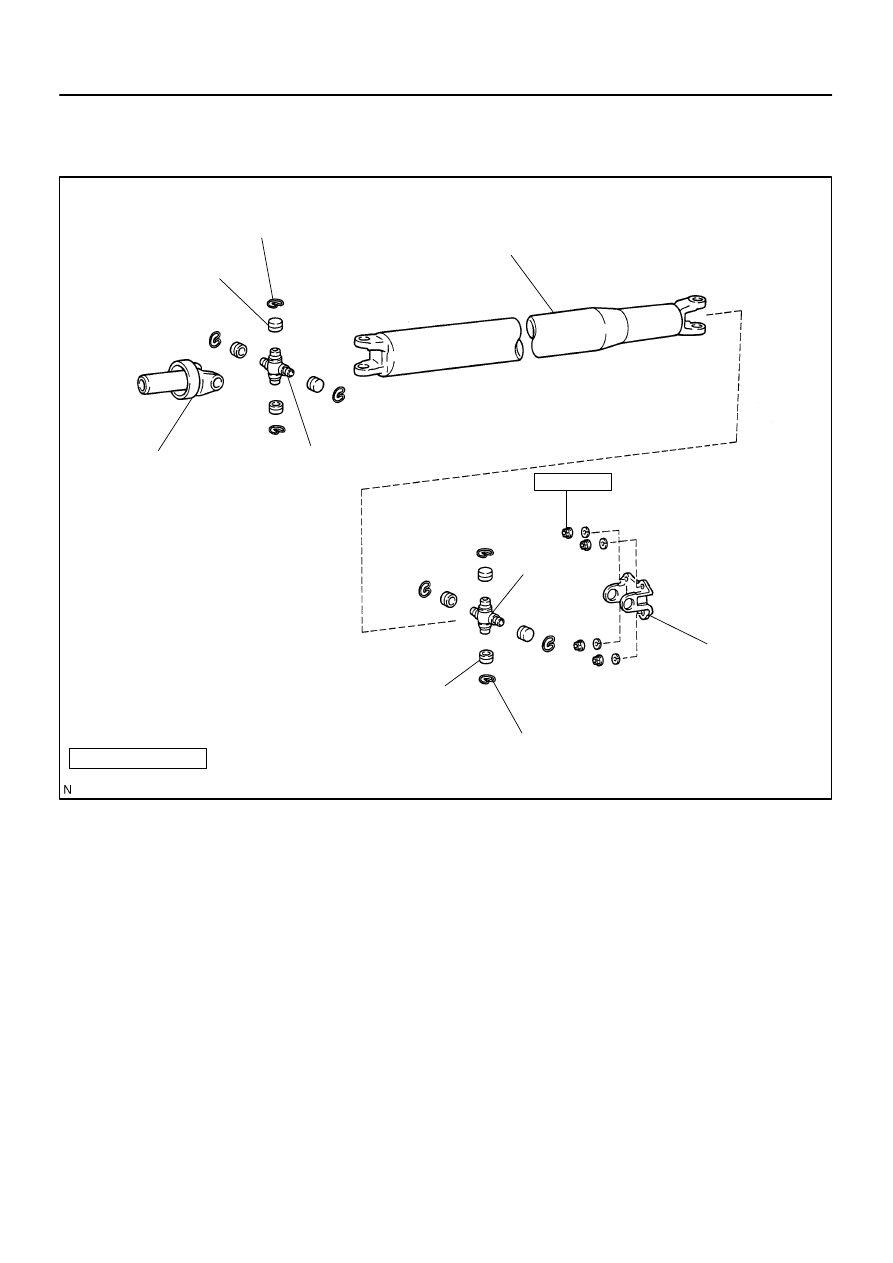

COMPONENTS

PR01H–04

F19347

Matchmarks

R04164

SST

–

PROPELLER SHAFT

PROPELLER SHAFT ASSEMBLY (2WD)

PR–3

2986

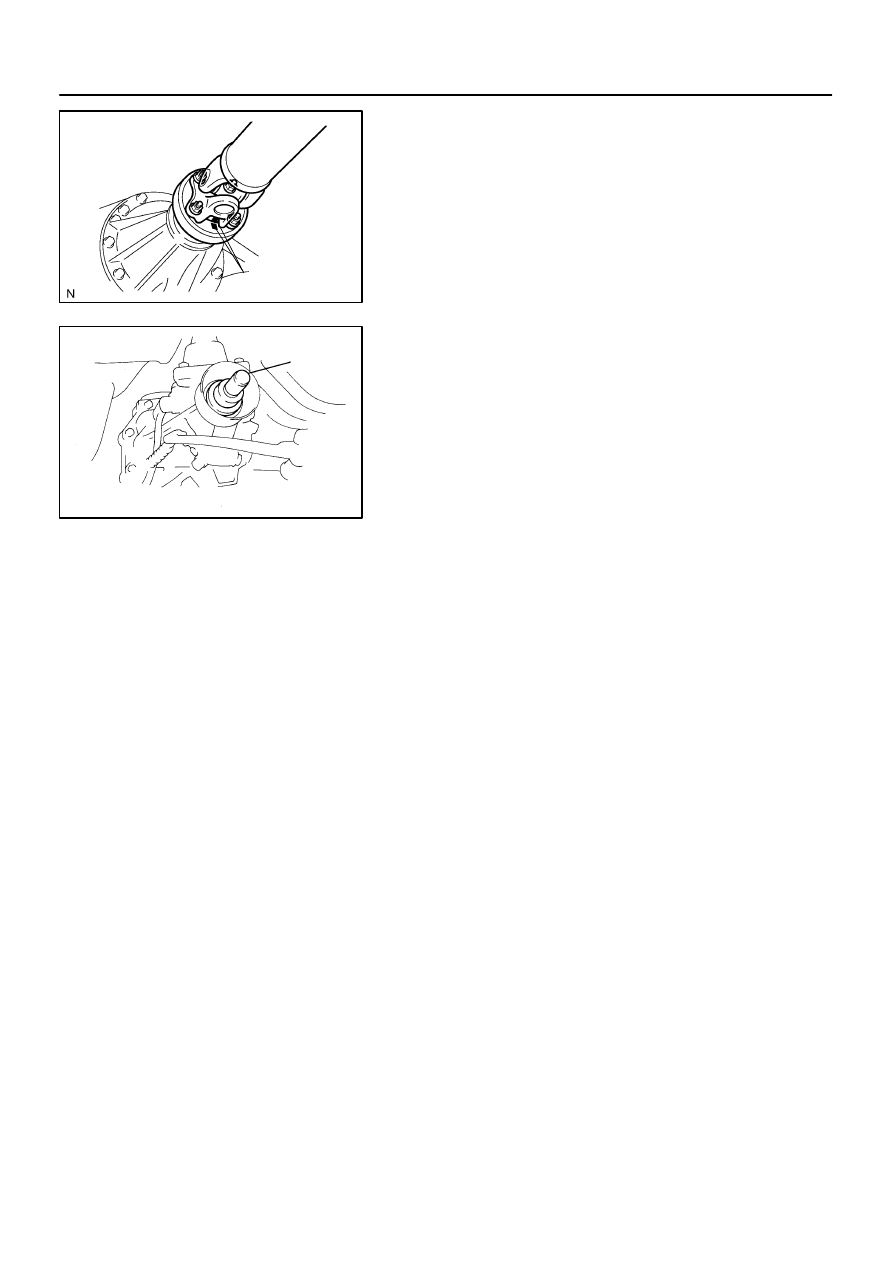

REMOVAL

REMOVE PROPELLER SHAFT
(a)

Place matchmarks on the differential and propeller shaft
flanges.

(b)

Remove the 4 nuts and washers.

(c)

Pull out the propeller shaft yoke from the transmission.

(d)

Insert SST in the transmission to prevent oil leakage.
SST

09325–40010

PR07K–02

Z04240

Z04241

PR–4

–

PROPELLER SHAFT

PROPELLER SHAFT ASSEMBLY (2WD)

2987

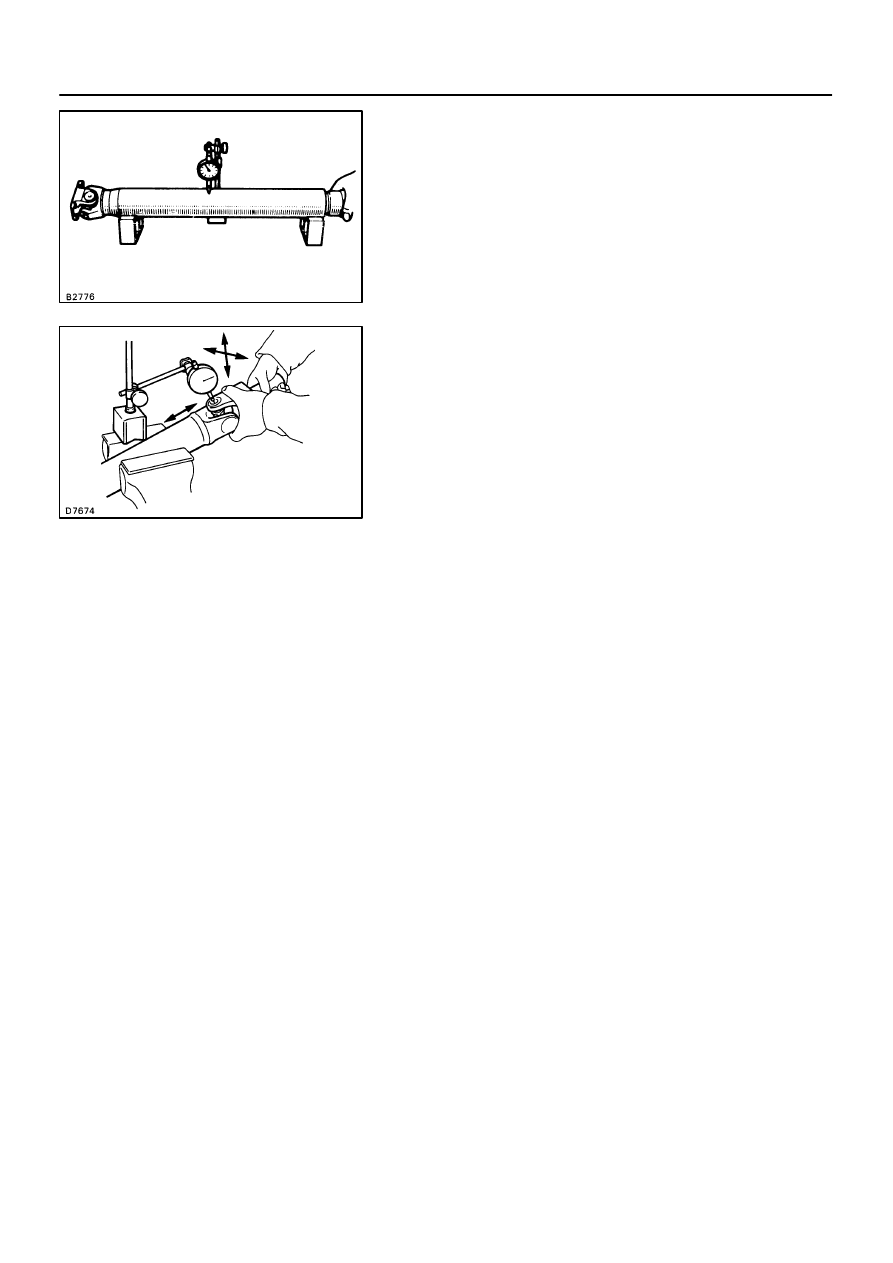

INSPECTION

NOTICE:
Be careful not to grip the propeller shaft tube too tightly in
a vise as this will cause deformation.
1.

INSPECT PROPELLER SHAFT AND INTERMEDIATE
SHAFT FOR DAMAGE OR RUNOUT

Using a dial indicator, check the runout of each shaft.

Maximum runout:



0.8 mm (0.031 in.)

If shaft runout is greater than the maximum, replace the shaft.

2.

INSPECT SPIDER BEARING

(a)

Inspect the spider bearing for wear or damage.

(b)

Using a dial indicator, check the spider bearing axial play
by turning the yoke of flange while holding the shaft tight-
ly.
Maximum bearing axial play: 0.05 mm (0.0020 in.)

If the spider bearing axial play exceeds the maximum, replace
the spider bearing (See page

PR–10

).

PR07L–02

F19347

Matchmarks

–

PROPELLER SHAFT

PROPELLER SHAFT ASSEMBLY (2WD)

PR–5

2988

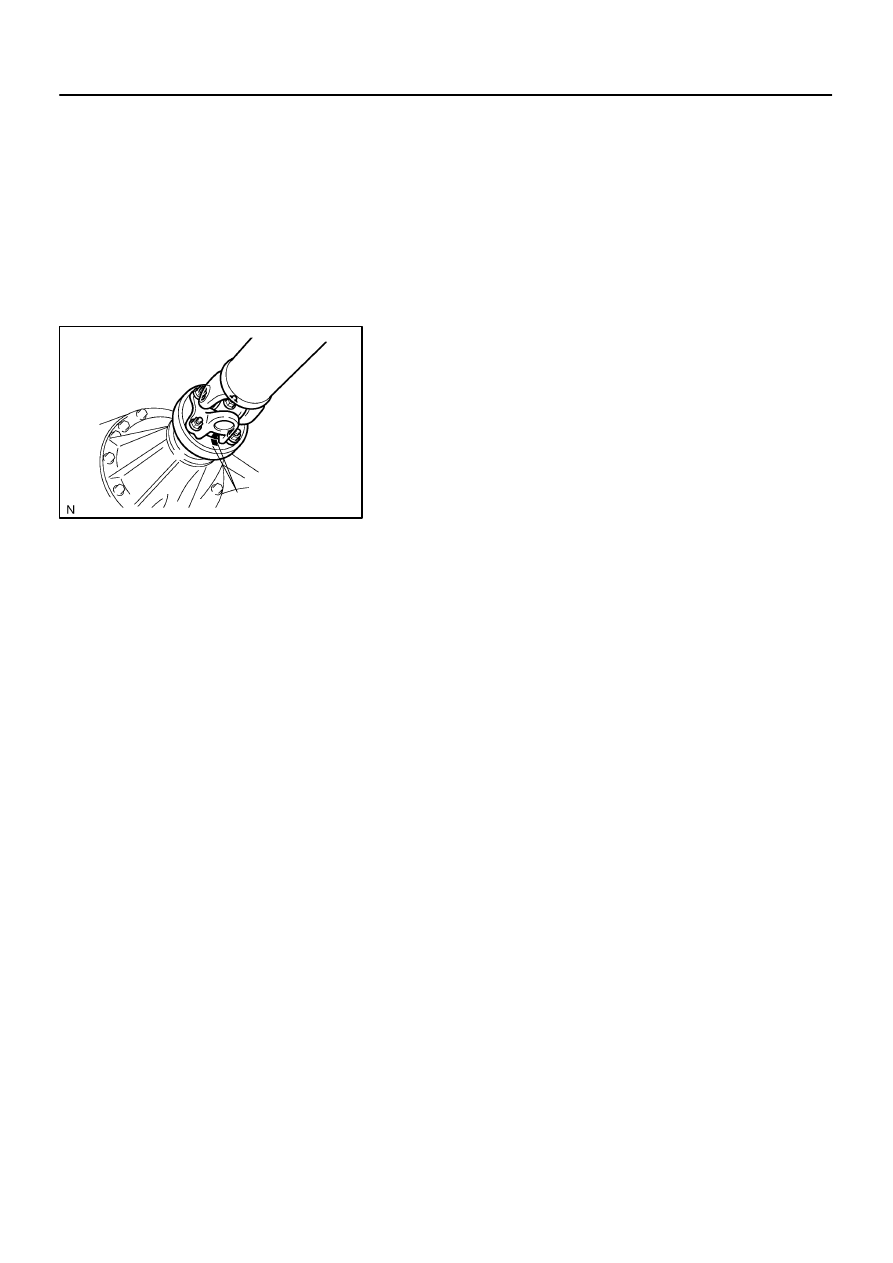

INSTALLATION

INSTALL PROPELLER SHAFT
(a)

Remove the SST from the transmission.
SST

09325–40010

(b)

Insert the yoke into the transmission.

(c)

Align the matchmarks on the flanges and connect the
flanges with the washers and nuts.

(d)

Torque the 4 nuts.
Torque: 88 N·m (897 kgf·cm, 65 ft·lbf)
