AUTOMATIC TRANSMISSION (A750E, A750F)

AUTOMATIC TRANSMISSION SYSTEM

AT–1

2909

AUTOMATIC TRANSMISSION SYSTEM

PRECAUTION

NOTICE:
When disconnecting the battery terminal, initialize the following system after the terminal is recon-
nected.

System Name

See Page

Back Door Power Window Control System

BE–77

AT131–01

D14123

Clutch No.2 (C

2

)

Clutch No.3 (C

3

)

Clutch No.1 (C

1

)

One–way Clutch
No.1 (F

1

)

One–way Clutch
No.2 (F

2

)

Brake No.3
(B

3

)

Brake No.1 (B

1

)

Brake No.2 (B

2

)

One–way Clutch
No.3 (F

3

)

Brake No.4 (B

4

)

Shift Solenoid Valve SLT

Shift Solenoid Valve SL1

Shift Solenoid Valve S1

Shift Solenoid Valve S2

Shift Solenoid Valve SR

Shift Solenoid Valve SL2

Shift Solenoid Valve SLU

AT–2

–

AUTOMATIC TRANSMISSION (A750E, A750F)

AUTOMATIC TRANSMISSION SYSTEM

2910

OPERATION

SL1

Park

Reverse

Neutral

1st

2nd

4th
5th

1st

4th

1st

3rd

1st

1st

S1

C

1

C

2

B

1

B

2

B

3

B

4

F

3

F

1

F

2

: Operates

Gear
Position

Shift Lever
Position

2nd

2nd

2nd

3rd

3rd

R
N

D

       D
(O/D OFF)

3

2

L

P

S2

SR

SL2

C

3

SLU

F1, F2, F3 : Operates only when driving

–

AUTOMATIC TRANSMISSION (A750E, A750F)

AUTOMATIC TRANSMISSION SYSTEM

AT–3

2911

D13867

AT132–01

OR0004

SST

OR0005

SST

AT–4

–

AUTOMATIC TRANSMISSION (A750E, A750F)

EXTENSION HOUSING OIL SEAL (A750E)

2912

EXTENSION HOUSING OIL SEAL
(A750E)

ON–VEHICLE REPAIR

1.

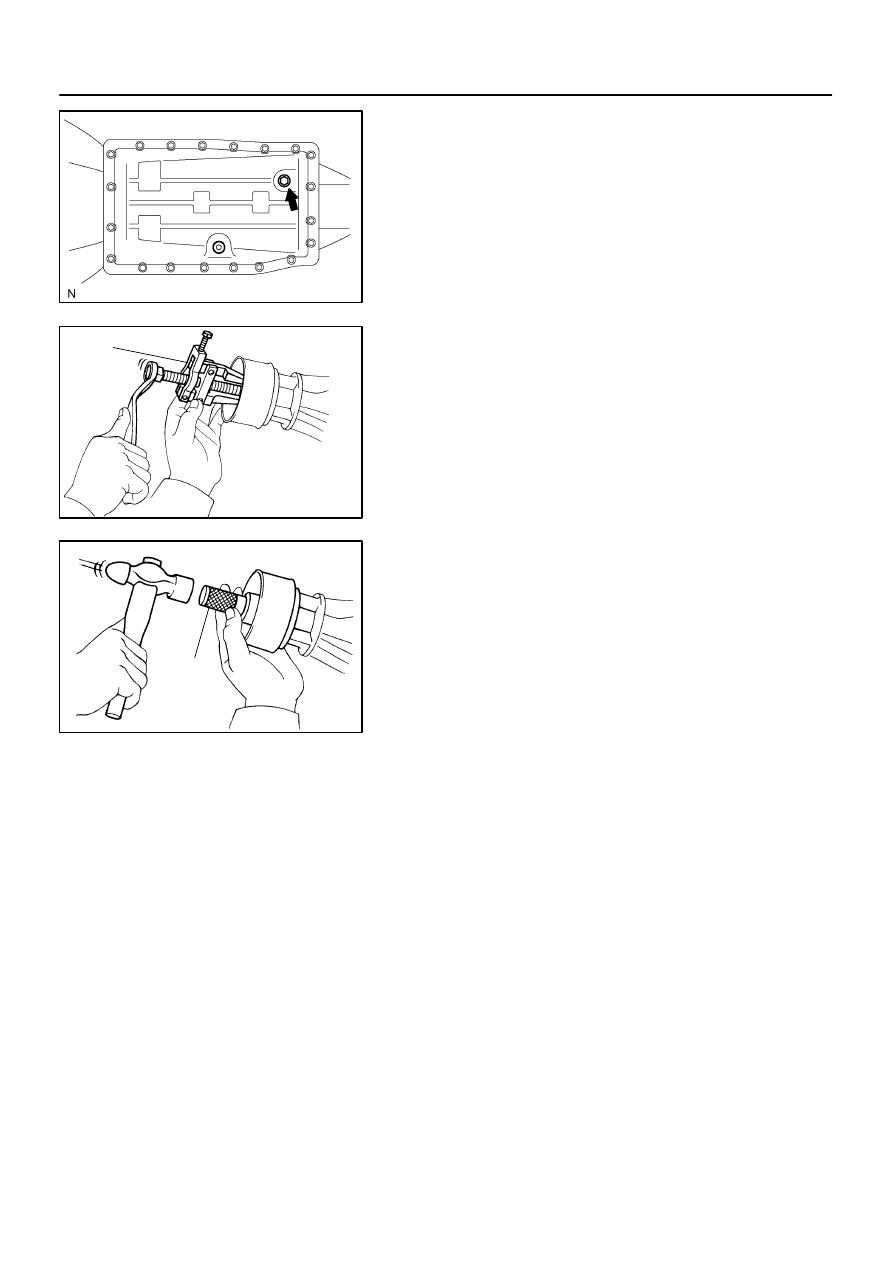

DRAIN AUTOMATIC TRANSMISSION FLUID

(a)

Remove the drain plug and gasket, and drain the ATF.

(b)

Install a new gasket and the drain plug.
Torque: 20 N·m (204 kgf·cm, 15 ft·lbf)

2.

REMOVE PROPELLER SHAFT (See page

PR–3

)

3.

REMOVE REAR OIL SEAL

NOTICE:
Clean the extension housing before removing the oil seal.
Using SST, remove the oil seal.

SST

09308–10010

4.

INSTALL OIL SEAL

(a)

Using SST and a hammer, carefully drive a new oil seal
in until it stops.
SST

09325–40010

(b)

Coat the lip of the oil seal with MP grease.

5.

INSTALL PROPELLER SHAFT (See page

PR–5

)

6.

CHECK FLUID LEVEL (See page

DI–524

)
