B16364

B16366

SST

–

CHARGING

GENERATOR

CH–9

2901

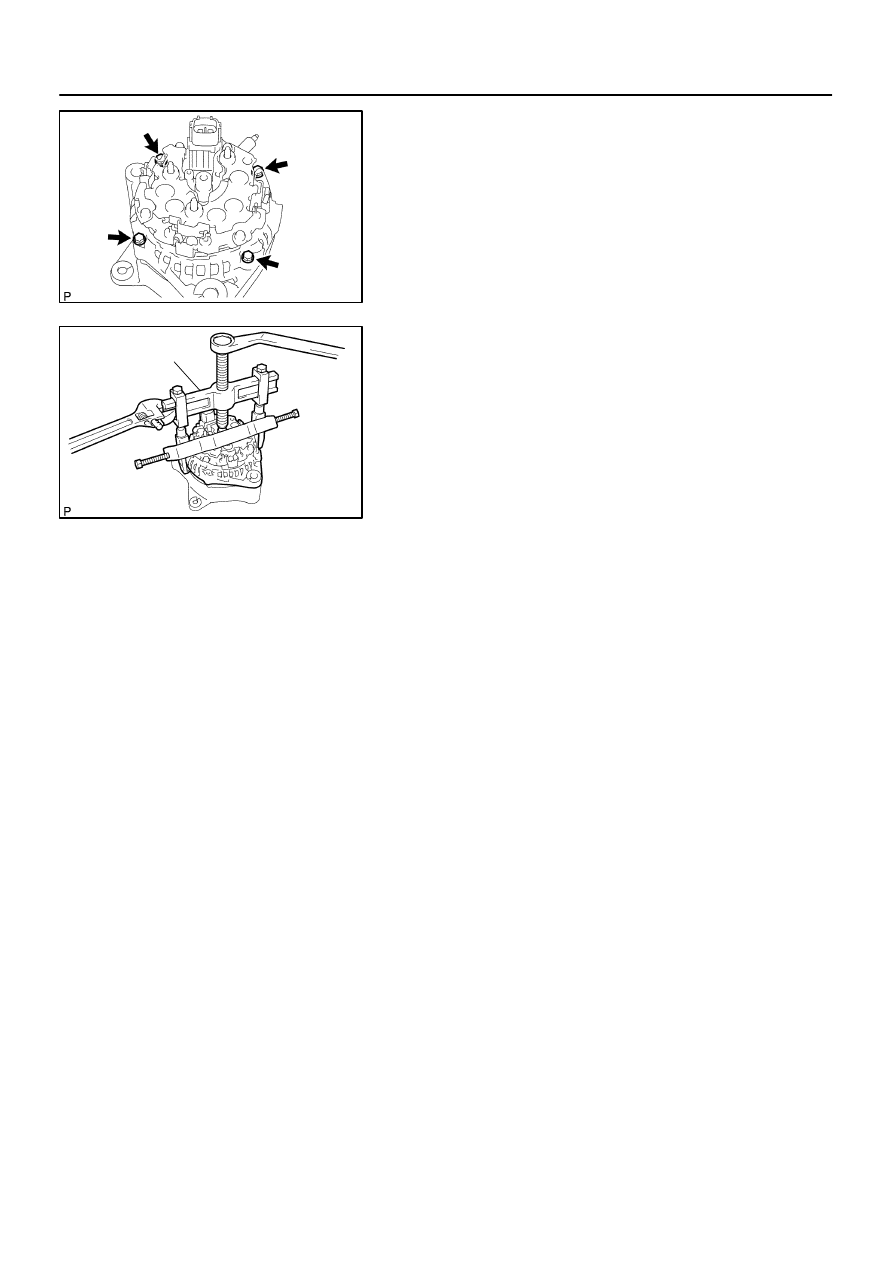

4.

REMOVE COIL ASSEMBLY

(a)

Remove the 4 bolts.

(b)

Using SST, remove the coil assembly.
SST

09950–40011 (09951–04020, 09952–04010
09953–04020, 09954–04010, 09955–04071,
09958–04011)

(c)

Remove the generator washer.

5.

REMOVE ROTOR FROM DRIVE END FRAME

CH0M0–02

B12264

Ohmmeter

Continuity

B12265

Ohmmeter

No Continuity

B12266

B16374

Length

CH–10

–

CHARGING

GENERATOR

2902

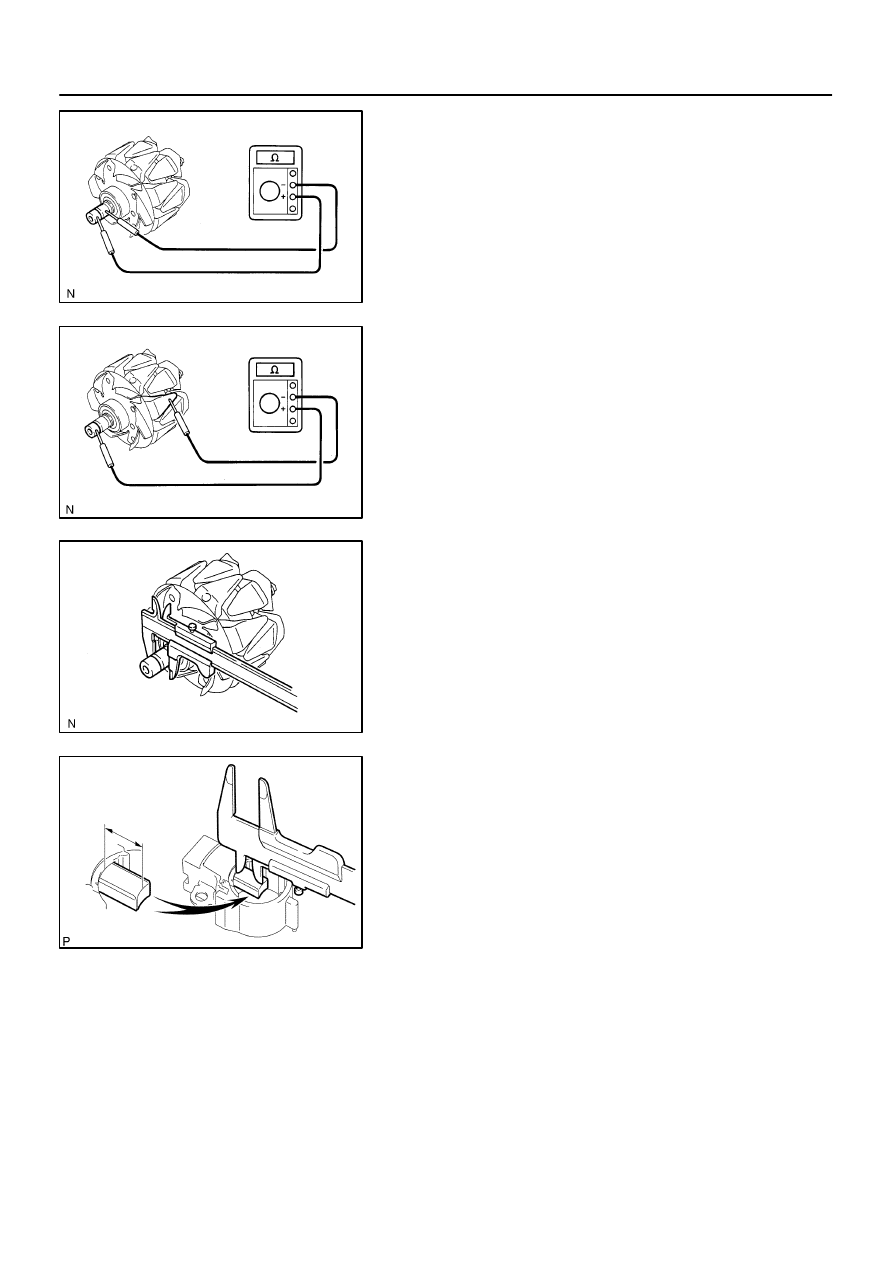

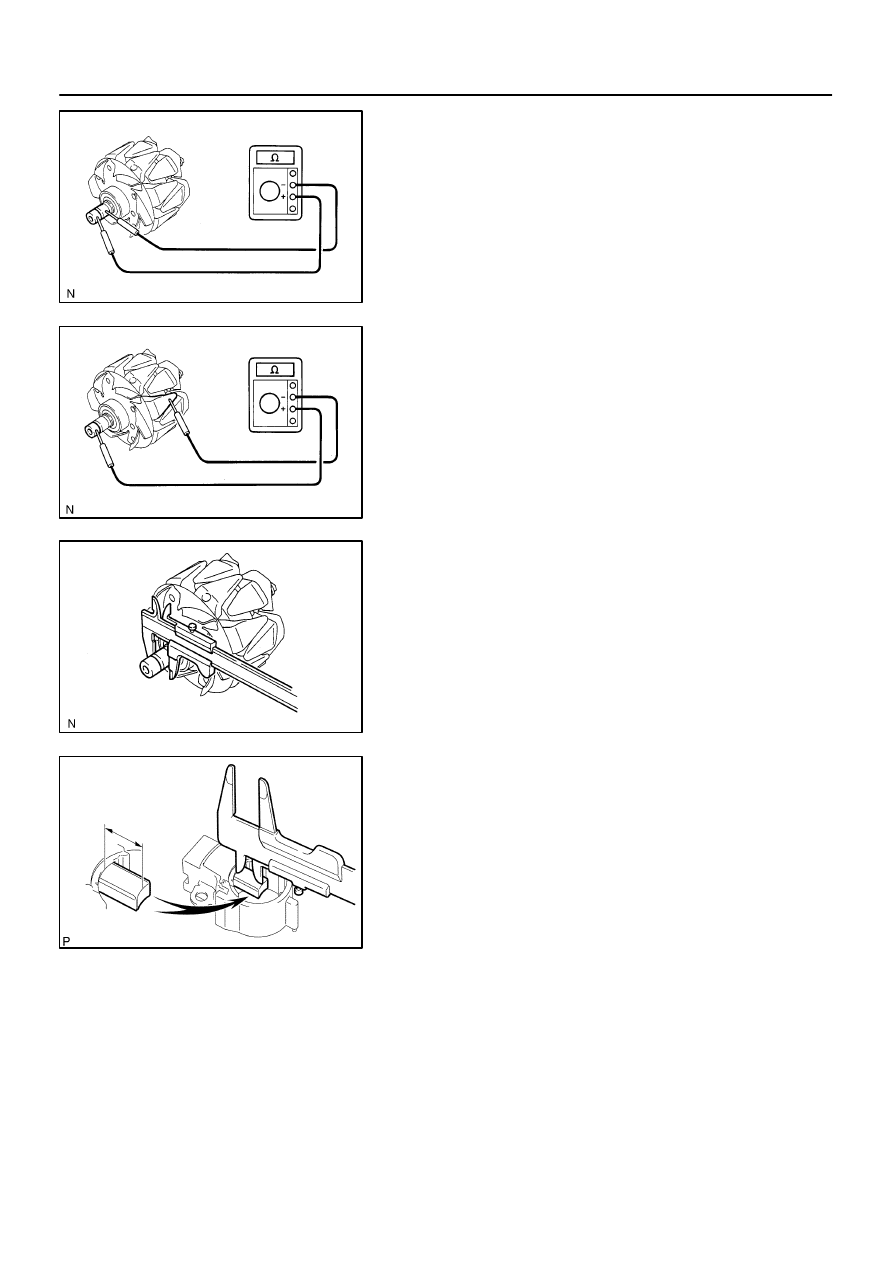

INSPECTION

1.

INSPECT ROTOR

(a)

Check the rotor for open circuit.
Using an ohmmeter, check that there is continuity be-
tween the slip rings.
Standard resistance: 1.5 to 1.9

Ω

 at 20

°

C (68

°

F)

If there is no continuity, replace the rotor.

(b)

Check the rotor for ground.
Using an ohmmeter, check that there is no continuity be-
tween the slip ring and rotor.

If there is continuity, replace the rotor.
(c)

Check that the slip rings are not rough or scored.

If rough or scored, replace the rotor.

(d)

Using vernier calipers, measure the slip ring diameter.
Standard diameter: 14.2 to 14.4 mm (0.559 to 0.567 in.)
Minimum diameter: 14.0 mm (0.551 in.)

If the diameter is less than the minimum, replace the rotor.

2.

INSPECT BRUSHES

Using vernier caliper, measure the exposed brush length.

Standard exposed length: 10.5 mm (0.413 in.)
Minimum exposed length: 4.5 mm (0.177 in.)

If the exposed length is less than the minimum, replace the
brushes and the brush holder assembly.
3.

INSPECT BEARING

Check the bearing is not rough or worn.
If necessary, replace the bearing (See page

CH–11

).

CH0M1–02

B16375

B16387

Socket Wrench

SST

B16386

SST

B12270

SST

B12272

SST

–

CHARGING

GENERATOR

CH–11

2903

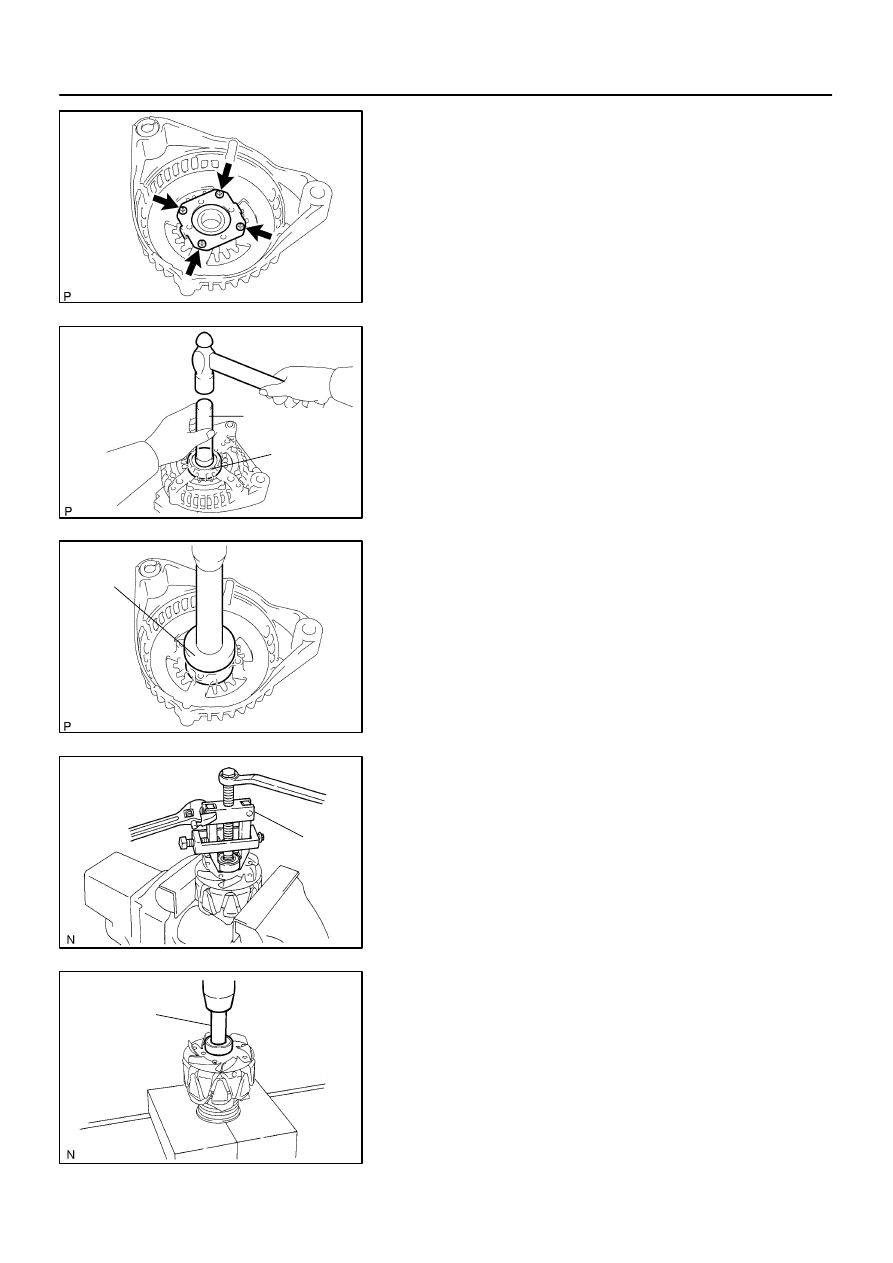

REPLACEMENT

1.

REPLACE FRONT BEARING

(a)

Remove the 4 screws, the bearing retainer and the bear-
ing.

(b)

Using SST and a hammer, tap out the bearing.
SST

09950–60010 (09951–00250), 09950–70010
(09951–07100)

(c)

Using SST and a press, press in a new bearing.
SST

09950–60010 (09951–00470), 09950–70010
(09951–07100)

(d)

Install the bearing retainer with the 4 screws.
Torque: 2.6 N·m (27 kgf·cm, 23 in.·lbf)

2.

REPLACE REAR BEARING

(a)

Using SST, remove the bearing cover (outside) and the
bearing.
SST

09820–00021

NOTICE:
Be careful not to damage the fan.

(b)

Using SST and a press, press in a new bearing.
SST

09820–00031

B12273

SST

CH–12

–

CHARGING

GENERATOR

2904

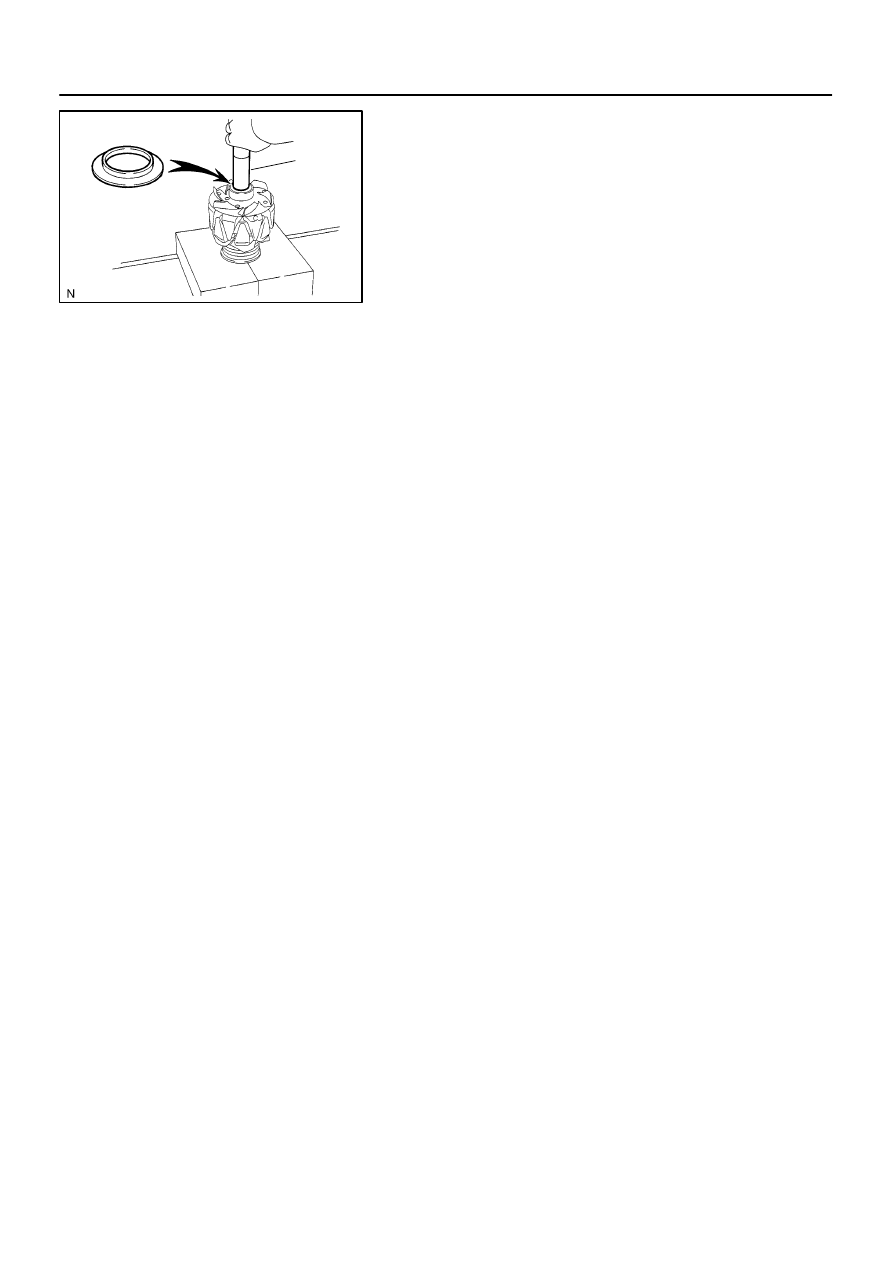

(c)

Using SST, push in the bearing cover (outside).
SST

09285–76010
