AUTOMATIC TRANSMISSION (A750E, A750F)

SPEED SENSOR

AT–5

2913

SPEED SENSOR

ON–VEHICLE REPAIR

1.

DISCONNECT NO. 1 VEHICLE SPEED SENSOR CON-
NECTOR

2.

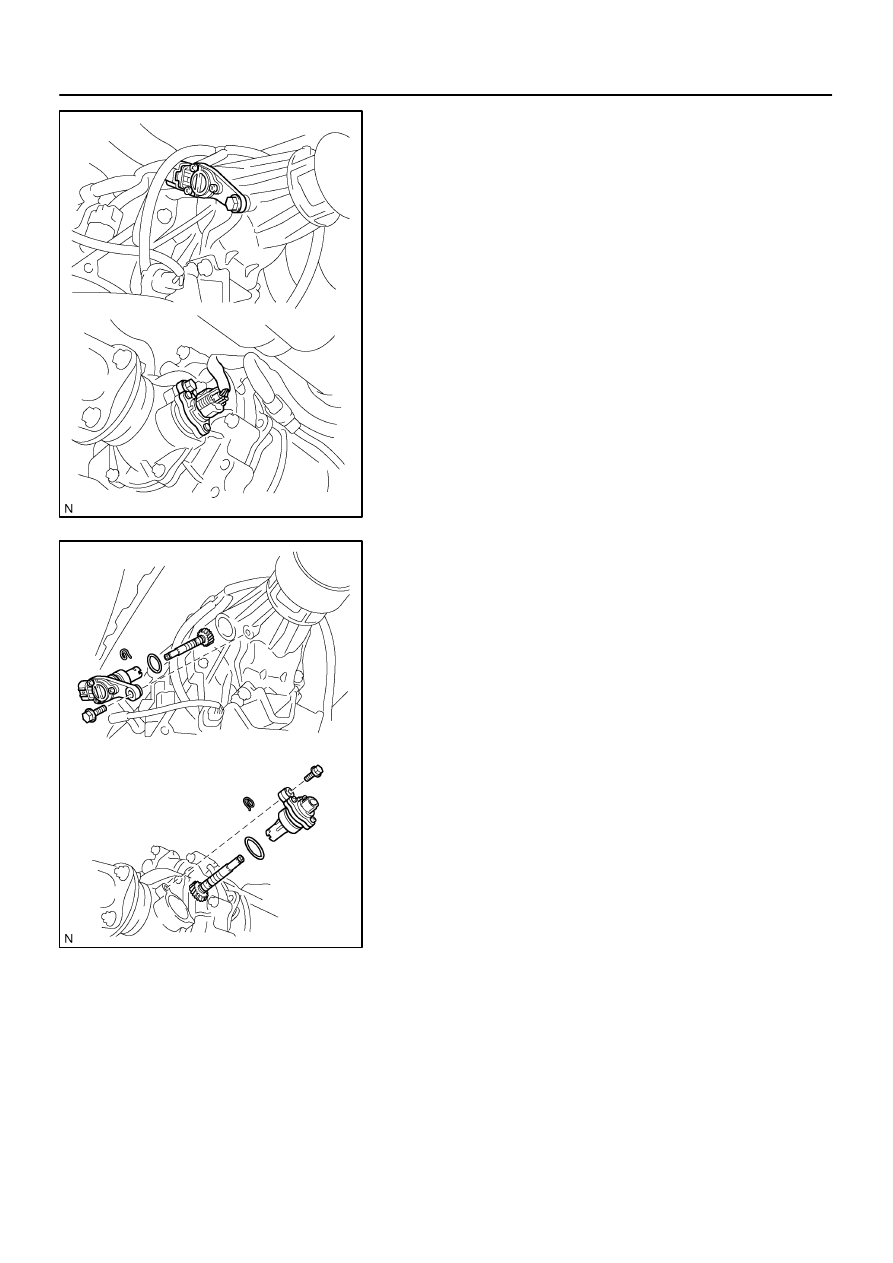

REMOVE NO. 1 VEHICLE SPEED SENSOR

Remove the bolt and No.1 vehicle speed sensor.
3.

DISASSEMBLE NO. 1 VEHICLE SPEED SENSOR

(a)

Remove the O–ring from the speedometer driven gear
assembly.

(b)

Remove the clip and speedometer driven gear from the
speedometer driven gear sleeve.

4.

ASSEMBLE NO. 1 VEHICLE SPEED SENSOR

(a)

Install the speedometer driven gear and clip to the
speedometer driven gear sleeve.

(b)

Coat a new O–ring with ATF.

(c)

Install the O–ring to the speedometer driven gear assem-
bly.

5.

INSTALL NO. 1 VEHICLE SPEED SENSOR

Install the No.1 vehicle speed sensor with the bolt.

Torque:
A750E: 9.8 N·m (100 kgf·cm, 86 in.·lbf)
A750F: 11.5 N·m (117 kgf·cm, 8 ft·lbf)

6.

CONNECT NO. 1 VEHICLE SPEED SENSOR CON-
NECTOR

D14124

Speed Sensor NT

Speed Sensor SP2

D02395

D14124

Speed Sensor NT

Speed Sensor SP2

AT–6

–

AUTOMATIC TRANSMISSION (A750E, A750F)

SPEED SENSOR

2914

7.

DISCONNECT SPEED SENSOR NT AND SP2 CON-
NECTOR

8.

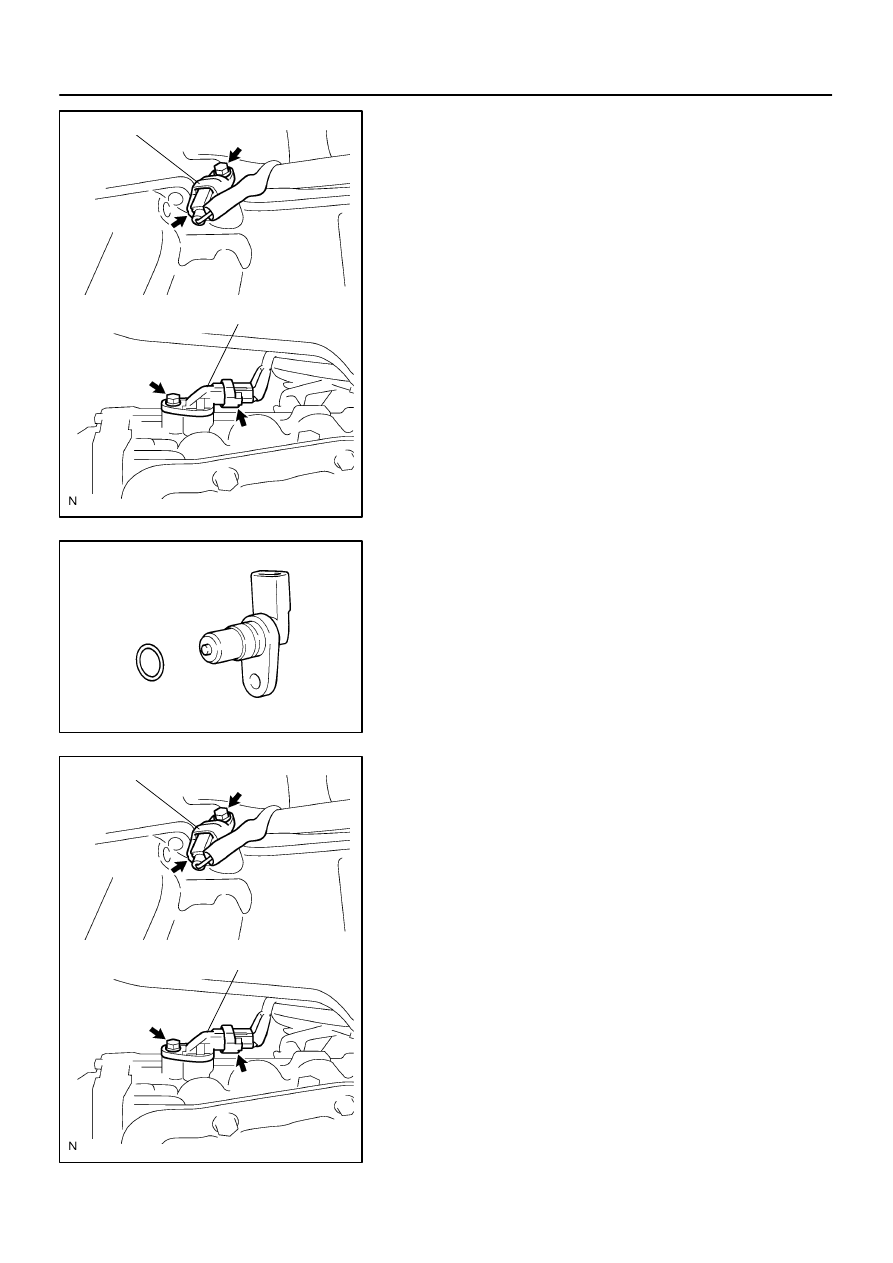

REMOVE SPEED SENSOR NT AND SP2

(a)

Remove the 2 bolts, speed sensors NT and SP2.

(b)

Remove 2 O–rings from the speed sensors NT and SP2.

9.

INSTALL SPEED SENSOR NT AND SP2

(a)

Coat 2 new O–rings with ATF and install them to the
speed sensors NT and SP2.

(b)

Install the speed sensors NT and SP2 with the 2 bolts.
Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf)

10.

CONNECT SPEED SENSOR NT AND SP2 CONNEC-
TOR

D13867

AT134–01

D12704

Orange

Blue

Clamp

Clamp

Bolt

Bolt

D12739

D12704

Orange

Blue

Clamp

Clamp

A

B

–

AUTOMATIC TRANSMISSION (A750E, A750F)

ATF TEMPERATURE SENSOR

AT–7

2915

ATF TEMPERATURE SENSOR

ON–VEHICLE REPAIR

1.

DRAIN AUTOMATIC TRANSMISSION FLUID

(a)

Remove the drain plug and gasket, and drain the ATF.

(b)

Install a new gasket and the drain plug.
Torque: 20 N·m (204 kgf·cm, 15 ft·lbf)

2.

REMOVE OIL PAN (See page

AT–10

)

3.

REMOVE OIL STRAINER (See page

AT–10

)

4.

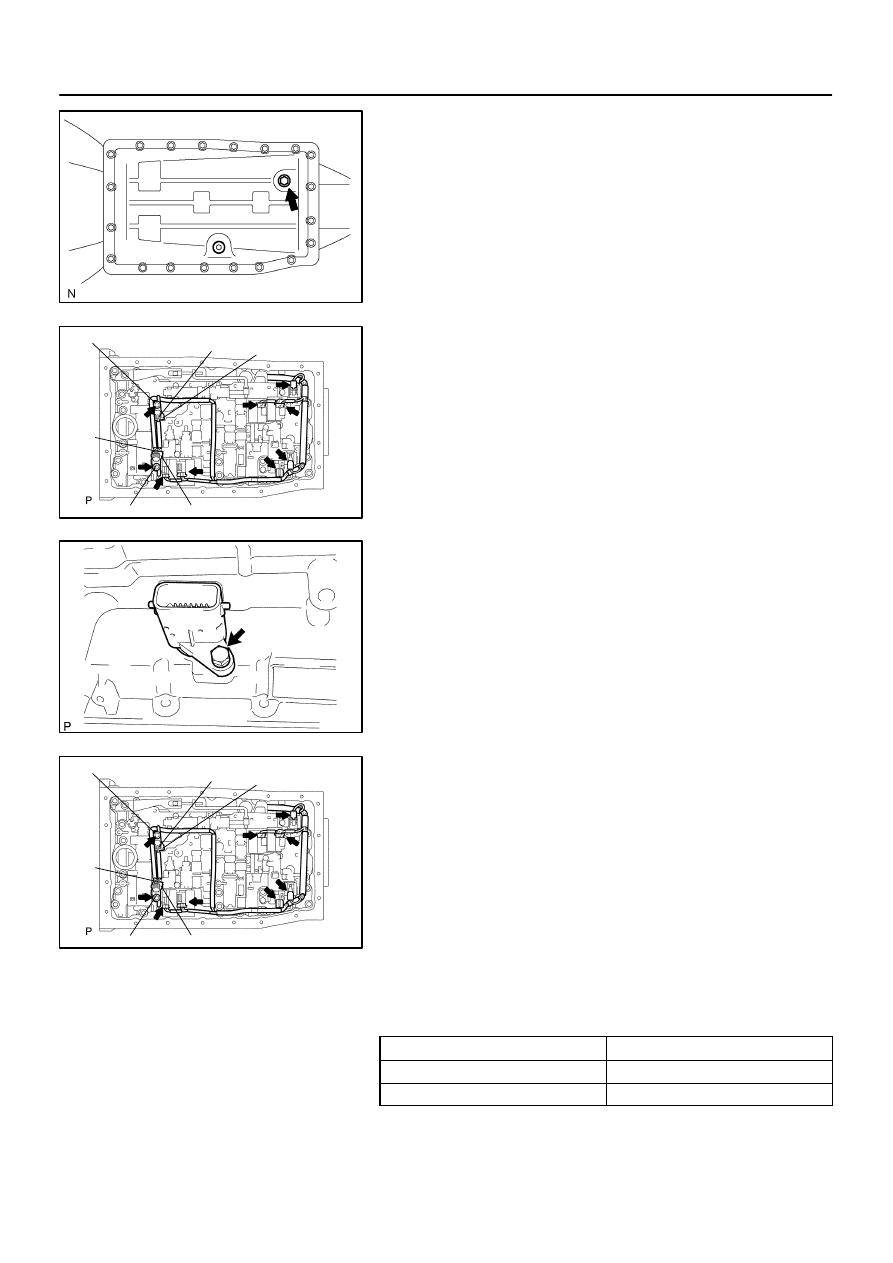

REMOVE ATF TEMPERATURE SENSOR

(a)

Disconnect the 7 solenoid valve connectors.

(b)

Remove the 2 bolts, clamps and ATF temperature sen-
sors.

(c)

Disconnect the transmission wire connector.

(d)

Remove the bolt and the transmission wire harness.

5.

INSTALL ATF TEMPERATURE SENSOR

(a)

Install the transmission wire harness.

(b)

Install the bolt.
Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf)

(c)

Connect the transmission wire connector.

(d)

Connect the 7 solenoid valve connectors.

(e)

Install the 2 ATF temperature sensors and clamps to the
valve body with the 2 bolts.

HINT:
In order to install the ATF temperature sensors properly, check
the wire harness color prior to installation.

Torque:
A: 11 N·m (112 kgf·cm, 8 ft·lbf)
B: 10 N·m (100 kgf·cm, 7 ft·lbf)
Bolt length:
Bolt A: 36 mm (1.42 in.)
Bolt B: 12 mm (0.47 in.)

Sensor wire harness:

Wire harness

Color

for linear control

Orange

for oil temp. warning lamp

Blue

6.

INSTALL OIL STRAINER (See page

AT–10

)

D13866

AT–8

–

AUTOMATIC TRANSMISSION (A750E, A750F)

ATF TEMPERATURE SENSOR

2916

7.

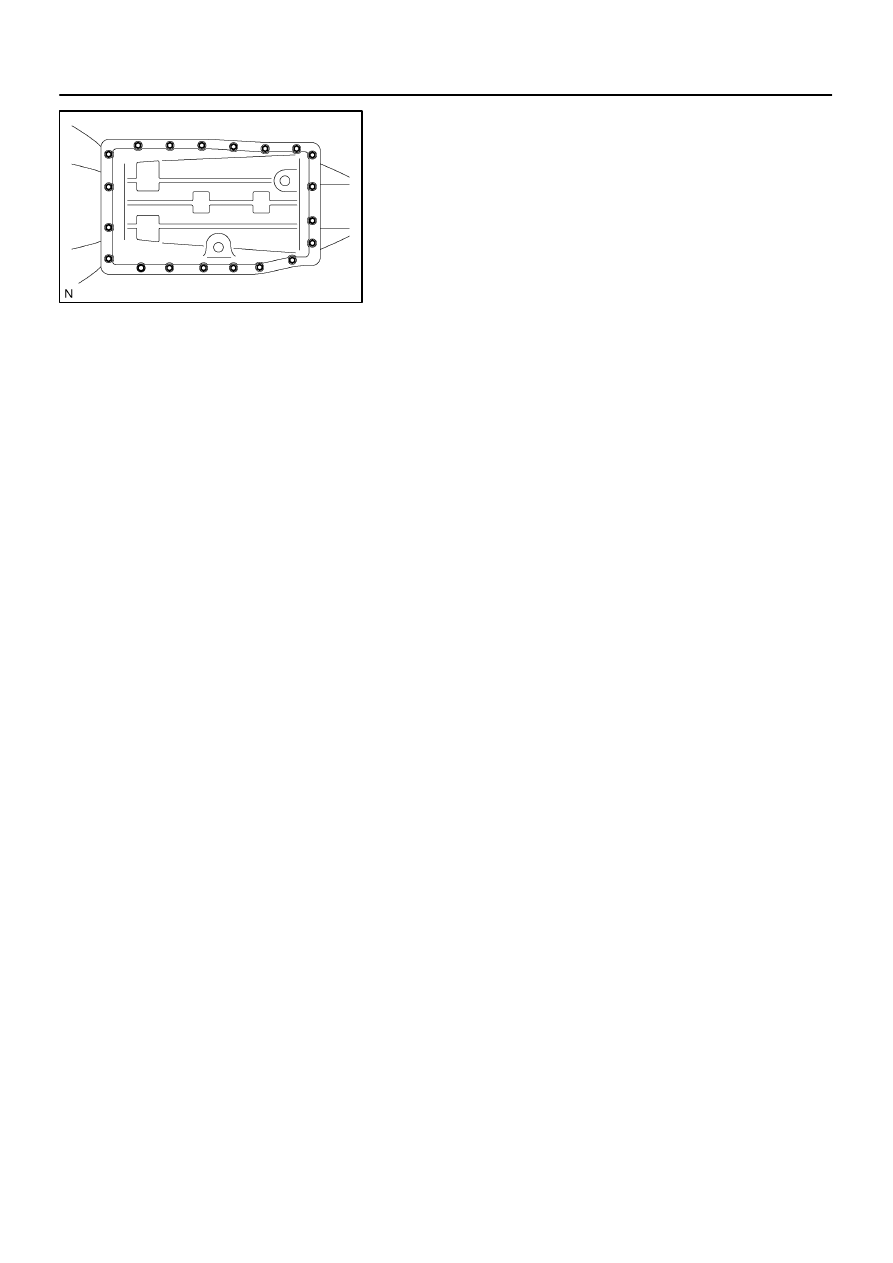

INSTALL OIL PAN

HINT:
Remove any packing material, and be careful not to spill oil on
the contacting surfaces of the transmission case and the oil
pan.
Using a new gasket, install the oil pan with the 20 bolts.

Torque: 4.4 N·m (45 kgf·cm, 39 in·lbf)

8.

FILL WITH ATF AND CHECK ATF LEVEL

(a)

Remove the refill plug (See page

DI–524

).

(b)

Fill with new fluid through the refill hole.
Fluid type: Toyota genuine ATF WS
