Toyota Sequoia (2005). Manual - part 697

B17469

SF0P7–16

B17470

–

SFI

THROTTLE BODY

SF–43

2777

INSTALLATION

1.

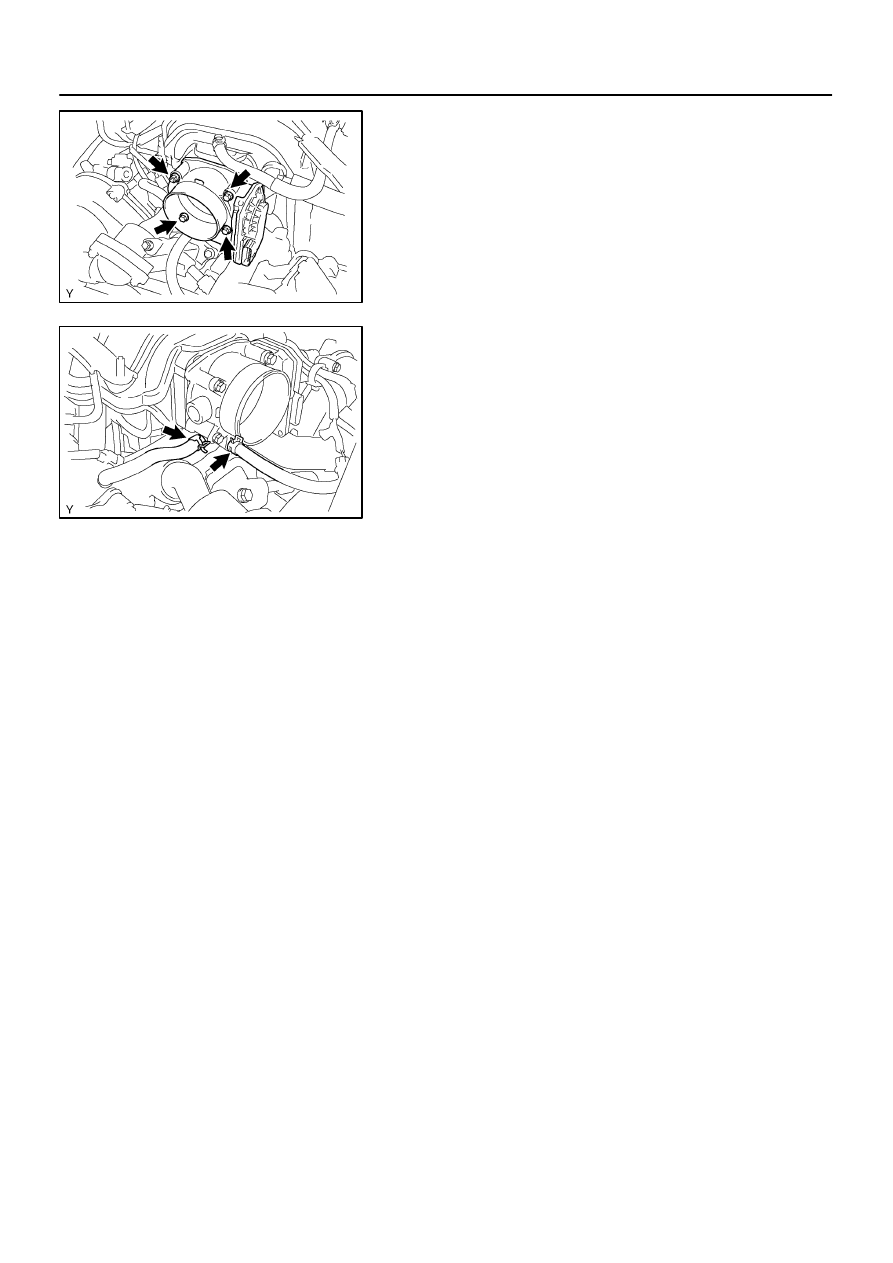

INSTALL THROTTLE BODY

(a)

Install the throttle body with the nut and 3 bolts.
Torque: 14 N·m (143 kgf·cm, 10 ft·lbf)

(b)

Connect the 2 water bypass hoses to the throttle body.

(c)

Connect the throttle control connector.

2.

INSTALL INTAKE AIR CONNECTOR

3.

FILL WITH ENGINE COOLANT (See page

CO–2

)

4.

START ENGINE AND CHECK FOR ENGINE COOLANT
LEAKS

5.

INSTALL THROTTLE BODY COVER

SF0P8–03

B12806

Ohmmeter

SF–44

–

SFI

CAMSHAFT TIMING OIL CONTROL VALVE

2778

CAMSHAFT TIMING OIL CONTROL
VALVE

ON–VEHICLE INSPECTION

(a)

Remove the throttle body cover.

(b)

Remove the intake air connector.

(c)

Disconnect the oil control valve connector.

(d)

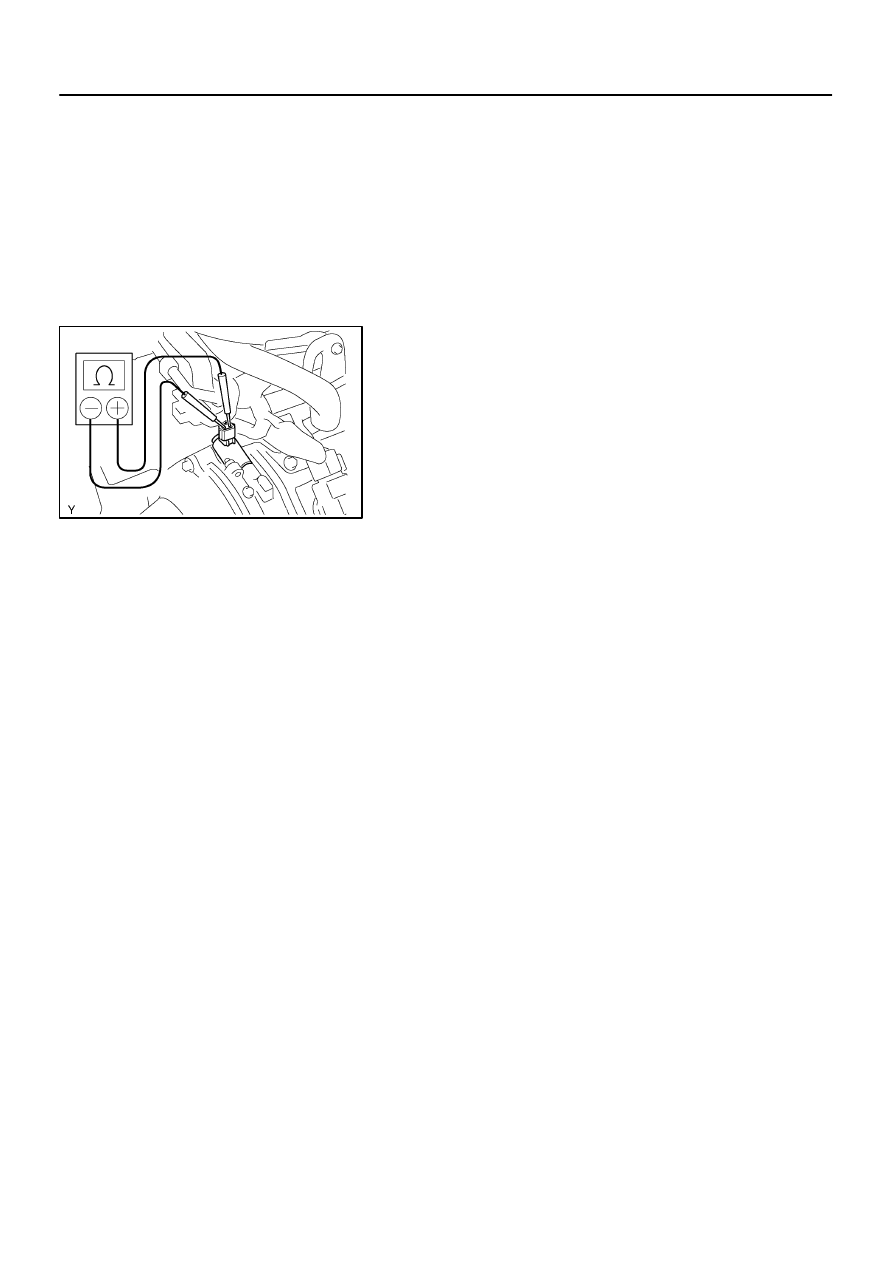

Using an ohmmeter, measure the resistance between the
terminals.
Resistance: 6.9 to 7.9

Ω

 at 20

°

C (68

°

F)

If the resistance is not as specified, replace the valve.
(e)

Reconnect the oil control valve connector.

(f)

Reinstall the intake air connector.

(g)

Reinstall the throttle body cover.

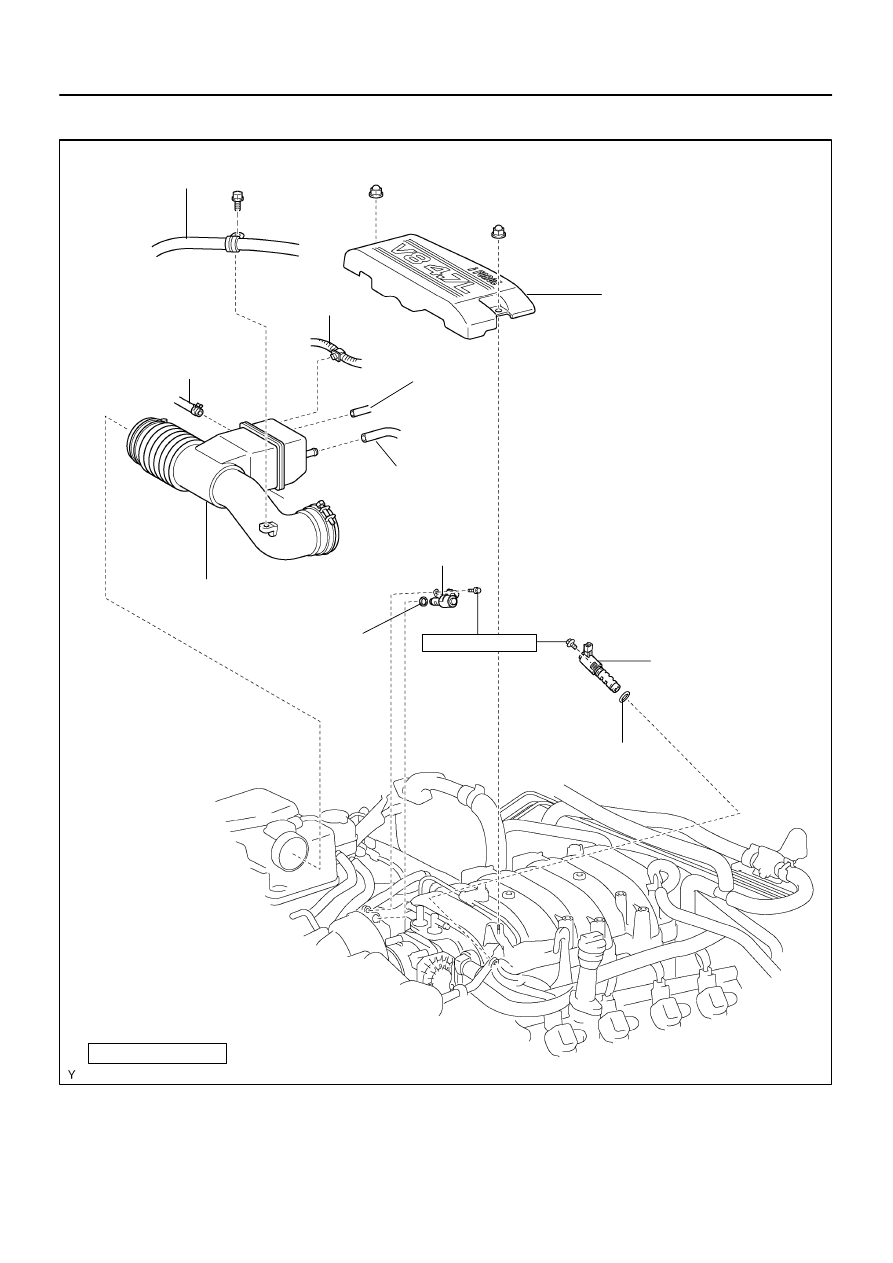

SF0P9–04

B17488

Throttle Body Cover

PS Air Hose

Intake Air Connector

Suction Hose

MAF Meter Wire

PCV Hose

Vacuum Hose

Camshaft Oil Control
Valve (Bank 2)

N·m (kgf·cm, ft·lbf)

 Non–reusable part

 O–Ring

: Specified torque

 O–Ring

Camshaft Oil Control
Valve (Bank 1)

7.5 (76, 66 in.·lbf)

–

SFI

CAMSHAFT TIMING OIL CONTROL VALVE

SF–45

2779

COMPONENTS

SF1XK–01

B01688

SF–46

–

SFI

CAMSHAFT TIMING OIL CONTROL VALVE

2780

REMOVAL

1.

REMOVE THROTTLE BODY COVER

2.

REMOVE INTAKE AIR CONNECTOR

3.

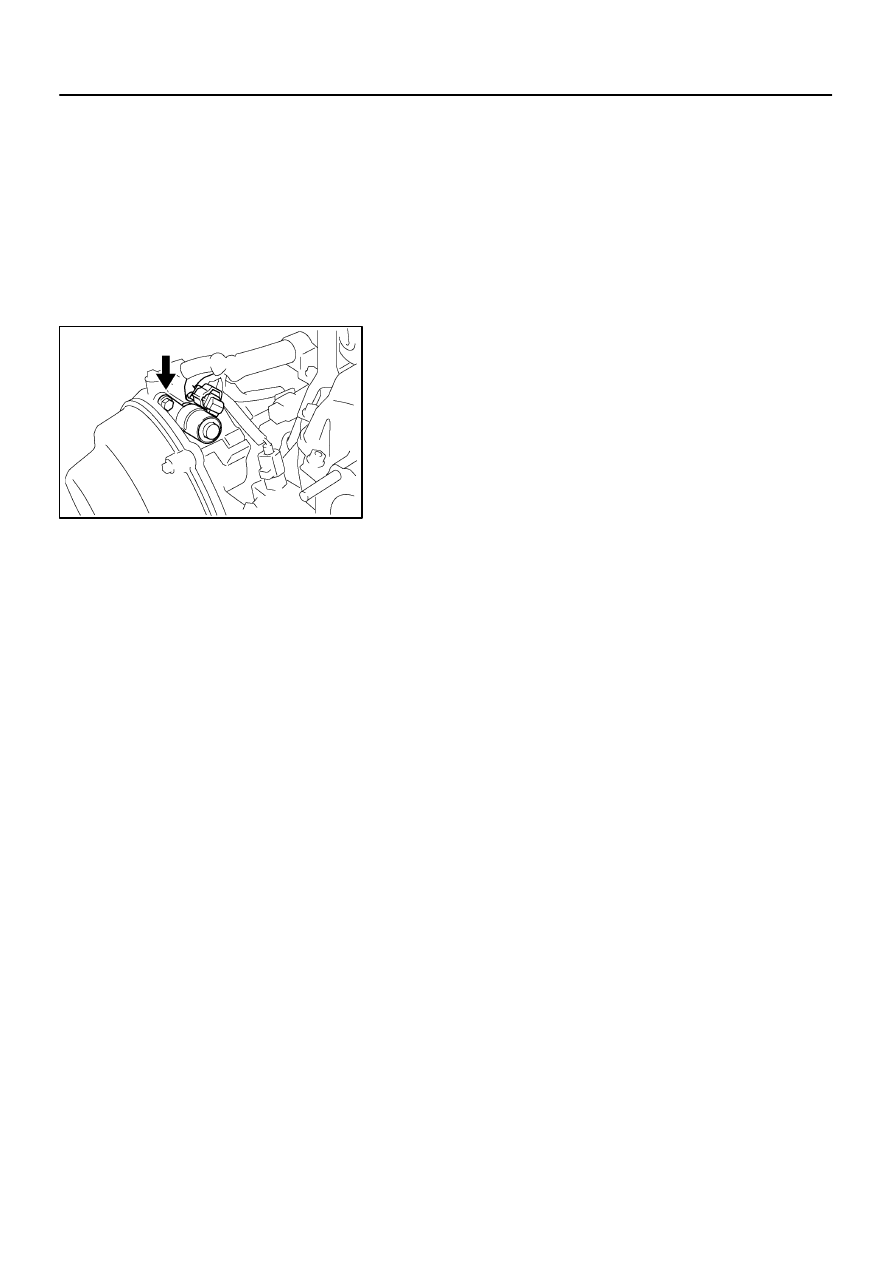

REMOVE CAMSHAFT TIMING OIL CONTROL VALVE

(a)

Disconnect the 2 camshaft oil control valve connectors.

(b)

Remove the bolt, camshaft oil control valve and O–ring.
Torque: 7.5 N·m (76 kgf·cm, 66 in.·lbf)

(c)

Remove the O–ring from the each camshaft oil control
valve.

HINT:
At the time of installation, please refer to the following items.
Use a new O–rings.
