SF0PB–02

B01689

1

2

When battery positive voltage is applied.

When battery positive voltage is cut off.

Valve moves in

direction.

Valve moves in

direction.

–

SFI

CAMSHAFT TIMING OIL CONTROL VALVE

SF–47

2781

INSPECTION

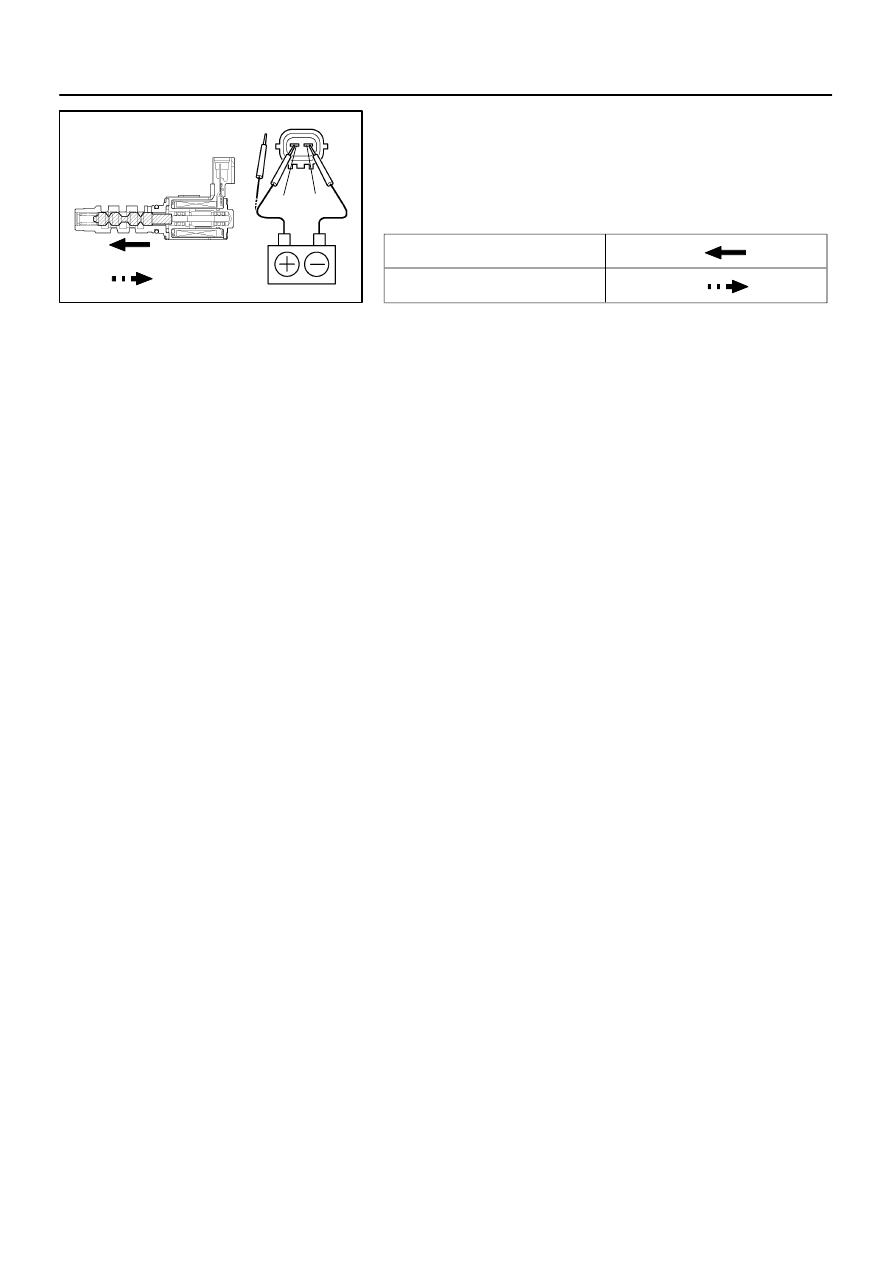

INSPECT OIL CONTROL VALVE OPERATION
Connect the positive

 lead to terminal 1 of the connector and

the negative



 lead to terminal 2, then check the movement of

the valve.

If operation is not as specified, replace the oil control valve.

SF1XL–01

SF–48

–

SFI

CAMSHAFT TIMING OIL CONTROL VALVE

2782

INSTALLATION

Installation is in the reverse order of removal. (See page

SF–46

)

SF0PD–04

B17508

B17509

Disconnect

–

SFI

ACOUSTIC CONTROL INDUCTION SYSTEM (ACIS)

SF–49

2783

ACOUSTIC CONTROL INDUCTION
SYSTEM (ACIS)

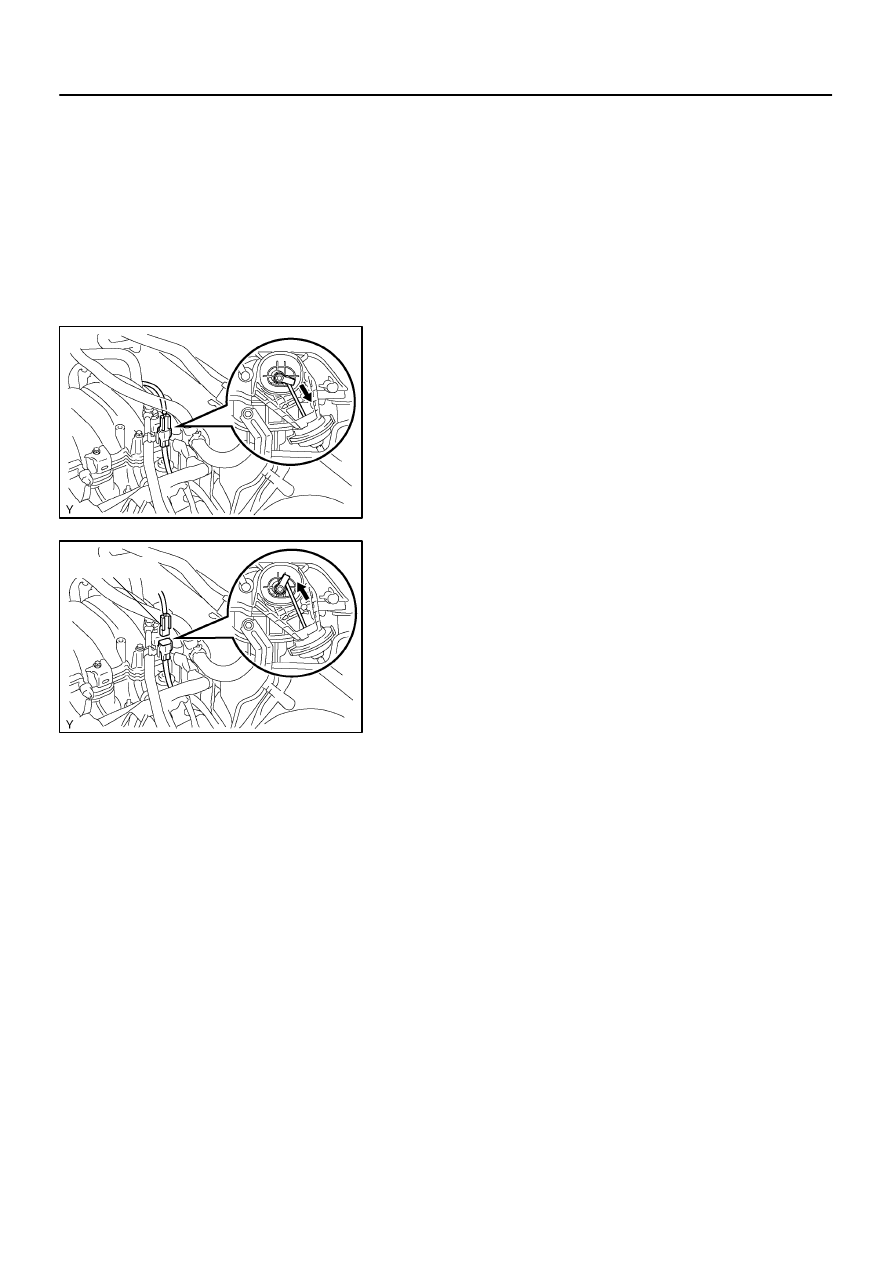

ON–VEHICLE INSPECTION

INSPECT INTAKE AIR CONTROL VALVE OPERATION
(a)

Start the engine.

(b)

While the engine idling, check that the actuator rod
moves.

(c)

Disconnect the VSV connector, and check that the actua-
tor rod is returned.

If the operation is not as specified, inspect the intake air control
valve, VSV and ECM.

SF1XM–01

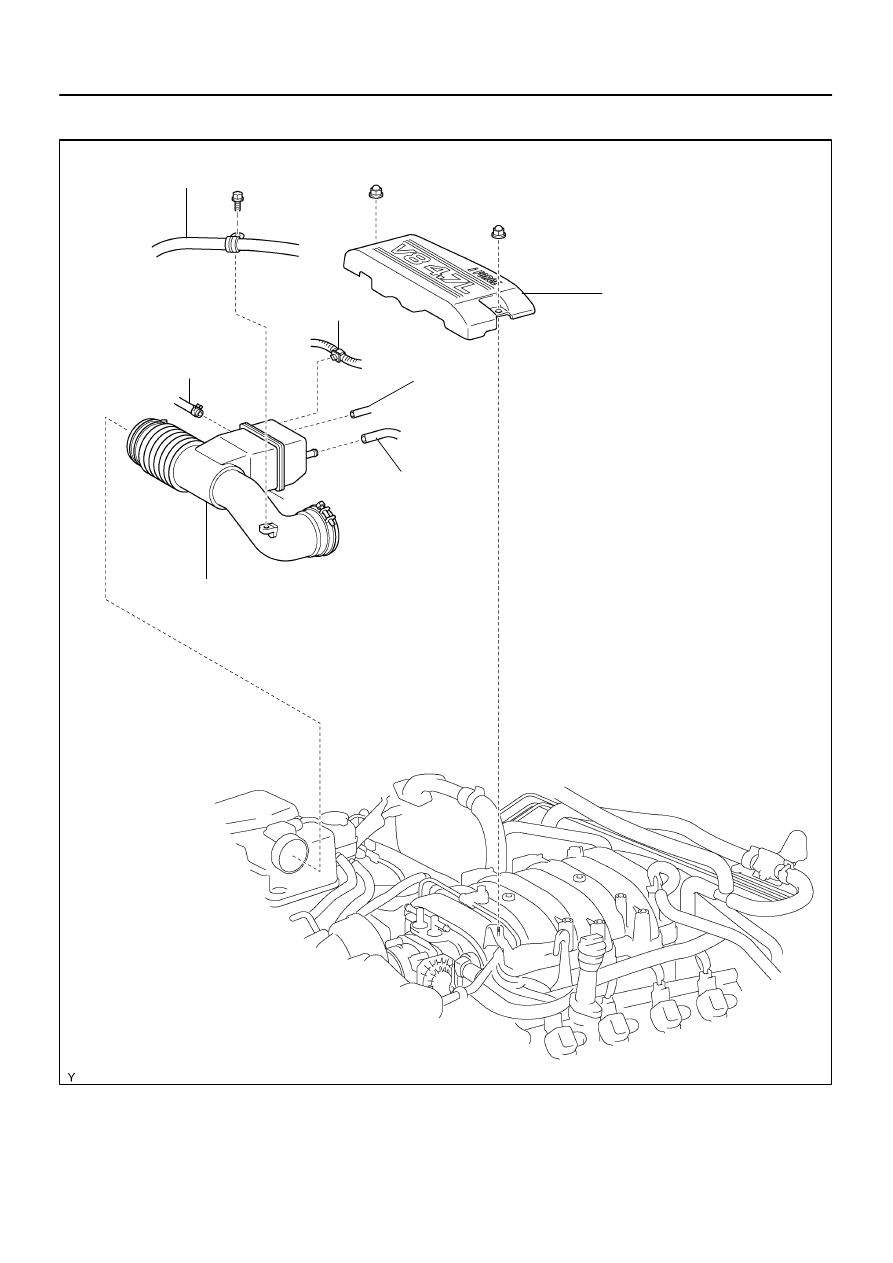

B17459

Throttle Body Cover

PS Air Hose

Intake Air Connector

Suction Hose

MAF Meter Wire

PCV Hose

Vacuum Hose

SF–50

–

SFI

ACOUSTIC CONTROL INDUCTION SYSTEM (ACIS)

2784

COMPONENTS
