FUEL TANK AND LINE

SF–35

2769

INSPECTION

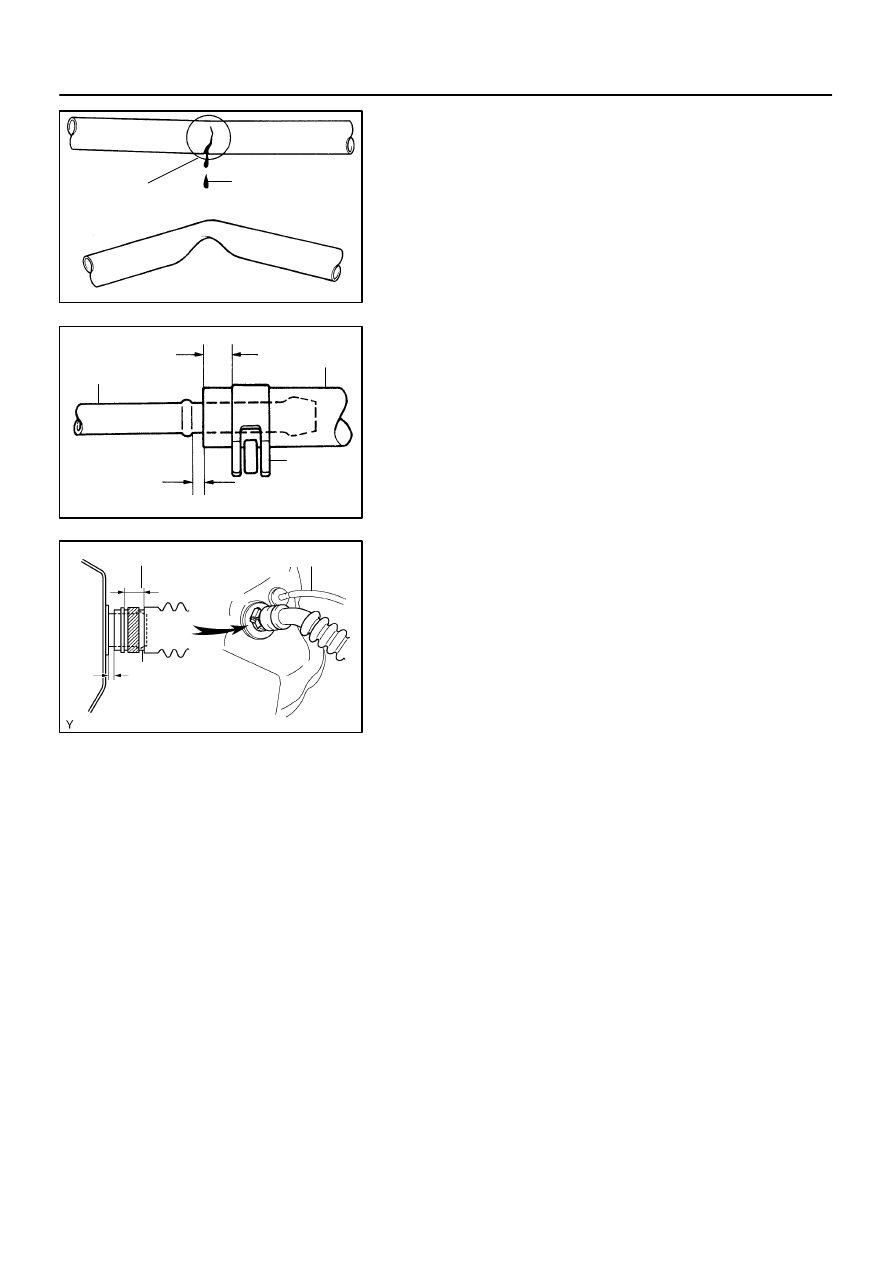

INSPECT FUEL TANK AND LINE
(a)

Check the fuel lines for cracks or leakage, and all connec-
tions for deformation.

(b)

Check the fuel tank vapor vent system hoses and connec-
tions for looseness, sharp bends or damage.

(c)

Check the fuel tank for deformation, cracks, fuel leakage
or tank band looseness.

(d)

Check the filler neck for damage or fuel leakage.

(e)

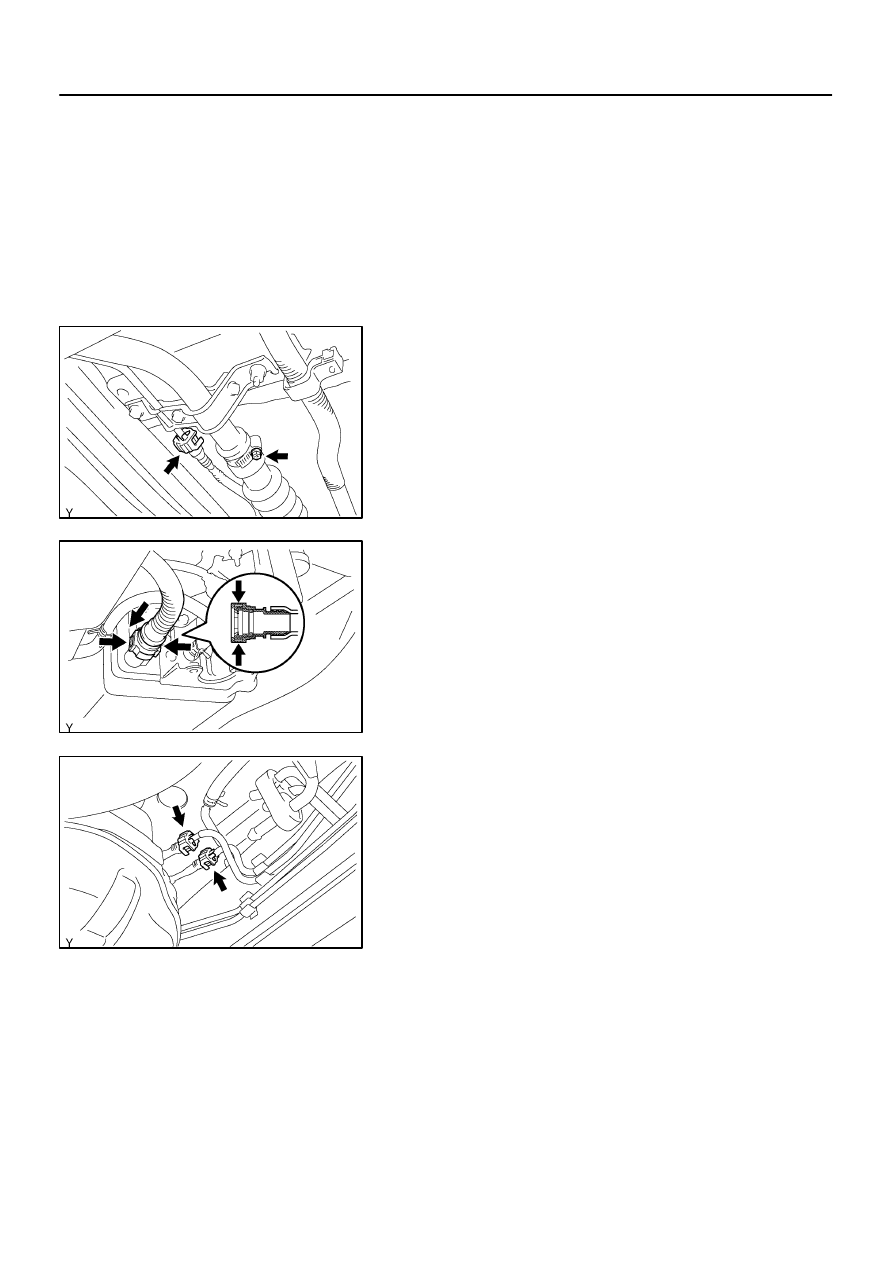

Hose and pipe connections are as shown in the illustra-
tion.

If a problem is found, repair or replace the parts as necessary.

SF1XI–01

B17583

B17582

B17581

SF–36

–

SFI

FUEL TANK AND LINE

2770

INSTALLATION

1.

INSTALL FUEL PUMP ASSEMBLY (See page

SF–19

)

2.

INSTALL FUEL TANK ASSEMBLY

(a)

Set up the fuel tank to the transmission jack.

(b)

Operate the transmission jack and install the fuel tank.

(c)

Install the 2 fuel tank bands with the 2 bolts.
Torque: 62 N·m (632 kgf·cm, 45 ft·lbf)

3.

CONNECT FUEL INLET HOSE AND BREATHER TUBE

(a)

Connect the fuel inlet hose to the filler pipe and install the
clamp.

(b)

Connect the breather tube. (See page

SF–1

)

4.

DISCONNECT FUEL TANK VENT HOSE

Connect the fuel tank vent hose to the charcoal canister.

5.

CONNECT FUEL MAIN TUBE AND RETURN TUBE
(See page

SF–1

)

6.

INSTALL FUEL TANK PROTECTOR

Install the fuel tank protector with the 2 bolts and 2 nuts.
7.

CONNECT FUEL PUMP CONNECTOR

8.

CHECK FOR FUEL LEAKS

9.

INSTALL SPARE TIRE

SF0P1–12

B17463

MAF Meter Connector

MAF Meter

–

SFI

MASS AIR FLOW (MAF) METER

SF–37

2771

MASS AIR FLOW (MAF) METER

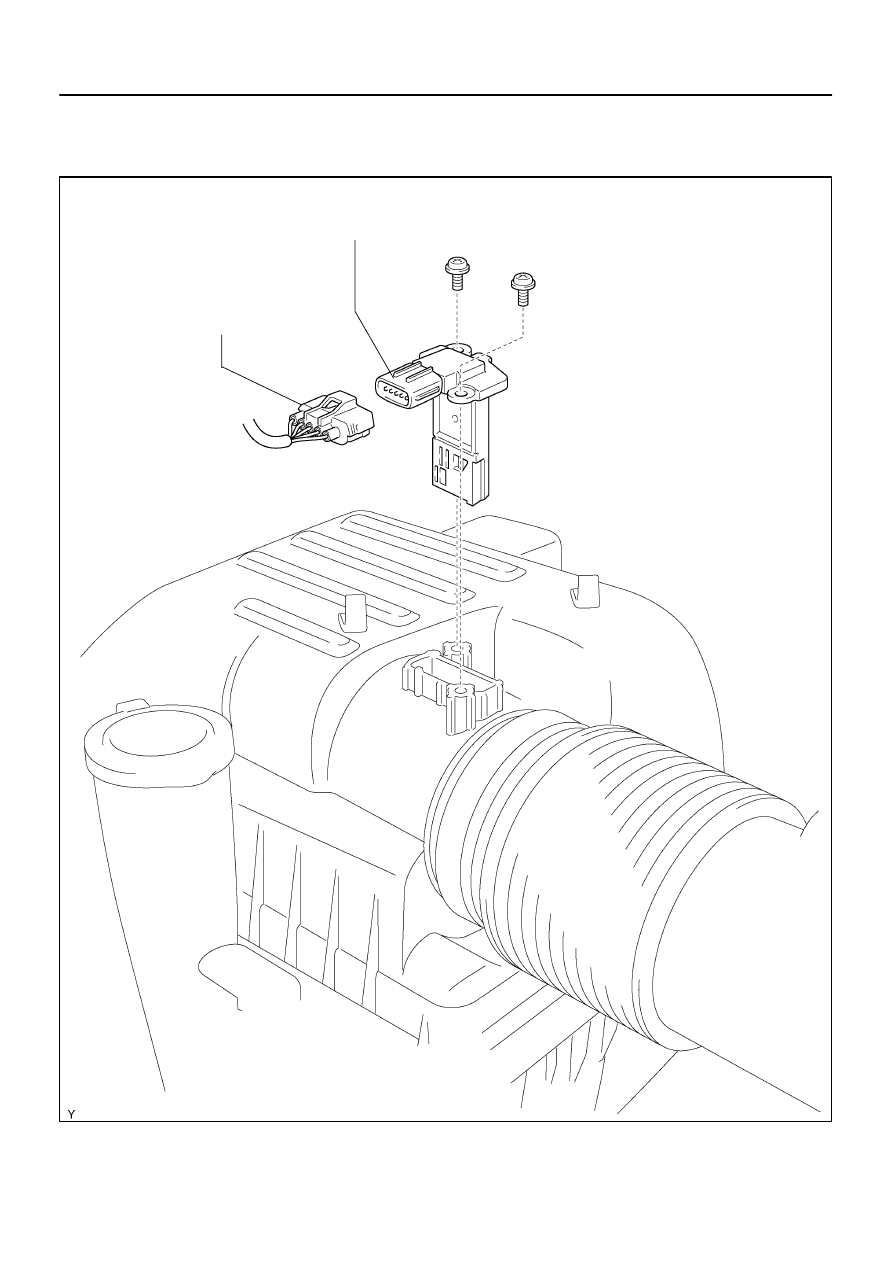

COMPONENTS

B17464

3

2

1

4 5

–20

0

20

40

60

80

100

0.1

0.2

0.3

0.5

1

2

3

5

10

20

30

TEMPERATURE

C(

F)

RESIST

ANCE k

Ω

(–4) (32) (68)

(140)

(104)

(212)

(176)

Air

E2

THA

VG

E2G

+B

Acceptable

SF0P2–09

B17465

Air

B17466

ECM

VG

E2G

Voltmeter

SF–38

–

SFI

MASS AIR FLOW (MAF) METER

2772

INSPECTION

1.

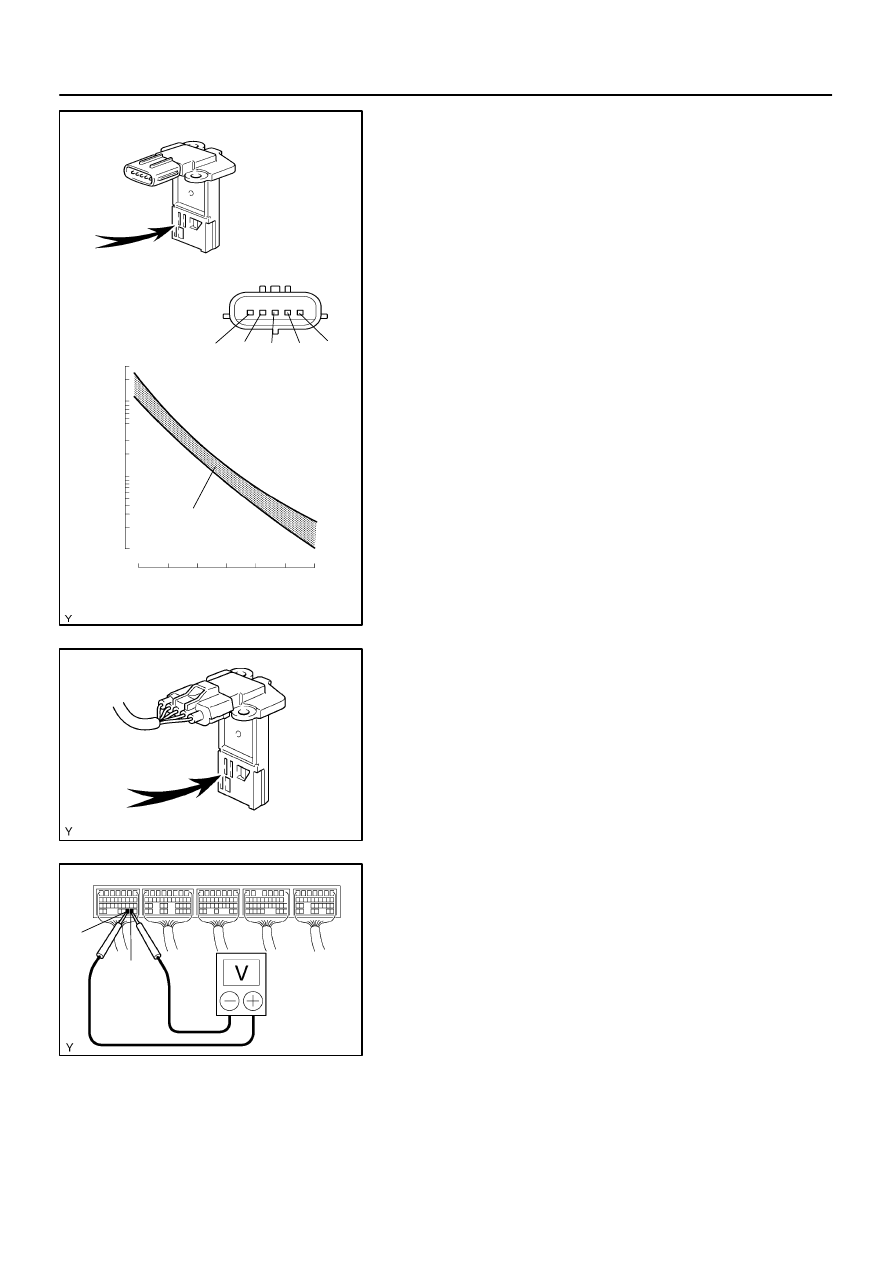

INSPECT OUTPUT VOLTAGE

(a)

Apply battery voltage across terminals 1 (+B) and 2
(E2G).

(b)

Connect the positive (+) tester probe to terminal 3 (VG),
and the negative (–) tester probe to terminal 2 (E2G).

(c)

Blow air into the MAF meter, and check if the voltage fluc-
tuates.

2.

INSPECT RESISTANCE

Using an ohmmeter, measure the resistance between terminals
4 (THA) and 5 (E2).

Resistance:
12.5 to 16.9 k

Ω

 at –20

C (–4

F)

2.19 to 2.67 k

Ω

 at 20

C (68

F)

0.50 to 0.68 k

Ω

 at 60

C (140

F)

3.

INSPECT MASS AIR FLOW METER

(a)

If using a hand–held tester:
(1)

Connect the hand–held tester to the DLC3.

(2)

Turn the ignition switch to the ON position.

(3)

Blow air into the MAF meter, and check that the air
flow value of the CURRENT DATA changes.

If operation is not as specified, check the MAF meter (see page

DI–110

 and

DI–113

) as well as the wiring and the ECM.

(b)

If not using a hand–held tester:
(1)

Turn the ignition switch to the ON position.

(2)

Connect the positive tester probe of the voltmeter
to terminal VG of the ECM and the negative tester
probe of the voltmeter to terminal E2G of the ECM.

(3)

Blow air into the air flow meter, and check if the volt-
age fluctuates.

If operation is not as specified, check the MAF meter (see page

DI–110

 and

DI–113

), the wiring and the ECM.
