A08905

A09151

(a)

EM–86

–

ENGINE MECHANICAL

ENGINE UNIT (2WD)

2665

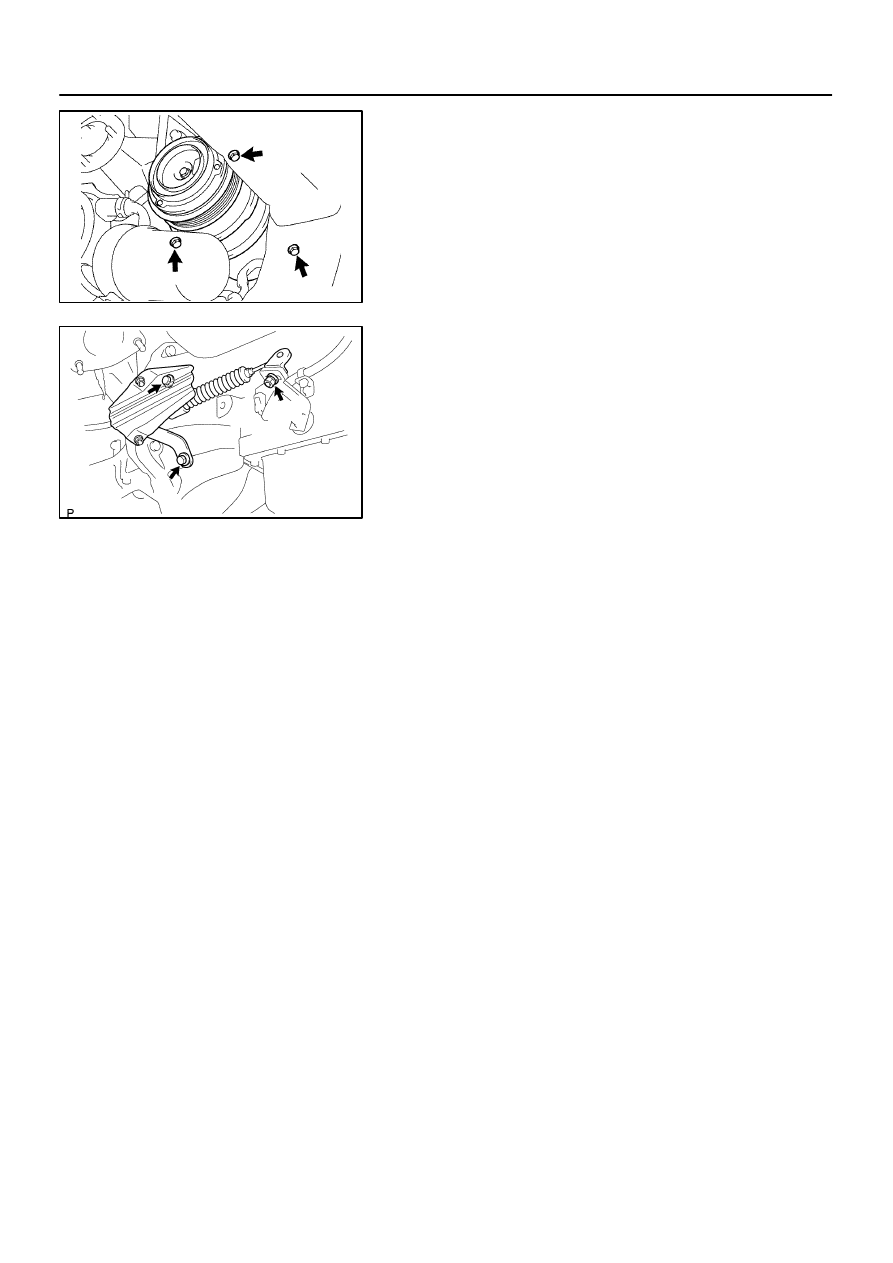

11.

INSTALL A/C COMPRESSOR

(a)

Install the A/C compressor with the 3 bolts.
Torque: 49 N·m (500 kgf·cm, 36 ft·lbf)

(b)

Connect the A/C compressor connector.

12.

INSTALL TRANSMISSION CONTROL CABLE

(a)

Install the control cable to the control shift lever.
Torque: 13 N·m (130 kgf·cm, 9 ft·lbf)

(b)

Install the control cable bracket to the transmission with
the 2 bolts.

13.

CONNECT POWER STEERING GEAR PIPES

Connect the pressure feed tube, turn tube and turn pressure
tubes to the PS gear assembly. (See page

SR–40

,

SR–41

)

14.

INSTALL FRONT STABILIZER BAR
(See page

SA–93

)

15.

INSTALL PROPELLER SHAFT (See page

PR–5

)

16.

INSTALL FRONT EXHAUST PIPES
(See page

EM–126

)

17.

CONNECT HOSES, WIRES, CONNECTORS, CLAMPS,
GROMMET AND CABLES

(a)

Connect the 2 PS air hoses to hose clamp on the No.3 RH
timing belt cover.

(b)

Connect the generator wire.

(c)

Connect the generator connector.

(d)

Connect the hose clamp for the PS air hose.

(e)

Connect the PS air hose to the upper intake manifold.

(f)

Connect the 2 heater hoses.

(g)

Connect the ground strap connector.

(h)

Connect the fuel inlet hose and clamps.

(i)

Connect the fuel return hose and clamp.

(j)

Connect the air inlet hose to the charcoal canister.

(k)

Connect the EVAP hose to the charcoal canister.

(l)

Connect the brake booster tube.

18.

CONNECT ENGINE WIRE TO CABIN

(a)

Push into the engine wire through the cowl panel.

A09152

Connect

–

ENGINE MECHANICAL

ENGINE UNIT (2WD)

EM–87

2666

(b)

Install the engine wire bracket with the 2 nuts and bolt and
connect the engine wire to the bracket.

(c)

Connect the 2 wire harness connectors (cassette con-
nector).

(d)

Connect the 3 connectors to the ECM.

(e)

Install the ECM with the 3 screws.

(f)

Install the lower No.2 panel.

(g)

Install the glove compartment door.

19.

INSTALL FAN PULLEY, FAN, FLUID COUPLING AND
DRIVE BELT

(a)

Temporarily install the fan pulley, the fan and fluid cou-
pling assembly with the 4 nuts.

(b)

Install the drive belt. (See page

CH–16

)

(c)

Tighten the 4 nuts holding the fluid coupling to the fan
bracket.

20.

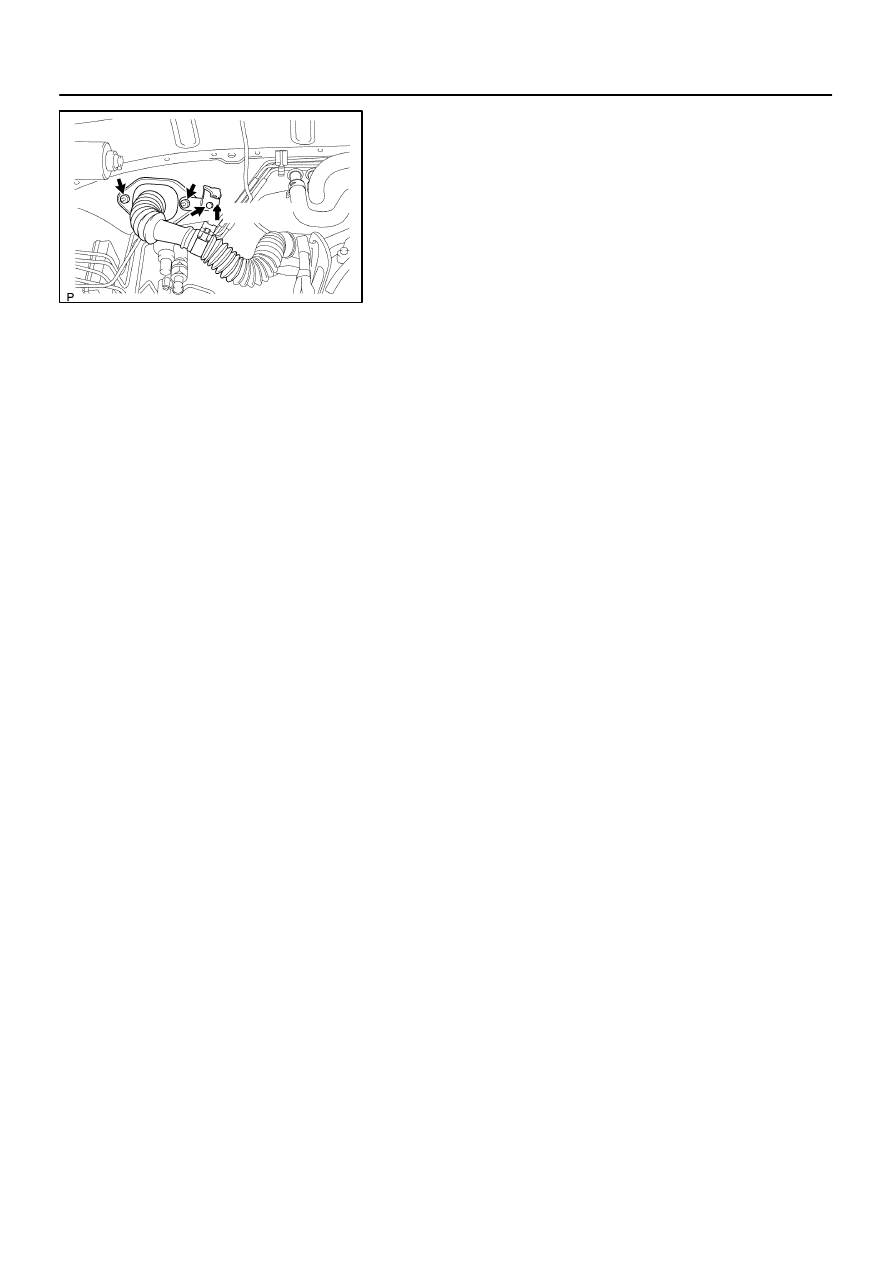

INSTALL AIR CLEANER AND INTAKE AIR CONNEC-
TOR ASSEMBLY

(a)

Install the air cleaner with the 3 bolt.
Torque: 5.0 N·m (51 kgf·cm, 44 in.·lbf)

(b)

Connect the intake air connector to the throttle body.

(c)

Connect the MAF meter connector.

(d)

Install the suction hose to the intake air connector.

(e)

Connect the PS air hose, air inlet hose for EVAP, PCV
hose and MAF meter wire to the air intake connector.

21.

INSTALL THROTTLE BODY COVER

22.

INSTALL RADIATOR ASSEMBLY (See page

CO–18

)

23.

INSTALL BATTERY CABLES

(a)

Connect the clamp on battery negative (–) cable to No.2
relay box.

(b)

Connect the battery positive (+) terminal cable.

(c)

Connect the battery negative cable to the left fender
apron.

24.

PERFORM INITIALIZATION

Some system need initialzation when disconnecting the cable
from the battery terminal.
25.

FILL WITH ENGINE COOLANT (See page

CO–2

)

26.

FILL WITH ENGINE OIL (See page

LU–2

)

27.

START ENGINE AND CHECK FOR LEAKS

28.

INSTALL ENGINE UNDER COVER

29.

INSTALL HOOD

30.

PERFORM ROAD TEST

Check for abnormal noise, shock, slippage, correct shift points
and smooth operation.
31.

RECHECK ENGINE COOLANT AND OIL LEVELS

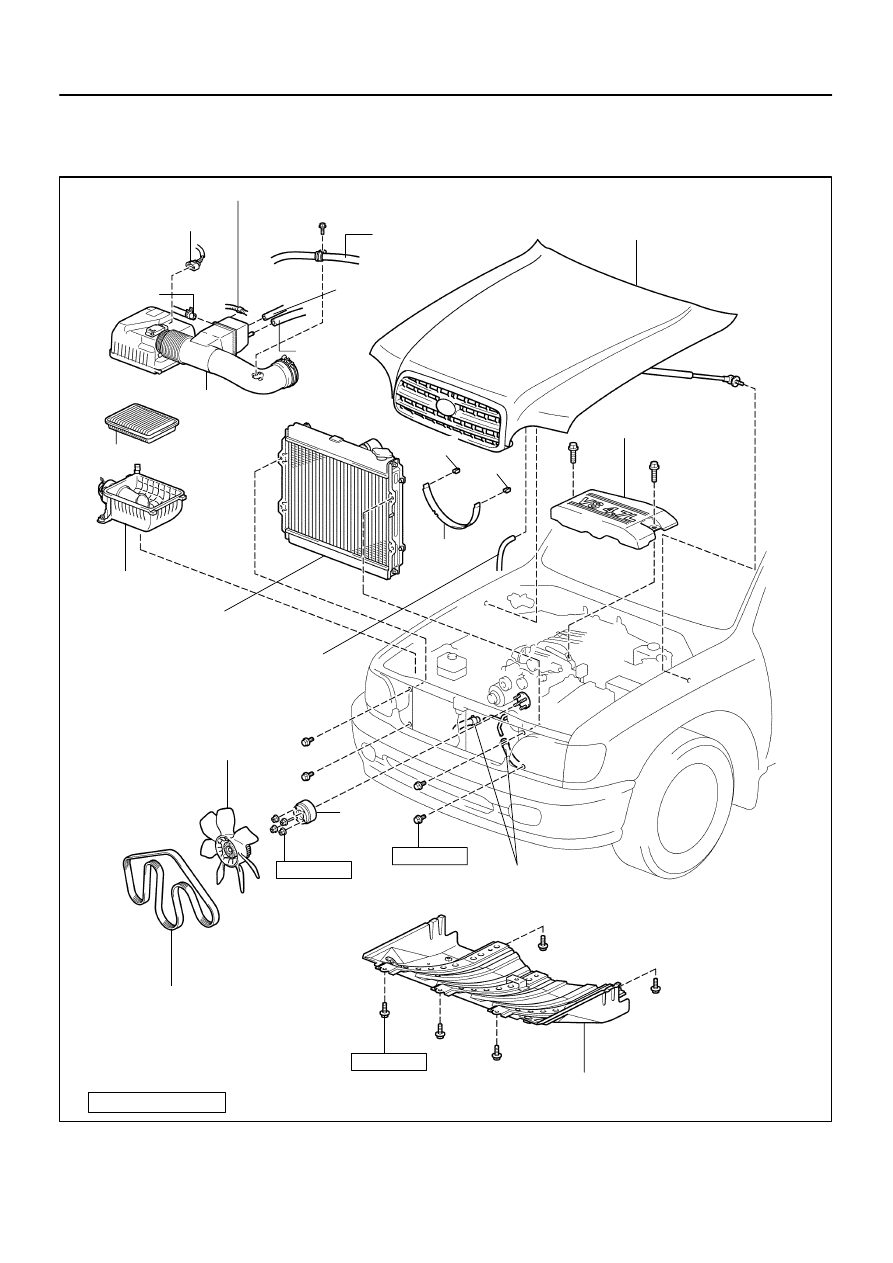

EM1O7–04

A23399

MAF Meter Connector

PS Air Hose

Vacuum Hose

Hood

Windshield Washer Hose

Engine Under Cover

PCV Hose

Fan with Fluid Coupling Assembly

Drive Belt

Fan
Pulley

Throttle Body Cover

Radiator Assembly

No.2 Fan
Shroud

Air Cleaner and Intake Air
Connector Assembly

Air Cleaner Case

Air Filter

N·m (kgf·cm, ft·lbf) : Specified torque

MAF Meter Wire

Clip

A/T Oil Cooler Hose

12 (120, 9)

29 (296, 21)

Clip

Suction Hose

29 (296, 21)

EM–88

–

ENGINE MECHANICAL

ENGINE UNIT (4WD)

2667

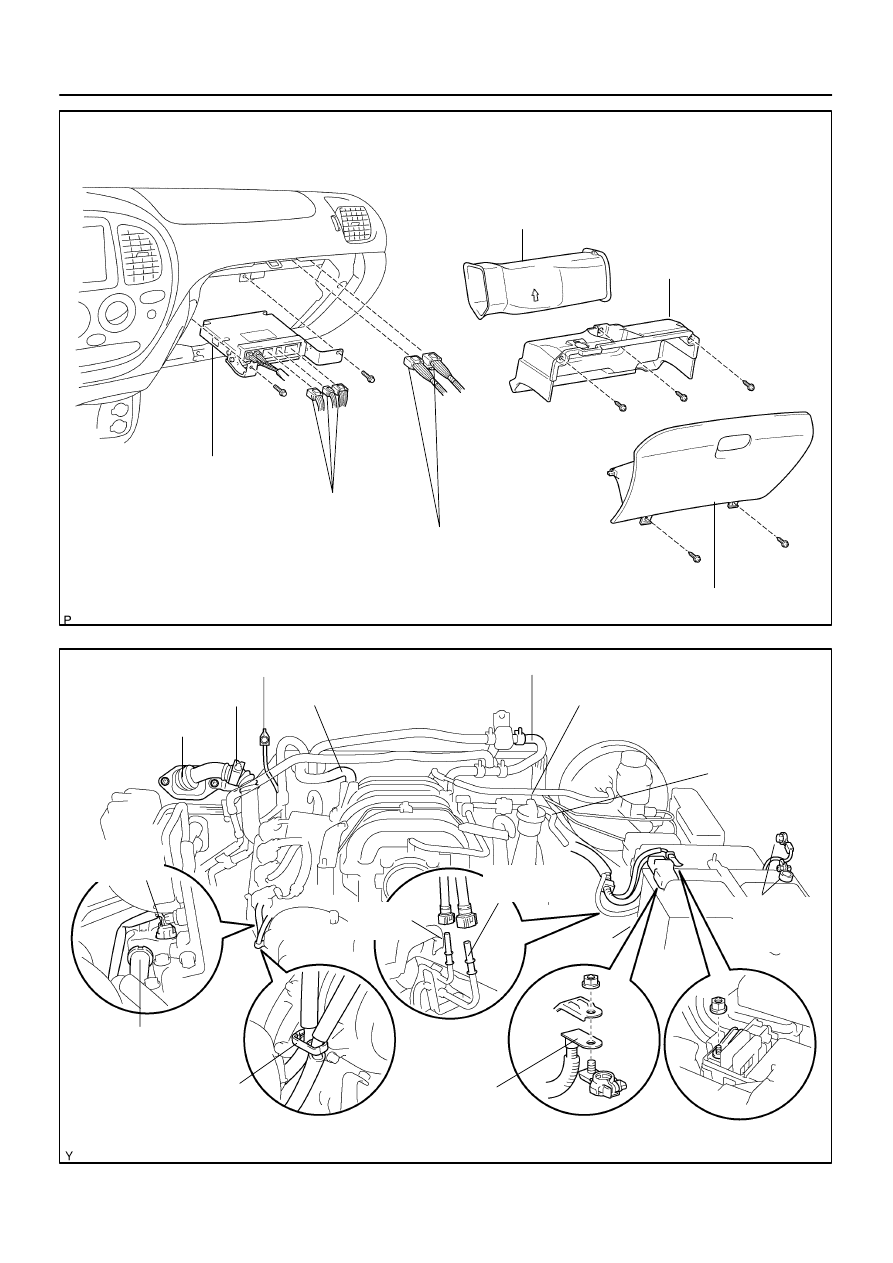

ENGINE UNIT (4WD)

COMPONENTS

A08928

ECM Connector

ECM and Bracket Assembly

Heater to Register Dust

Lower No.2 Finish Panel

Glove Compartment Door

Wire Harness Connector (Cassette Connector)

A23366

Engine Wire Clamp

Engine Wire

Heater Hose

Ground Strap

Fuel Inlet
Hose

Battery
Negative
(–) Cable

Heater Hose

Fuel Return
Hose

Generator Wire

Battery
Positive (+)
Terminal

Clamp

Generator
Connector

EVAP Hose

w/o Hydraulic Brake Booster:
Brake Booster Tube

–
