EM–82

–

ENGINE MECHANICAL

ENGINE UNIT (2WD)

2661

(b)

Loosen the 2 union nuts, and remove the 2 oil cooler
pipes.

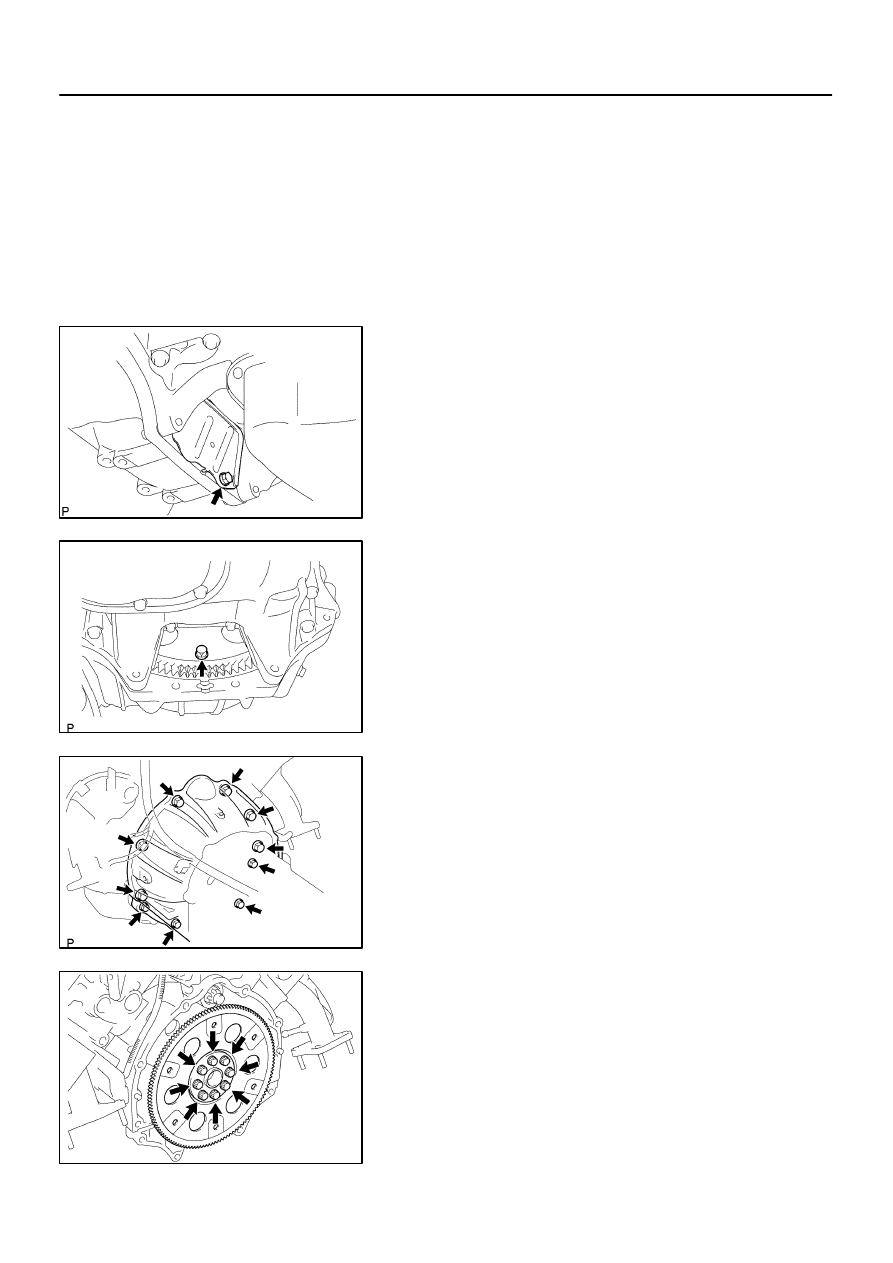

25.

REMOVE TORQUE CONVERTER CLUTCH BOLTS

(a)

Remove the bolt and flywheel housing under cover.

(b)

Turn the crankshaft pulley bolt to gain access to each bolt.

(c)

Hold the crankshaft pulley bolt with a wrench, and remove
the 6 bolts.

26.

REMOVE TRANSMISSION

(a)

Remove the 10 bolts.

(b)

Remove the transmission together with the torque con-
verter clutch from the engine.

27.

REMOVE DRIVE PLATE

Remove the 8 bolts, front spacer, drive plate and rear spacer.

EM121–07

A04869

Adhesive

A04857

1

2

3

4

7

6

8

5

A05137

Painted
Mark

90

°

90

°

A08901

–

ENGINE MECHANICAL

ENGINE UNIT (2WD)

EM–83

2662

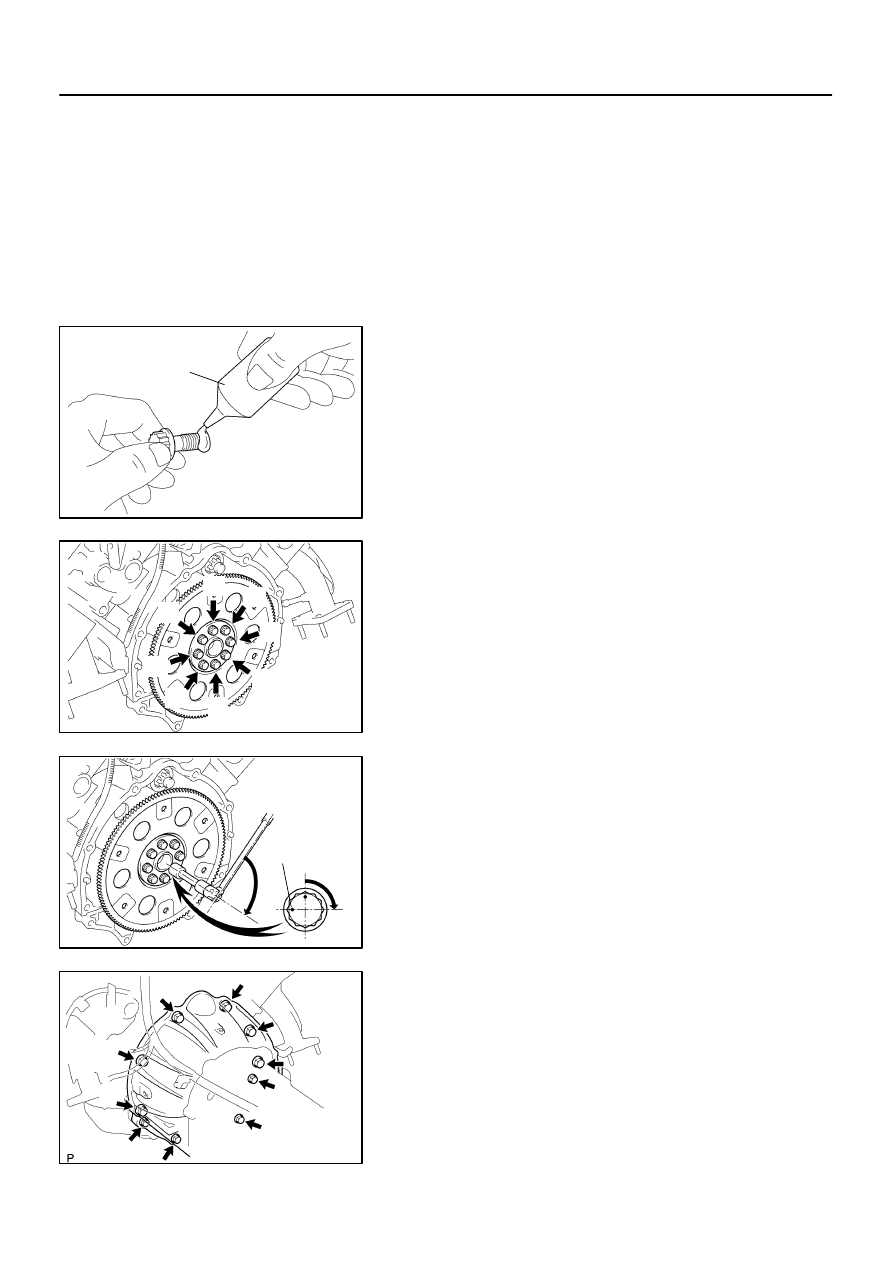

INSTALLATION

1.

INSTALL DRIVE PLATE

HINT:

The mounting bolts are tightened in 2 progressive steps
(steps (c) and (e)).

If any one of the mounting bolts is broken or deformed, re-
place it.

(a)

Apply adhesive to 2 or 3 threads of the mounting bolt end.
Adhesive:
Part No. 08833–00070, THREE BOND 1324 or equiva-
lent

(b)

Install the front spacer, drive plate and rear spacer on the
crankshaft.

(c)

Install and uniformly tighten the 8 mounting bolts in sever-
al passes, in the sequence shown.
Torque: 49 N·m (500 kgf·cm, 36 ft·lbf)

If any one of the mounting bolts does not meet the torque speci-
fication, replace the mounting bolt.

(d)

Mark the mounting bolt with paint.

(e)

Retighten the mounting bolts by 90

°

 in the numerical or-

der shown.

(f)

Check that the painted mark is now at a 90

°

 angle to (e).

2.

INSTALL TRANSMISSION TO ENGINE

(a)

Check the torque converter clutch installation.
(See page

AT–29

)

(b)

Attach the transmission to the engine.

(c)

Install the 10 bolts.
Torque:
37 N·m (380 kgf·cm, 27 ft·lbf) for 14 mm head
72 N·m (730 kgf·cm, 53 ft·lbf) for 17 mm head

P18747

Adhesive

A08900

A15637

A08931

Lower

Up

EM–84

–

ENGINE MECHANICAL

ENGINE UNIT (2WD)

2663

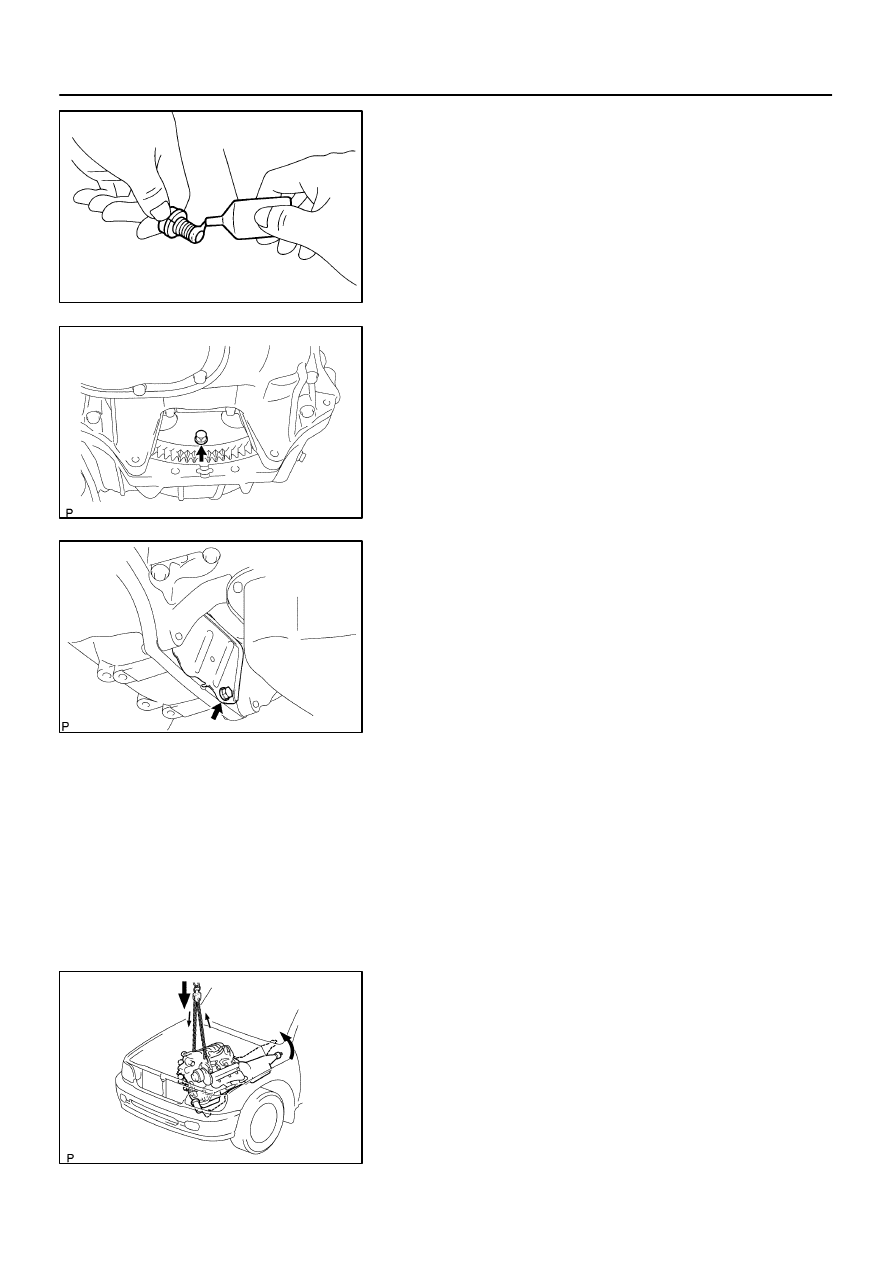

3.

INSTALL TORQUE CONVERTER CLUTCH BOLTS

(a)

Apply adhesive to 2 or 3 threads of the bolt end.
Adhesive:
Part No. 08833–00070, THREE BOND 1324 or equiva-
lent

(b)

Hold the crankshaft pulley bolt with a wrench, and install
the 6 bolts evenly.
Torque: 48 N·m (490 kgf·cm, 35 ft·lbf)

HINT:
First install the black colored bolt, install the other bolts.

(c)

Install the flywheel housing under cover with the bolt.
Torque: 18 N·m (185 kgf·cm, 13 ft·lbf)

4.

INSTALL OIL COOLER PIPE FOR TRANSMISSION

5.

INSTALL OIL DIPSTICK GUIDE AND DIPSTICK FOR
TRANSMISSION

(a)

Install a new O–ring to the dipstick guide.

(b)

Apply soapy water to the O–ring.

(c)

Connect the dipstick guide end to the dipstick tube of the
oil pan.

(d)

Install the dipstick guide with the bolt.

(e)

Install the dipstick.

(f)

Connect the 2 breather hoses to the dipstick guide.

6.

CONNECT ENGINE WIRE TO TRANSMISSION

(a)

Connect the 5 connectors.

(b)

Connect the 2 wire clamps.

7.

INSTALL ENGINE AND TRANSMISSION ASSEMBLY
IN VEHICLE

(a)

Attach the engine chain hoist to the engine hangers.

(b)

Slowly lower the engine and transmission assembly into
the engine compartment.

(c)

Attach the engine mounting brackets to the frame brack-
ets.

A09149

A08906

A08804

A

B

B

B

A09147

A08907

–

ENGINE MECHANICAL

ENGINE UNIT (2WD)

EM–85

2664

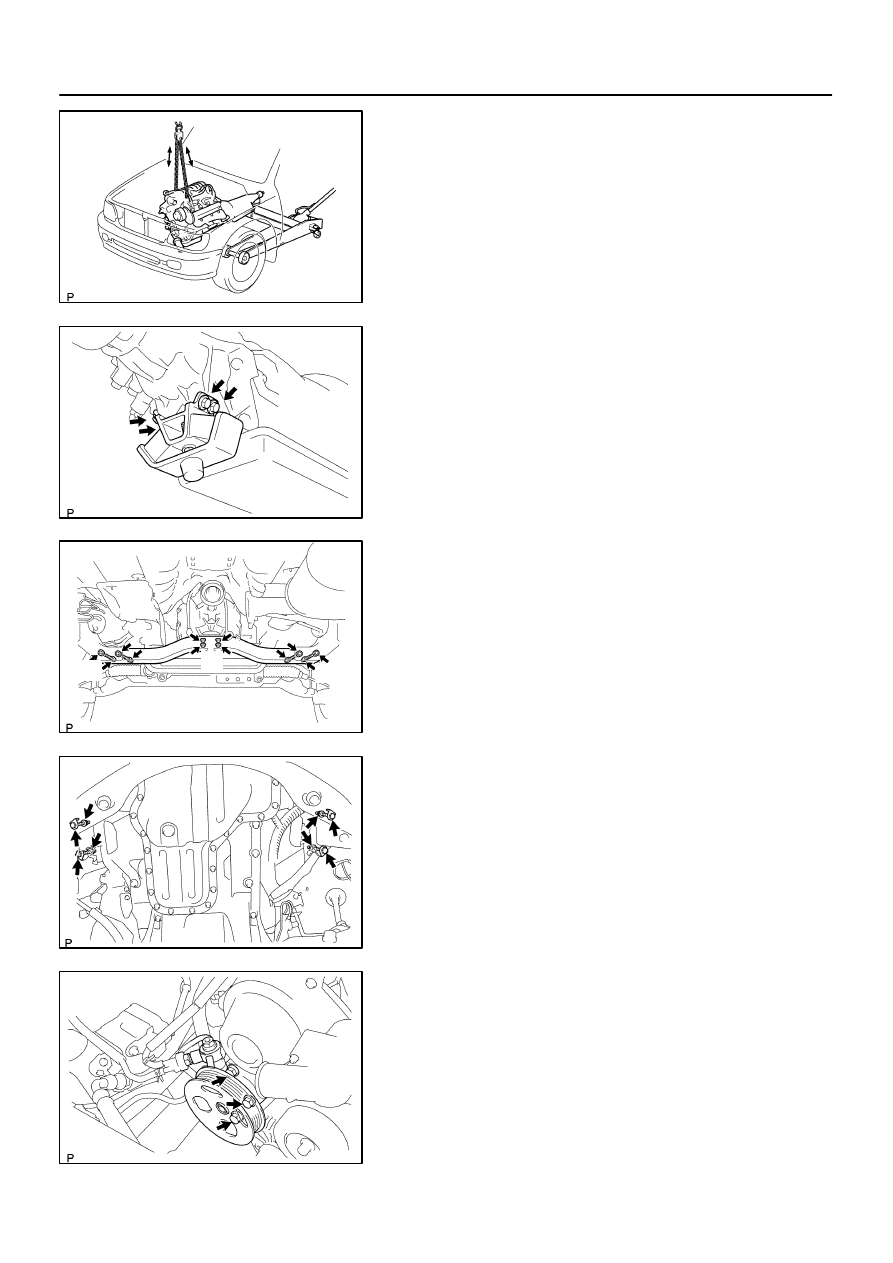

(d)

Keep the engine level with a jack.

8.

INSTALL ENGINE REAR MOUNTING BRACKET

(a)

Install the engine rear mounting bracket to the transmis-
sion with the 4 bolts.
Torque: 65 N·m (663 kgf·cm, 48 ft·lbf)

(b)

Install the frame crossmember with the 8 bolts and 4 nuts.
Torque:
A: 18 N·m (183 kgf·cm, 13 ft·lbf) for bolts
B: 72 N·m (730 kgf·cm, 53 ft·lbf) for nuts

9.

INSTALL ENGINE MOUNTING BRACKETS

(a)

Install the engine mounting brackets to the frame brack-
ets with the 2 nuts and 4 bolts.
Torque: 38 N·m (388 kgf·cm, 28 ft·lbf)

(b)

Remove the engine chain hoist.

10.

INSTALL PS PUMP

Install the PS pump with the 3 bolts.

Torque: 17 N·m (175 kgf·cm, 13 ft·lbf)
