EM–74

ENGINE MECHANICAL

CYLINDER HEAD

2653

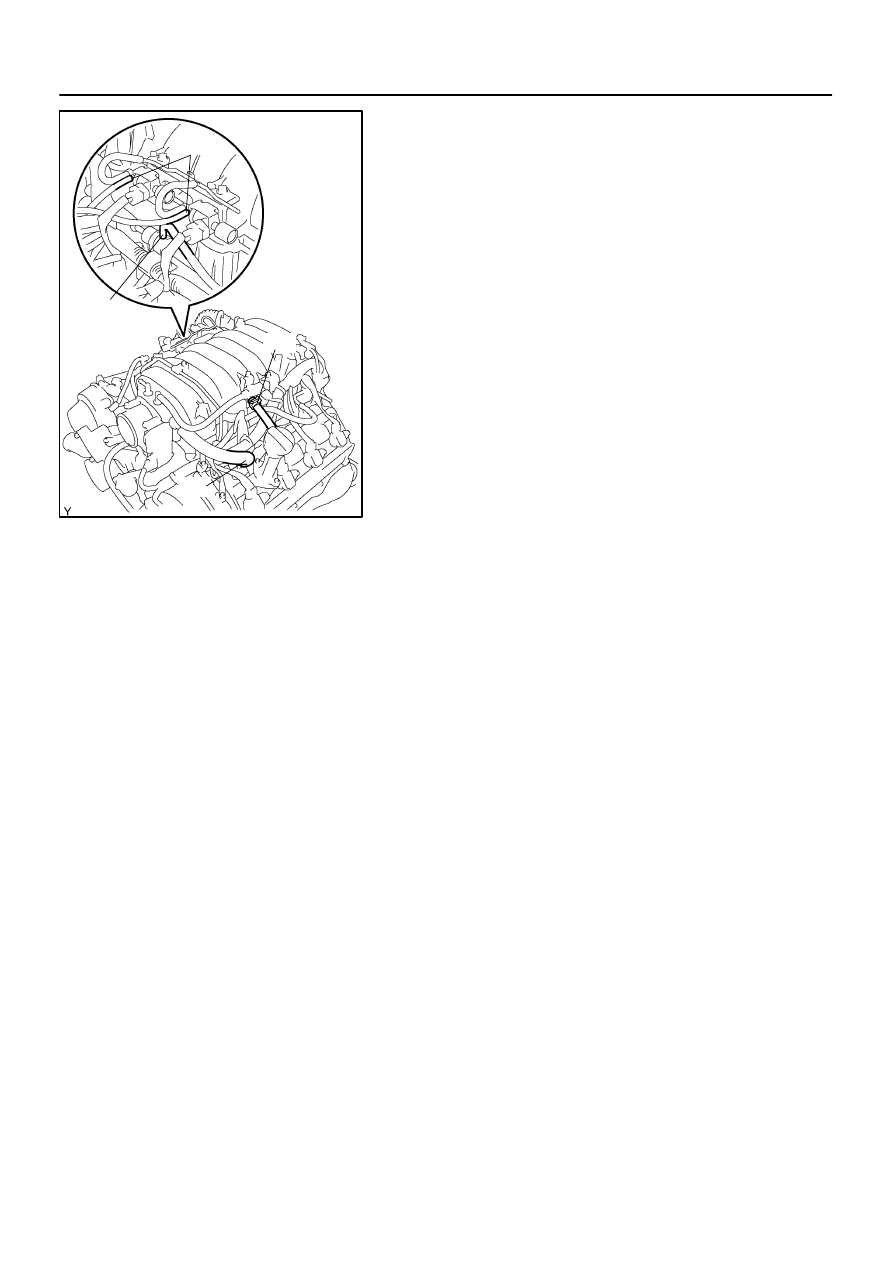

26.

CONNECT HOSES TO INTAKE MANIFOLD

(a)

Connect the vacuum hose to the fuel pressure regulator.

(b)

Connect the PCV hose to the PCV valve on the LH the cyl-
inder head.

(c)

Connect the EVAP hose (from charcoal canister) to the
VSV for EVAP.

(d)

Connect the 2 vacuum hoses to the VSV for the air injec-
tion system.

(e)

Connect the brake booster tube.

27.

CONNECT CONNECTORS TO INTAKE MANIFOLD

(a)

Connect the throttle control connector.

(b)

Connect the 2 VSV connectors for the air injection sys-
tem.

(c)

Connect the VSV connector for the EVAP.

(d)

Connect the 8 injector connectors.

(e)

Connect the ECT sensor connector.

(f)

Connect the 2 air fuel ratio sensor connectors.

28.

CONNECT FUEL INLET HOSE (See page

SF–31

) AND

FUEL RETURN HOSE

29.

INSTALL TIMING BELT REAR PLATES

(a)

Install the RH No.1 timing belt rear plates.
Install the RH No.1 timing belt rear plates to the cylinder
head with the 3 bolts and stud bolt.
Torque: 7.5 N·m (76 kgf·cm, 66 in.·lbf)

(b)

Install the LH No.1 timing belt rear plates.
(1)

Connect the wire clamp to the No.1 timing belt rear
plate.

(2)

Install the LH No.1 timing belt rear plates to the cyl-
inder head with the 3 bolts and stud bolt.

Torque: 7.5 N·m (76 kgf·cm, 66 in.·lbf)

30.

INSTALL THROTTLE BODY COVER

31.

INSTALL IGNITION COILS (See page

IG–6

)

32.

INSTALL OIL DIPSTICK AND GUIDE FOR A/T

33.

INSTALL FRONT EXHAUST PIPE (See page

EM–126

)

34.

INSTALL PS PUMP (See page

EM–83

)

35.

INSTALL CAMSHAFT POSITION SENSOR
(See page

IG–9

)

36.

INSTALL CAMSHAFT TIMING PULLEYS
(See page

EM–23

)

37.

CONNECT TIMING BELT TO CAMSHAFT TIMING PUL-
LEYS (See page

EM–23

)

38.

CHECK ENGINE OIL LEVEL

EM11Z–07

A21014

MAF Meter Connector

PS Air Hose

Hood

Windshield Washer Hose

Engine Under Cover

PCV Hose

Vacuum Hose

Fan with Fluid Coupling Assembly

Drive Belt

Fan
Pulley

Throttle Body Cover

Radiator Assembly

No.2 Fan
Shroud

Air Cleaner and
Intake Air Connector
Assembly

Air Cleaner Case

Air Filter

N·m (kgf·cm, ft·lbf) : Specified torque

MAF Meter Wire

Clip

A/T Oil Cooler Hose

12 (120, 9)

29 (296, 21)

Clip

Suction Hose

29 (296, 21)

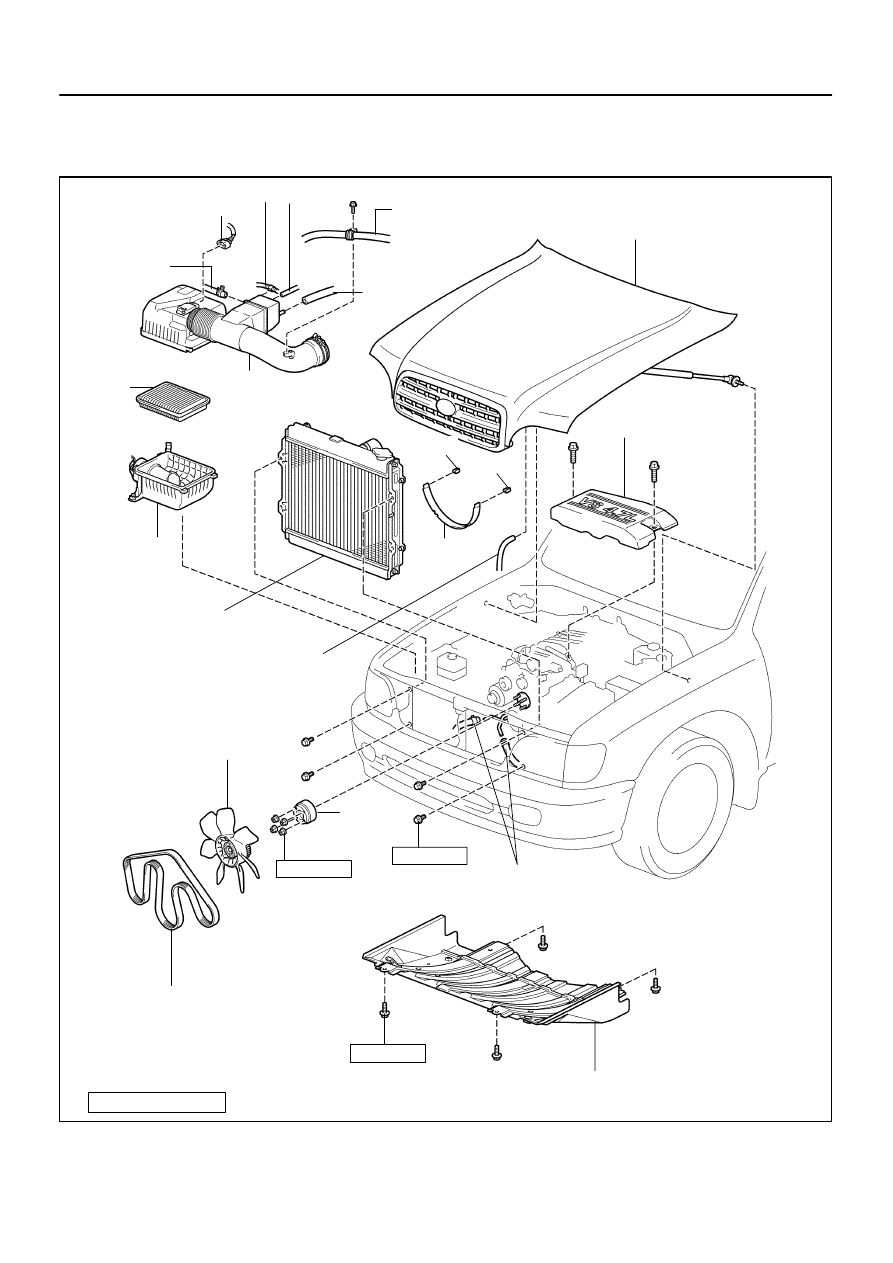

ENGINE MECHANICAL

ENGINE UNIT (2WD)

EM–75

2654

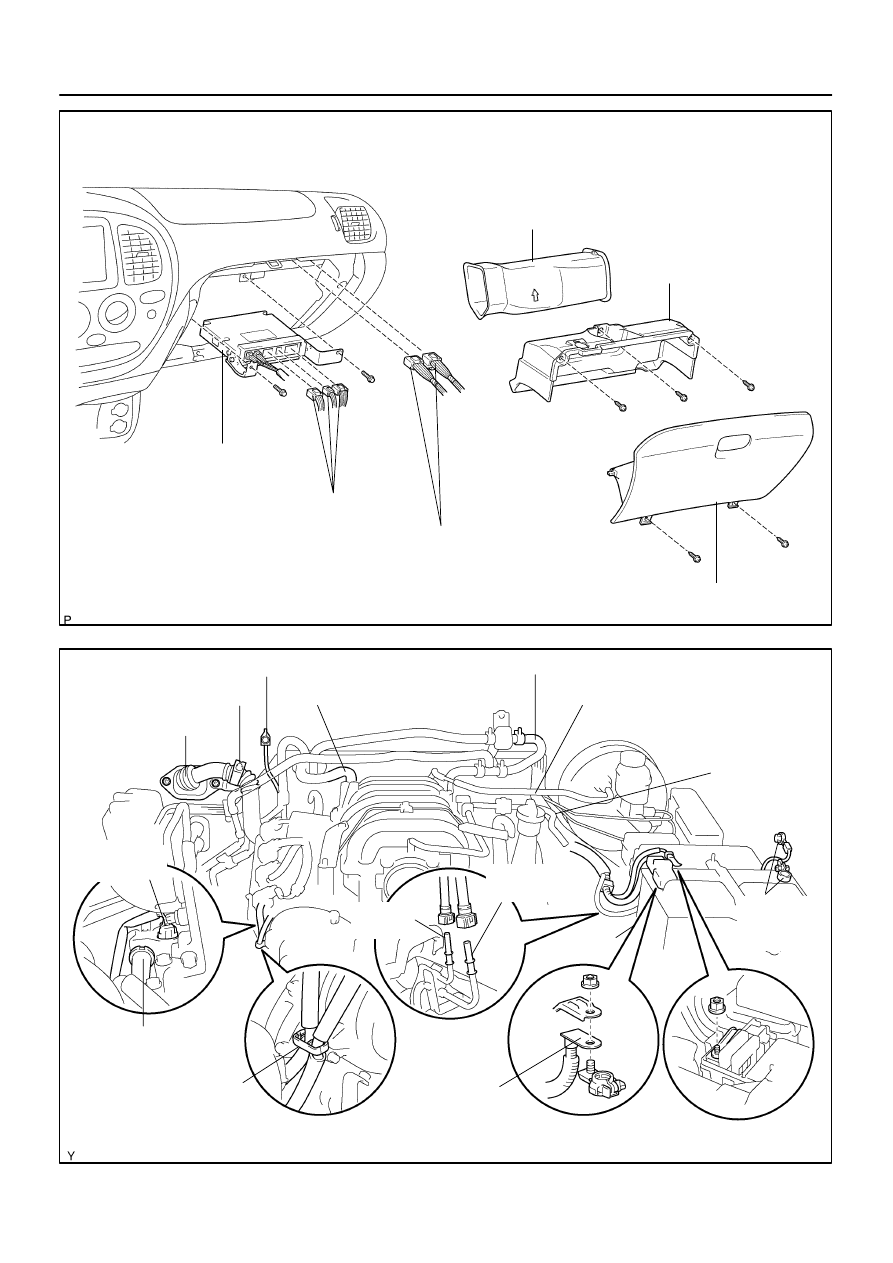

ENGINE UNIT (2WD)

COMPONENTS

A08928

ECM Connector

ECM and Bracket Assembly

Heater to Register Dust

Lower No.2 Finish Panel

Glove Compartment Door

Wire Harness Connector (Cassette Connector)

A23366

Engine Wire Clamp

Engine Wire

Heater Hose

Ground Strap

Fuel Inlet
Hose

Battery
Negative
(–) Cable

Heater Hose

Fuel Return
Hose

Generator Wire

Battery
Positive (+)
Terminal

Clamp

Generator
Connector

EVAP Hose

w/o Hydraulic Brake Booster:
Brake Booster Tube

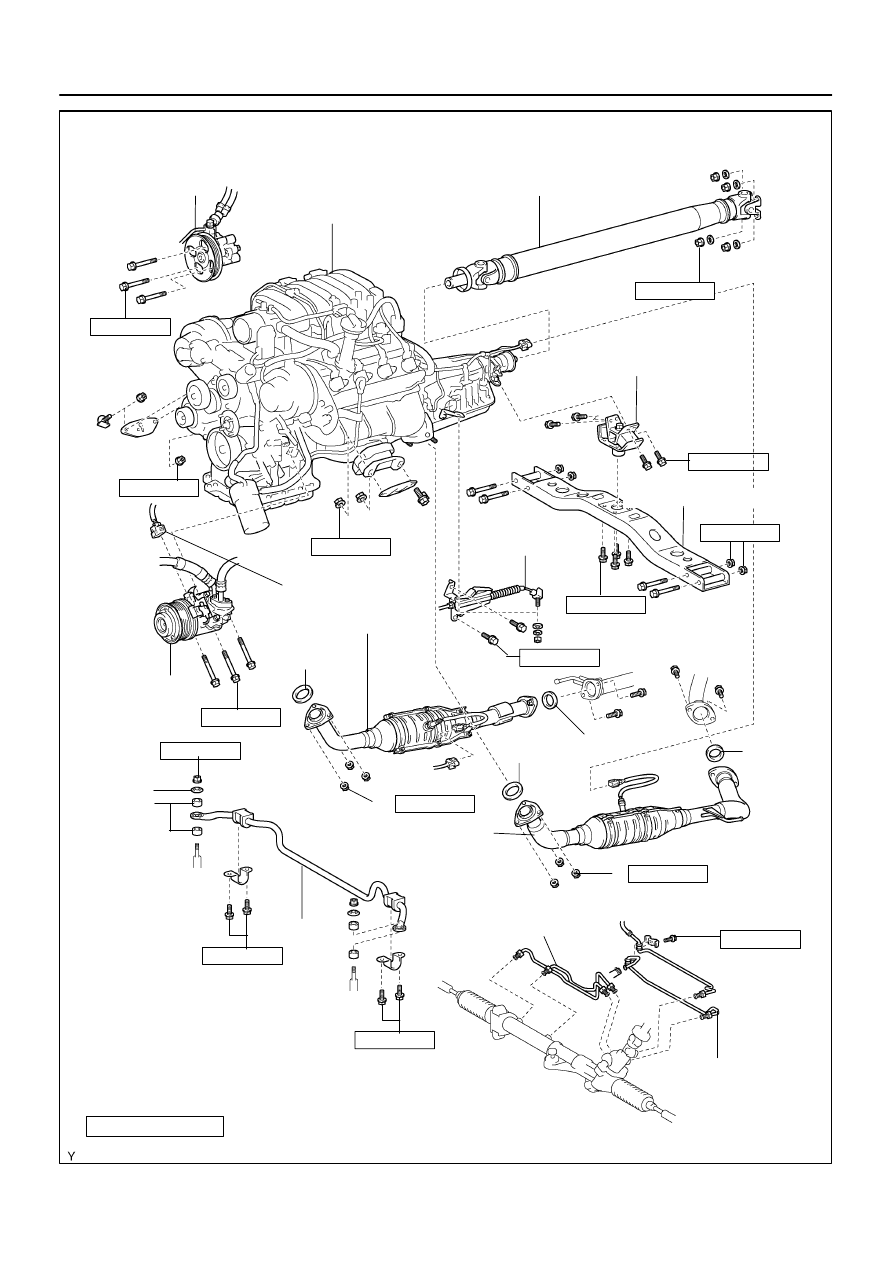

EM–76

ENGINE MECHANICAL

ENGINE UNIT (2WD)

2655

A23377

PS Pump

Propeller Shaft

A/C Compressor
Connector

Stabilizer Bar

N·m (kgf·cm, ft·lbf) : Specified torque



 Non–reusable part

A/C Compressor

Engine and
Transmission
Assembly

Frame Crossmember

Rear Engine Mounting Bracket

Transmission
Control Cable

62 (632, 46)

38 (388, 28)

65 (663, 48)

18 (183, 13)

13 (130, 9)

62 (632, 46)



 Gasket

38 (388, 28)

74 (750, 54)

Turn Pressure
Tube

Pressure
Feed
Tube

RH Front Exhaust Pipe

72 (730, 53)

LH Front Exhaust Pipe



 Gasket



 Gasket



 Gasket

37 (377, 27)

19 (190, 14)



37 (377, 27)

Retainer

Bushing

29 (290, 21)

62 (632, 46)



62 (632, 46)



ENGINE MECHANICAL

ENGINE UNIT (2WD)

EM–77

2656
