HINT:

Terminal retainer color is different according to connector body.

Example:

Terminal Retainer : Connector body
Black or White

: Gray

Black or White

: Dark Gray

Gray or White

: Black

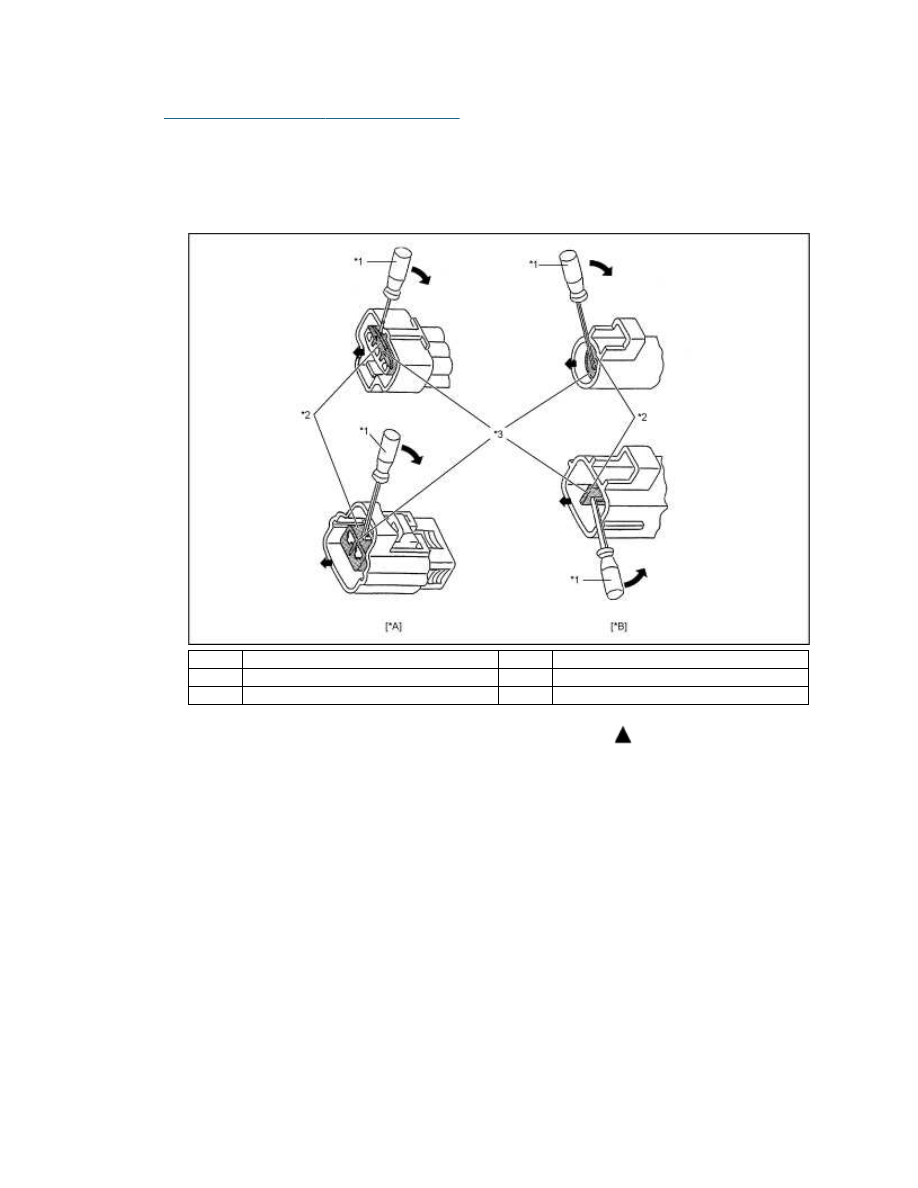

[Case 1]
Type where terminal retainer is pulled up to the temporary lock position (Pull Type).

*A

Female

*B

Male

*1

Special tool

*2

Terminal Retainer

*3

Access Hole

-

(1) Insert the special tool into the terminal retainer access hole (  Mark) and pull the

terminal retainer up to the temporary lock position.

HINT:

The needle insertion position varies according to the connector's shape (Number of
terminals etc.), so check the position before inserting it.

Print-Toyota Service Information

https://techinfo.toyota.com/t3Portal/external/en/ewdappu/EM26B0U/ewd/...

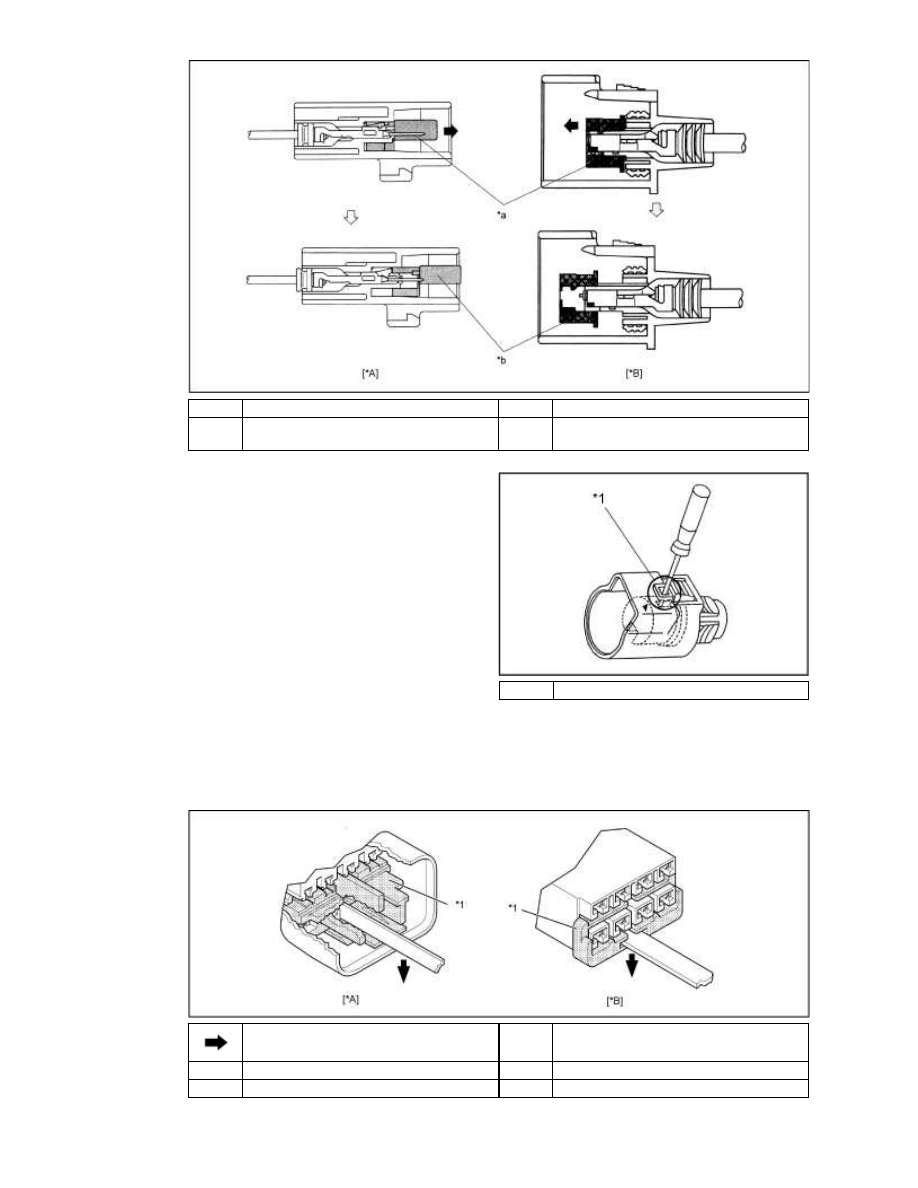

*A

Male

*B

Female

*a

Terminal Retainer at Full Lock
Position

*b

Temporary Lock Position

HINT:

Access hole

[Case 2]
Type which cannot be pulled as far as Power Lock

HINT:

-

*A

Male

*B

Female

*1

Terminal Retainer

-

Print-Toyota Service Information

https://techinfo.toyota.com/t3Portal/external/en/ewdappu/EM26B0U/ewd/...

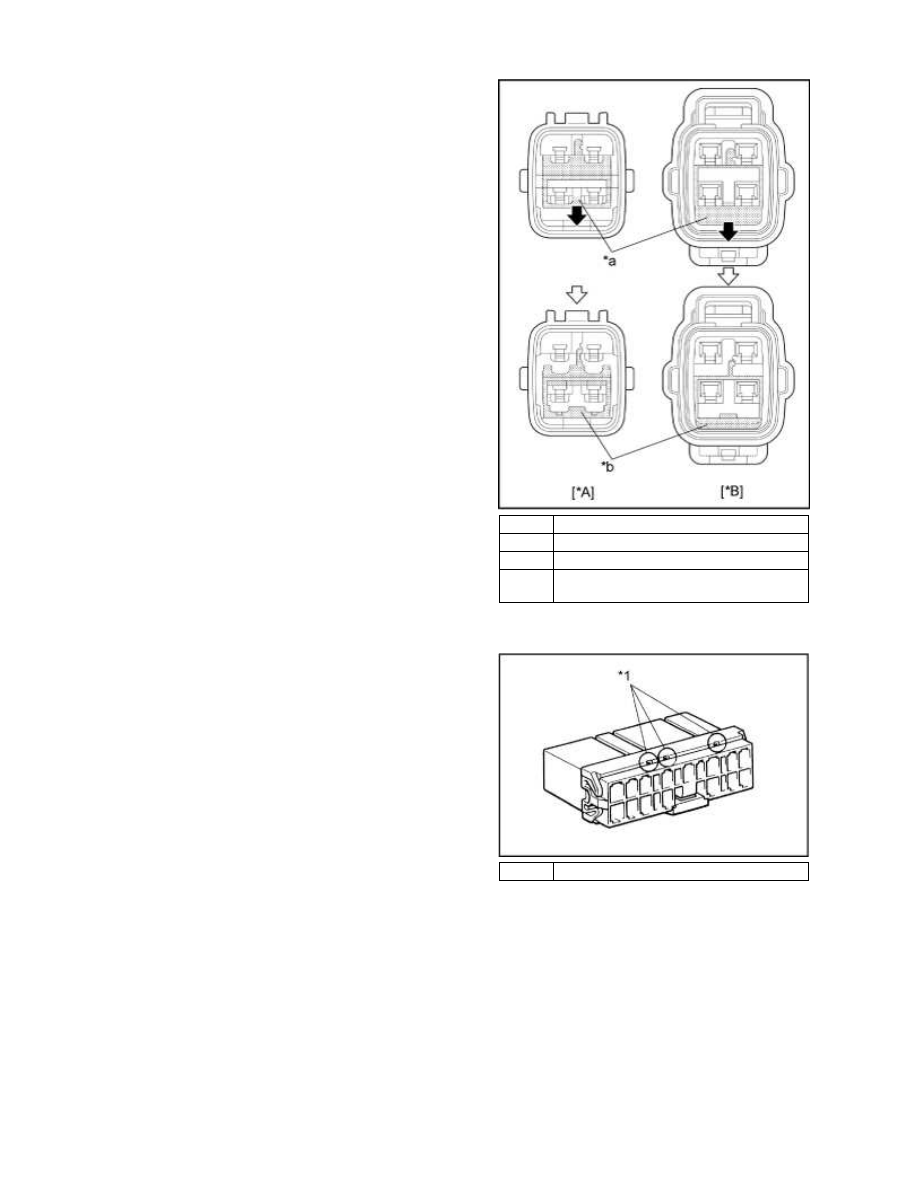

(1) Insert the tool straight into the access hole

*A

Male

*B

Female

*a

Retainer at Full Lock Position

*b

Retainer at Temporary Lock
Position

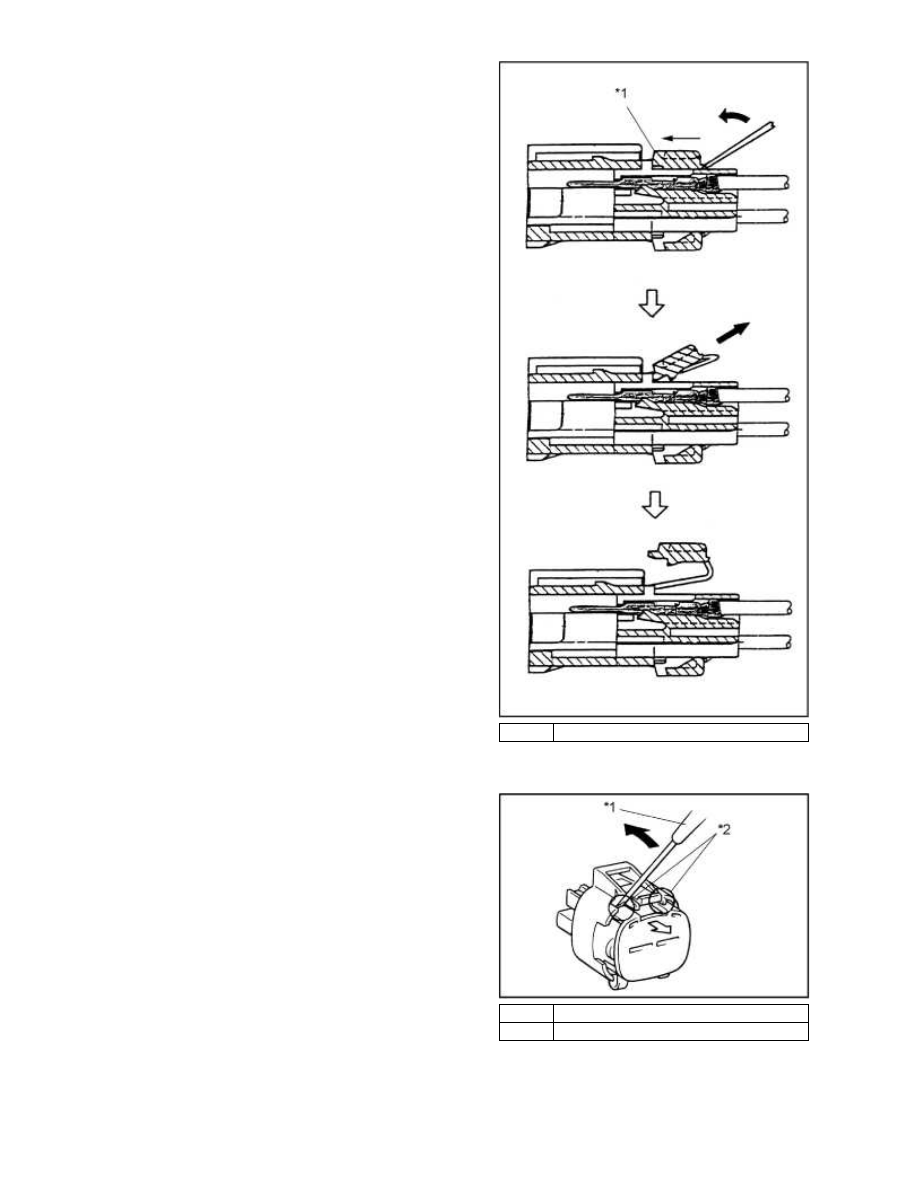

Type F (For C-Type Connector)

(1) Insert the special tool into the service hole.

*1

Service hole

Print-Toyota Service Information

https://techinfo.toyota.com/t3Portal/external/en/ewdappu/EM26B0U/ewd/...

HINT:

remove the retainer from the housing.

*1

Retainer

Type G

(1) Insert the special tool into the position

Special tool

*2

Lock

Type H (For 1.0II Type Connector)

Print-Toyota Service Information
