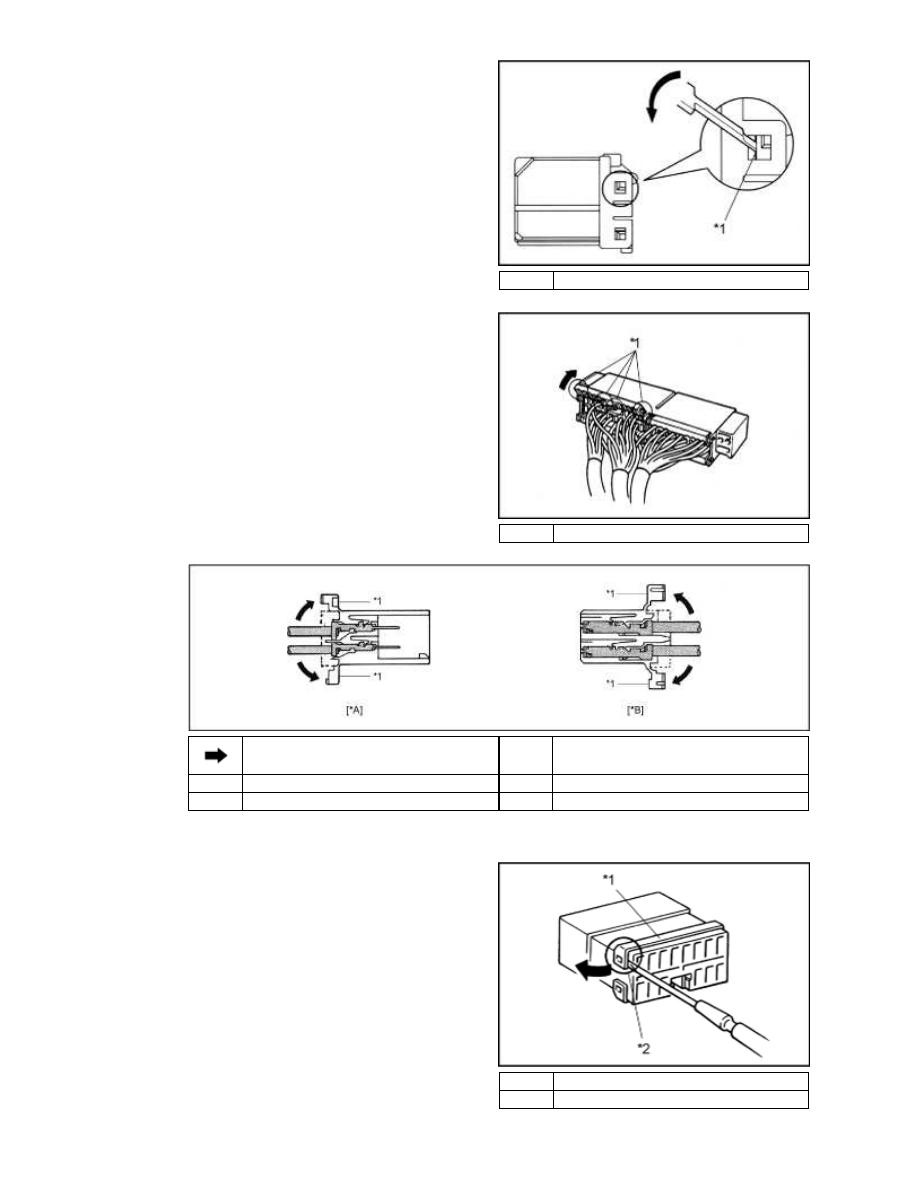

(1) Press the special tool at a 45° angle into the

locking lug access hole as shown.
Raise the double locking device up as far as
possible.

*1

Access Hole

(2) The lock is released and lever is lifted up.

NOTICE:

Tab

Open

-

*A

Male

*B

Female

*1

Double Locking Device

-

Type C (For TNS, FTC Type Connector)

*1

Retainer

*2

Side Lock

Print-Toyota Service Information

https://techinfo.toyota.com/t3Portal/external/en/ewdappu/EM26B0U/ewd/...

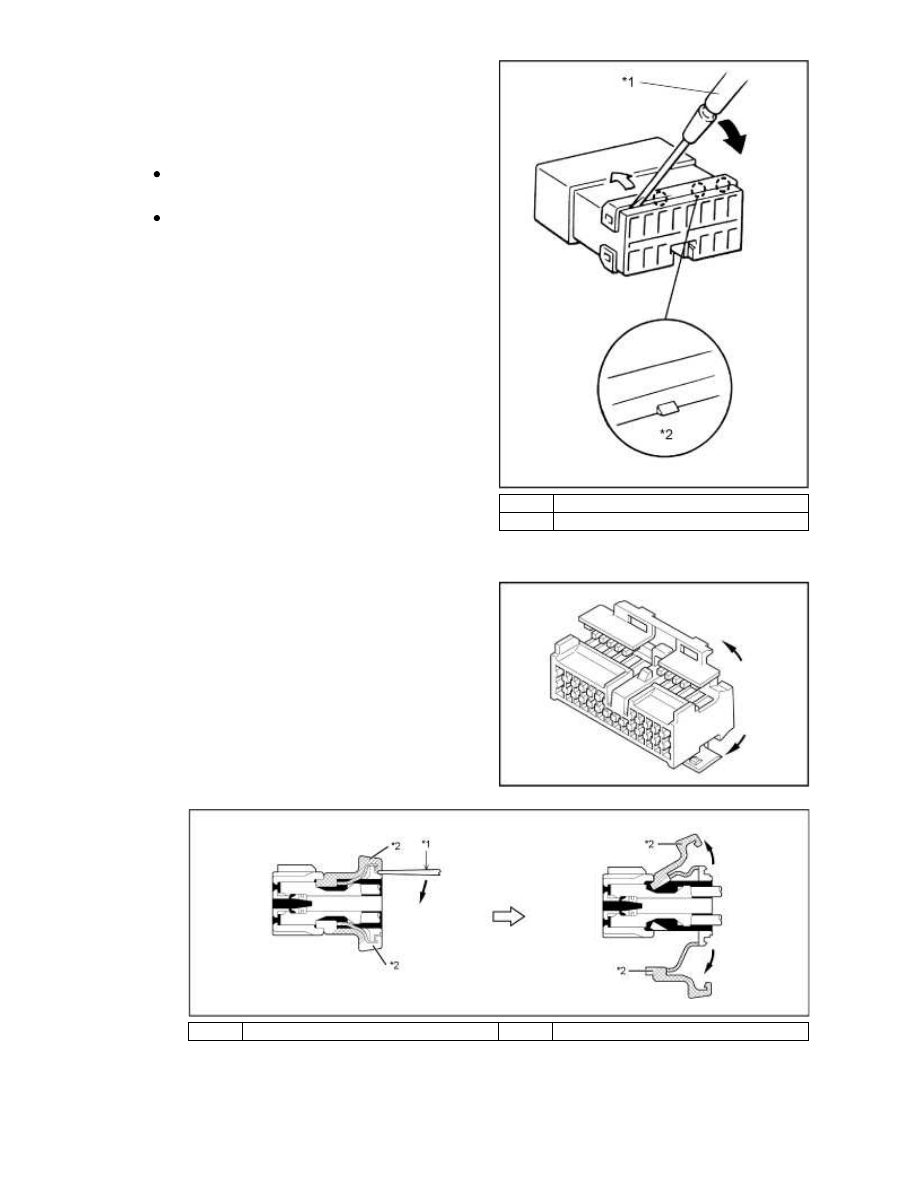

(2) Inset the special tool into the chink between

Special tool

*2

Lock

(1) Use the special tool to unlock the double

locking device.

*1

Special Tool

*2

Double Locking Device

Print-Toyota Service Information

https://techinfo.toyota.com/t3Portal/external/en/ewdappu/EM26B0U/ewd/...

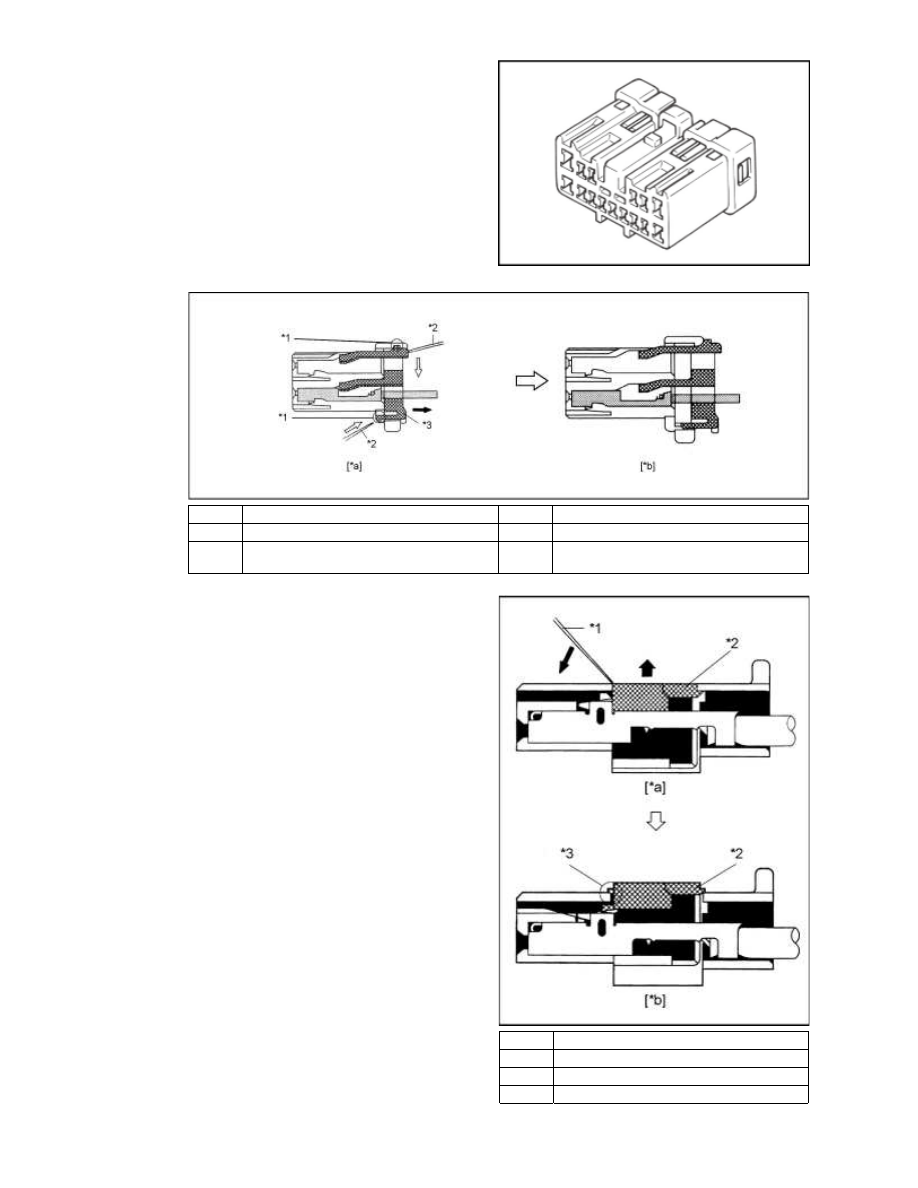

[Case 2]

(1) Using the special tool, push the terminal

retainer locking lug (clip) and pull the
terminal retainer up to the temporary lock
position.

*1

Locking Lug

*2

Spacial Tool

*3

Terminal Retainer

-

*a

Retainer at Full Lock Position

*b

Retainer at Temporary Lock
Position

[Case 3]

(1) Using the special tool, raise the retainer up

to the temporary lock position.

*1

Special Tool

*2

Terminal Retainer

*3

Stopper

*a

Retainer at Full Lock Position

Print-Toyota Service Information

https://techinfo.toyota.com/t3Portal/external/en/ewdappu/EM26B0U/ewd/...

*b

Retainer at Temporary Lock
Position

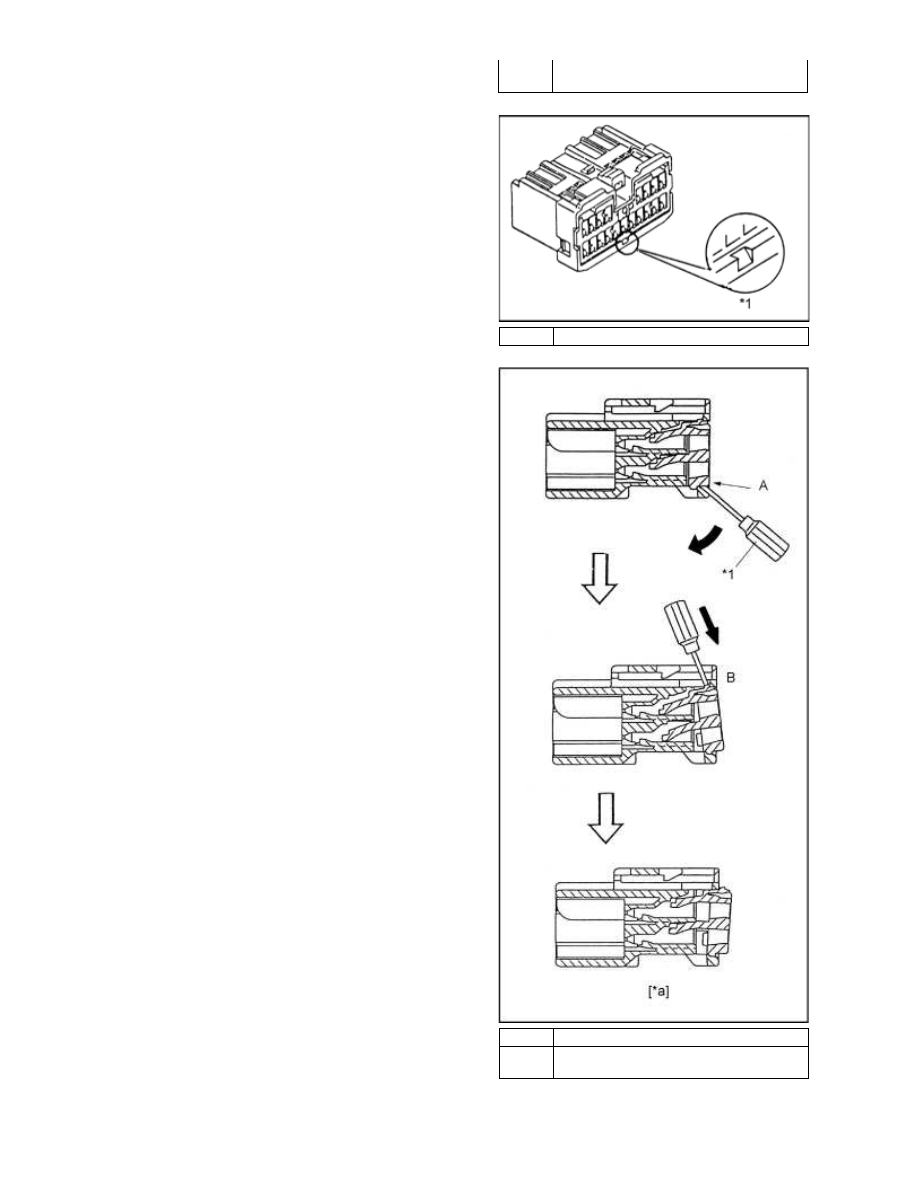

[Case 4]

*1

Service hole

(1) Insert the special tool into the service hole

tool and release the lock. Then pull the
retainer forward.

*1

Special tool

*a

Appearance when the double
locking is released
