TERMINAL AND CONNECTOR REPAIR

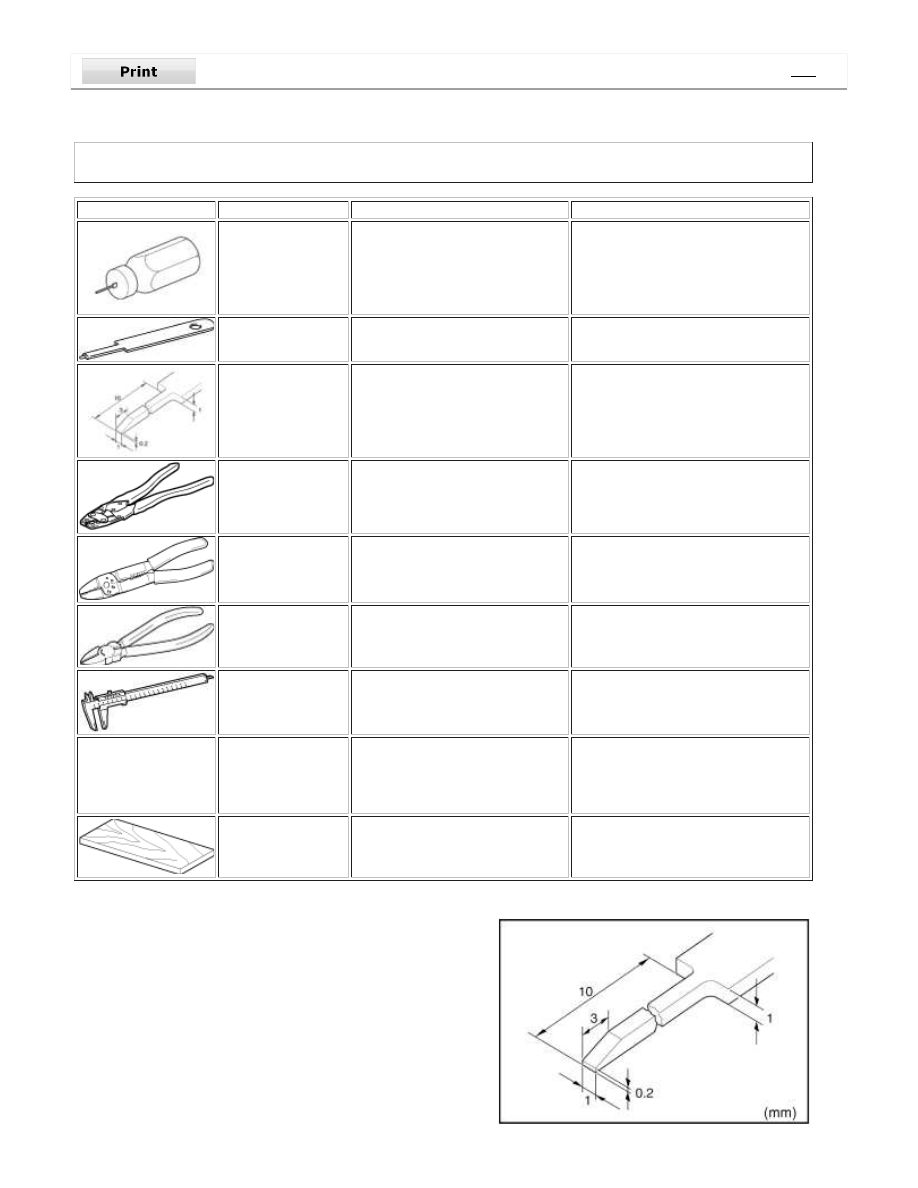

PREPARATORY ITEMS

Illustration

Part number

Part name

Notes and purpose

09991-00500
09991-00510

SST

To remove the 0.64 connector
terminal

09992-01030

SST

To remove the 0.64 II
connector terminal

-

Special tool

To remove the terminal
Refer to the following
illustration

09042-2C100

SST(Crimping tool)

To crimp sleeves
(For aluminum wire repair)

-

Crimping tool

To crimp sleeves
(For copper wire repair)

-

Wire cutters

To cut wires

-

Caliper

-

Dryer or heat gun

To heat heat shrink sleeves
(For aluminum wire repair)
(1000W or more, and the
thermal fuse with 190°C or
more)

-

Wood plate

To shield heat (For aluminum
wire repair)
Size reference (mm): 300 x
100 x 10

Special Tool

REFERENCE:

To remove the terminal from the
connector, please construct and use the
special tool or like object shown on the
right.

Reference:

Print-Toyota Service Information

https://techinfo.toyota.com/t3Portal/external/en/ewdappu/EM26B0U/ewd/...

CONNECTOR REPAIR

1.

TERMINAL REPLACEMENT

These steps must be followed when replacing a terminal.
If the wire harness is protected with CFWs, refer to [Extra].

Step 1. Identify the connector and the terminal type.

Step 2. Disconnect the terminal from the connector.

Step 3. Replace the terminal.

Step 4. Install the terminal into the connector.

Print-Toyota Service Information

https://techinfo.toyota.com/t3Portal/external/en/ewdappu/EM26B0U/ewd/...

Extra. Special handling for the wires that are protected with CFWs.

Step 1. Identify the connector and the terminal type.

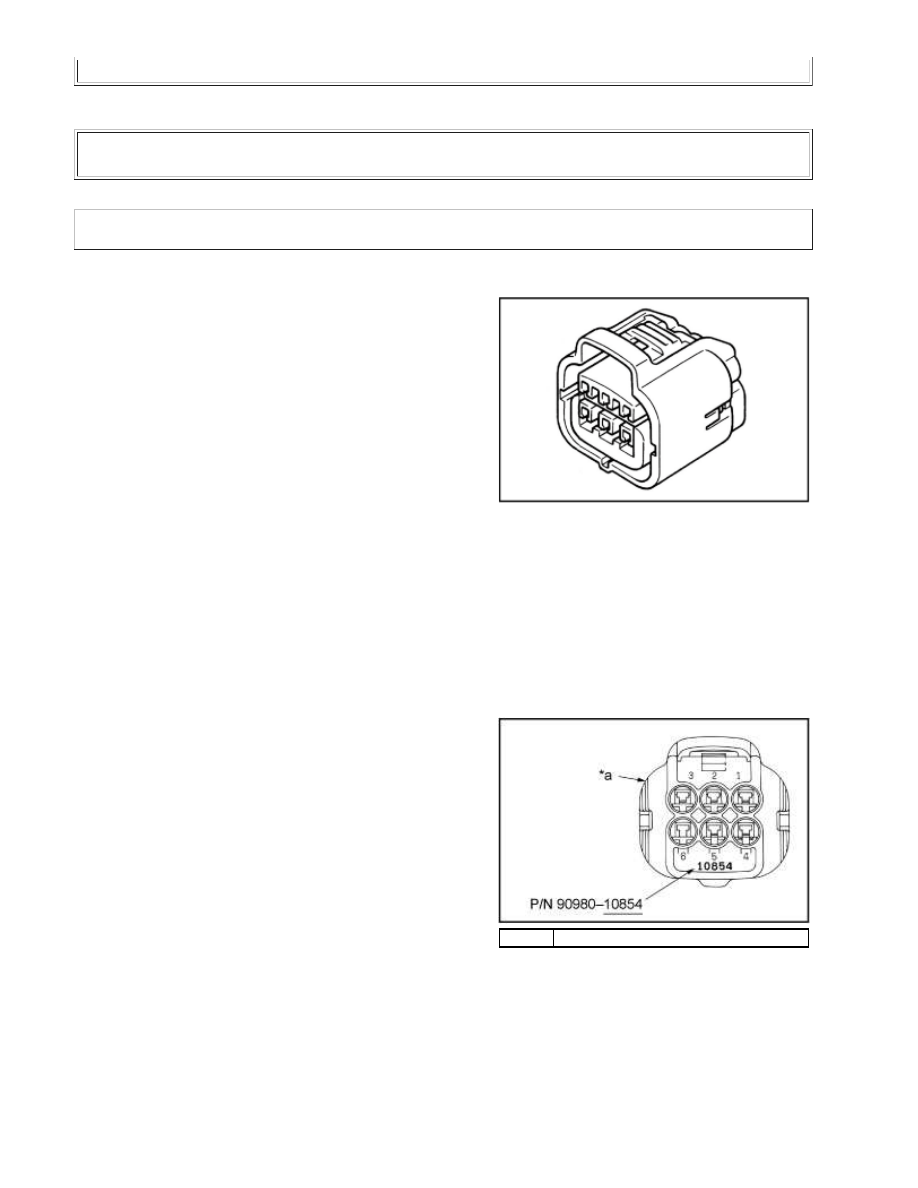

1. Connector Body

REFERENCE:

If you can find no connector which
matches the type you require, pick out
male and female connector bodies as a set
which have more terminals than you
require.
For the combined terminal type connector
body, pick out and appropriate connector
body for each terminal being used.

a.

Example:

b.

Example:

*a

Print-Toyota Service Information

https://techinfo.toyota.com/t3Portal/external/en/ewdappu/EM26B0U/ewd/...

=

2

4

Calipers

*a

Rubber Plug

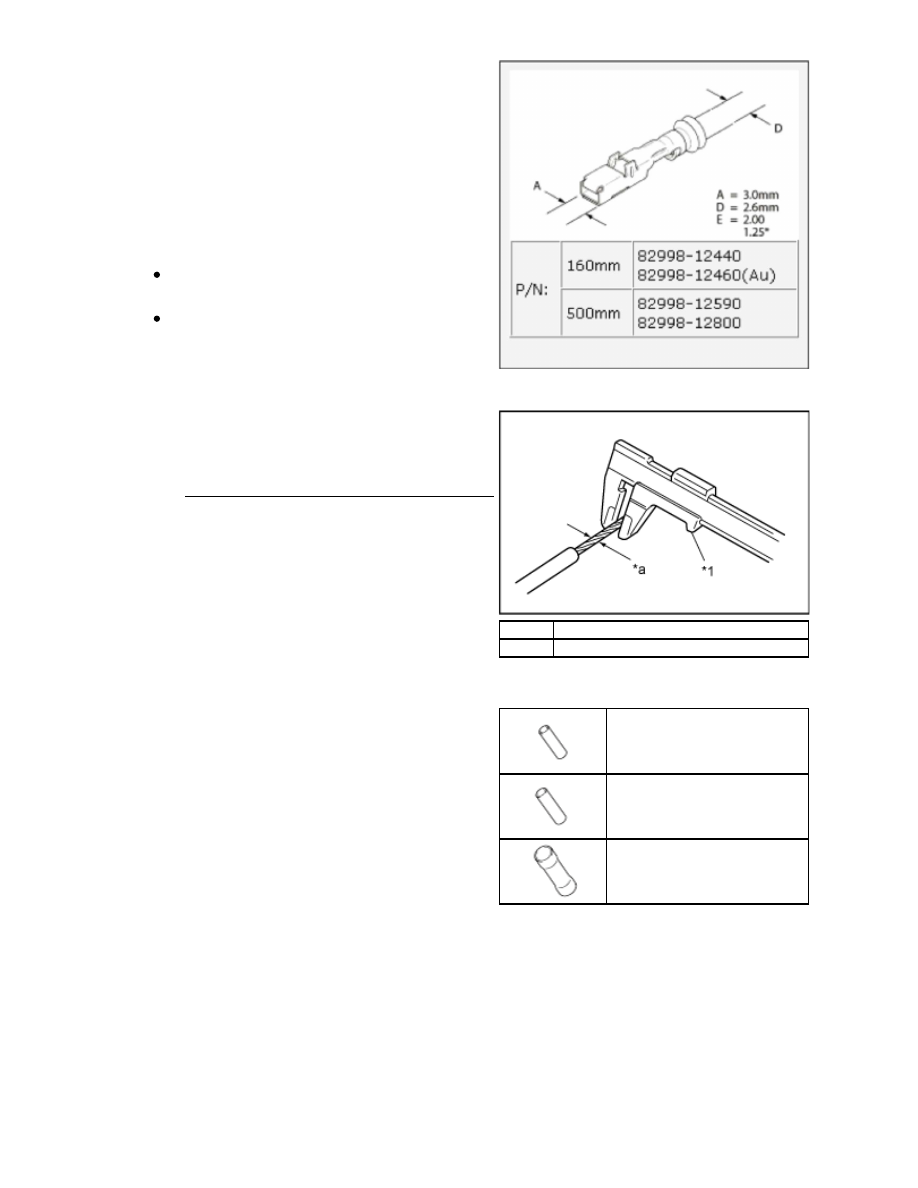

3. Copper wire sleeves

When connecting two wires using a sleeve,
select the sleeve according to the following
table.

Small (Red)

Medium (Blue)

Large (Yellow)

When size is based on the outside diameter of

a.

Wire Outside Diameter

Print-Toyota Service Information

https://techinfo.toyota.com/t3Portal/external/en/ewdappu/EM26B0U/ewd/...
