Toyota Tundra (2015 year). Manual - part 3133

the wire.

Wire Outside

Diameter

Sleeve Size

(Color)

0.2-1.0 mm

Small(Red)

1.0-2.0 mm

Medium(Blue)

3.0-5.0 mm

Large(Yellow)

*1

Insulation

*2

Calipers

Sleeve size

S

: Small (Red)

M

: Medium (Blue)

L

: Large (Yellow)

*

0.13

0.22

0.3

0.5

0.85 1.25

2

3

5

0.13

-

-

-

S

-

-

-

-

-

0.22

-

-

-

S

-

-

-

-

-

0.3

-

-

S

M

M

M

M

L

L

0.5

S

S

M

M

M

M

M

L

L

0.85

-

-

M

M

M

M

L

L

L

1.25

-

-

M

M

M

M

L

L

L

2

-

-

M

M

L

L

L

L

-

3

-

-

L

L

L

L

L

L

-

5

-

-

L

L

L

L

-

-

-

When two wires are joined using a sleeve, select
the appropriate sleeve by referring to the table
shown on the right.

Nominal wire size and sleeve size

a.

Nominal wire

size

Sleeve size

(Color)

0.75-1.0 sq

S (Silver)

1.25-2.5 sq

M (Silver)

S (Silver)

M (Silver)

Step 2. Disconnect the Terminal from the Connector.

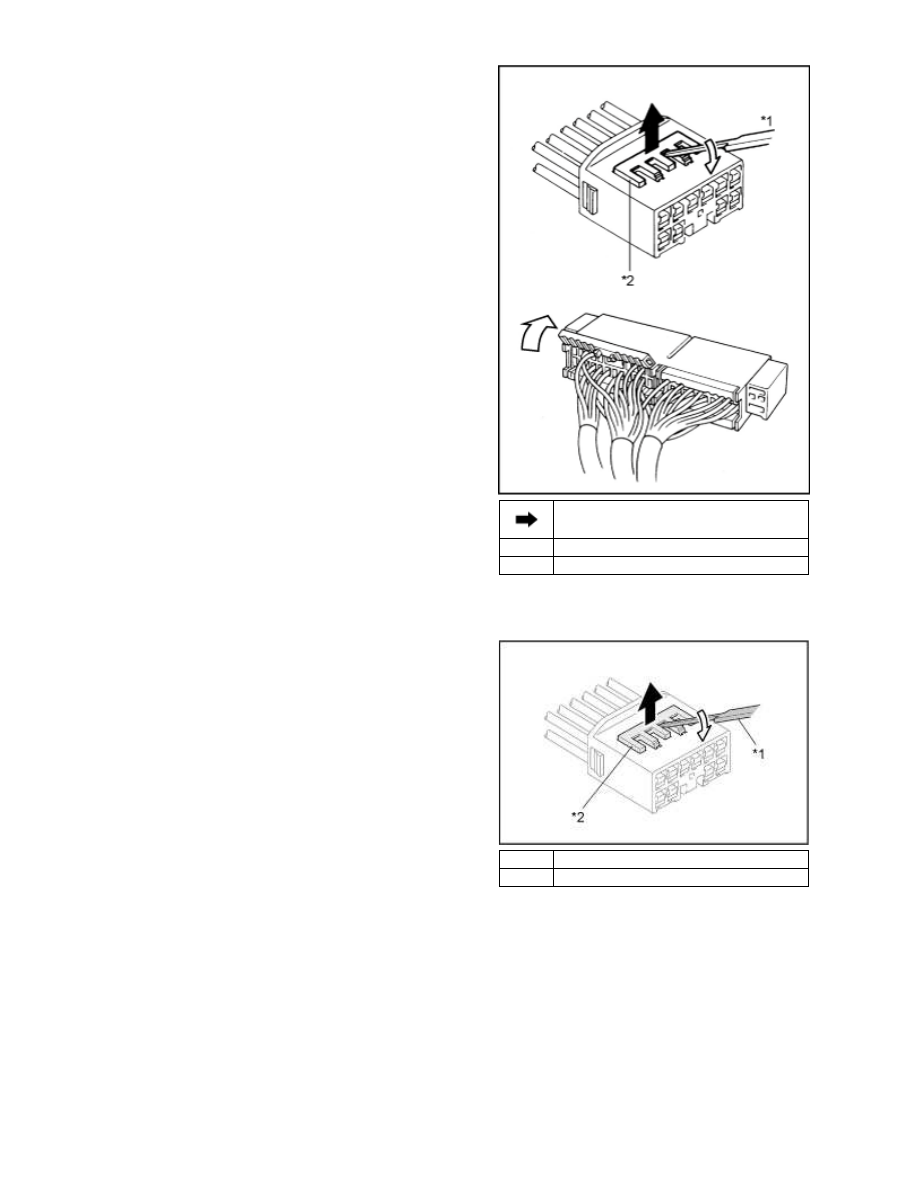

1. Disconnect Connector

To pull apart the connectors, pull on the connector itself, not the wire harness.

HINT:

https://techinfo.toyota.com/t3Portal/external/en/ewdappu/EM26B0U/ewd/...

Press down type is mainly used.

Example:

Press Down

Pull Up

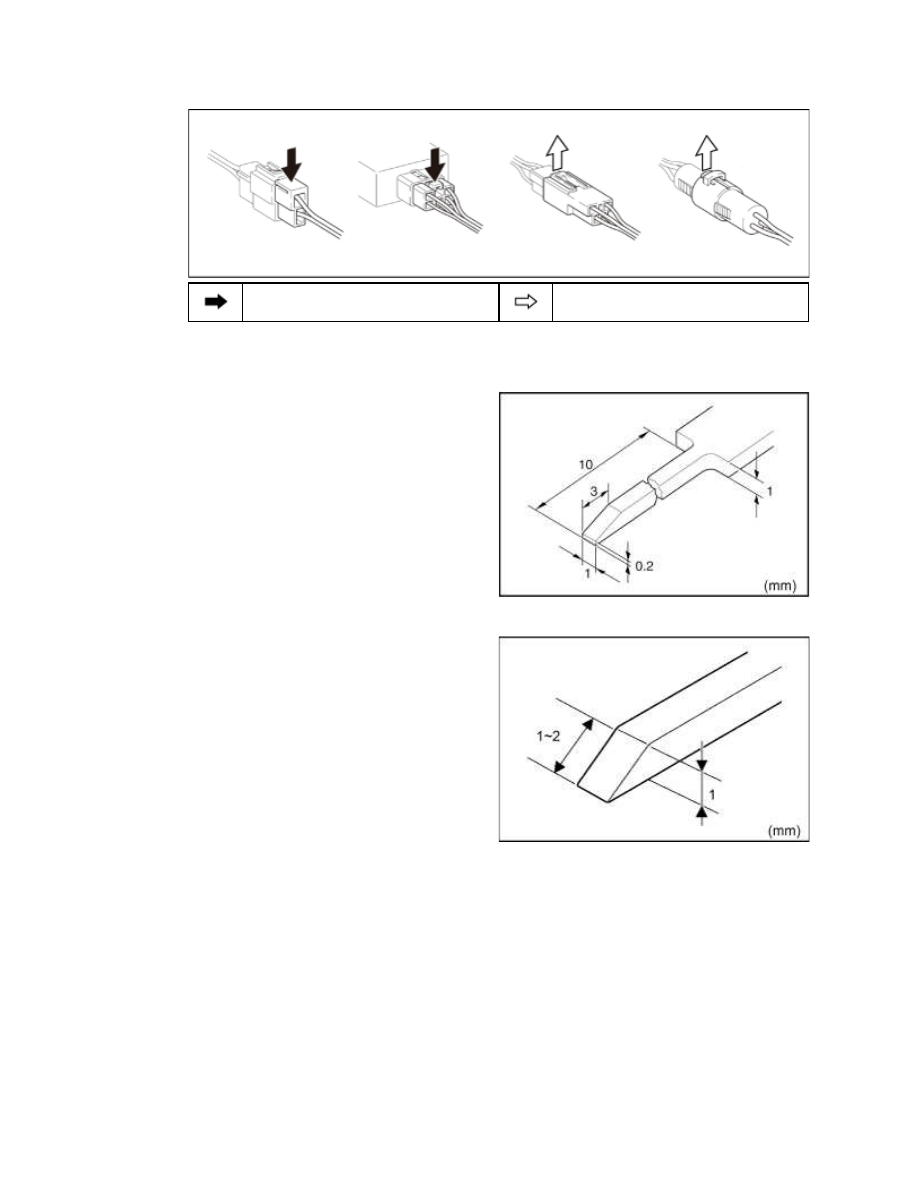

2. Prepare the Special Tool

HINT:

To remove the terminal from the
connector, please construct and use the
special tool or like object shown on the
right.

Reference:

Reference:(for 1.0III KITCUT Type)

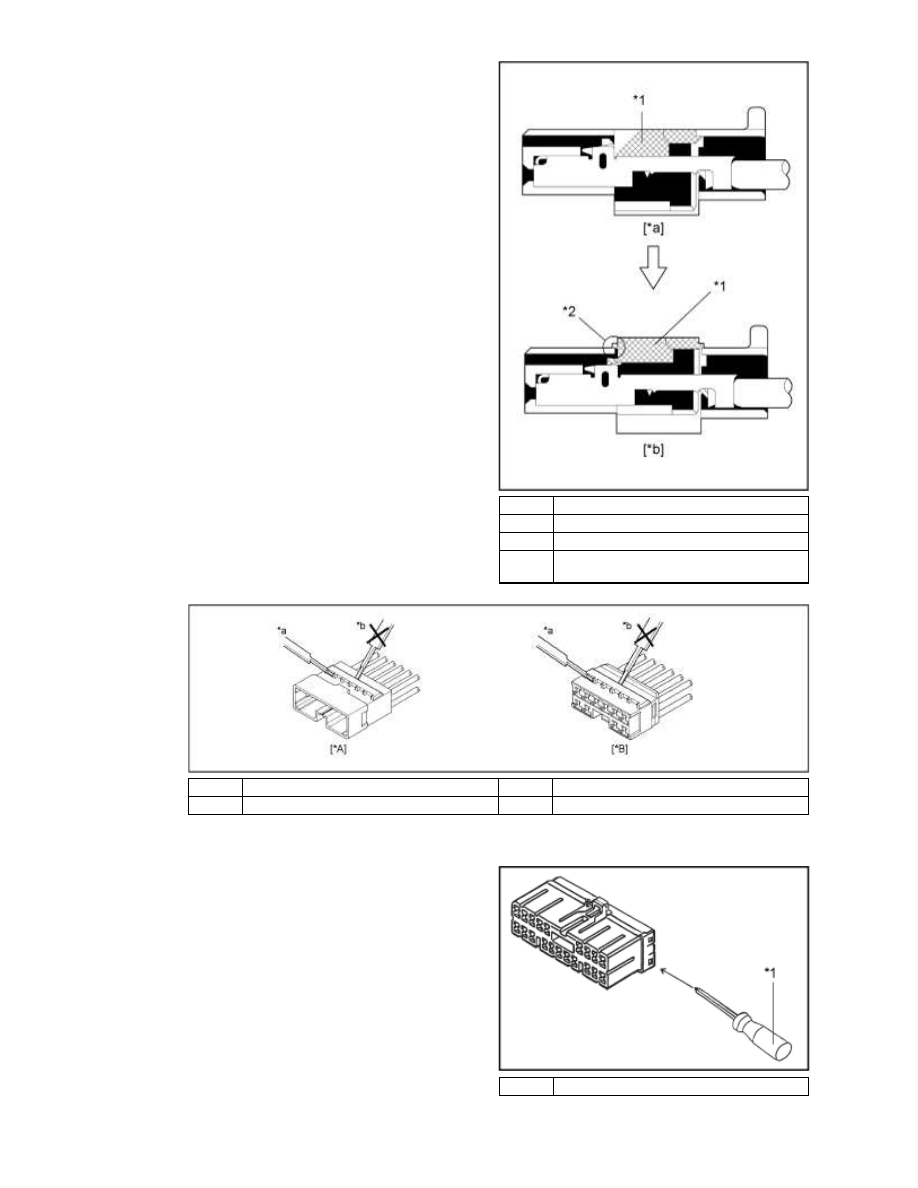

3. Disengage the double locking device or terminal retainer.

Locking device must be disengaged before the

a.

Example:

Print-Toyota Service Information

https://techinfo.toyota.com/t3Portal/external/en/ewdappu/EM26B0U/ewd/...

terminal locking clip can be released and the
terminal removed from the connector.

Use a special tool or the terminal pick to unlock
the double locking device.

b.

NOTICE:

Do not remove the terminal retainer from
connector body.

Pull Up

*1

Tool

*2

Terminal Retainer

to the temporary lock position.

HINT:

Special Tool

*2

Terminal Retainer

Print-Toyota Service Information

https://techinfo.toyota.com/t3Portal/external/en/ewdappu/EM26B0U/ewd/...

*1

Terminal Retainer

*2

Stopper

*a

Retainer at Full Lock Position

*b

Retainer at Temporary Lock
Position

*A

Male

*B

Female

*a

Good

*b

Bad

Special Tool

Print-Toyota Service Information

https://techinfo.toyota.com/t3Portal/external/en/ewdappu/EM26B0U/ewd/...
