Toyota Tundra (2015 year). Manual - part 3023





Last Modified: 9-16-2014

6.6 C

Doc ID: RM000002O2S06UX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1820/55-B1823/55; Short in Front Driver Side -

Side Squib Circuit; 2015 MY Tundra [08/2014 -        ]

DTC

B1820/55 Short in Front Driver Side - Side Squib Circuit

DTC

B1821/55 Open in Front Driver Side - Side Squib Circuit

DTC

B1822/55 Short to GND in Front Driver Side - Side Squib Circuit

DTC

B1823/55 Short to B+ in Front Driver Side - Side Squib Circuit

DESCRIPTION

These DTCs are recorded when a malfunction is detected in the side squib LH circuit.

DTC

CODE

DETECTION CONDITION

TROUBLE AREA

B1820/55

signal 5 times in the side squib LH circuit during

primary check.

Side squib LH malfunction

Center airbag sensor malfunction

Floor wire

Front seat side airbag

assembly LH (Side squib

LH)

Center airbag sensor

assembly

B1821/55

signal in the side squib LH circuit for 2 seconds.

Side squib LH malfunction

Center airbag sensor malfunction

Floor wire

Front seat side airbag

assembly LH (Side squib

LH)

Center airbag sensor

assembly

B1822/55

ground signal in the side squib LH circuit for 0.5

seconds.

Side squib LH malfunction

Center airbag sensor malfunction

Floor wire

Front seat side airbag

assembly LH (Side squib

LH)

Center airbag sensor

assembly

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1820/...

DTC

CODE

DETECTION CONDITION

TROUBLE AREA

B1823/55

B+ signal in the side squib LH circuit for 0.5 seconds.

Side squib LH malfunction

Center airbag sensor malfunction

Floor wire

Front seat side airbag

assembly LH (Side squib

LH)

Center airbag sensor

assembly

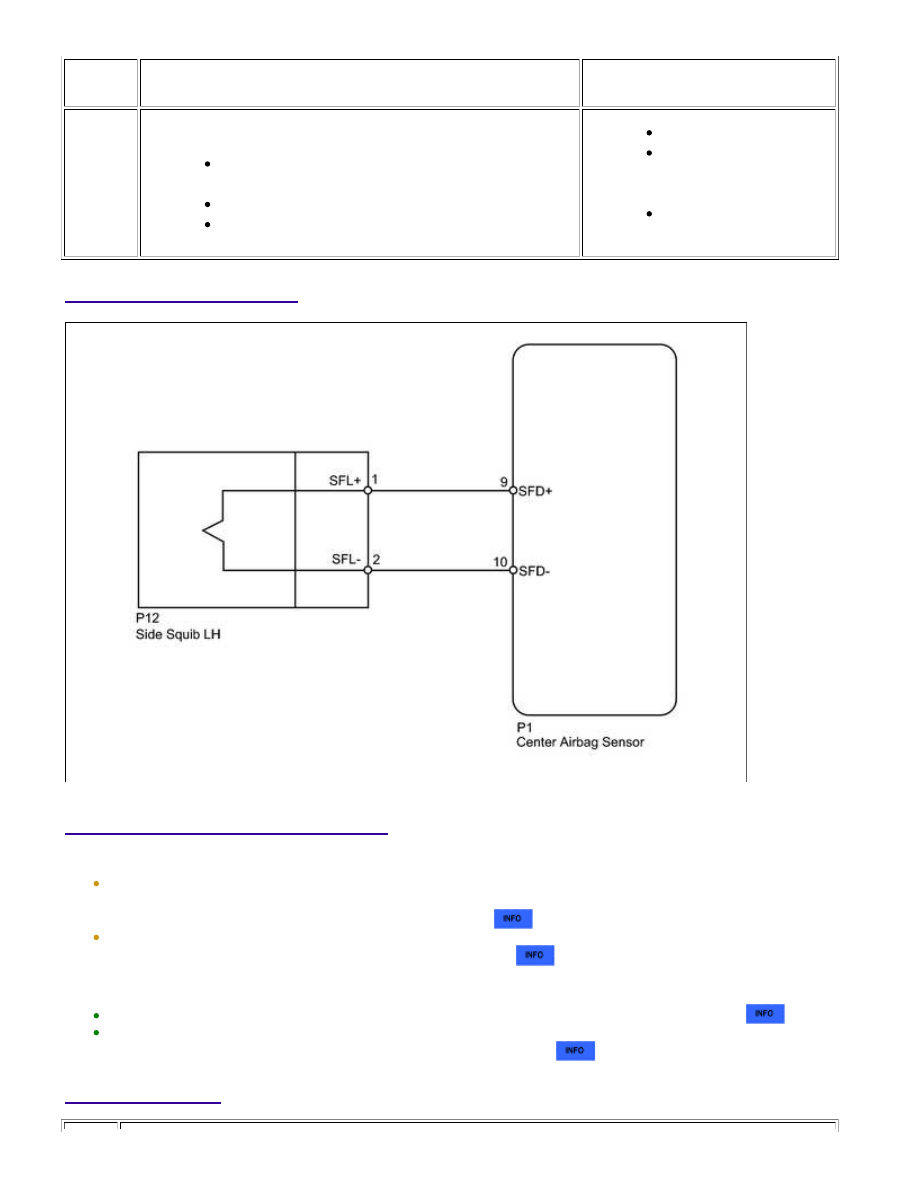

WIRING DIAGRAM

INSPECTION PROCEDURE

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the
negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative

(-) battery terminal notices before proceeding with work



.

When disconnecting the cable from the negative (-) battery terminal while performing repairs, some

systems need to be initialized after the cable is reconnected



.

HINT:

Perform the simulation method by selecting "check mode" (signal check) with the Techstream



.

After selecting "check mode" (signal check), perform the simulation method by wiggling each connector of

.

PROCEDURE

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1820/...

1.

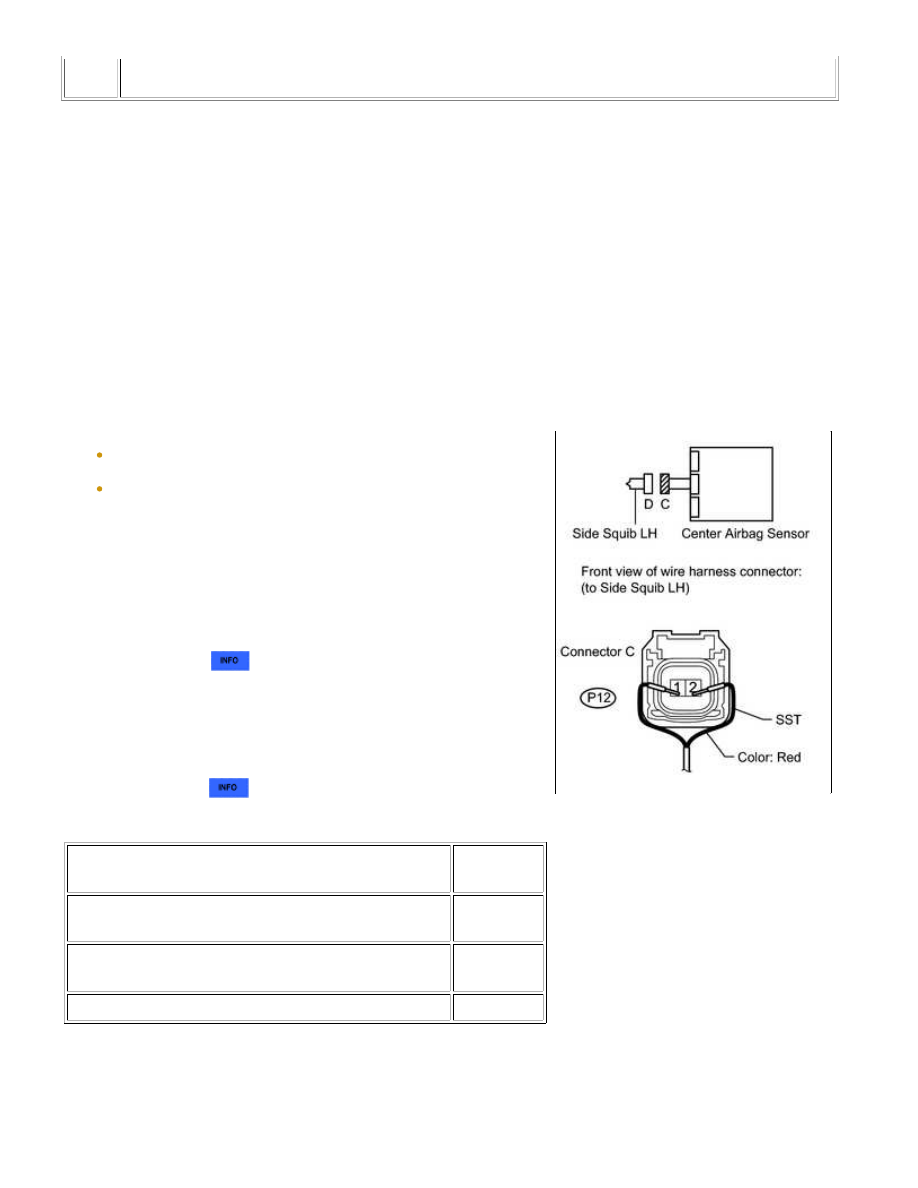

CHECK FRONT SEAT SIDE AIRBAG LH (SIDE SQUIB LH)

(a) Turn the ignition switch off.

(b) Disconnect the negative (-) terminal cable from the

battery, and wait for at least 90 seconds.

(c) Disconnect the connector from the front seat side airbag

LH.

CAUTION:

Never connect the tester to the front seat side airbag LH (side

squib LH) for measurement, as this may lead to a serious injury
due to airbag deployment.

NOTICE:

(e) Connect the negative (-) terminal cable to the battery, and

wait for at least 2 seconds.

(f) Turn the ignition switch to ON, and wait for at least 60

seconds.

(g) Clear the DTCs



.

(h) Turn the ignition switch off.

(i) Turn the ignition switch to ON, and wait for at least 60

seconds.

(j) Check for DTCs



.

Result

RESULT

PROCEED

TO

DTC B1820, B1821, B1822 or B1823 is not output (for

Manual Seat)

A

DTC B1820, B1821, B1822 or B1823 is not output (for

Power Seat)

B

DTC B1820, B1821, B1822 or B1823 is output

C

HINT:

Codes other than DTC B1820, B1821, B1822 and B1823 may be

output at this time, but they are not related to this check.

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1820/...

C

A

REPLACE FRONT SEAT SIDE AIRBAG ASSEMBLY LH

B

REPLACE FRONT SEAT SIDE AIRBAG ASSEMBLY LH

2.

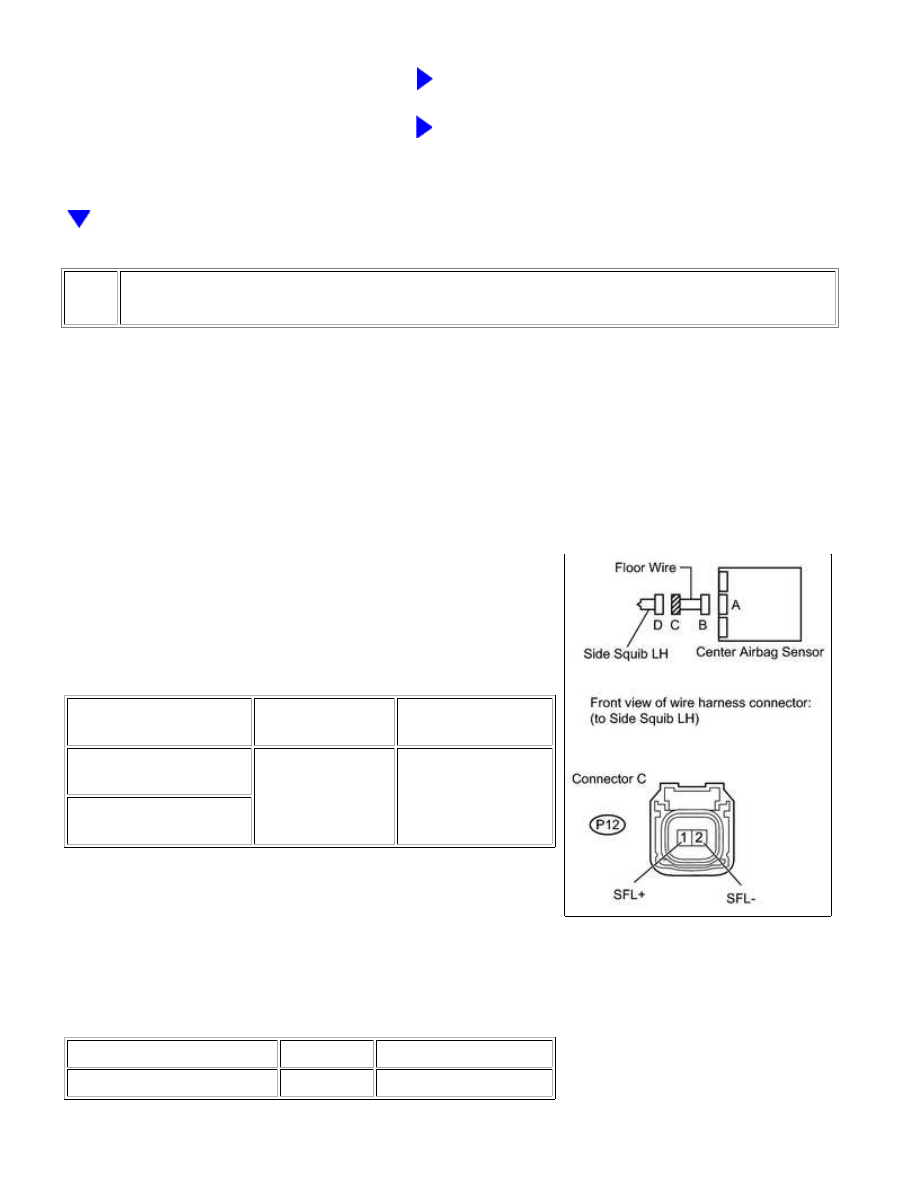

CHECK FLOOR WIRE (SIDE SQUIB LH CIRCUIT)

(a) Turn the ignition switch off.

(b) Disconnect the negative (-) terminal cable from the battery,

and wait for at least 90 seconds.

(c) Disconnect SST from connector C.

(d) Disconnect the connectors from the center airbag sensor.

(e) Connect the negative (-) terminal cable to the battery, and

wait for at least 2 seconds.

(f) Turn the ignition switch to ON.

(g) Measure the voltage according to the value(s) in the table

below.

Standard voltage:

TESTER CONNECTION

SWITCH

CONDITION

SPECIFIED

CONDITION

P12-1 (SFL+) - Body

ground

Ignition switch ON

Below 1 V

P12-2 (SFL-) - Body

ground

(h) Turn the ignition switch off.

(i) Disconnect the negative (-) terminal cable from the battery,

and wait for at least 90 seconds.

(j) Measure the resistance according to the value(s) in the table

below.

Standard resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

P12-1 (SFL+) - P12-2 (SFL-)

Always

Below 1 Ω

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1820/...
