Toyota Tundra (2015 year). Manual - part 3021





Last Modified: 9-16-2014

6.6 C

Doc ID: RM000000XFJ0SIX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B181A/7A-B181D/7A; Short in Passenger Side

Airbag Variable Vent Hole Squib Circuit; 2015 MY Tundra [08/2014 -        ]

DTC

B181A/7A Short in Passenger Side Airbag Variable Vent Hole Squib Circuit

DTC

B181B/7A Open in Passenger Side Airbag Variable Vent Hole Squib Circuit

DTC

B181C/7A Short to GND in Passenger Side Airbag Variable Vent Hole Squib Circuit

DTC

B181D/7A Short to B+ in Passenger Side Airbag Variable Vent Hole Squib Circuit

DESCRIPTION

These DTCs are recorded when a malfunction is detected in the variable vent hole squib circuit.

DTC

CODE

DETECTION CONDITION

TROUBLE AREA

B181A/7A

circuit signal 5 times in the variable vent hole

squib circuit during primary check.

Variable vent hole squib malfunction

Center airbag sensor malfunction

Instrument panel wire

No. 2 instrument panel

wire assembly

Front passenger airbag

assembly (Variable vent

hole squib)

Center airbag sensor

assembly

B181B/7A

signal in the variable vent hole squib circuit for 2

seconds.

Variable vent hole squib malfunction

Center airbag sensor malfunction

Instrument panel wire

No. 2 instrument panel

wire assembly

Front passenger airbag

assembly (Variable vent

hole squib)

Center airbag sensor

assembly

B181C/7A

ground signal in the variable vent hole squib circuit

Instrument panel wire

No. 2 instrument panel

wire assembly

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B181A...

DTC

CODE

DETECTION CONDITION

TROUBLE AREA

for 0.5 seconds.

Variable vent hole squib malfunction

Center airbag sensor malfunction

Front passenger airbag

assembly (Variable vent

hole squib)

Center airbag sensor

assembly

B181D/7A

B+ signal in the variable vent hole squib circuit for

0.5 seconds.

Variable vent hole squib malfunction

Center airbag sensor malfunction

Instrument panel wire

No. 2 instrument panel

wire assembly

Front passenger airbag

assembly (Variable vent

hole squib)

Center airbag sensor

assembly

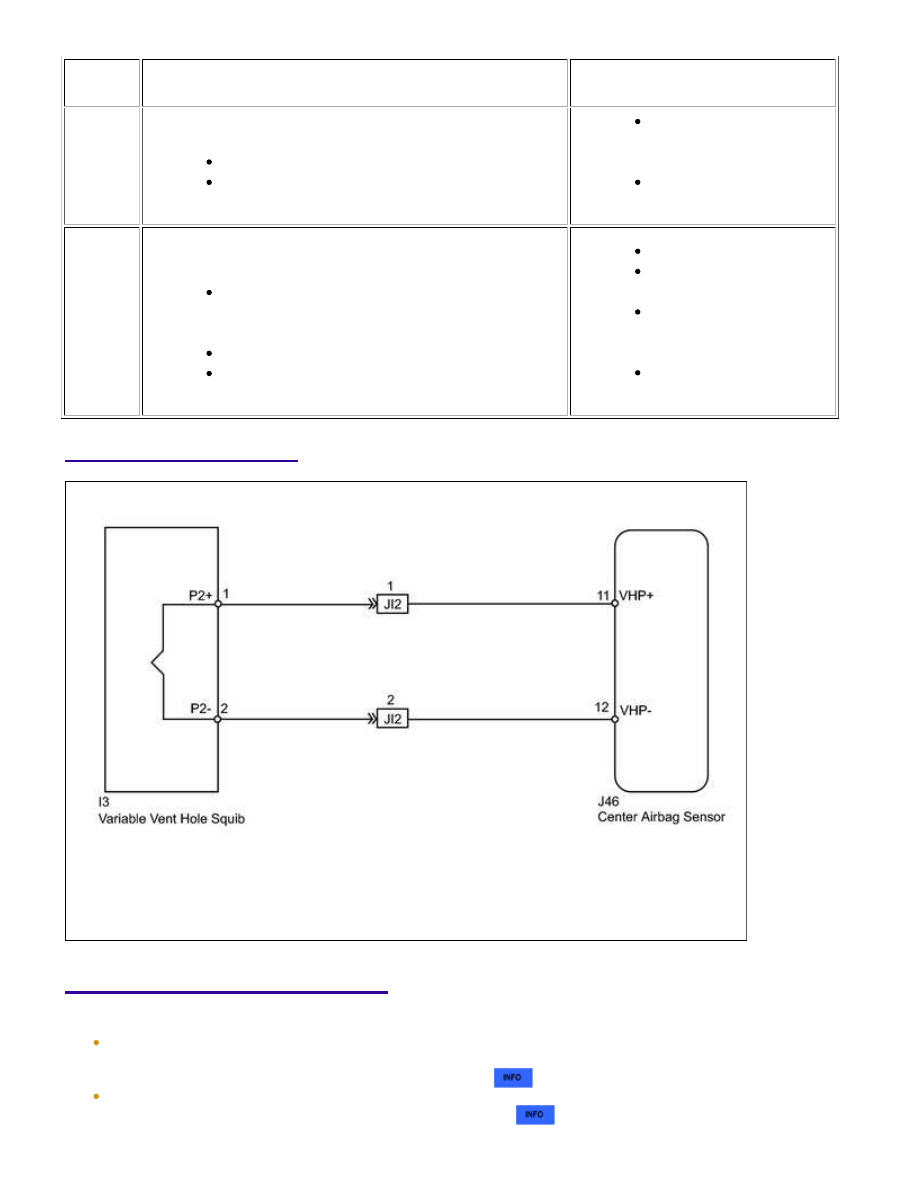

WIRING DIAGRAM

INSPECTION PROCEDURE

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the
negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative

(-) battery terminal notices before proceeding with work



.

When disconnecting the cable from the negative (-) battery terminal while performing repairs, some

systems need to be initialized after the cable is reconnected



.

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B181A...

HINT:

Perform the simulation method by selecting "check mode" (signal check) with the Techstream



.

After selecting "check mode" (signal check), perform the simulation method by wiggling each connector of

.

PROCEDURE

1.

CHECK FRONT PASSENGER AIRBAG (VARIABLE VENT HOLE SQUIB)

(a) Turn the ignition switch off.

(b) Disconnect the negative (-) terminal cable from the battery,

and wait for at least 90 seconds.

(c) Disconnect the connectors from the front passenger airbag.

CAUTION:

Never connect the tester to the front passenger airbag (variable

vent hole squib) for measurement, as this may lead to a serious
injury due to airbag deployment.

NOTICE:

(e) Connect the negative (-) terminal cable to the battery, and

wait for at least 2 seconds.

(f) Turn the ignition switch to ON, and wait for at least 60

seconds.

(g) Clear the DTCs



.

(h) Turn the ignition switch off.

(i) Turn the ignition switch to ON, and wait for at least 60

seconds.

(j) Check for DTCs



.

OK:

DTC B181A, B181B, B181C or B181D is not output.

HINT:

Codes other than DTC B181A, B181B, B181C and B181D may be

output at this time, but they are not related to this check.

NG

GO TO STEP 2

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B181A...

OK

OK

REPLACE FRONT PASSENGER AIRBAG ASSEMBLY

2.

CHECK CONNECTOR

(a) Turn the ignition switch off.

(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

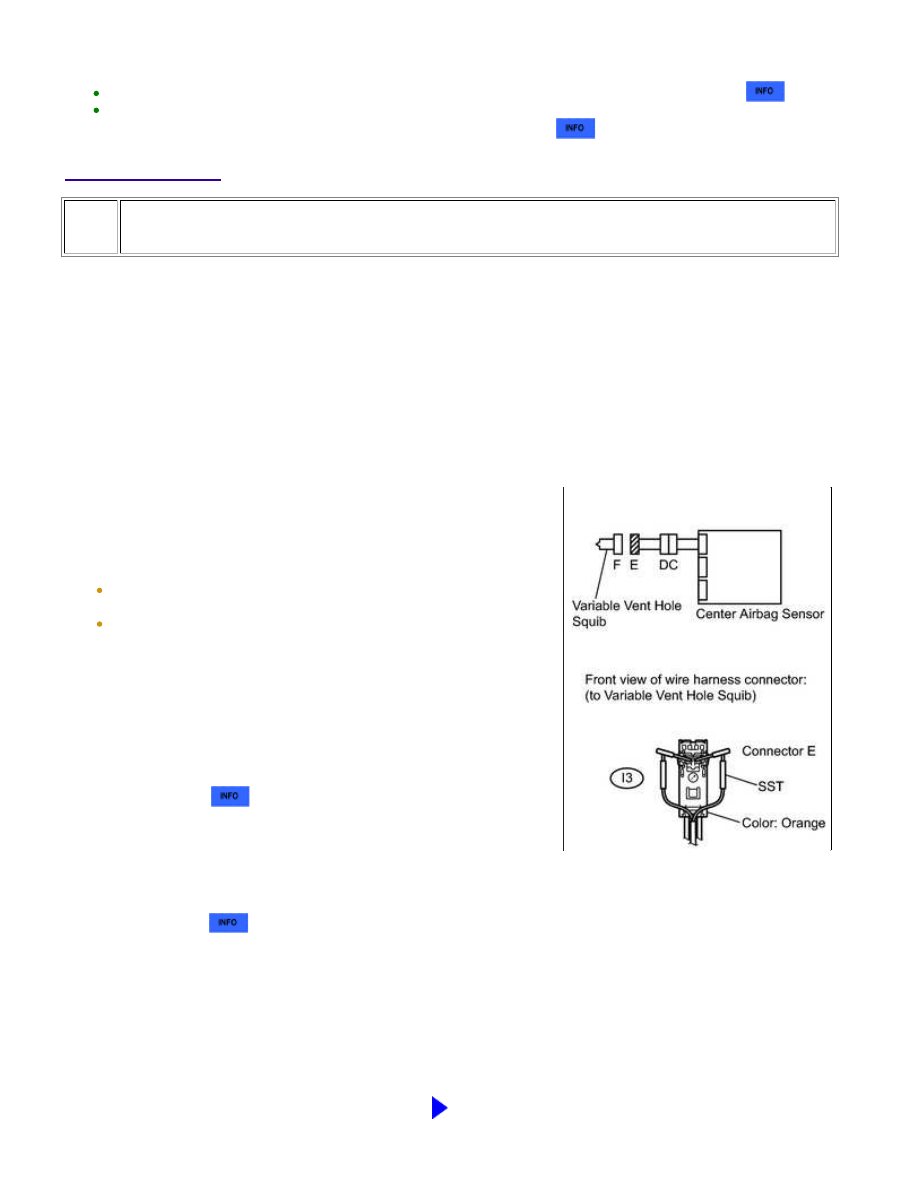

(c) Disconnect SST from connector E.

(d) Check that the instrument panel wire connectors (on the front passenger airbag side) are not

damaged.

OK:

REPLACE NO. 2 INSTRUMENT PANEL WIRE

ASSEMBLY

3.

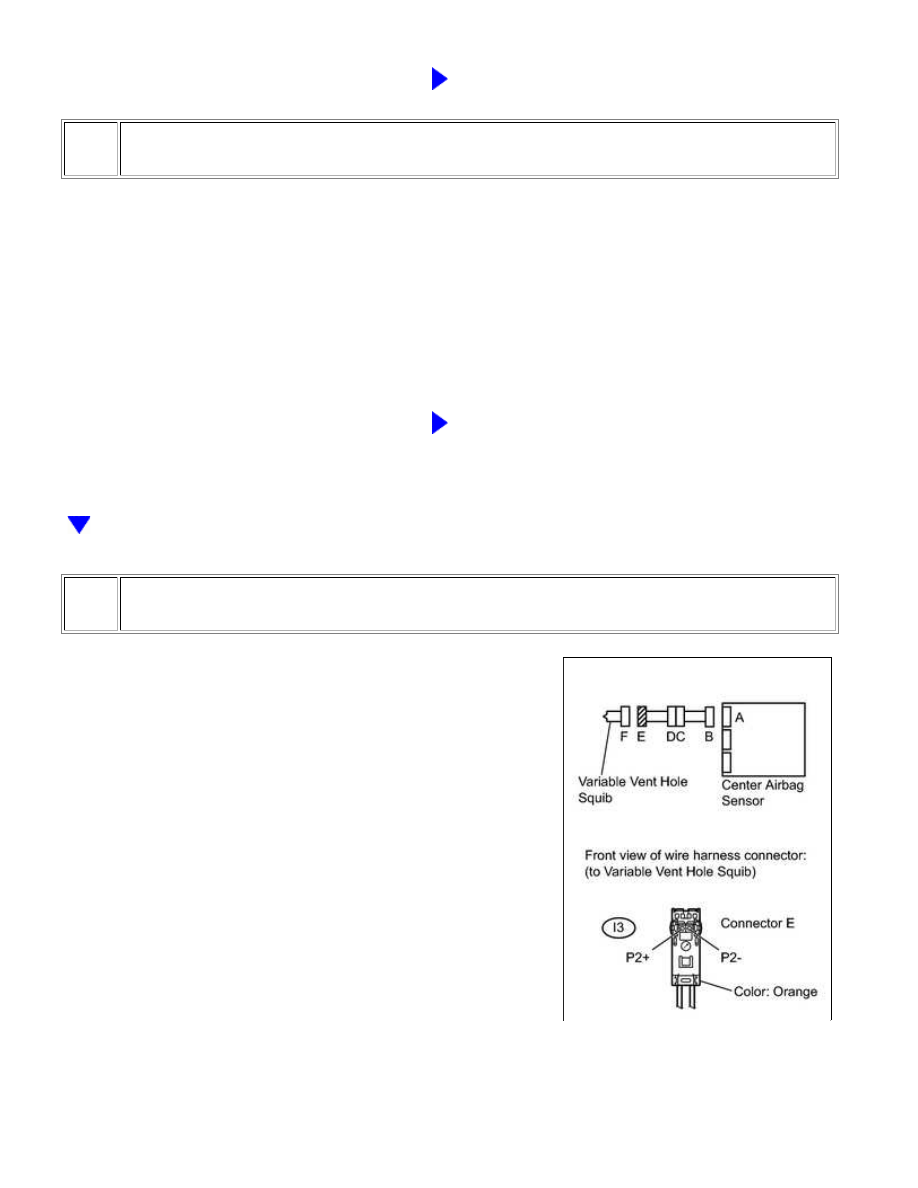

CHECK VARIABLE VENT HOLE SQUIB CIRCUIT

(a) Disconnect the connectors from the center airbag sensor.

(b) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.

(c) Turn the ignition switch to ON.

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B181A...
