Toyota Tundra (2015 year). Manual - part 3016





DTC

CODE

DETECTION CONDITION

TROUBLE AREA

circuit for 0.5 seconds.

Front passenger side squib malfunction

Center airbag sensor malfunction

Front passenger airbag

assembly (Front passenger

side squib)

Center airbag sensor

assembly

B1808/52

B+ signal in the front passenger side squib circuit

for 0.5 seconds.

Front passenger side squib malfunction

Center airbag sensor malfunction

Instrument panel wire

Instrument panel wire

assembly

Front passenger airbag

assembly (Front passenger

side squib)

Center airbag sensor

assembly

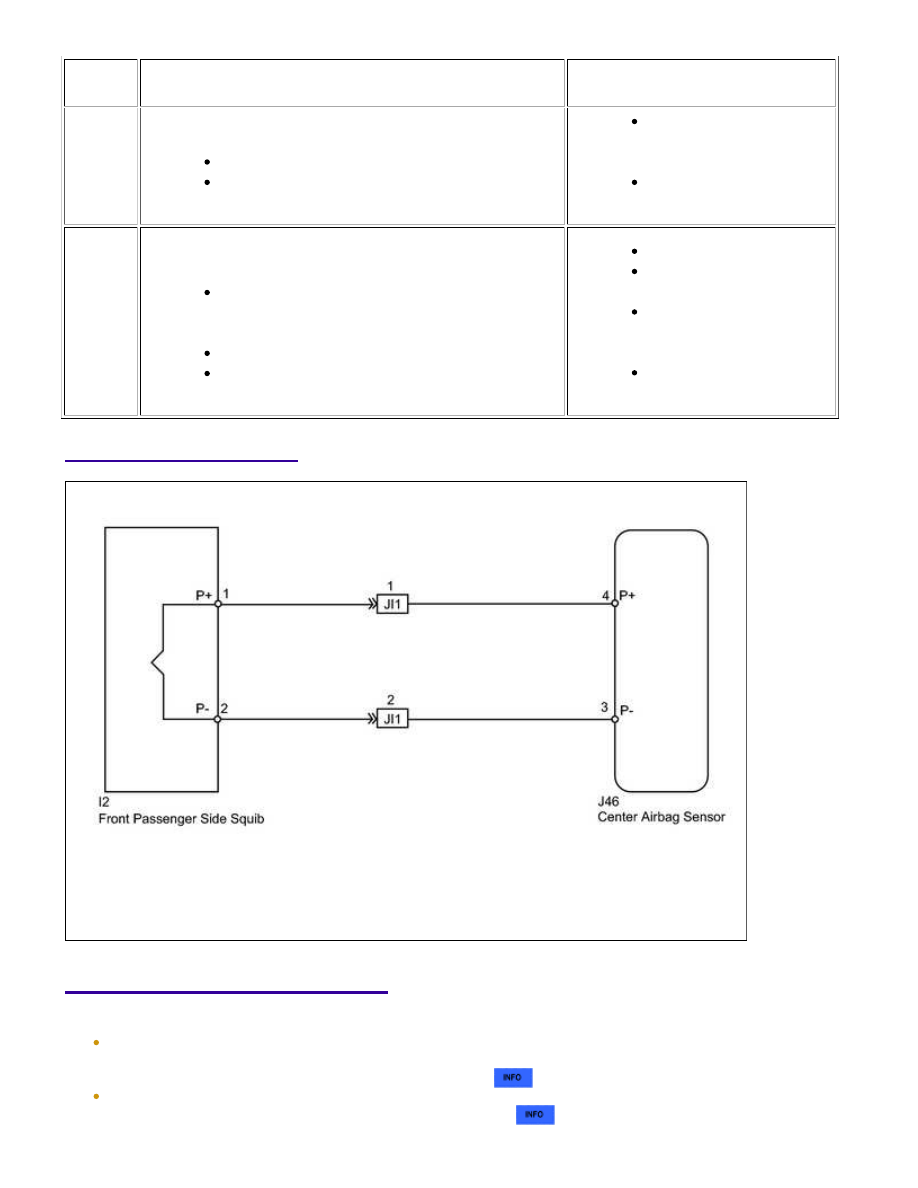

WIRING DIAGRAM

INSPECTION PROCEDURE

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the
negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative

(-) battery terminal notices before proceeding with work



.

When disconnecting the cable from the negative (-) battery terminal while performing repairs, some

systems need to be initialized after the cable is reconnected



.

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1805/...

HINT:

Perform the simulation method by selecting "check mode" (signal check) with the Techstream



.

After selecting "check mode" (signal check), perform the simulation method by wiggling each connector of

.

PROCEDURE

1.

CHECK FRONT PASSENGER AIRBAG (FRONT PASSENGER SIDE SQUIB)

(a) Turn the ignition switch off.

(b) Disconnect the negative (-) terminal cable from the battery,

and wait for at least 90 seconds.

(c) Disconnect the connectors from the front passenger airbag.

CAUTION:

Never connect the tester to the front passenger airbag (front

passenger side squib) for measurement, as this may lead to a
serious injury due to airbag deployment.

NOTICE:

(e) Connect the negative (-) terminal cable to the battery, and

wait for at least 2 seconds.

(f) Turn the ignition switch to ON, and wait for at least 60

seconds.

(g) Clear the DTCs



.

(h) Turn the ignition switch off.

(i) Turn the ignition switch to ON, and wait for at least 60

seconds.

(j) Check for DTCs



.

OK:

DTC B1805, B1806, B1807 or B1808 is not output.

HINT:

Codes other than DTC B1805, B1806, B1807 and B1808 may be

output at this time, but they are not related to this check.

NG

GO TO STEP 2

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1805/...

OK

OK

REPLACE FRONT PASSENGER AIRBAG ASSEMBLY

2.

CHECK CONNECTOR

(a) Turn the ignition switch off.

(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

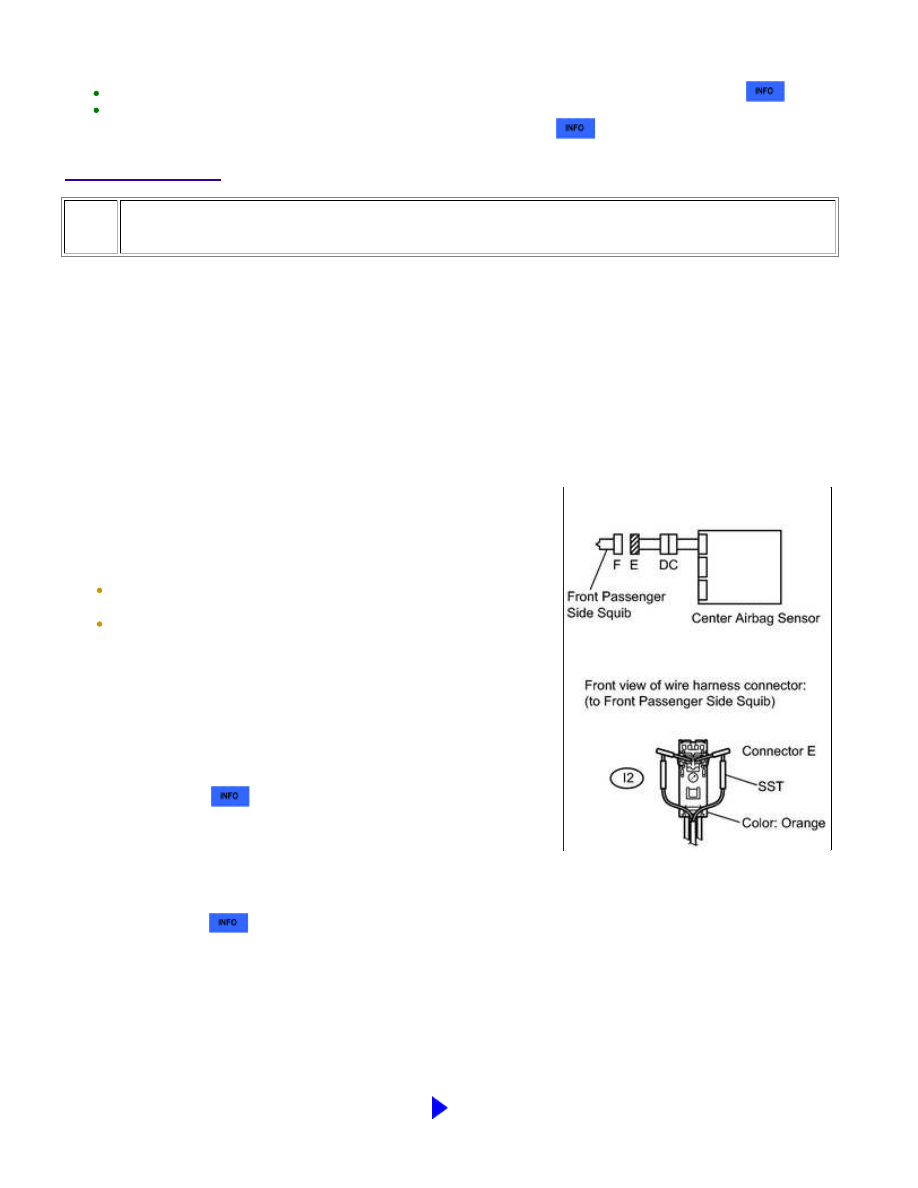

(c) Disconnect SST from connector E.

(d) Check that the instrument panel wire connectors (on the front passenger airbag side) are not

damaged.

OK:

REPLACE INSTRUMENT PANEL WIRE ASSEMBLY

3.

CHECK FRONT PASSENGER SIDE SQUIB CIRCUIT

(a) Disconnect the connectors from the center airbag sensor.

(b) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.

(c) Turn the ignition switch to ON.

(d) Measure the voltage according to the value(s) in the table below.

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1805/...

OK

Standard voltage:

TESTER CONNECTION

SWITCH CONDITION

SPECIFIED CONDITION

I2-1 (P+) - Body ground

Ignition switch ON

Below 1 V

I2-2 (P-) - Body ground

(e) Turn the ignition switch off.

(f) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

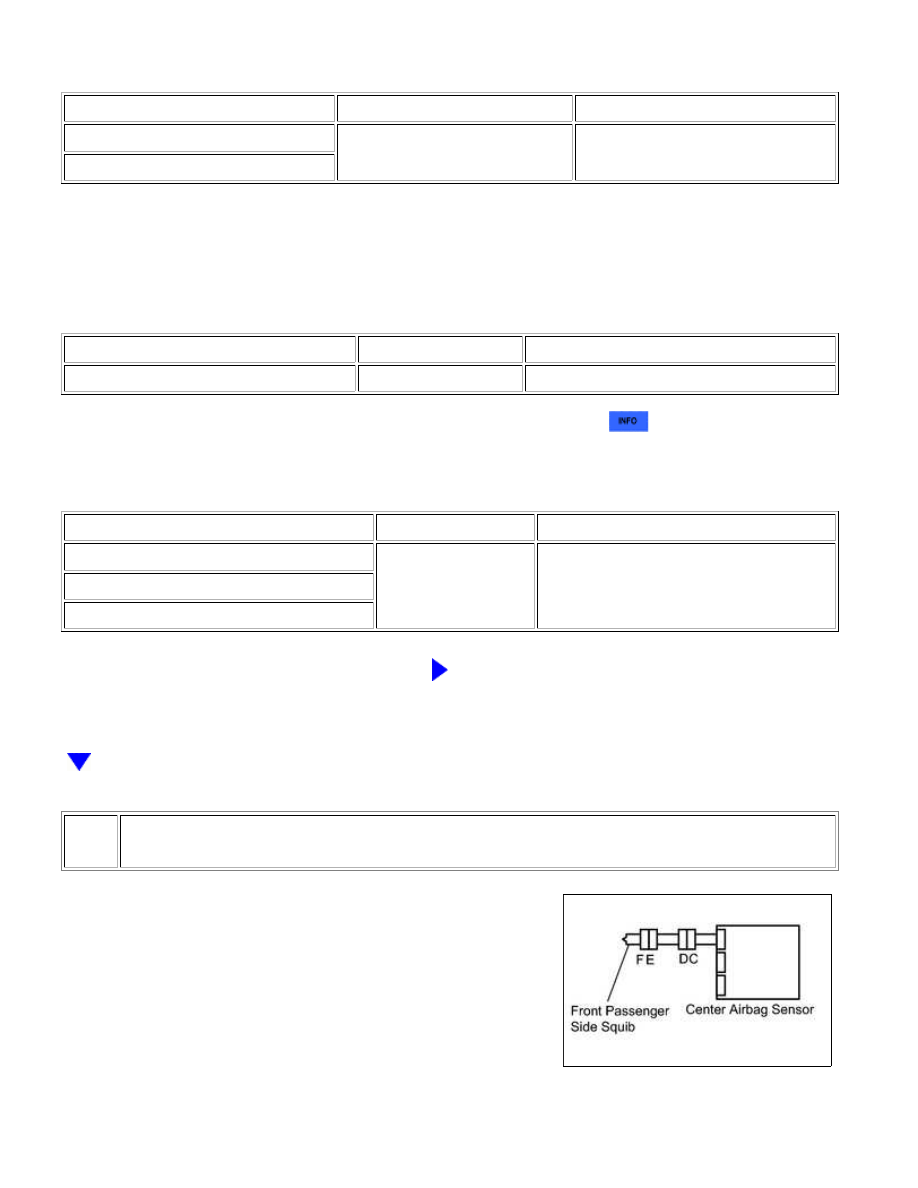

(g) Measure the resistance according to the value(s) in the table below.

Standard resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

I2-1 (P+) - I2-2 (P-)

Always

Below 1 Ω

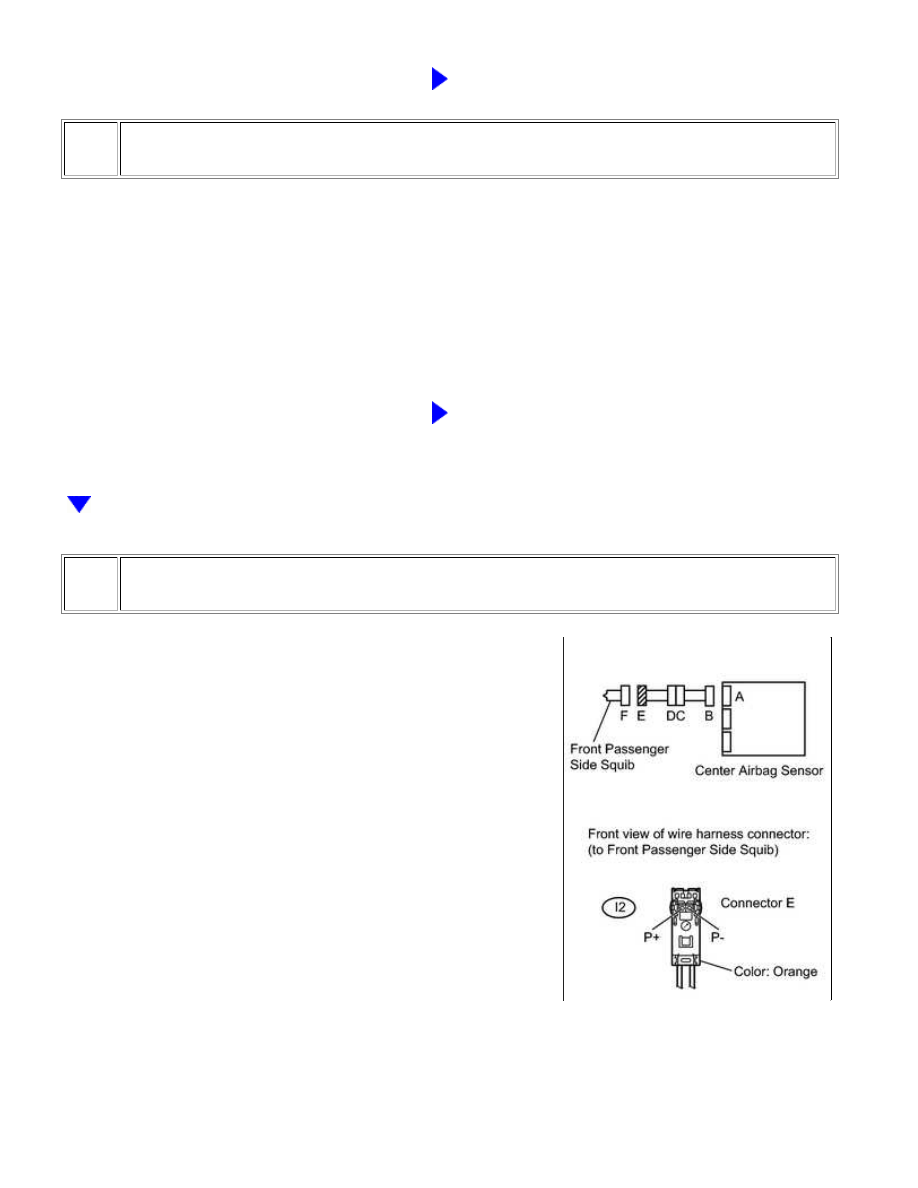

(h) Release the activation prevention mechanism built into connector B



.

(i) Measure the resistance according to the value(s) in the table below.

Standard resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

I2-1 (P+) - I2-2 (P-)

Always

1 MΩ or higher

I2-1 (P+) - Body ground

I2-2 (P-) - Body ground

NG

GO TO STEP 5

4.

CHECK CENTER AIRBAG SENSOR

(a) Connect the connectors to the front passenger airbag and

the center airbag sensor.

(b) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1805/...
