Title: SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1800/51-B1803/51; Short in Driver Side Squib

Circuit; 2015 MY Tundra [08/2014 -        ]

DTC

B1800/51 Short in Driver Side Squib Circuit

DTC

B1801/51 Open in Driver Side Squib Circuit

DTC

B1802/51 Short to GND in Driver Side Squib Circuit

DTC

B1803/51 Short to B+ in Driver Side Squib Circuit

DESCRIPTION

These DTCs are recorded when a malfunction is detected in the driver side squib circuit.

DTC

CODE

DETECTION CONDITION

TROUBLE AREA

B1800/51

signal 5 times in the driver side squib circuit during

primary check.

Driver side squib malfunction

Spiral cable malfunction

Center airbag sensor malfunction

Instrument panel

wire

Spiral cable

sub-assembly

Steering pad (Driver

side squib)

Center airbag sensor

assembly

B1801/51

the driver side squib circuit for 2 seconds.

Driver side squib malfunction

Spiral cable malfunction

Center airbag sensor malfunction

Instrument panel

wire

Spiral cable

sub-assembly

Steering pad (Driver

side squib)

Center airbag sensor

assembly

B1802/51

ground signal in the driver side squib circuit for 0.5

seconds.

Instrument panel

wire

Spiral cable

sub-assembly

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1800/...

DTC

CODE

DETECTION CONDITION

TROUBLE AREA

Driver side squib malfunction

Spiral cable malfunction

Center airbag sensor malfunction

Steering pad (Driver

side squib)

Center airbag sensor

assembly

B1803/51

signal in the driver side squib circuit for 0.5 seconds.

Driver side squib malfunction

Spiral cable malfunction

Center airbag sensor malfunction

Instrument panel

wire

Spiral cable

sub-assembly

Steering pad (Driver

side squib)

Center airbag sensor

assembly

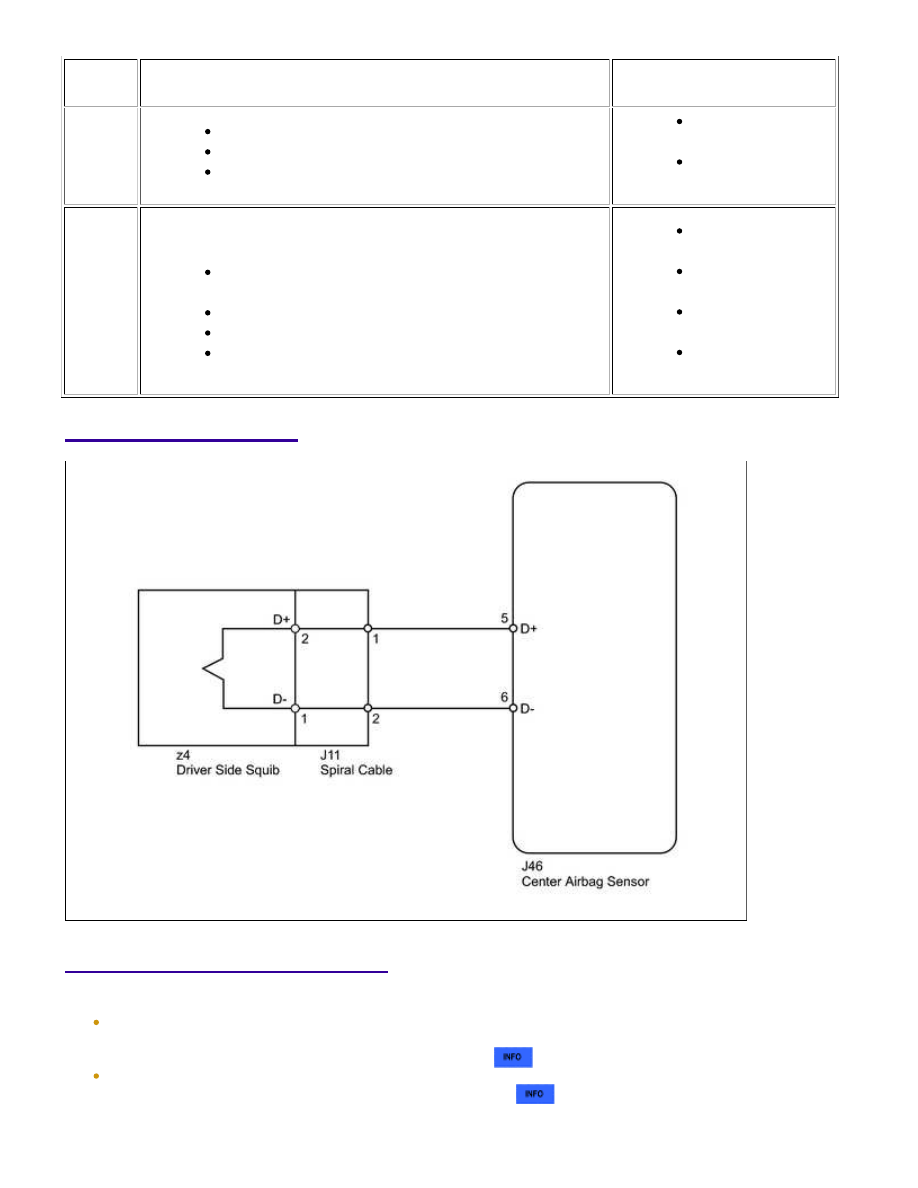

WIRING DIAGRAM

INSPECTION PROCEDURE

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the
negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative

(-) battery terminal notices before proceeding with work



.

When disconnecting the cable from the negative (-) battery terminal while performing repairs, some

systems need to be initialized after the cable is reconnected



.

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1800/...

HINT:

Perform the simulation method by selecting "check mode" (signal check) with the Techstream



.

After selecting "check mode" (signal check), perform the simulation method by wiggling each connector of

.

PROCEDURE

1.

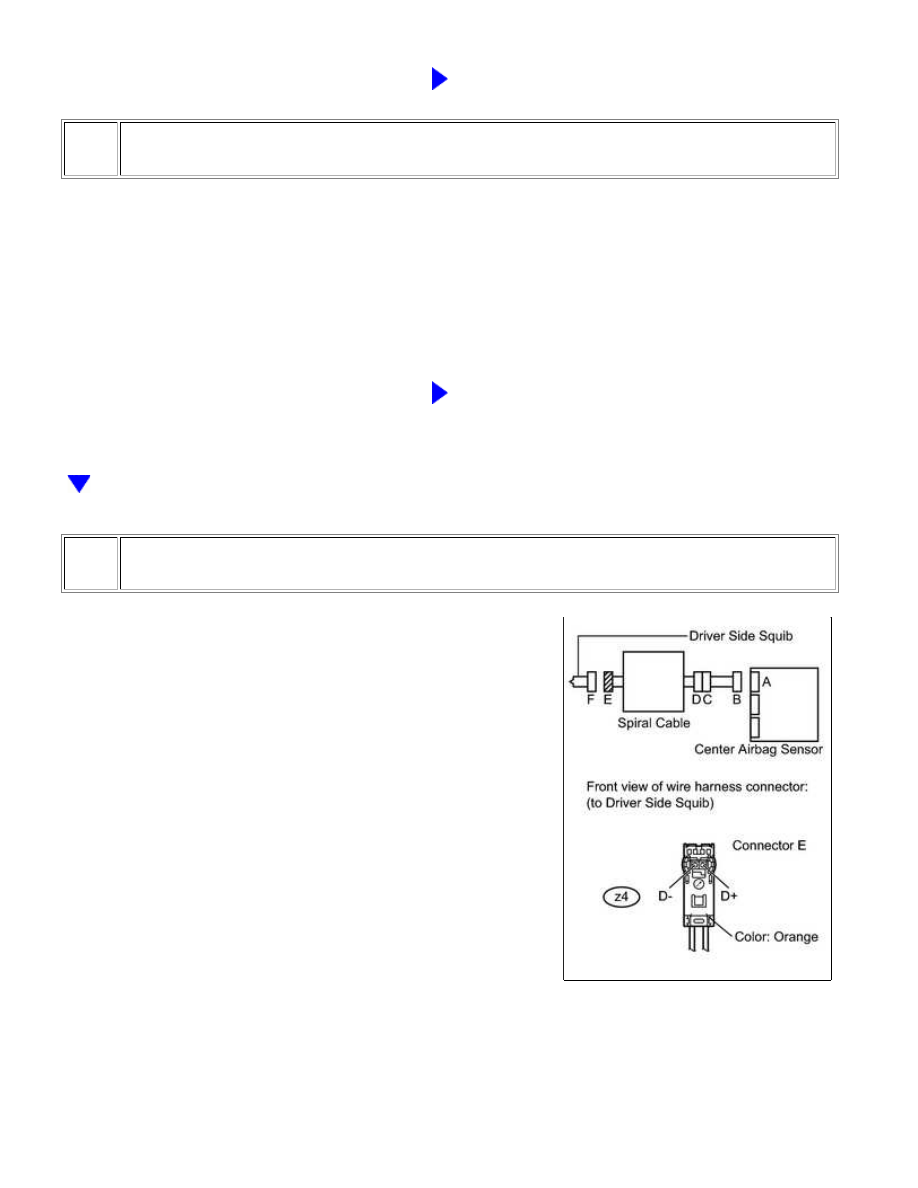

CHECK STEERING PAD (DRIVER SIDE SQUIB)

(a) Turn the ignition switch off.

(b) Disconnect the negative (-) terminal cable from the battery,

and wait for at least 90 seconds.

(c) Disconnect the z4 connector from the steering pad.

CAUTION:

Never connect the tester to the steering pad (driver side squib)

for measurement, as this may lead to a serious injury due to
airbag deployment.

NOTICE:

(e) Connect the negative (-) terminal cable to the battery, and

wait for at least 2 seconds.

(f) Turn the ignition switch to ON, and wait for at least 60

seconds.

(g) Clear the DTCs



.

(h) Turn the ignition switch off.

(i) Turn the ignition switch to ON, and wait for at least 60

seconds.

(j) Check for DTCs



.

OK:

DTC B1800, B1801, B1802 or B1803 is not output.

HINT:

Codes other than DTC B1800, B1801, B1802 and B1803 may be

output at this time, but they are not related to this check.

NG

GO TO STEP 2

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1800/...

OK

OK

REPLACE STEERING PAD

2.

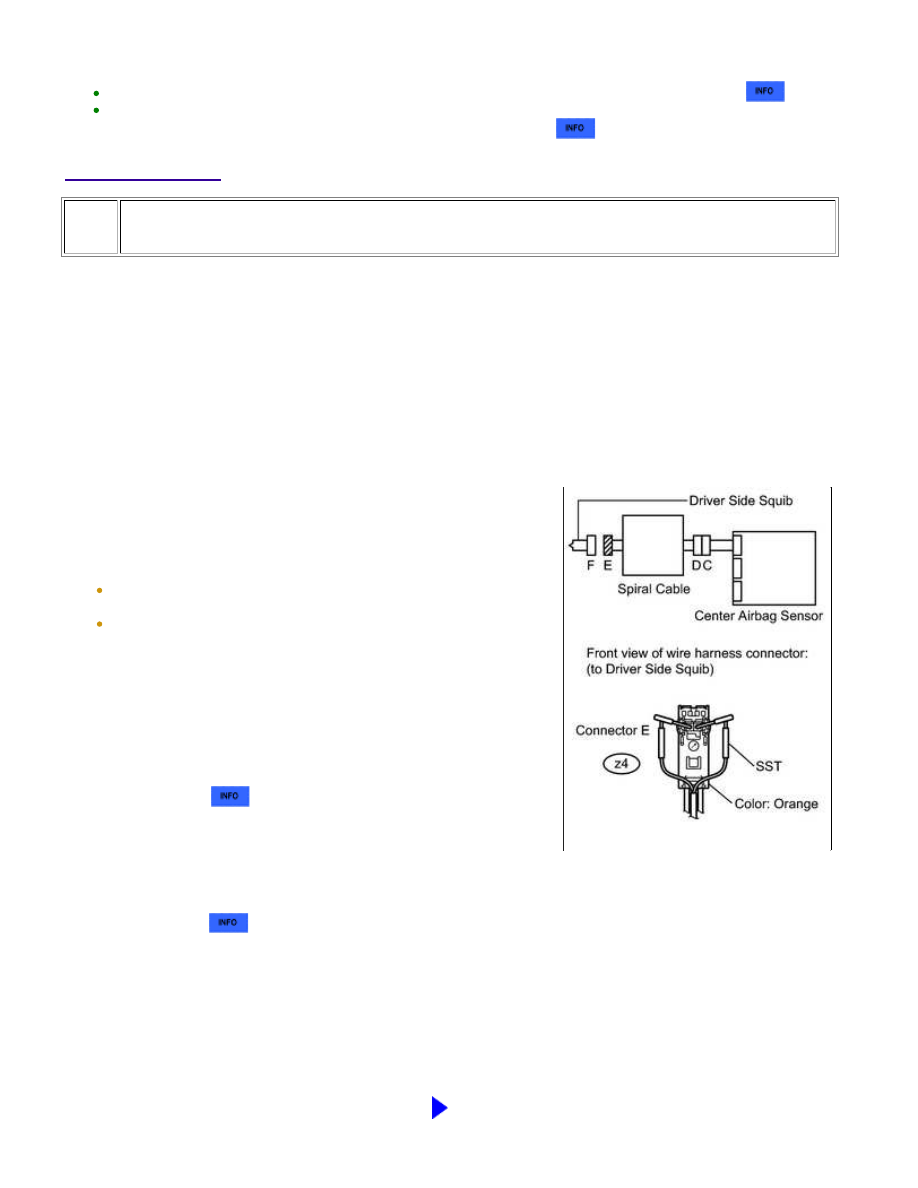

CHECK CONNECTOR

(a) Turn the ignition switch off.

(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

(c) Disconnect SST from connector E.

(d) Check that the spiral cable connectors (on the steering pad side) are not damaged.

OK:

REPLACE SPIRAL CABLE SUB-ASSEMBLY

3.

CHECK DRIVER SIDE SQUIB CIRCUIT

(a) Disconnect the connectors from the center airbag sensor.

(b) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.

(c) Turn the ignition switch to ON.

(d) Measure the voltage according to the value(s) in the table below.

Standard voltage:
