C

RESULT

PROCEED TO

DTC B1690 is output (for Double Cab)

A

DTC B1690 and B1695 are not output

B

DTC B1695 is output

C

(h) Turn the ignition switch off.

(i) Disconnect the negative (-) terminal cable from the battery,

and wait for at least 90 seconds.

(j) Return the door side airbag sensor RH and LH to their

original positions and connect the connectors to them.

A

REPLACE DOOR SIDE AIRBAG SENSOR RH

B

USE SIMULATION METHOD TO CHECK

6.

CHECK SIDE AIRBAG SENSOR RH

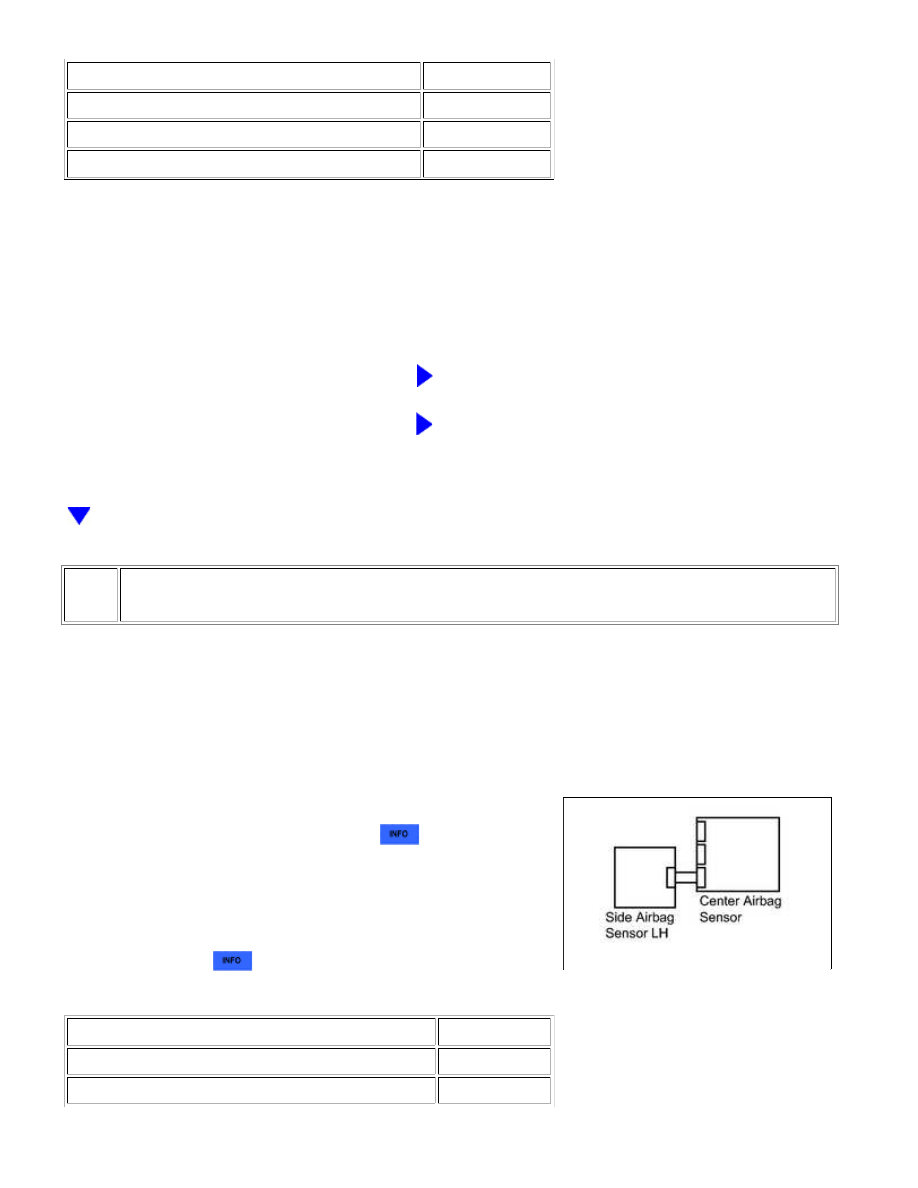

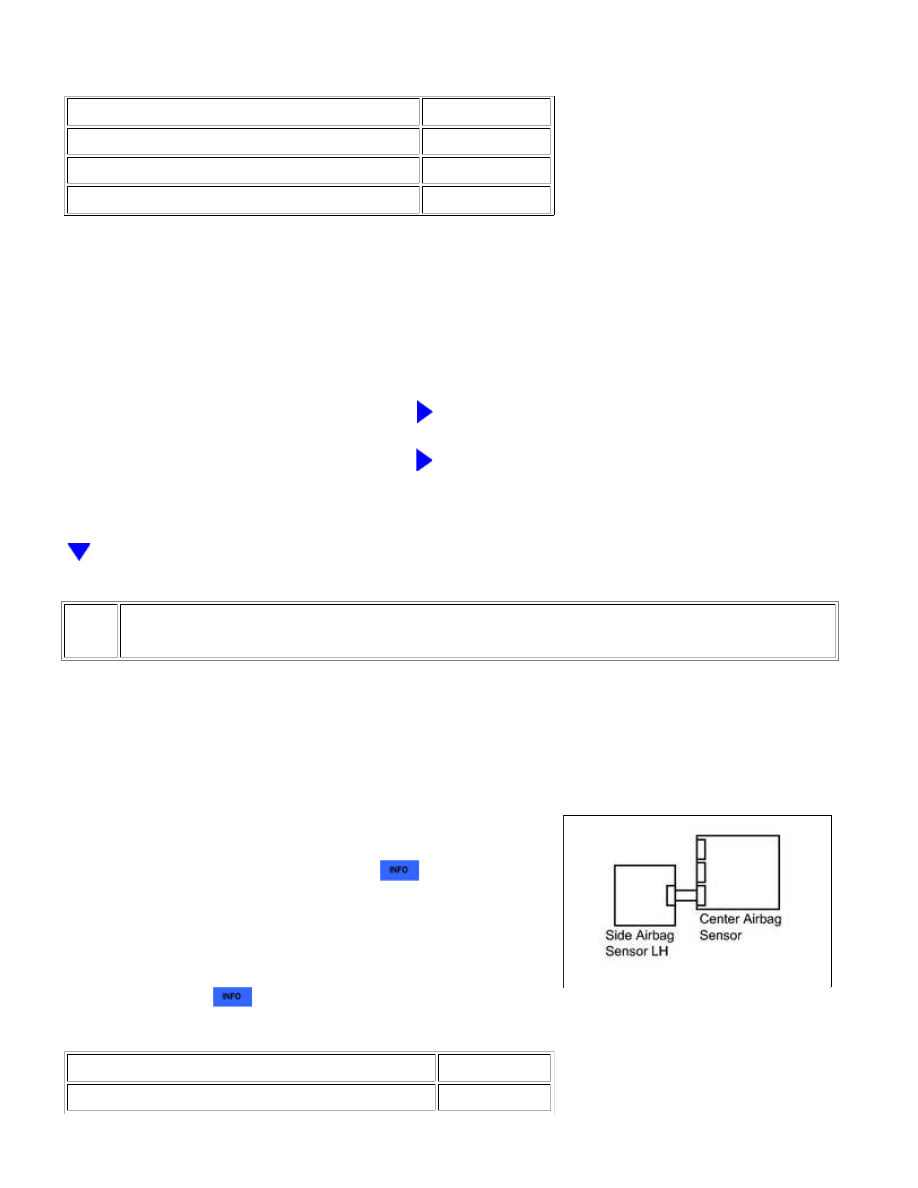

(a) Interchange the side airbag sensor LH with RH and connect

the connectors to them.

(b) Connect the negative (-) terminal to the battery, and wait

for at least 2 seconds.

(c) Turn the ignition switch to ON, and wait for at least 60

seconds.

(d) Clear the DTCs stored in the memory



.

(e) Turn the ignition switch off.

(f) Turn the ignition switch to ON, and wait for at least 60

seconds.

(g) Check for DTCs



.

Result

RESULT

PROCEED TO

DTC B1690 and B1695 are not output

A

DTC B1690 is output (for Double Cab)

B

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1690/...

RESULT

PROCEED TO

DTC B1695 is output (for Column Shift Type)

C

DTC B1695 is output (for Floor Shift Type)

D

(h) Turn the ignition switch off.

(i) Disconnect the negative (-) terminal cable from the battery,

and wait for at least 90 seconds.

(j) Return the side airbag sensor RH and LH to their original

positions and connect the connectors to them.

A

USE SIMULATION METHOD TO CHECK

B

REPLACE SIDE AIRBAG SENSOR RH

C

REPLACE CENTER AIRBAG SENSOR ASSEMBLY

D

REPLACE CENTER AIRBAG SENSOR ASSEMBLY

7.

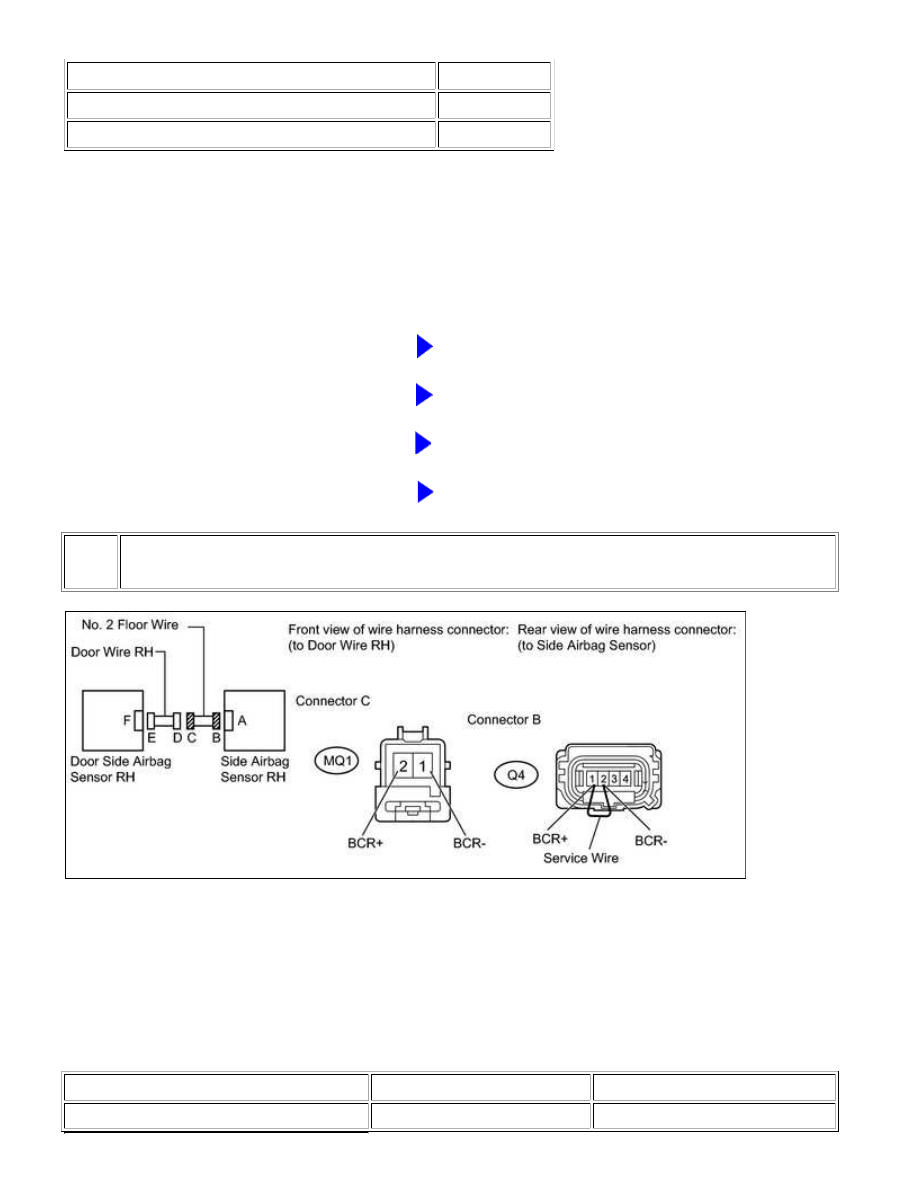

CHECK NO. 2 FLOOR WIRE

(a) Disconnect the No. 2 floor wire connector from the door wire RH.

(b) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.

(c) Turn the ignition switch to ON.

(d) Measure the voltage according to the value(s) in the table below.

Standard voltage:

TESTER CONNECTION

SWITCH CONDITION

SPECIFIED CONDITION

MQ1-1 (BCR-) - Body ground

Ignition switch ON

Below 1 V

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1690/...

(e) Turn the ignition switch off.

(f) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

Standard resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

MQ1-1 (BCR-) - MQ1-2 (BCR+)

Always

Below 1 Ω

(i) Disconnect the service wire from connector B.

(j) Measure the resistance according to the value(s) in the table below.

Standard resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

MQ1-1 (BCR-) - MQ1-2 (BCR+)

Always

1 MΩ or higher

MQ1-1 (BCR-) - Body ground

MQ1-2 (BCR+) - Body ground

NG

REPLACE NO. 2 FLOOR WIRE

OK

REPLACE DOOR WIRE RH

8.

CHECK DOOR SIDE AIRBAG SENSOR RH

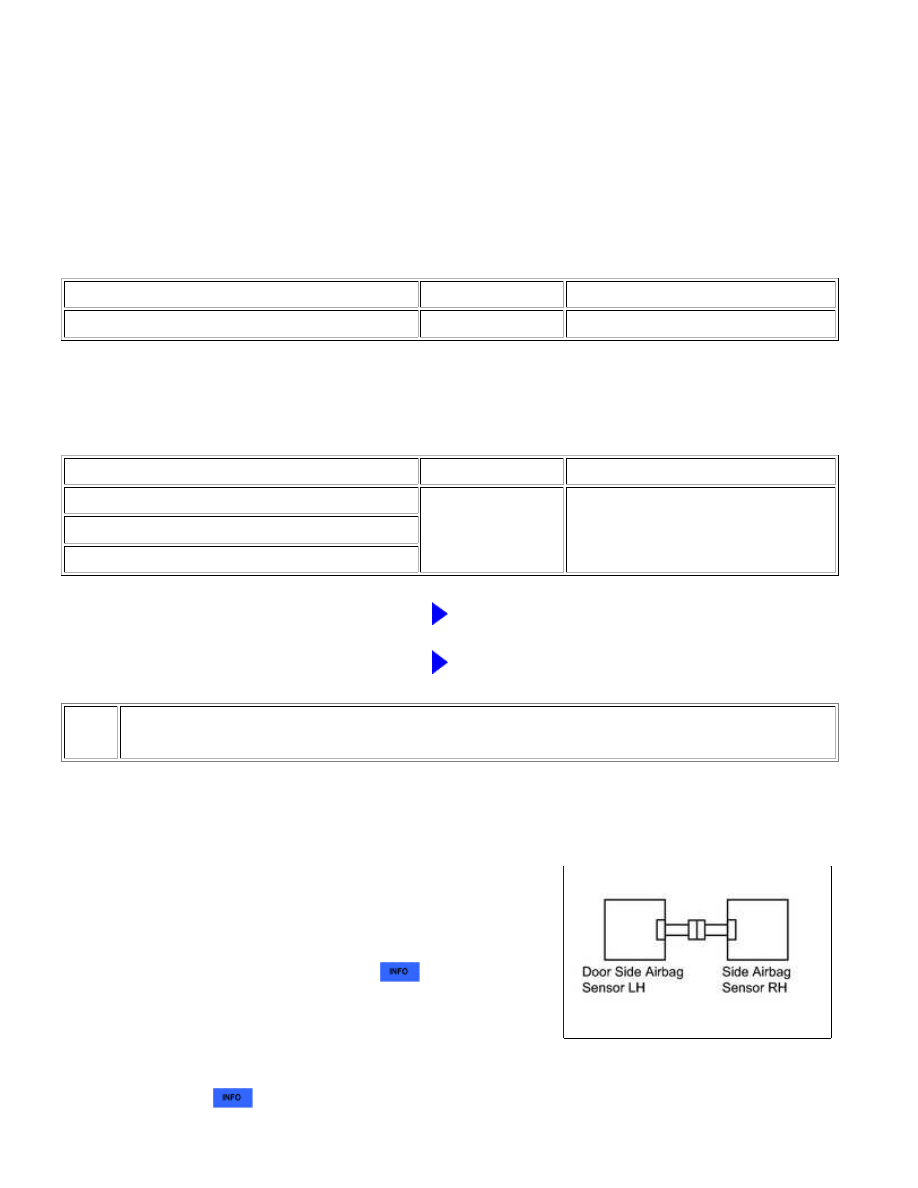

(a) Interchange the door side airbag sensor LH with RH and

connect the connectors to them.

(b) Connect the negative (-) terminal to the battery, and wait

for at least 2 seconds.

(c) Turn the ignition switch to ON, and wait for at least 60

seconds.

(d) Clear the DTCs stored in the memory



.

(e) Turn the ignition switch off.

(f) Turn the ignition switch to ON, and wait for at least 60

seconds.

(g) Check for DTCs



.

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1690/...

C

Result

RESULT

PROCEED TO

DTC B1690 is output

A

DTC B1690 and B1695 are not output

B

DTC B1695 is output

C

(h) Turn the ignition switch off.

(i) Disconnect the negative (-) terminal cable from the battery,

and wait for at least 90 seconds.

(j) Return the door side airbag sensor RH and LH to their

original positions and connect the connectors to them.

A

REPLACE DOOR SIDE AIRBAG SENSOR RH

B

USE SIMULATION METHOD TO CHECK

9.

CHECK SIDE AIRBAG SENSOR RH

(a) Interchange the side airbag sensor LH with RH and connect

the connectors to them.

(b) Connect the negative (-) terminal to the battery, and wait

for at least 2 seconds.

(c) Turn the ignition switch to ON, and wait for at least 60

seconds.

(d) Clear the DTCs stored in the memory



.

(e) Turn the ignition switch off.

(f) Turn the ignition switch to ON, and wait for at least 60

seconds.

(g) Check for DTCs



.

Result

RESULT

PROCEED TO

DTC B1690 and B1695 are not output

A

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1690/...
