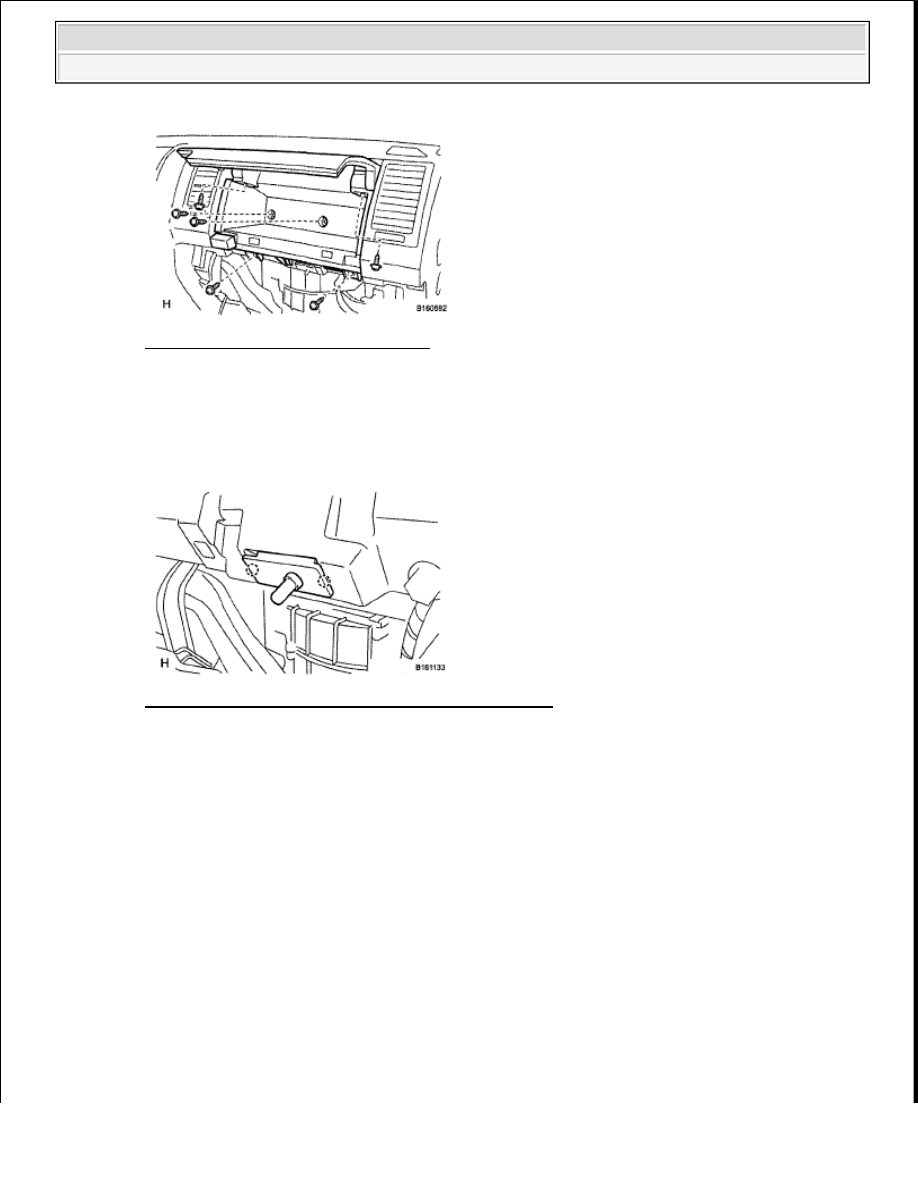

Fig. 25: Identifying Box Door Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

39. REMOVE GLOVE BOX LIGHT ASSEMBLY

a. Detach the 2 claws.

b. Remove the box light and then disconnect the connector.

Fig. 26: Identifying Glove Box Light Assembly Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

40. REMOVE INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

a. Using a screwdriver, detach the 4 clips and claw, and remove the speaker panel.

HINT:

Tape the screwdriver tip before use.



2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Instrument Panel - Tundra































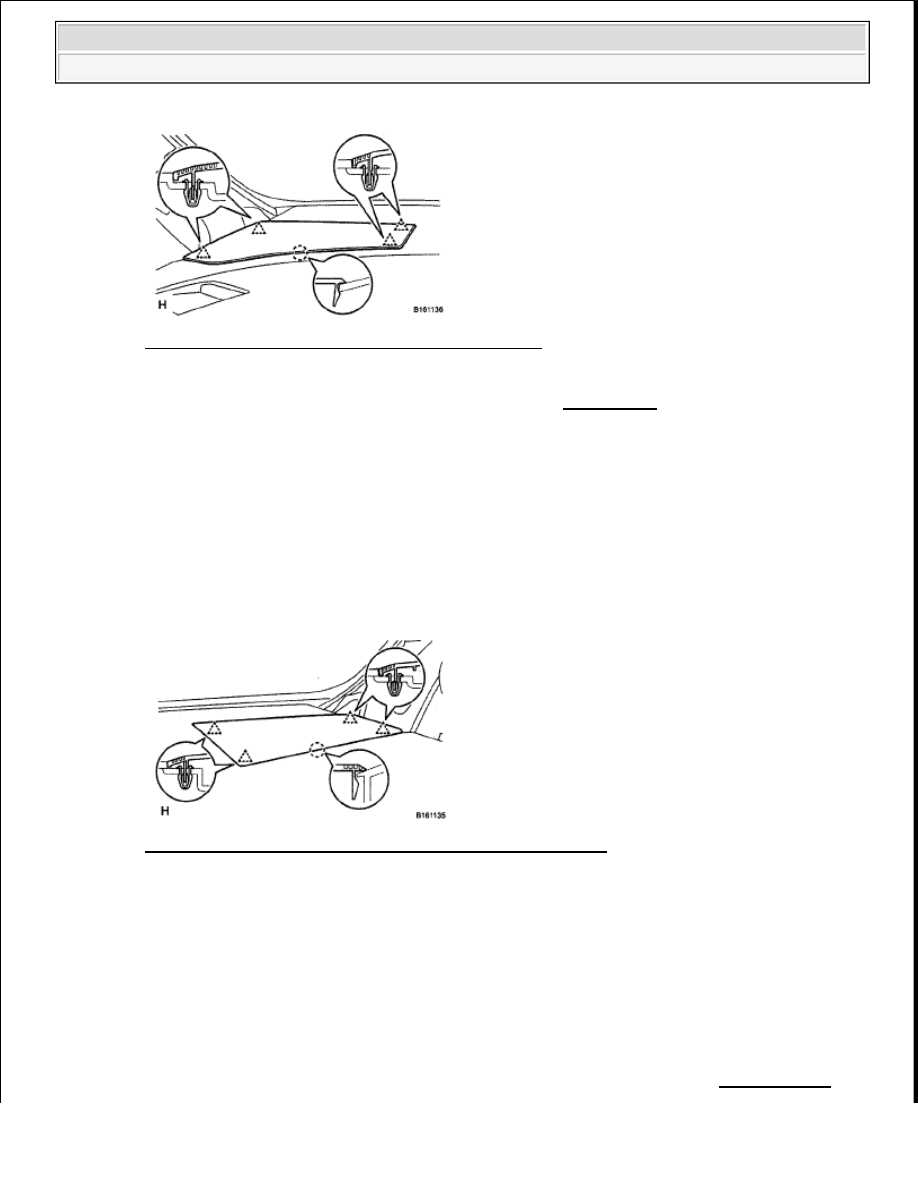

Fig. 27: Identifying Speaker Panel Clips And Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

41. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY LH (See REMOVAL )

42. REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

a. Using a screwdriver, detach the 4 clips and claw, and remove the speaker panel.

HINT:

Tape the screwdriver tip before use.

43. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY RH

a. Remove the 2 bolts.

Fig. 28: Identifying Front No. 2 Speaker Assembly RH Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Remove the speaker and disconnect the connector.

44. REMOVE NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

a. Using a screwdriver, detach the 6 clips and 2 claws, and remove the speaker panel.

HINT:

Tape the screwdriver tip before use.

45. INSPECT FRONT NO. 4 SPEAKER ASSEMBLY (for 10 Speaker Models) (See INSPECTION )



2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Instrument Panel - Tundra































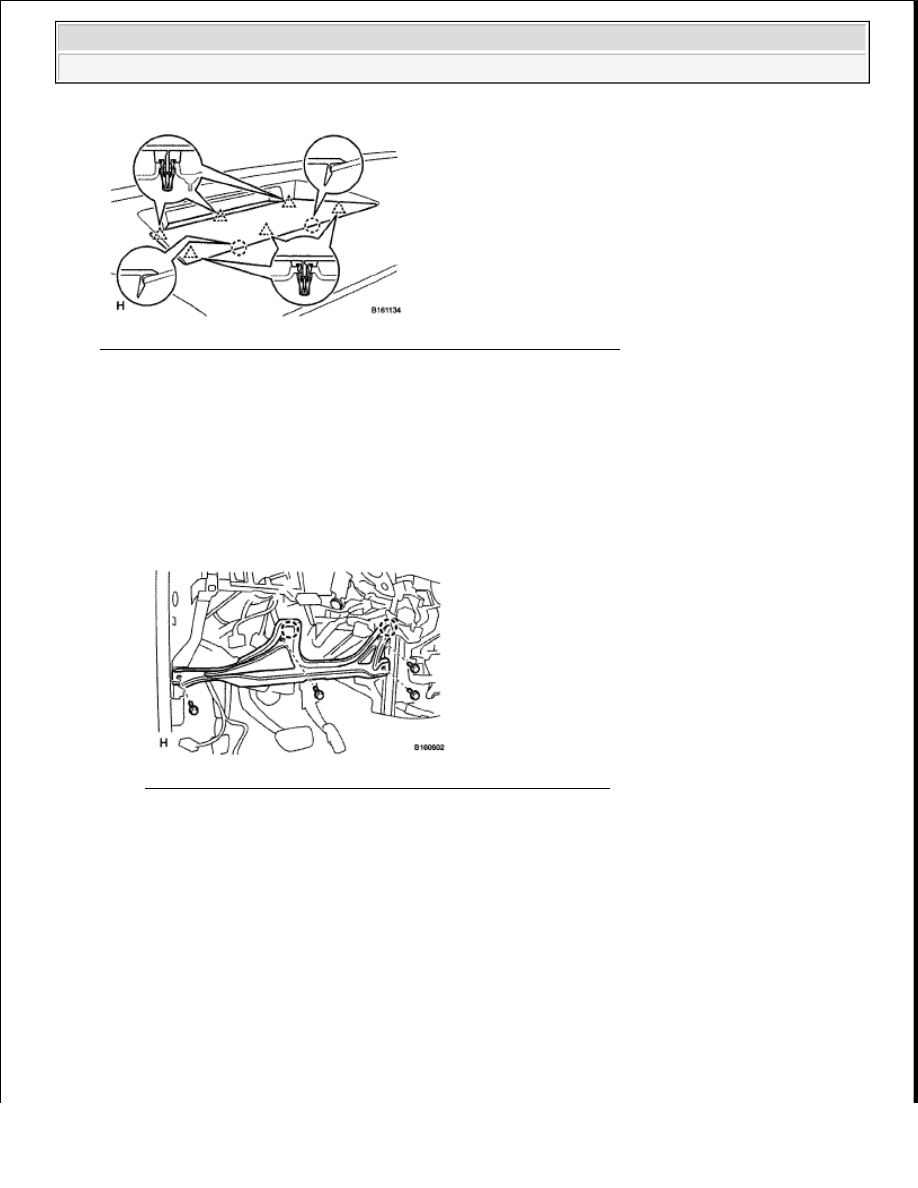

Fig. 29: Identifying Front No. 4 Speaker Assembly Clips And Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

46. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD INSERT

a. Remove the 4 bolts.

b. Detach the 2 claws.

c. Remove the safety pad and then disconnect the connector.

47. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY

a. Detach the connectors from the clamps and disconnect the connectors.

Fig. 30: Identifying Instrument Panel Sub-Assembly Clamps
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Remove the bolt and wire harness.



2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Instrument Panel - Tundra































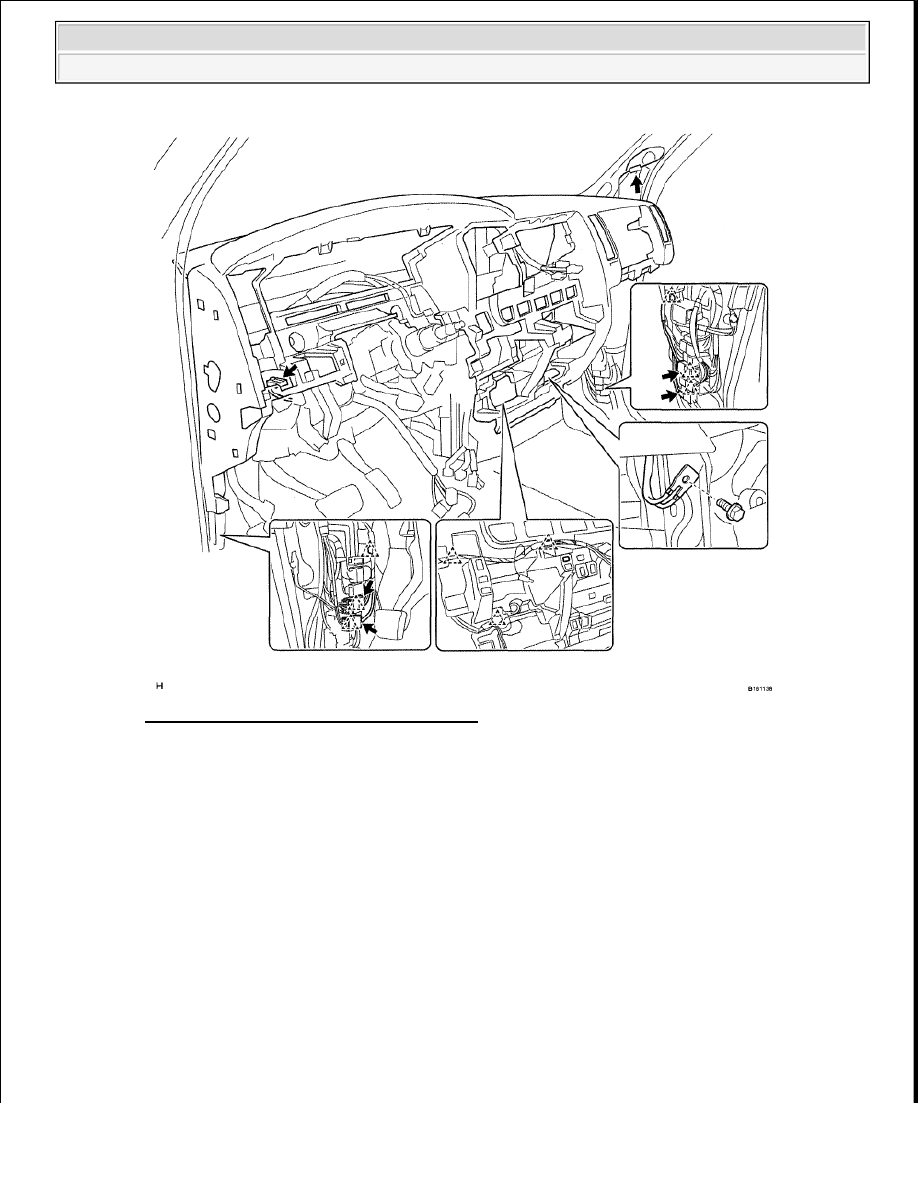

Fig. 31: Identifying Bolt And Wire Harness
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

c. Remove the 2 passenger airbag bolts.

d. Remove the 3 bolts and 2 nuts.

e. Detach the 5 claws and remove the instrument panel.



2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Instrument Panel - Tundra
