Toyota Tundra. Manual - part 388





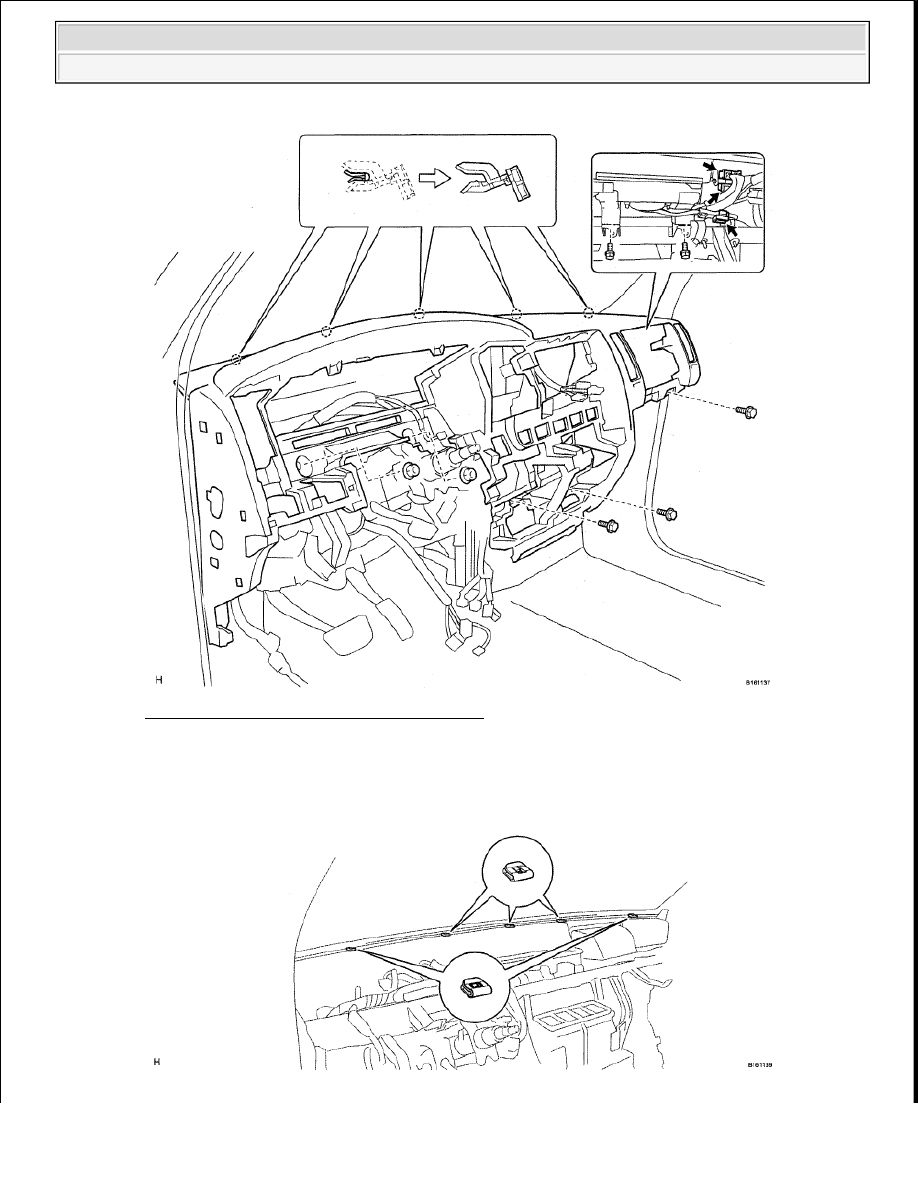

Fig. 32: Identifying Instrument Panel Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

48. REMOVE NO. 3 INSTRUMENT PANEL STAY

a. Detach the 5 claws and remove the 5 stays.



2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Instrument Panel - Tundra































Fig. 33: Identifying No. 3 Instrument Panel Stay Claws And Stays
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

DISASSEMBLY

1. REMOVE AUTOMATIC LIGHT CONTROL SENSOR (for Automatic Air Conditioning System)

a. Disconnect the sensor connector.

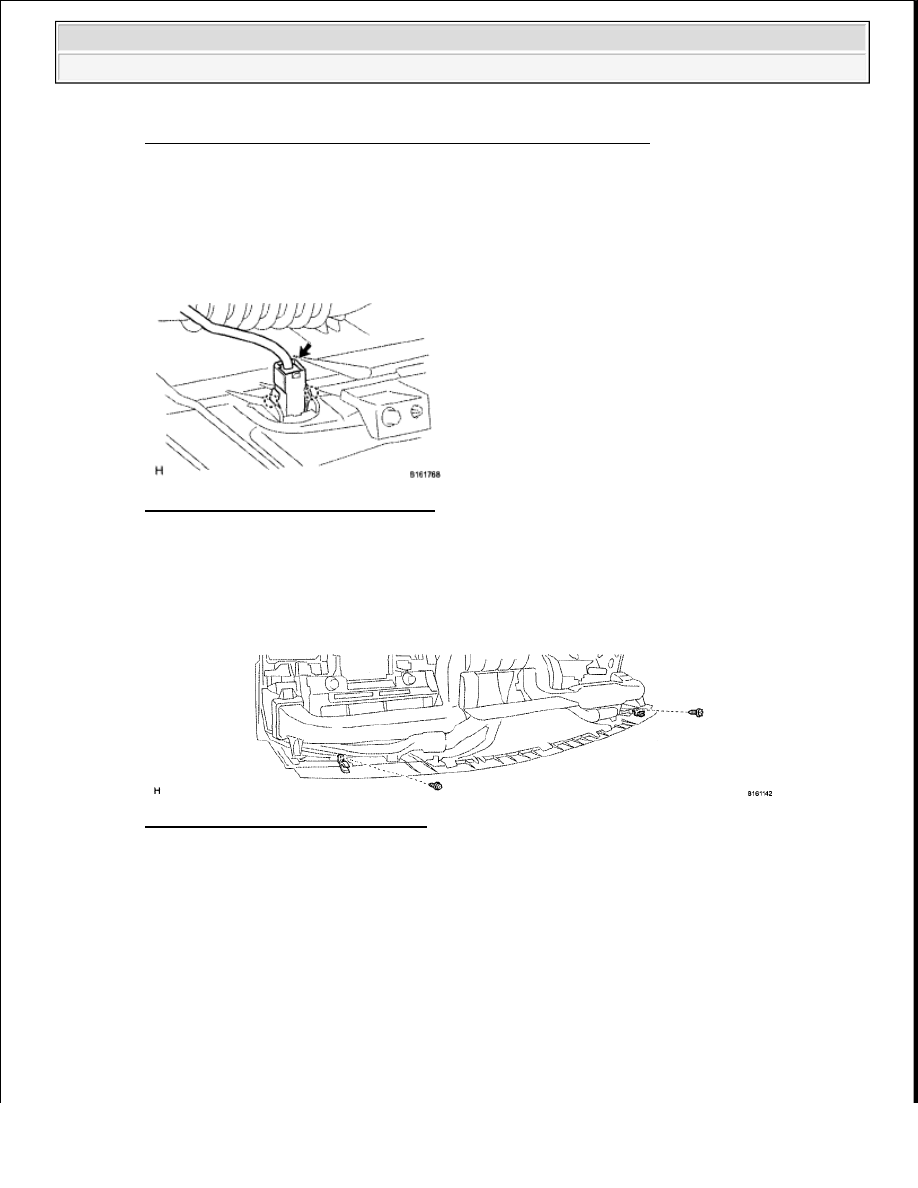

Fig. 34: Identifying Sensor Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Detach the 2 claws and remove the sensor.

2. REMOVE NO. 1 INSTRUMENT PANEL PIN

a. Remove the 2 screws and 2 pins.

Fig. 35: Identifying Screws And Pins
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

3. REMOVE NO. 1 HEATER TO REGISTER DUCT WITH NO. 2 HEATER TO REGISTER DUCT

a. Remove the 5 screws and duct.



2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Instrument Panel - Tundra































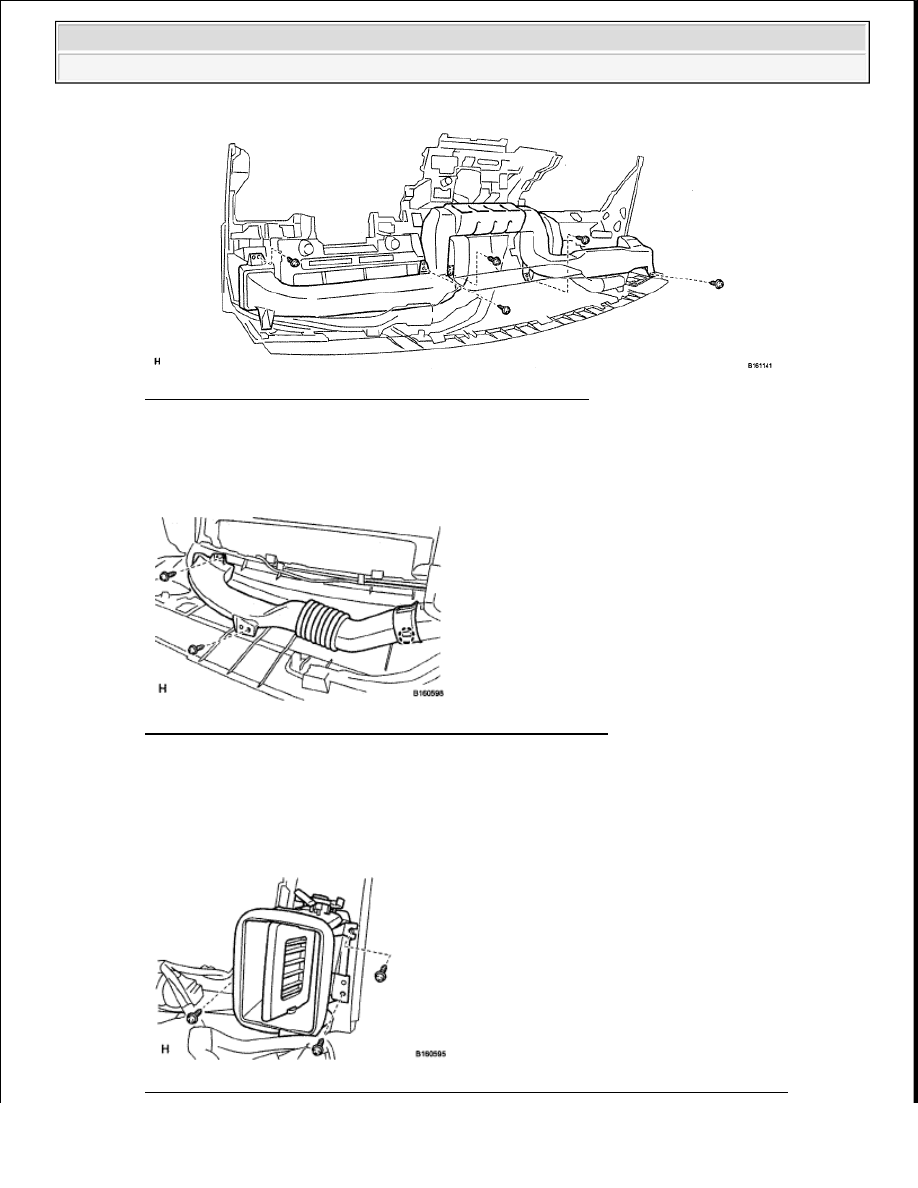

Fig. 36: Identifying No. 1 Heater To Register Duct Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

4. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT

a. Remove the 2 screws.

Fig. 37: Identifying No. 1 Side Defroster Nozzle Duct Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Detach the claw and remove the duct.

5. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY

a. Remove the 3 screws and register.

Fig. 38: Identifying No. 4 Instrument Panel Register Assembly Screws And Register



2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Instrument Panel - Tundra































Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

6. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT

a. Remove the 2 screws.

b. Detach the claw and remove the duct.

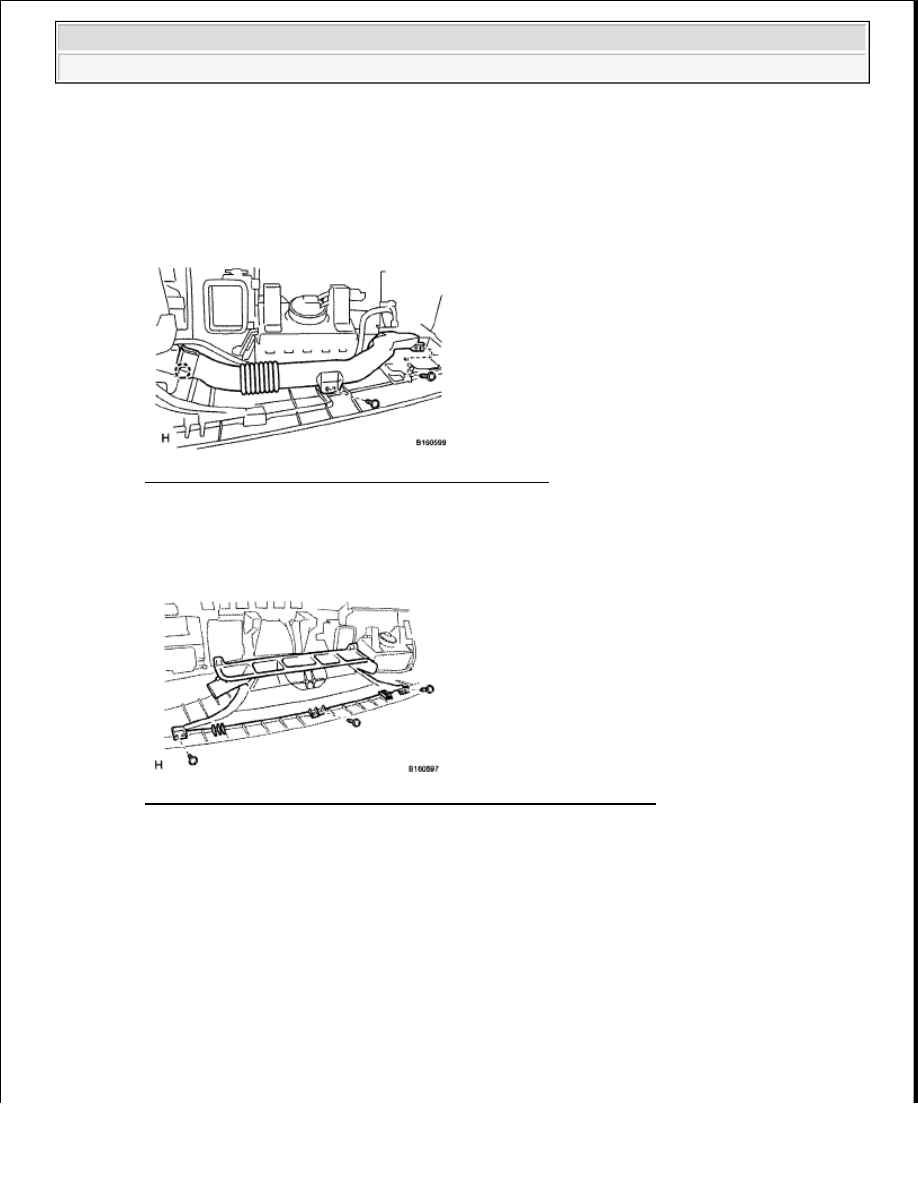

Fig. 39: Identifying No. 2 Side Defroster Nozzle Duct
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

7. REMOVE DEFROSTER NOZZLE ASSEMBLY

a. Remove the 3 screws and nozzle.

Fig. 40: Identifying Defroster Nozzle Assembly Screws And Nozzle
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

8. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

a. Remove the 3 screws and register.



2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Instrument Panel - Tundra
