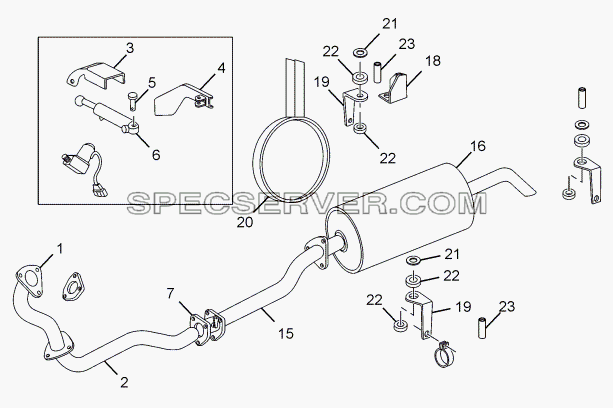

Запчасти: EXHAUST SYSTEM для LPT 613 LHD EURO II

EXHAUST SYSTEM для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	257649205302	GASKET
1	264349200117	INTERMIDIATE PIPE (AFTER TURBO CHARGER)
2	264349200142	ASSY, EXHAUST PIPE FRONT
3	264349200122	ASSY, HEAT SHIELD
4	208949200102	ASSY. BRACKET
5	275449206701	PIN
6	277054249904	ASSY. MAGNETIC VALVE 24 V (EXHAUST BRAKE)
7	276349200123	ASSY. EXHAUST BRAKE UNIT
15	264349200143	EXHAUST PIPE (INTERMEDIATE)
16	264349100102	ASSY, SILENCER WITH TAIL PIPE
18	264149208213	BRACKET (RH)
19	264349203304	BRACKET
19	264349203305	BRACKET
20	264349204201	CLAMP
21	257649009202	WASHER
21	257649009202	WASHER
22	257649007502	RUBBER BUFFER
22	257649007502	RUBBER BUFFER
23	257649006902	TUBE
23	257649006902	TUBE

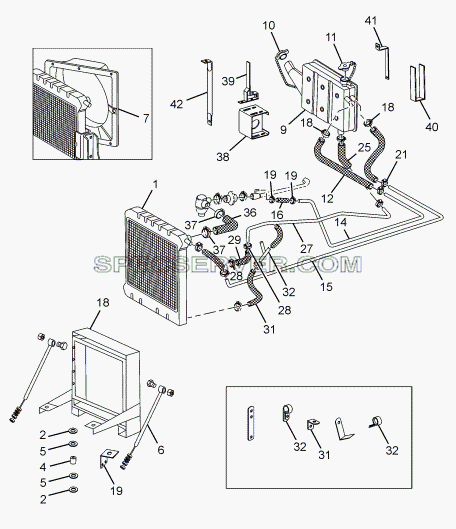

Запчасти: RADIATOR AND FITMENTS для LPT 613 LHD EURO II

RADIATOR AND FITMENTS для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	252550100299	ASSY. BRACKET RH (RAD FRAME MTG. ON LM)
-	252550100301	ASSY. BRACKET LH (RAD FRAME MTG. ON LM)
-	252550105858	RADIATOR HOSE (RADIATOR TO WATER PUMP)
-	252750100216	ASSY SUPPORT ( FOR MTG OF AUX. TANK MTG BKT)
-	257450006906	SPACER TUBE (25.5 LONG)
-	278614609201	WASHER
-	278650006302	RUBBER BUFFER
-	278650105889	REDUCER HOSE (FOR ENGINE AND RADIATOR VENTING)
-	278650108301	SHIM 1THK
-	278650108302	SHIM 2 THK
-	278650108303	SHIM 3 THK
-	278650109908	DRAIN COCK
1	278650100283	ASSY. RADIATOR
2	257450006301	RUBBER BUFFER
4	257450006904	SPACER TUBE ( 35 LONG )
5	257450009202	WASHER (47DIA)
6	252550100291	.ASSY.TIE ROD (RAD.FR.MTG.TOP ON LM)
7	252550506320	FAN SHROUD
9	252750100249	SET. ASSY. AUX. TANK & MTGS.
10	252750108242	ASSY. PRESSURE VALVE CAP (7 PSI)
11	252750108243	ASSY. PRESSURE VALVE CAP (14 PSI)
12	278650105890	RUBBER HOSE (FOR VENTING ON AUX. WATER TANK)
14	252550106937	VENT TUBE (AUX. TANK TO UPPER COOLING WATER LINE)
15	252550106936	VENT TUBE ( UPPER COOLING WATER LINETO AUX.TANK )
16	252550105855	RUBBER HOSE (VENT. TUBE TO ENGINE)
18	252550000187	ASSY.RADIATOR FRAME WITH TOP IC MTG BRACKET
19	252550103302	BRACKET LH (TIE ROD MOUNTING ON LONG MEMBER)
19	252550103303	BRACKET RH (TIE ROD MOUNTING ON LONG MEMBER)
21	278650100314	ASSY. CLAMP WITH SLEEVE (FOR VENT TUBE)
25	252750105858	RUBBER HOSE (L = 180) AUX. TANK TO TUBE
25	278650105846	MOULDED HOSE
27	252550106938	WATER FILL PIPE-II (AUX. TANK TO RAD)
28	14280500454	HOSE CLAMP (45 DIA.)
29	278650105832	HOSE (L = 115 MM)
31	252550105857	RADIATOR HOSE (RADIATOR TO WATER PUMP)
32	252550100292	CONNECTOR (RADIATOR TO WATER PUMP)
36	252550105856	RUBBER HOSE (THERMOSTAT TO RADIATOR)
37	14280599302	HOSE CLAMP TB 36
38	252550100345	ASSY SUPPORT ( AUX. TANK MTG)
39	252750108240	CLAMP REAR
40	252750109913	RUBBER STRAP (325 MM LONG)
41	252750108240	CLAMP REAR
42	252750100214	CLAMP FRONT (AUX. TANK)

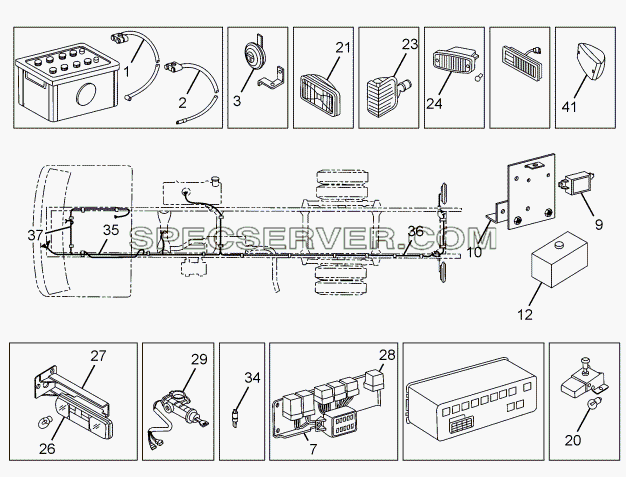

Запчасти: LIGHT AND SIGNAL для LPT 613 LHD EURO II

LIGHT AND SIGNAL для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	264181100178	ASSY HEAD LAMP DOME
-	264354100131	ASSY.BATT.CABLE W/COT +VE 70SQ.MM 1.5M
-	264354100132	ASSY.BATT.CABLE -VE W/COT 70SQ.MM 1.8M
-	264354209930	.SENSOR - WHEEL SPEED
-	264354249901	ELECTRONIC CONTROL UNIT - 24V
-	264354620140	WIRING HARNESS (BLOWER)
-	264354620141	WIRING HARNESS (SEAT BELT)
-	270654620114	WIRING HARNESS BACK LIGHTING
-	270754620121	WIRING HARNESS BLOCK HEATER
-	277854100129	ASSY. BATTERY CABLE LINK
-	280654240105	ASSY RESISTOR WITH BRACKET
1	264354100128	ASSY. BATTERY CABLE +VE
2	264354100129	ASSY. BATTERY CABLE -VE
3	261854240106	KIT HORN, (24V) CLEARTONE
7	264354200110	ASSY BRACKET (FOR FUSE BOX & RELAY MTG)
9	270754244901	RELAY 24 V (FOR ACCESSORIES)
10	264154200156	ASSY BRACKET (ENGINE STOP RELAY)
12	264154200129	ASSY.COVER (STARTER RELAY & FUSE LINK)
20	264154410147	ASSY, ENGINE LAMP
21	264354440101	HEAD LAMP 24 V W/E-CERT. BULBS LH
21	264354440102	HEAD LAMP 24 V W/E-CERT. BULBS RH
23	270754440114	BLINKER LAMP RH, 'E' CERTIFIED, 24 V
23	270754440115	BLINKER LAMP LH, 'E' CERTIFIED, 24 V
24	264354400132	ASSY, SIDE IND. LAMP LH 24 V WITH E-CERT BULB
24	264354400133	ASSY, SIDE IND. LAMP RH 24 V WITH E-CERT BULB
26	280954440101	FIVE CHAMBER TAIL LAMP (24 V) LH
26	280954440102	FIVE CHAMBER TAIL LAMP (24 V) RH
27	264354400127	TAIL LAMP BRACKET RH
27	264354400128	TAIL LAMP BRACKET LH
28	264354249902	ELECTRONIC FLASHER 24 V
29	264154500106	IGNITION CUM STEERING LOCK
34	257454509953	MECH. STOP LIGHT SWITCH
35	264354620156	WIRING HARNESS MAIN, EURO II, 24 V
36	264354620148	WIRING HARNESS (FRONT TO TAIL)
37	264354620157	WIRING HARNESS ENGINE, EURO II, 24 V
41	264354400129	ASSY FRONT FOG LAMP

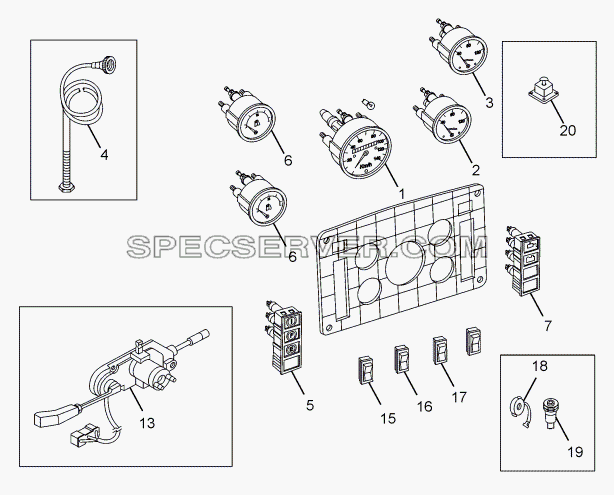

INSTRUMENTS для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	269854500111	HEAD LAMP LEVELLING SWITCH (VERTICAL)
-	270654506901	PIANO SWITCH (FOG LAMP)
-	283954440107	END OUTLINE MARKER LAMP(24V)
1	264354209926	SPEEDOMETER 1:0.78 (6+1) BACKLIT
2	270754249915	FUEL GAUGE 24 V (BACKLIT)
3	270754249914	TEMPERATURE GAUGE (BACKLIT)
4	264354209921	ASSY. SPEEDOCABLE (JIS) 3000 MM
5	270754440148	ASSY, WARNING LAMP, 24 V
6	270754249903	AIR PRESSURE GAUGE, 24 V
7	270754440149	ASSY, WARNING LAMP, 24 V
13	264354500101	ASSY. COMBI SWITCH
15	264154506911	PIANO SWITCH (EXHAUST BRAKE ON)
16	264154506912	PIANO SWITCH (ENGINE LAMP)
17	270654506901	PIANO SWITCH (FOG LAMP)
18	265154200158	ELECTRIC BUZZER
19	257454509985	LOW PRESSURE SWITCH
20	257354509931	BATTERY CUT OFF SWITCH

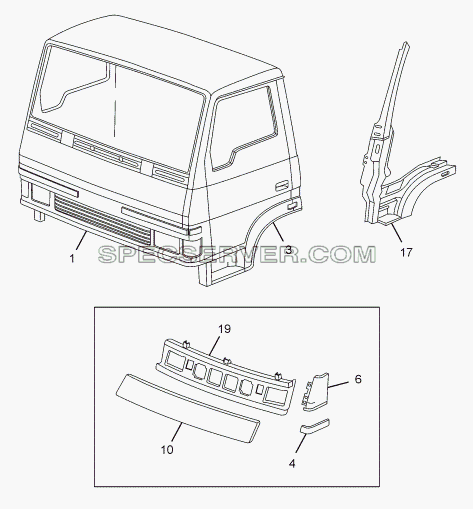

CAB/COWL для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	264160000351	ASSY, CAB COMPLETE
-	264175200107	ASSY. LOCK (CENTRE FLAP)
-	264175200116	ASSY. HINGE (CENTRE FLAP)
-	264175200119	ASSY. STAY ROD
-	264175200122	ASSY. STRIKER (CENTRE FLAP)
-	264175200125	ASSY. RELEASE CABLE (CENTRE FLAP)
-	265188700113	ASSY. RUBBER BUFFER
1	264160000352	ASSY, CAB (BARE)
3	264163108253	FENDER OUTER LH
3	264163108254	FENDER OUTER RH
4	264160100104	ASSY. PANEL CORNER BOTTOM LH
4	264160100105	ASSY. PANEL CORNER BOTTOM RH
6	264160100112	ASSY. OUTER PANEL CORNER (FRONT) LH
6	264160100113	ASSY. OUTER PANEL CORNER (FRONT) RH
10	267375100101	ASSY. CENTRE FLAP
17	264163000111	ASSY. SIDE WALL COMPLETE LH
17	264163000112	ASSY. SIDE WALL COMPLETE RH
19	267360100106	ASSY, FRONT SUPPORT

WINDSHIELD GLASS для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	264167106305	RUBBER MOULD (5.76 THK W/S GLASS)
2	274767102301	WINDSHIELD GLASS (5.76 THK.)
5	264167806301	RUBBER MOULD (REAR WINDOW FOR TRUCK)
6	265167802302	GLASS PANE REAR WINDOW

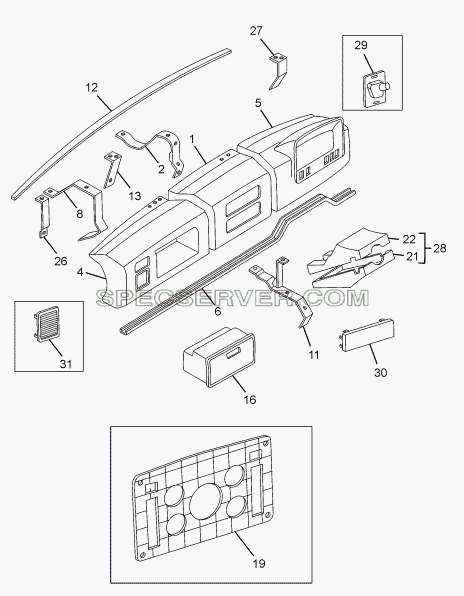

DASHBOARD для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	264168400107	KIT FLOOR MAT
-	264168400108	KIT FLOOR MAT
-	264168900131	ASSY. REINFORCEMENT INSIDE (GLOVE BOX)
-	264168900158	ASSY.REINFORCEMENT (DASHBOARD) -LHD
-	264168906365	COVER (T - EMBLEM) DASHBOARD
-	264168910107	ASSY. DASHBOARD COMPLETE
-	265183100166	ASSY.DEFROST DUCT COMPLETE
-	274769000104	KIT FOR ROOF AND SIDE LINING
1	264168906374	DASHBOARD (CENTRE) (GREY)
2	264168900128	ASSY. REINFORCEMENT MIDDLE LH
2	264168900129	ASSY. REINFORCEMENT MIDDLE RH
4	215068906302	DASHBOARD LH (GREY)
5	264168906373	DASHBOARD RH (GREY)
6	274768908205	REINFORCEMENT (FRONT)
8	264168900132	ASSY. REINFORCEMENT OUTSIDE (GLOVE BOX)
11	215468900105	ASSY, REINFORCEMENT (OUTSIDE)
12	215468900102	ASSY, REINFORCEMENT TOP
13	264168900160	ASSY. BRACKET (DASHBOARD MTG.)
16	264168900195	ASSY. GLOVE BOX (GREY)
19	215068908201	INSTRUMENT PANEL
21	NACELLE FRONT
22	NACELLE REAR
26	264168900147	ASSY. BRACKET LH
27	264168900114	ASSY. BRACKET RH
28	274768900122	SET OF NACELLE GRAY)
29	264168906367	SPEAKER GRILL
30	265168916314	COVER RADIO CUT OUT
31	264168906357	COVER CLUTCH FLUID BOTTLE
31	264168906357	COVER CLUTCH FLUID BOTTLE

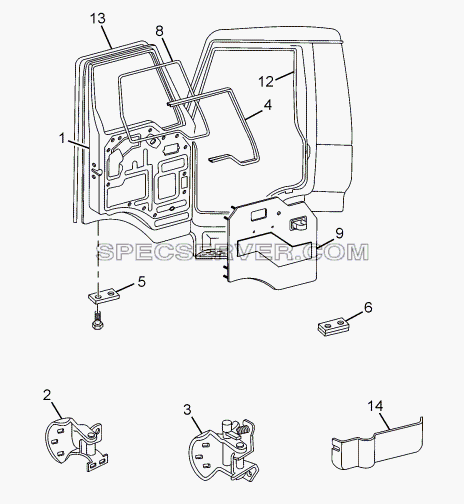

DOOR для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	264172300140	ASSY. DOOR STRAP FRONT
-	264172506307	WEATHER STRIP LH
-	264172506308	WEATHER STRIP RH
-	265468900189	ASSY ASH TRAY
-	267881106305	REFLEX REFLECTYOR
1	264172200135	ASSY. DOOR SHELL LH
1	274772200105	ASSY. DOOR SHELL RH
2	264172300111	ASSY. HINGE TOP LH (DOOR)
2	264172300112	ASSY. HINGE TOP RH (DOOR)
3	264172300118	ASSY. HINGE BOTTOM LH (DOOR)
3	264172300119	ASSY. HINGE BOTTOM RH (DOOR)
4	264172200113	ASSY. GUIDE CHANNEL LH
4	264172200114	ASSY. GUIDE CHANNEL RH
5	264172300124	ASSY. DOVETAIL BOTTOM (DOOR)
6	264172306303	DOVETAIL BOTTOM (BODY SIDE)
8	264172502501	VELVET CHANNEL
9	264172700101	ASSY. PADDING DOOR LH
9	264172700102	ASSY. PADDING DOOR RH
9	264172700103	ASSY. PADDING DOOR LH
9	264172700104	ASSY. PADDING DOOR RH
12	264172300122	ASSY. SEALING MOULD LH (OUTER)
12	264172300123	ASSY. SEALING MOULD RH (OUTER)
13	264172300137	ASSY. SEALING INNER LH
13	264172300138	ASSY. SEALING INNER RH
14	265472706317	MAGAZINE POCKET (GREY) LH
14	265472706318	MAGAZINE POCKET (GREY) RH

DOOR LOCKS для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	264172300139	KIT FOR LOCKS CONSISTING
-	ASSY, GLOVE BOX LOCK
-	ASSY, KEY
-	STEERING LOCK CUM IGNITION SWITCH
2	265872300117	ASSY. INNER HANDLE
2	265872300117	ASSY. INNER HANDLE
5	265472300124	ASSY. OUTER HANDLE LH
5	265472300125	ASSY. OUTER HANDLE RH
5	ASSY, OUTER DOOR HANDLE LH
5	ASSY, OUTER DOOR HANDLE RH
6	264172306004	LINK LH (INNER HANDLE)
6	264172306005	LINK RH (INNER HANDLE)
7	264172306006	LINK (POP - UP KNOB) LH
7	264172306007	LINK RH (POP-UP KNOB)
8	264172306302	KNOB (INNER LOCK)
8	264172306302	KNOB (INNER LOCK)
15	265872300182	ASSY. STRIKER (DOOR LOCK)
15	265872300182	ASSY. STRIKER (DOOR LOCK)

WINDING REGULATOR AND GLASS для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	264172500101	ASSY. WINDING REGULATOR LH
1	264172500102	ASSY. WINDING REGULATOR RH
4	267872300114	ASSY HANDLE [WINDOW WINDING]
6	274772502301	DOOR GLASS LH (‘E’ CERTIFIED)
6	274772502302	DOOR GLASS RH (‘E’ CERTIFIED)
