Запчасти: ENGINE для LPT 613 LHD EURO II

ENGINE для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		252501600387	ASSY ENGINE 697 TC WITH CLUTCH, EURO II, 613 LHD 24V, ROTARY FIP, POWER STEERING, TILT CAB, FLAME START

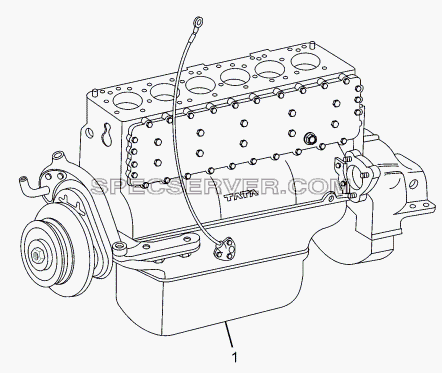

Запчасти: HALF BLOCK AND LONG BLOCK для LPT 613 LHD EURO II

HALF BLOCK AND LONG BLOCK для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	252501990178	LONG BLOCK
1	252501990177	HALF BLOCK

Запчасти: ENGINE OVERHAULING GASKET KIT для LPT 613 LHD EURO II

ENGINE OVERHAULING GASKET KIT для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	252501990115	ENGINE OVERHAULING GASKET KIT CONSISTS
-	252501990176	DECARBONISING GASKET KIT CONSISTING
-	GASKET
-	GASKET
-	GASKET
-	GASKET
-	GASKET
-	GASKET
-	GASKET
-	GASKET
-	GASKET
-	GASKET
-	GASKET
-	GASKET
-	GASKET
-	GASKET
-	GASKET
-	GASKET
-	GASKET
-	GASKET CYLINDER HEAD
-	GASKET EXHAUST MANIFOLD
-	GASKET OIL COOLER
-	GASKET PUSH ROD CHAMBER COVER
-	GASKET SUPPORT, FIP
-	GASKET TOP COVER
-	GASKET WATER PUMP
-	GASKET WATER PUMP
-	GASKET, CYLINDER HEAD COVER
-	SEALING FLANGE
-	SEALING RING HALF
-	SEALING WASHER
-	SEALING WASHER
-	SEALING WASHER 10X1
-	SEALING WASHER 12X1
-	SEALING WASHER 14X1
-	SEALING WASHER 14X2
-	SEALING WASHER 16X2
-	SEALING WASHER 16X2
-	SEALING WASHER 18X2
-	SEALING WASHER 22X2
-	SEALING WASHER 8X14
-	SEALING WASHER A10X14
-	SEALING WASHER A14X20
-	SEALING WASHER C24X32
-	SEALING WASHER C8X12
-	SEALING WASHER D8X12

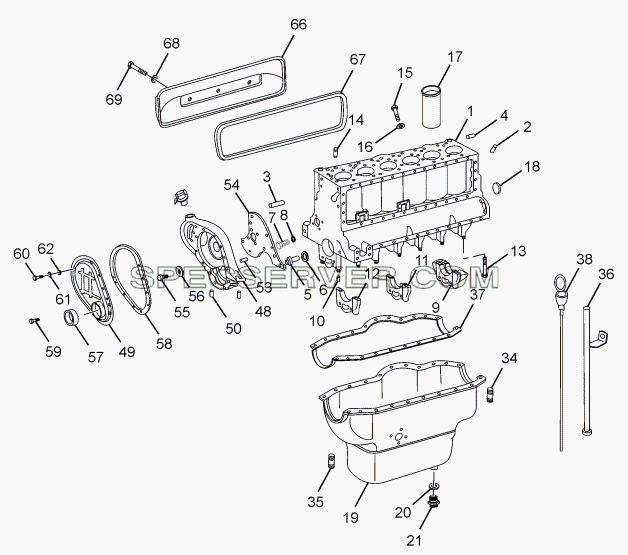

Запчасти: CYLINDER BLOCK для LPT 613 LHD EURO II

CYLINDER BLOCK для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	17050500101	O’ RING 6X1.80 (FOR DIPSTICK)
-	254701179901	DIPSTICK TUBE ADAPTER
1	252501100268	ASSY, CYL. BLOCK WITH LINER
2	3121881135P	SLEEVE
3	3219920025	SLEEVE, CLAMPING
4	13050910304	PIN CYLINDRICAL 12X30 (TO LOCATE CLUTCH HOUSING)
5	3520110335	SCREW PLUG
6	16220710282	SEALING WASHER 18X22 CU
7	16081001603	SEALING PLUG AM 16X1.5
8	16220710258	SEALING WASHER A 16X22 CU
9	MAIN BEARING CAP	MAIN BEARING CAP NO. 7
10	13050508166	PIN CYLINDRICAL 8 M 6X16
11	MAIN BEARING CAP	MAIN BEARING CAP NO. 7
12	MAIN BEARING CAP	MAIN BEARING CAP NO. 7
13	252501159910	HEX. HEAD SCREW (FOR MAIN BEARING CAP)
14	3129910260	PIN CYLINDRICAL (TO LOCATE CYL. HEAD ON BLOCK)
15	252301107201	SEALING PLUG
16	16220710282	SEALING WASHER 18X22 CU
17	252501103702	LINER
18	3219970020	LOCKING COVER (FOR CAMSHAFT BORE)
19	252501130158	ASSY. OIL SUMP
20	16220710282	SEALING WASHER 18X22 CU
21	253401130111	MAGNETIC DRAIN PLUG
34	11632496011	STUD BM 8X20 (ON FRONT & LAST HOLES OF OIL SUMP GASKET)
35	252301130114	ASSY. COMBI SCREW
36	252501170235	ASSY. TUBE DIPSTICK (330 LONG)
37	3520101980	ASSY, GASKET OIL SUMP
38	252501170236	ASSY. DIPSTICK
48	252701140117	ASSY. TIMING GEAR HOUSING
49	252701143706	COVER, TIMING GEAR (FRONT), W/O OIL HOLE
50	13050508166	PIN CYLINDRICAL 8 M 6X16
53	13050909250	PIN CYLINDRICAL (ON CYL. BLOCK MTG. FACE)
54	252701145305	GASKET FOR TIMING GEAR HOUSING COVER
55	11323998045	SCREW M 10X25
56	3129940310	LOCKING PLATE
57	253403107801	OIL SEAL, CRANKSHAFT FRONT
58	3120150580	GASKET (T.G.H. COVER)
59	11323998061	SCREW M 6X12
60	11063806601	BOLT M 6X60
61	12520698017	SPG. WASHER B 6
62	12650600647	WASHER A 6.4 (COVER TO T.G. HSG.)
66	252501140114	ASSY. COVER (PUSH ROD CHAMBER)
67	252501146301	GASKET (PUSH ROD CHAMBER)
68	16220710096	SEALING WASHER 8X11.5 CU
69	11323908453	SCREW M 8X45

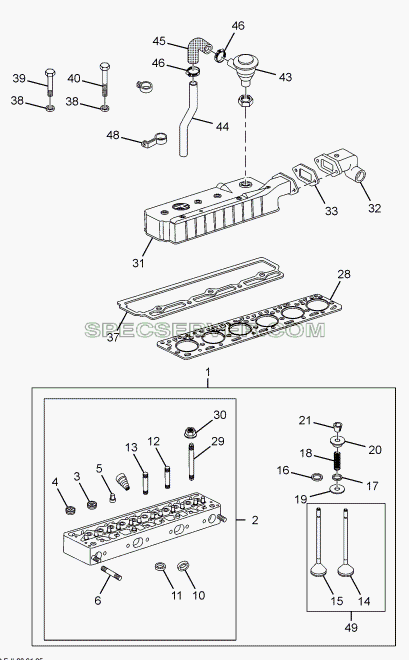

CYLINDER HEAD AND COVER для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	252501150148	SET OF VALVE SEAT RINGS (STD) CONSISTS
-	252701159903	STRAIGHT REDUCER
-	253405158702	VALVE SPRING (OUTER)
1	252501150186	ASSY, CYL. HEAD WITH VALVES (DVS -INCLINED P HOLES)
2	252501150168	ASSY, CYL. HEAD W/O VALVES CMVR 2000
3	16081803009	PLUG MC 30X15
4	16081802401	PLUG MC 24X15
5	253401153204	SEAT PLUG
6	11631610406	STUD AM 10X40
10	VALVE SEAT RING INLET STD
11	VALVE SEAT RING EXHAUST STD
12	253405153402	VALVE GUIDE INLET STD.
13	253405153415	VALVE GUIDE EXHAUST STD.
14	INLET VALVE
14	INLET VALVE
15	EXHAUST VALVE
15	EXHAUST VALVE
16	253405159909	VALVE GUIDE SEAL (INLET)
17	253405159910	VALVE GUIDE SEAL (EXHAUST)
18	253405158701	VALVE SPRING (INNER)
19	3529902040	VALVE SPRING WASHER
20	253405155101	LOCK RETAINER VALVE SPRING
21	3120530127	VALVE SPRING LOCK HALF
28	252501155337	GASKET CYL. HEAD
29	252501159912	HEX.COLLAR BOLT W/ RELIEF GROOVE FOR CYL. HEAD
29	3229900505	STUD BOLT CYL CRANKCASE
30	3150380072	HEX NUT
31	252501153816	CYLINDER HEAD COVER
32	252501153882	AIR INTAKE ELBOW
33	3520160280	GASKET, AIR INTAKE ELBOW
37	252501155322	CYLINDER HEAD COVER GASKET
38	16220710126	SEALING WASHER 8X14 CU
39	3229900019	STRETCH BOLT (FOR CYL HEAD COVER)
40	11064096089	HEX BOLT M8X125 (FOR CYL HEAD COVER)
43	252501170246	ASSY, OIL SEPARATOR, WITH OIL FILLING CAP
44	252301176941	TUBE
45	252501175809	HOSE
46	14280500357	HOSE CLAMP 35
48	252301174219	CLAMP LOWER
49	252505990103	SET INLET & EXHAUST VALVE, CONSISTS
49	885405072525	SET INLET & EXHAUST VALVE TUFFRIDED, CONSISTS

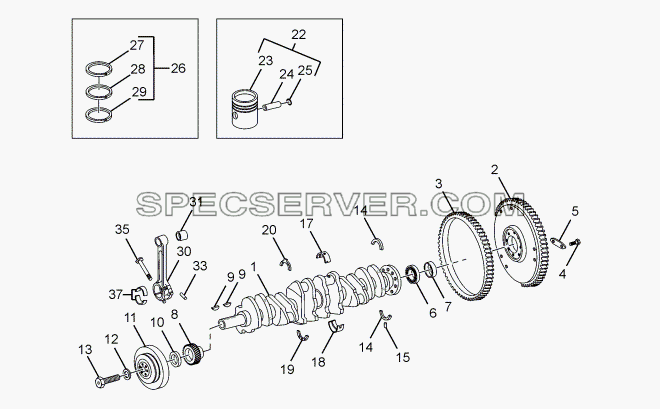

MOVING PARTS для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	252503138201	OIL SLINGER
-	885403082525	KIT, CRANKSHAFT SEALING RING WITH LOCATING PINS CONSISTING OF :
-	BEARING HALF	BEARING HALF (UPPER & LOWER) STD
-	BEARING HALF	BEARING HALF (UPPER & LOWER) STD
-	BEARING HALF	BEARING HALF (UPPER & LOWER) STD
-	BEARING HALF	BEARING HALF (UPPER & LOWER) STD
-	BEARING HALF	BEARING HALF (UPPER & LOWER) STD
1	252503107934	CRANK SHAFT STD. (INTEGRAL TYPE)
2	252503110133	ASSY, FLYWHEEL WITH RING GEAR
3	3520321105	RING GEAR
4	3129900301	BOLT
5	3129940232	LOCKING PLATE
6	253403103102	BALL BEARING
7	3120310533	LOCKING RING (IN CRANKSHAFT TO FIX THE BEARING)
8	3520520003	CRANK SHAFT GEAR
9	13650510091	WOODRUFF KEY 8X13
10	252503138603	SPACER
11	3520303103	ASSY. VIBRATION DAMPER (DOUBLE GROOVE)
12	252303138603	THRUST SPACER
13	252303133202	LOCK (V. DAMPER)
14	252503107801	SEALING RING HALF
14	SEALING RING HALF
15	1869910055	PIN MAIN BEARING SET
15	LOCATING PIN
16	885403762525	THRUST WASHER SET (STD)
16	885403772525	THRUST WASHER SET (RS I)
16	885403782525	THRUST WASHER SET (RS II)
17	BEARING UPPER HALF RS I
17	BEARING UPPER HALF RS II
17	BEARING UPPER HALF RS III
17	BEARING UPPER HALF RS III
17	BEARING UPPER HALF STD
18	BEARING LOWER HALF RS I
18	BEARING LOWER HALF RS II
18	BEARING LOWER HALF RS III
18	BEARING LOWER HALF RS III
18	BEARING LOWER HALF STD
19	THRUST WASHER UPPER HALF	THRUST WASHER UPPER HALF (116 MM DIA.) STD
19	THRUST WASHER UPPER HALF	THRUST WASHER UPPER HALF (116 MM DIA.) STD
19	THRUST WASHER UPPER HALF	THRUST WASHER UPPER HALF (116 MM DIA.) STD
20	THRUST WASHER UPPER HALF	THRUST WASHER UPPER HALF (116 MM DIA.) STD
20	THRUST WASHER UPPER HALF	THRUST WASHER UPPER HALF (116 MM DIA.) STD
20	THRUST WASHER UPPER HALF	THRUST WASHER UPPER HALF (116 MM DIA.) STD
21	885403702525	MAIN BEARING SET (STD) CONSISTING
21	885403722525	MAIN BEARING SET (RS I) CONSISTING
21	885403732525	MAIN BEARING SET (RS II) CONSISTING
21	885403742525	MAIN BEARING SET (RS III) CONSISTING
21	885403752525	MAIN BEARING SET (RS IV) CONSISTING
22	252503990148	BARE PISTON SET STD (BS II) CONSISTING
22	252503990150	SET OF PISTON RINGS CONSISTING
23	PISTON
23	PISTON
24	PISTON PIN
24	PISTON PIN
25	CIRCLIP
25	CIRCLIP RING SET
26	252503990129	SET OF PISTON RING STD CONSISTING
26	252503990150	SET OF PISTON RINGS CONSISTING
26	252503990151	SET OF PISTON RINGS CONSISTING
27	DOUBLE TRAPEZ RING	DOUBLE TRAPEZ RING (GR I)
27	DOUBLE TRAPEZ RING	DOUBLE TRAPEZ RING (GR I)
27	DOUBLE TRAPEZ RING	DOUBLE TRAPEZ RING (GR I)
28	COMPRESSION RING
28	COMPRESSION RING
28	COMPRESSION RING
29	ASSY, OIL CONTROL RING	ASSY, OIL CONTROL RING (GR III)
29	ASSY, OIL CONTROL RING	ASSY, OIL CONTROL RING (GR III)
29	ASSY, OIL CONTROL RING	ASSY, OIL CONTROL RING (GR III)
30	252503150107	ASSY. CON. ROD SERRATED (STD) WITH BUSH
30	252503150125	ASSY. CON. ROD (STD) WITH BUSH
31	885403682525	CON. ROD BUSH SET STD
33	13050507143	PIN CYLINDRICAL 6X14
35	252503153205	SCREW CON. ROD CONNECTING ROD BEARING SET
37	885403622525	BEARING SET FOR CON. ROD (STD) CONSISTING OF
37	885403642525	BEARING SET FOR CON. ROD. RS I CONSISTING OF
37	885403652525	BEARING SET FOR CON. ROD. RS II CONSISTING OF
37	885403662525	BEARING SET FOR CON. ROD. RS III CONSISTING OF
37	885403672525	BEARING SET FOR CON. ROD. RS IV CONSISTS OF

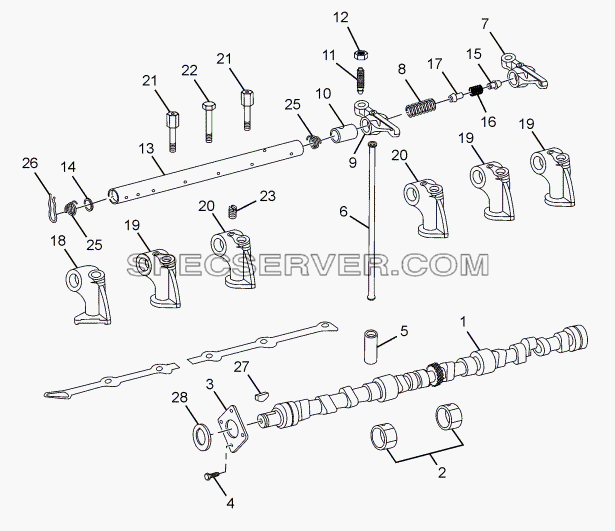

ENGINE TIMING (CAM SHAFT AND COMPONENTS) для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	252305140102	ASSY ROCKER ARM SHAFT WITH BUSH FRONT
-	252305140103	ASSY ROCKER ARM SHAFT WITH BUSH REAR
-	BEARING
-	BEARING
1	252505100140	CAMSHAFT WITH CYLINDER PIN STD
2	885405042525	SET OF BEARINGS CAMSHAFT CONSISTING OF :
3	3520520762	THRUST WASHER (CAMSHAFT TO CYL. BLOCK)
4	3129900004	HEX SCREW (TO THRUST WASHER)
5	253405139902	VALVE TAPPET
6	3520540205	PUSH ROD
7	3520501033	ROCKER ARM LEFT WITH BUSH
8	3129930701	SPRING (LONG)
9	3520500634	ROCKER ARM RIGHT WITH BUSH
10	3120550050	BUSH
11	252305146701	BALL END TAPPET ADJUSTER
12	3129900251	HEX. NUT (BALL PIN)
13	3120500231	ROCKER ARM SHAFT
14	17071001407	SEALING CAP
15	3120550653	CONNECTING NIPPLE, INNER
16	3129934701	SPRING, CONNECTING NIPPLE
17	3120550553	CONNECTING NIPPLE, OUTER
18	3520550610	ROCKER ARM SUPPORT NO. 1
19	3520550410	ROCKER ARM SUPPORT NO. 2, 5, 6
20	3520550510	ROCKER ARM SUPPORT NO. 3, 4
21	3120550171	BOLT (TO ROCKER ARM BRACKETS)
22	11064012632	HEX. BOLT M 12X75
23	11433206101	GRUB SCREW AM 6X10, (ROCKER ARM SUPPORT TO ROCKER ARM SHAFT)
25	3129930005	SPRING (SHORT)
26	3129930025	SPRING CLIP (TO SPRINGS AND ROCKER ARM SHAFT)
27	252305105901	PARALLEL KEY
28	3520510062	BUTTING RING (TIMER TO CAMSHAFT)

INJECTION TIMER для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
2	252707135401	DRIVE GEAR, FIP EURO II
5	252305105901	PARALLEL KEY
8	3520510062	BUTTING RING (TIMER TO CAMSHAFT)
10	252705115403	GEAR CAMSHAFT EURO II
11	3520750071	PIN (TIMER MOUNTING)

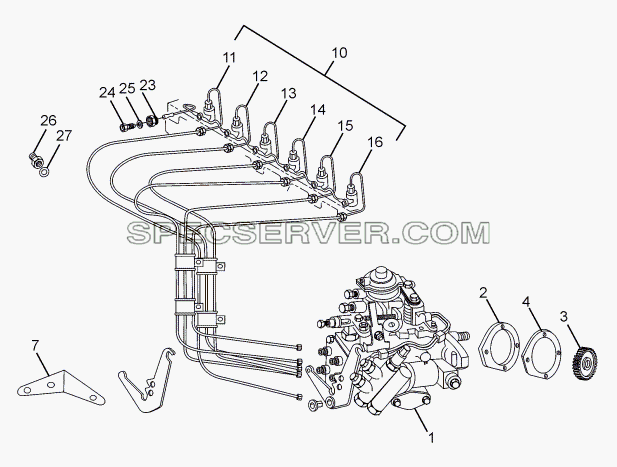

FUEL INJECTION EQUIPMENT (EURO II) для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	0120700066J	ASSY. CLAMP LOWER
-	0120780085J	CLAMP UPPER
-	13650505063	WOODRUFF KEY 4X6.5
-	252507140139	ASSY, FUEL LEAKAGE LINE CMVR 2000
-	254707126501	SELF LOCKING NUT
-	254707128401	LOCKING SLEEVE
-	254707129201	HARDENED WASHER EURO II
1	0460426387	ASSY, FIP (ROTARY) EURO II
2	252707123701	SUPPORT, INJECTION PUMP EURO II
3	252707135402	INJECTION PUMP GEAR EURO II
4	252707125302	GASKET, SUPPORT EURO II
7	252507123301	REAR SUPPORT BRACKET (FIP TO CYL. BLOCK)
10	252507140165	ASSY.SET OF HIGH PRESSURE LINES CONSISTING
11	HIGH PRESSURE LINE 1ST CYL.
12	HIGH PRESSURE LINE 2ND CYL.
13	HIGH PRESSURE LINE 3RD CYL.
14	HIGH PRESSURE LINE 4TH CYL.
15	HIGH PRESSURE LINE 5TH CYL.
16	HIGH PRESSURE LINE 6TH CYL.
23	3129970230	PLUG
24	3129970330	PLUG
25	3129970840	GASKET RING FOR CYLINDER HEAD
26	252007144203	SEAL CLAMP
27	252007148001	HOLLOW SCREW

INJECTOR для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	F002C8Z860	INJECTOR ASSY, EURO II
2	F002C40547	NOZZLE
