3-1. Instrument cluster

Warning lights and indica-

tors ............................

146

Gauges and meters ....

150

Multi-information display

..................................

153

146

3-1. Instrument cluster

3-1.Instrument cluster

For the purpose of explanation, the following illustrations display all
warning lights and indicators illuminated.

The units used on the meters and some indicators may differ depending on
the target region.

Warning lights inform the driver
of malfunctions in the indicated
vehicle’s systems.

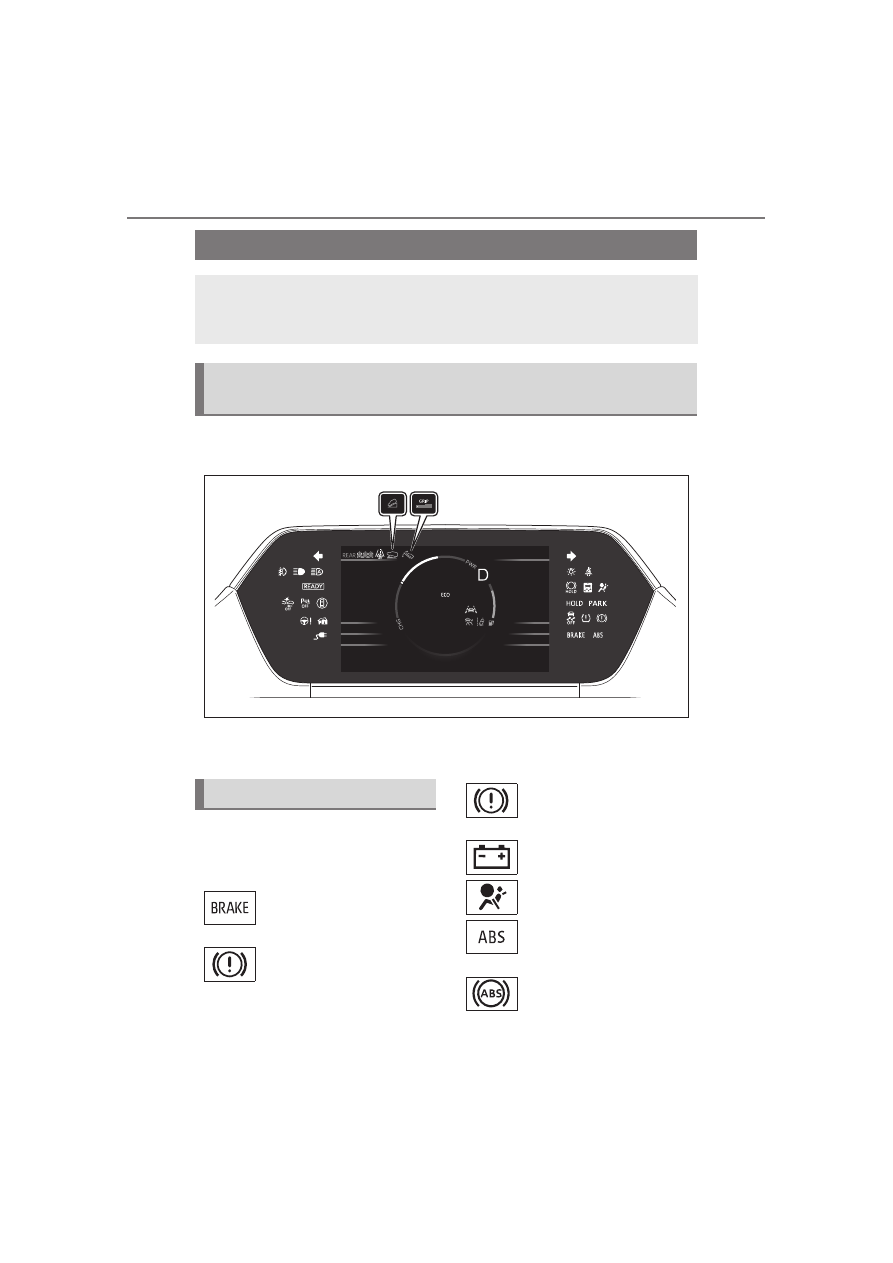

Warning lights and indicators

The warning lights and indicators on the instrument cluster
and outside rear view mirrors inform the driver of the status
of the vehicle’s various systems.

Warning lights and indicators displayed on the instru-
ment cluster

Warning lights

(U.S.A.)

Brake system warning
light

(



P.516)

(Canada)

(Red)

Brake system warning
light

(



P.516)

(Yellow)

Brake system warning
light

(



P.516)

Charging system warning
light

(



P.516)

SRS warning light

(



P.517)

(U.S.A.)

ABS warning light

(



P.517)

(Canada)

ABS warning light

(



P.517)

147

3-1. Instrument cluster

hicl

inf

ma
tion

nd
indi
ca

:These lights come on when the

power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the EV system is started,
or after a few seconds. There
may be a malfunction in a sys-
tem if the lights do not come on,
or turn off. Have the vehicle
inspected by your SUBARU
dealer.

:This light illuminates on the

multi-information display with a
message.

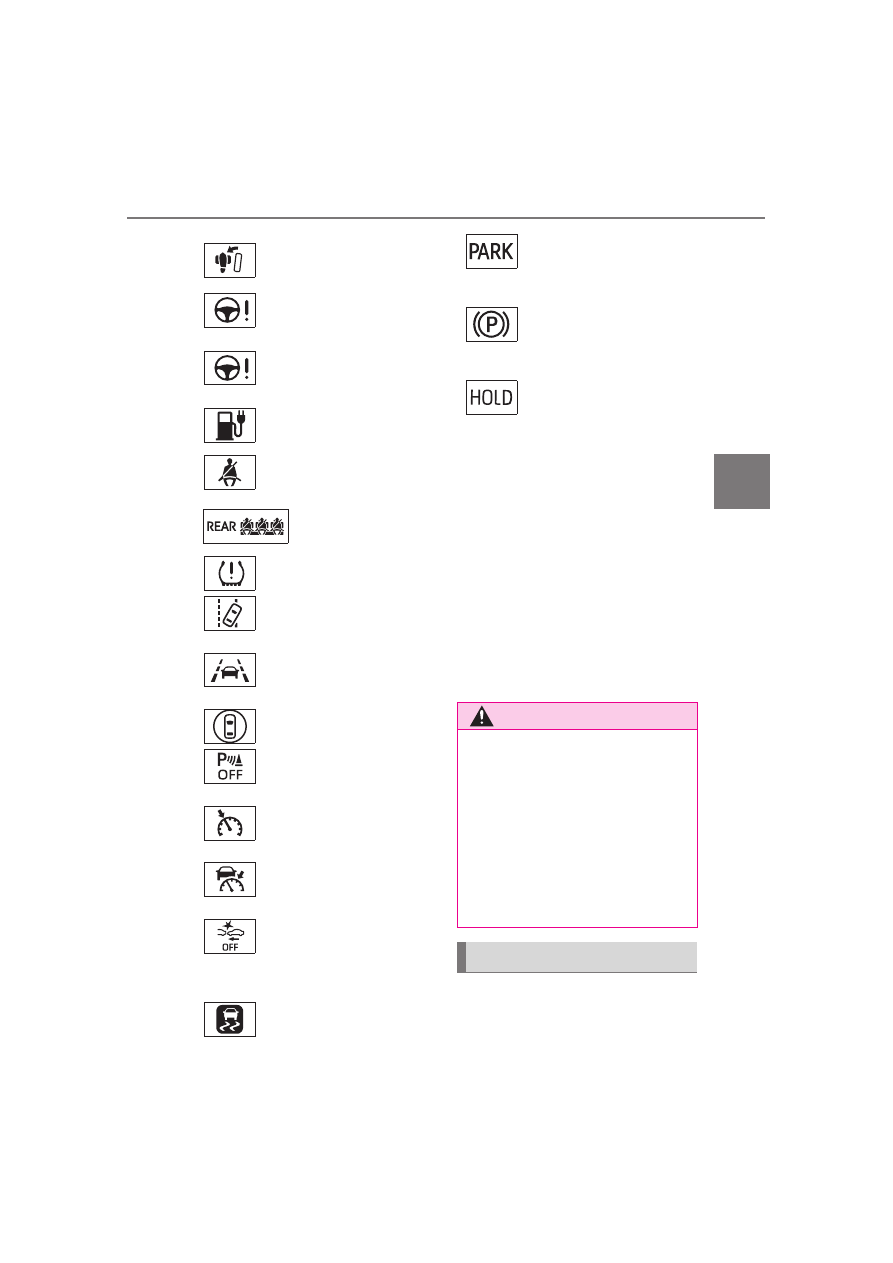

The indicators inform the driver
of the operating state of the
vehicle’s various systems.

Inappropriate pedal oper-
ation warning light

(



P.517)

(Red)

Electric power steering
system warning light

(



P.518)

(Yellow)

Electric power steering
system warning light

(



P.518)

Traction battery charge
warning light (



P.518)

Driver’s and front passen-
ger’s seat belt reminder
light (



P.518)

Rear passengers’
seat belt reminder
lights (



P.519)

Tire pressure warning
light

(



P.519)

(Orange)

LDA indicator (



P.519)

(Orange)

LTA indicator (



P.519)

Driving assist information
indicator

(



P.520)

(Flashes)

SUBARU Parking Assist
OFF indicator

(



P.520)

(Orange)

Cruise control indicator
(



P.520)

(Orange)

Dynamic radar cruise con-
trol indicator (



P.521)

(Flashes

or illumi-

nates)

PCS warning light

(



P.521)

Slip indicator

(



P.521)

(U.S.A.)

(Flashes)

Parking brake indicator
(



P.521)

(Canada)
(Flashes)

Parking brake indicator
(



P.521)

(Flashes)

Brake hold operated indi-
cator

(



P.522)

WARNING

■

If a safety system warning

light does not come on

Should a safety system light such

as the ABS and SRS warning light

not come on when you start the

EV system, this could mean that

these systems are not available to

help protect you in an accident,

which could result in death or seri-

ous injury. Have the vehicle

inspected by your SUBARU

dealer immediately if this occurs.

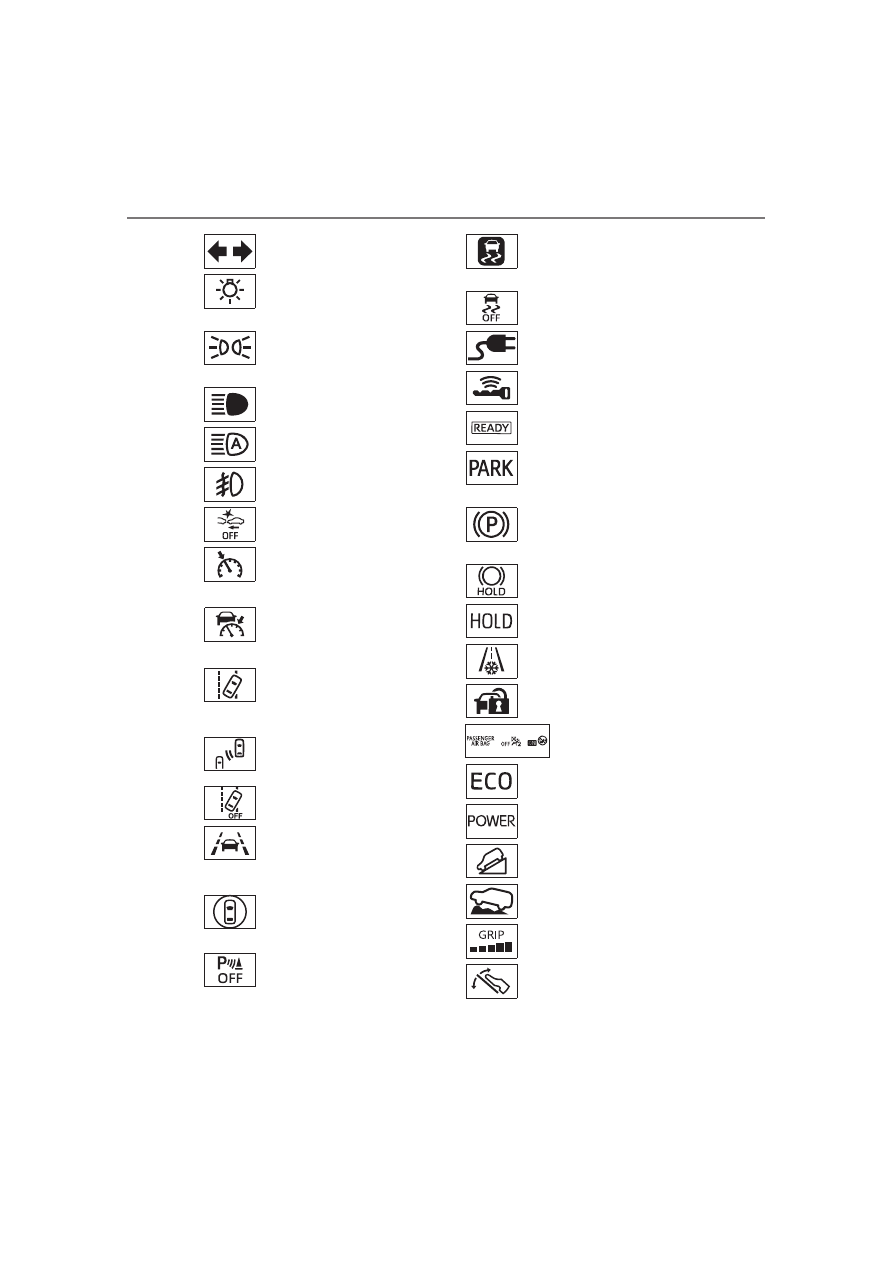

Indicators

148

3-1. Instrument cluster

Turn signal indicator
(



P.242)

(U.S.A.)

Headlight indicator
(



P.249)

(Canada)

Tail light indicator
(



P.249)

Headlight high beam indi-
cator (



P.251)

AHB indicator (



P.251)

Front fog light indicator (if
equipped) (



P.254)

PCS warning light

*1, 2

(



P.267)

(*4)

Cruise control indicator
(



P.298)

(*4)

Dynamic radar cruise con-
trol indicator (



P.290)

(*4)

LDA indicator (



P.287)

BSM outside rear view
mirror indicators

*1, 5

(



P.304, 309, 324)

LDA OFF indicator

(



P.287)

(*4)

LTA indicator (



P.287)

Driving assist information
indicator

*1, 2

(



P.304,

324, 330, 333)
SUBARU Parking Assist
OFF indicator

*1, 2

(



P.313)

(Flashes)

Slip indicator

(



P.391)

VSC OFF indicator

*1, 2

(



P.391)

Charging cable indicator
(



P.99)

Smart key system indica-
tor

(



P.231)

“READY” indicator
(



P.231)

(U.S.A.)

Parking brake indicator
(



P.243)

(Canada)

Parking brake indicator
(



P.243)

Brake hold standby indi-
cator

(



P.247)

Brake hold operated indi-
cator

(



P.247)

Low outside temperature
indicator

(



P.151)

Security indicator (



P.66,

67)

“AIR BAG ON/OFF”
indicator

*1, 7

(



P.42)

Eco drive mode indicator
(



P.384)

Power mode indicator
(



P.384)

Downhill assist control
system indicator (



P.385)

Grip control indicator
(



P.385)

Grip control set speed
indicator (



P.388)

“S PEDAL DRIVE” indica-
tor (



P.241)

149

3-1. Instrument cluster

hicl

inf

ma
tion

nd
indi
ca

:These lights come on when the

:This light comes on when the

system is turned off.

:This light illuminates on the

multi-information display with a
message.

:Depending on the operating con-

dition, the color and illuminat-
ing/flashing state of the light
change.

:This light illuminates on the out-

side rear view mirrors.

:When the outside temperature is

approximately 37°F (3°C) or
lower, the indicator will flash for
approximately 10 seconds, then
stay on.

:This light illuminates on the over-

head console.

:Depending on the operating con-

dition, the color of the light
change.

(*8)

SNOW/DIRT mode indi-
cator (



P.386)

(*8)

D.SNOW/MUD mode indi-
cator (



P.386)

150

3-1. Instrument cluster

■

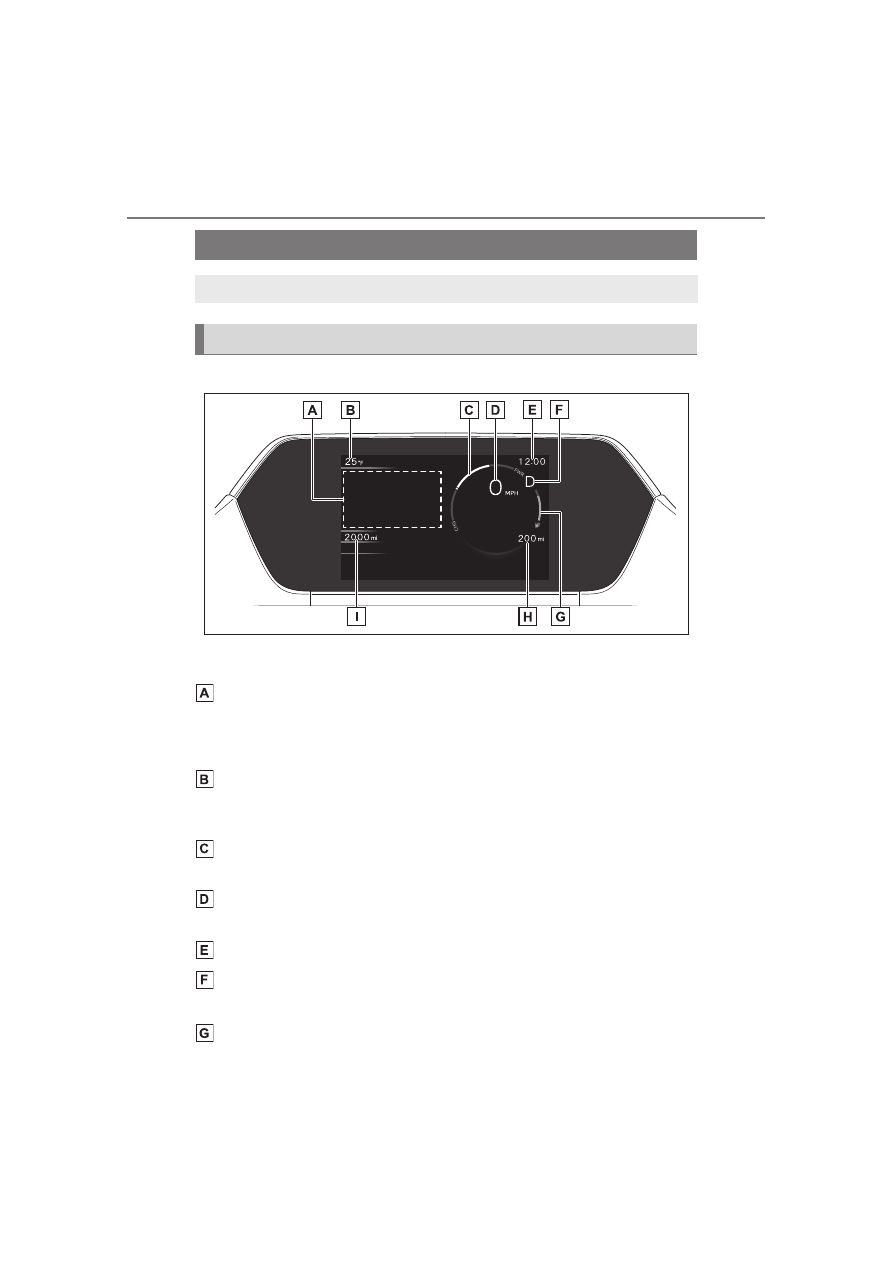

Locations of gauges and meters

The units of measure may differ depending on the intended destination of
the vehicle.

Multi-information display

Presents the driver with a variety of vehicle data (



P.153)

Displays warning messages if a malfunction occurs (



P.525)

Display/hide for the multi-information display can be changed. (



P.152)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 140°F
(60°C)

Power meter (



P.151)

Displays EV system output or regeneration level

Speedometer

Displays the vehicle speed

Clock (



P.153)

Shift position indicator/regenerative braking power indicator
(



P.236)

SOC (State of Charge) gauge

Gauges and meters

The meters display various drive information.

Meter display

151

3-1. Instrument cluster

hicl

inf

ma
tion

nd
indi
ca

Displays the amount of charge remaining in the traction battery.

Driving range

Displays driving range with remaining charge. (



P.236)

When the air conditioning system is operating,

and the driving range

with the air conditioning system on are displayed.

Odometer and trip meter display (



P.152)

■

Power meter

Charge area

Shows regeneration

status.

Regenerated energy will be used to
charge the EV battery (traction bat-
tery).

Power area

Displays the EV system output
(acceleration force) while driving.

Regeneration

restrictions refer-

ence display

In the following situations, regenera-
tive braking is restricted, and the ref-
erences for those restrictions are
displayed in the charge area.
• When the traction battery has a

large amount of charge and can

no longer be regenerated

• When the temperature of the trac-

tion battery is extremely high or
extremely low

Output restrictions reference dis-

play

In the following situations, the out-
put is restricted, and the references
for those restrictions are displayed
in the power area.
• When the traction battery has a

low amount of charge and can no
longer output power

• When the temperature of the trac-

tion battery is extremely high or
extremely low

:The meaning of “Regeneration”

here means converting kinetic
energy into electrical energy.

:The actual restrictions may differ

depending on the vehicle condi-
tion.

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change:

• When stopped, or driving at low

speeds (less than 16 mph [25

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

152

3-1. Instrument cluster

●

When “--” is displayed, the system

may be malfunctioning. Take your

vehicle to your SUBARU dealer.

●

When the outside temperature is
approximately 37°F (3°C) or
lower, the indicator

will flash

for approximately 10 seconds,
then stay on.

■

Liquid crystal display



P.154

■

Customization

The gauges and meters can be cus-
tomized in

of the multi-informa-

tion display. (



P.570)

The Multi-Information display
can be switched between dis-
play and hidden.

■

Display items



Odometer

Displays the total distance the vehi-
cle has been driven.



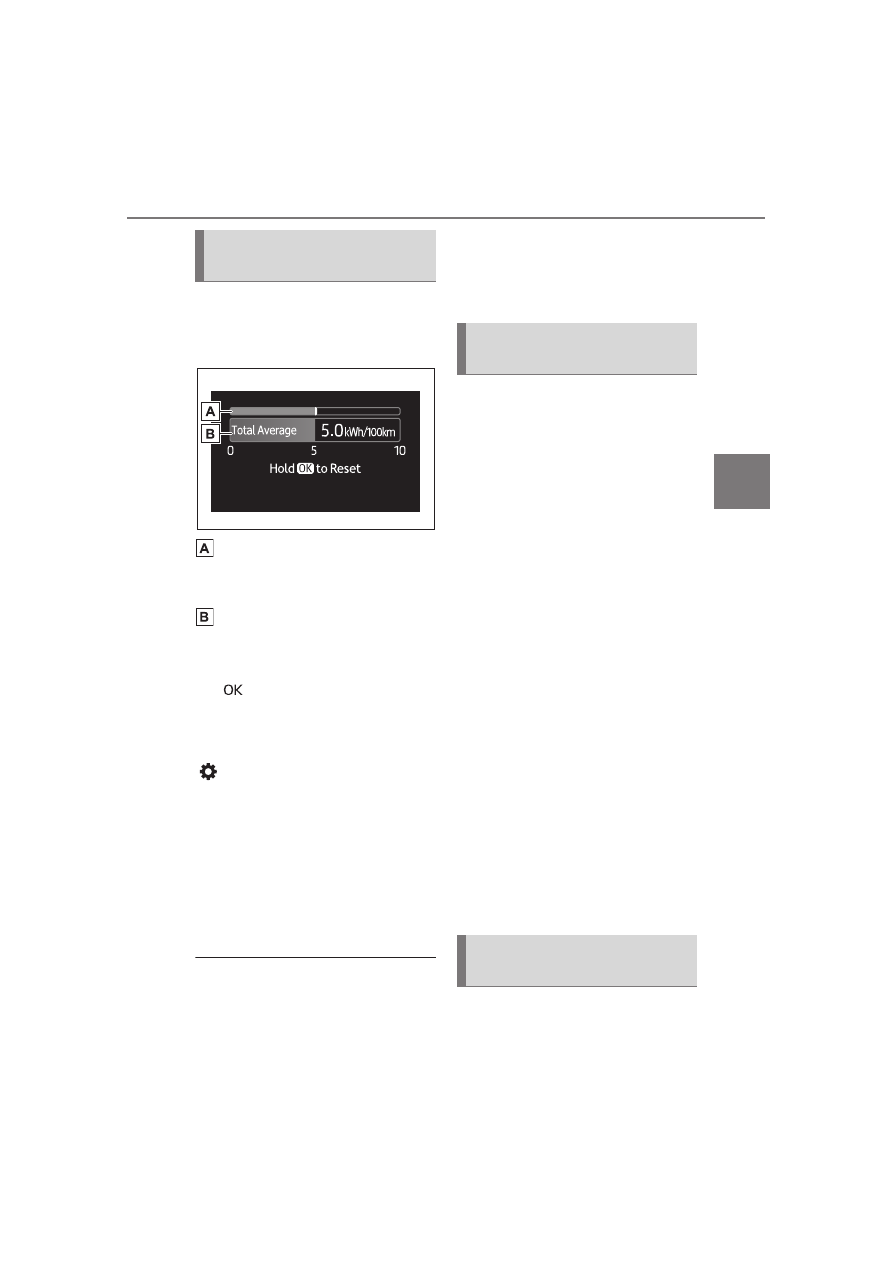

Trip meter A/Trip meter B

Displays the distance the vehicle
has been driven since the meter
was last reset. Trip meters A and B
can be used to record and display
different distances independently.

■

Switching the display

The display switches each time
the switch is pressed. Also,
when the switch is continuously
pressed during the trip meter
display, the driving distance can
be changed to “0”.

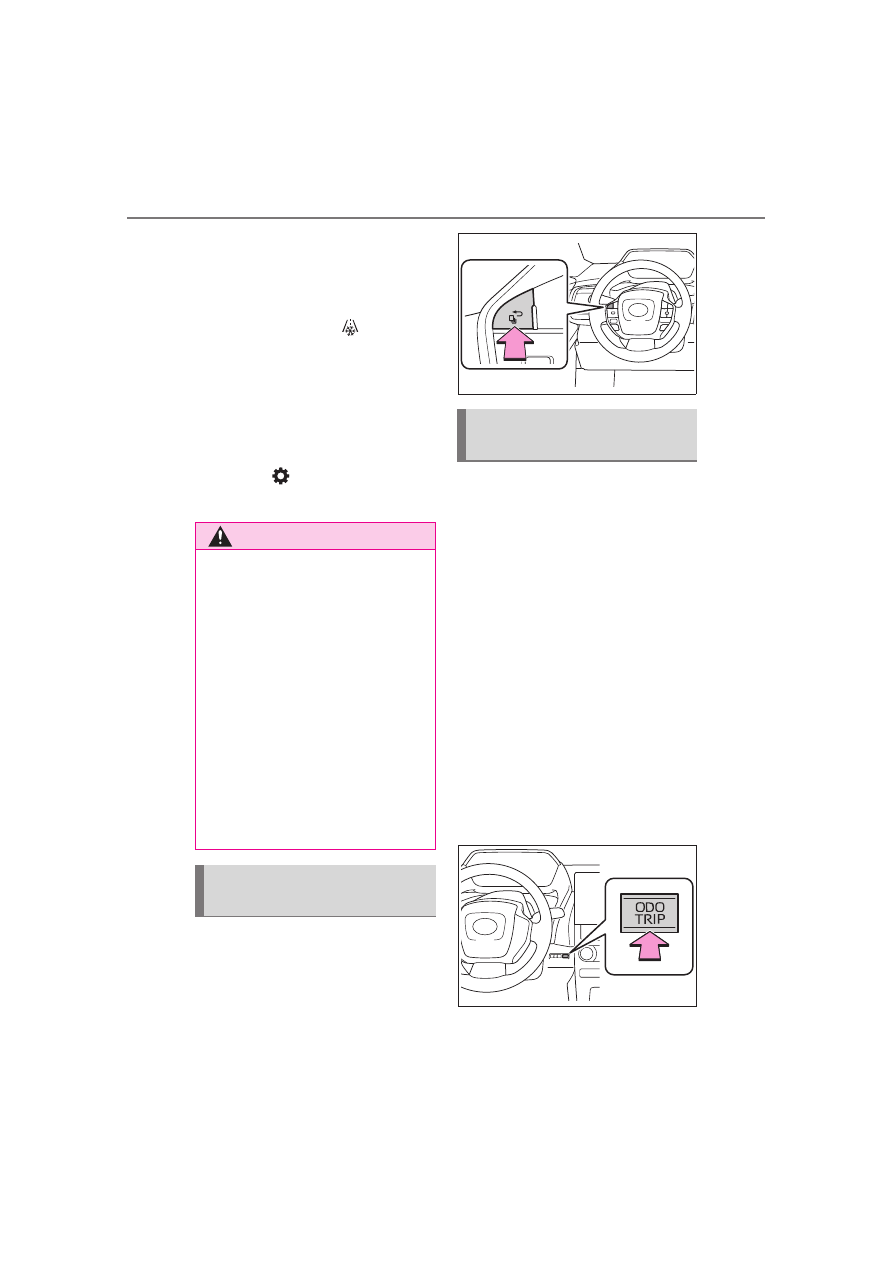

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

information display monitor may

respond slowly, and display

changes may be delayed.

For example, there is a lag

between the driver’s shifting and

the regenerative braking power

appearing on the display. This lag

could cause the driver to down-

shift again, causing rapid and

excessive regenerative braking

and possibly an accident resulting

in death or injury.

Switching the meter dis-
play

Odometer and trip meter
display

153

3-1. Instrument cluster

hicl

inf

ma
tion

nd
indi
ca

The clocks on the following can
be adjusted on the audio system
screen.



Multi-information display



Audio system screen

For details, refer to “MULTIME-
DIA OWNER’S MANUAL”.

is displayed when

selected on the multi-information
display, the system may be malfunc-
tioning.
Have the vehicle inspected by your

SUBARU dealer.

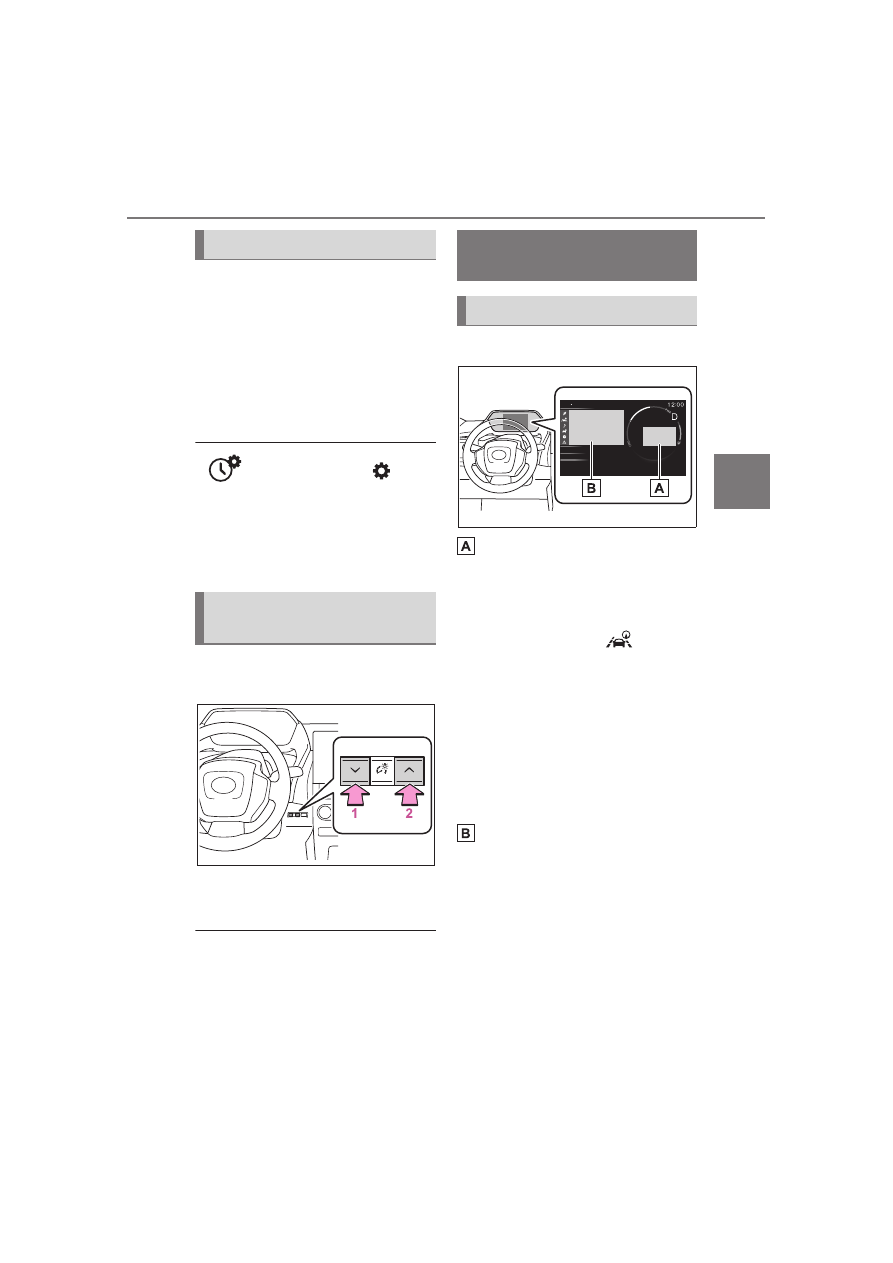

The brightness of the instrument
panel lights can be adjusted.

Darker

Brighter

■

Instrument panel illumination

adjustment

The brightness level can be

adjusted when the surroundings are

bright (daytime, etc.) or dark (night-

time, etc.).

■

Display

Driving support system status
display area

Displays an image when the follow-
ing systems are operating and a
menu icon other than

selected:

• LDA (Lane Departure Alert)

(



P.283)

• LTA (Lane Tracing Assist)

(



P.278)

• Dynamic radar cruise control

(



P.290)

• RSA (Road Sign Assist)

(



P.288)

Content display area

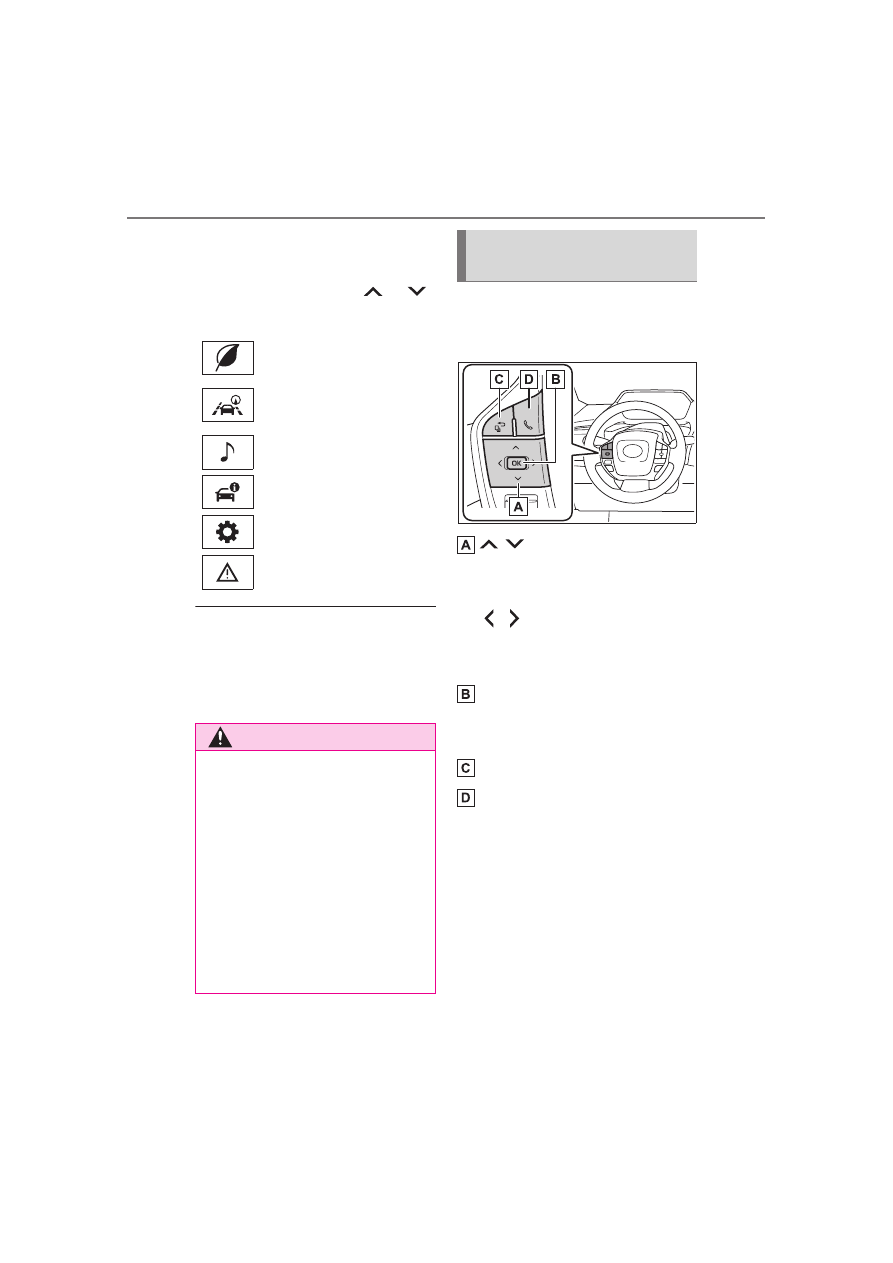

By selecting menu icons on the
multi-information display, a variety
of driving-related information can
be displayed. The multi-information
display can also be used to change
display settings and other vehicle
settings.
Warning or advice pop-up displays
are also displayed in certain situa-
tions.

Adjusting the clock

Adjusting the instrument
panel light control

Multi-information dis-

play

Display and menu icons

154

3-1. Instrument cluster

■

Menu icons

The menu icons will be dis-
played by pressing the

meter control switch.

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phenom-

enon is characteristic of liquid crys-

tal displays, and there is no problem

continuing to use the display.

The multi-information display is
operated using the meter control
switches.

: Select menu icons,

scroll the screen and move
the cursor

: Change displayed

content, scroll the screen and
move the cursor
Press: Enter/Set
Press and hold: Reset/Dis-
play customizable items
Return to the previous screen

Call sending/receiving and
history display

Linked with the hands-free system,
sending or receiving call is dis-
played. For details regarding the
hands-free system, refer to the
“MULTIMEDIA OWNER’S MAN-
UAL”.

Driving information display
(



P.155)

Driving support system
information display
(



P.155)

Audio system-linked dis-
play (



P.155)

Vehicle information dis-
play (



P.156)

Settings display (



P.156)

Warning message display
(



P.525)

WARNING

■

Caution for use while driving

●

When operating the multi-infor-

mation display while driving,

pay extra attention to the safety

of the area around the vehicle.

●

Do not look continuously at the

multi-information display while

driving as you may fail to see

pedestrians, objects on the

road, etc., ahead of the vehicle.

■

The information display at

low temperatures



P.151

Changing the meter dis-
play

155

3-1. Instrument cluster

hicl

inf

ma
tion

nd
indi
ca

■

Power consumption

Use the displayed values as a
reference only.

Current power consumption

Displays instantaneous current
power consumption.

Trip Average/Total Average

To reset the average power con-
sumption display, press and hold

the

meter control switch.

The average power consump-
tion display can be changed in

. (



P.570)



Trip Average

Displays the average Power con-
sumption since EV system start.



Total Average

Displays the average power con-
sumption since the vehicle was
refueled.

■

Power consumption

It is a numerical value that rep-

resents the power consumption rate

and corresponds to the fuel con-

sumption rate of gasoline engine

vehicles. In this car, the number of

miles traveled (miles / kWh) per kilo-

watt hour of electricity (1 kWh) is

displayed on each screen as “elec-

tricity cost”.

■

Driving support system
information

Select to display the operational
status of the following systems:



PCS (Pre-Collision System)
(



P.267)



LDA (Lane Departure Alert)
(



P.283)



LTA (Lane Tracing Assist)
(



P.278)



Cruise control (



P.298)



Dynamic radar cruise control
(



P.290)



RSA (Road Sign Assist)
(



P.288)

■

Navigation system-linked
display (if equipped)

Select to display the following
navigation system-linked infor-
mation:



Route guidance to destination



Compass display (heading-up
display)

Select to enable selection of an
audio source or track on the

Content of driving infor-
mation

Driving support system
information display

Audio system-linked dis-
play

156

3-1. Instrument cluster

meter using the meter control
switches.

This menu icon can be set to be
displayed/not displayed in

■

Display items



Drive information



Torque distribution



Tire inflation pressure

■

Drive information

2 items that are selected using
the “Drive Info. Items” setting
(average speed, distance and
total time) can be displayed ver-
tically.
The displayed information
changes according to the “Drive
Info. Type” setting (since the
system was started or between
resets). (



P.156)

Use the displayed information
as a reference only.
Following items will be dis-
played.



“Trip”

• “Average Speed”: Displays the

average vehicle speed since EV
system start

• “Distance”: Displays the distance

driven since EV system start

• “Total Time”: Displays the elapsed

time since EV system start

: These items are reset each time

the EV system stops.



“Total”

• “Average Speed”: Displays the

average vehicle speed since the
display was reset

• “Distance”: Displays the distance

driven since the display was
reset

• “Total Time”: Displays the elapsed

time since the display was reset

: To reset, display the desired item

and press and hold the

meter

control switch.

■

Torque distribution

Displays the drive status of each
wheel in 6 steps from 0 to 5.

■

Tire inflation pressure

Displays inflation pressure of
each tire.

■

Meter display settings that
can be changed



Clock setting



P.153



Language

Select to change the language dis-
played.



Units

Select to change the units of mea-
sure displayed.



• Power consumption display
Select to change the average

Vehicle information dis-
play

Settings display

157

3-1. Instrument cluster

hicl

inf

ma
tion

nd
indi
ca

power consumption display Trip
Average/Total Average. (



P.155)



Select to display/not display the
audio system linked display.



Select to change the displayed con-
tent of the following:
• Display contents
Select to display/not display the
torque distribution display.
• Drive information type
Select to change the drive informa-
tion type display between after
start/after reset.
• Drive information items
Select to set the first and second
items of the drive information dis-
play to any of the following: aver-
age vehicle
speed/distance/elapsed time.



Closing Display

Select to set the items displayed
when the power switch is turned off.



Pop-up display

Select to enable/disable pop-up
displays for each relevant system.



Calendar

The year, month, and day can be
set.



Default setting

Select to reset the meter display
settings to the default setting.

■

Vehicle functions and set-
tings that can be changed



P.570

■

Suspension of the settings dis-

play

●

Some settings cannot be changed

while driving. When changing set-

tings, park the vehicle in a safe

place.

●

If a warning message is displayed,

operation of the settings display

will be suspended.

Displays suggestions to the
driver in the following situations.
To select a response to a dis-
played suggestion, use the
meter control switches.

■

Suggestion to turn on the
headlights

If the headlight switch is in other
than

, and the vehicle

speed is 3 mph (5 km/h) or
higher for a certain amount of
time when the surroundings are
dark, a suggestion message will
be displayed.

■

Suggestion to turn off the
headlights

If the headlights are left on for a
certain amount of time after the
power switch has been turned
off, a suggestion message will

NOTICE

■

During setting up the display

To prevent 12-volt battery dis-

charge, ensure that the EV sys-

tem is operating while setting up

the display features.

Suggestion function

159

Be
fo

re
dr

Before driving

4-1. Key information

Keys ............................

160

Digital key ...................

163

4-2. Opening, closing and

locking the doors

Side doors...................

165

Back door ....................

170

Smart key system .......

181

4-3. Adjusting the seats

Front seats ..................

186

Rear seats...................

187

Head restraints............

189

4-4. Adjusting the steering

wheel and mirrors

Steering wheel ............

193

Inside rear view mirror

194

Digital inner mirror.......

195

Outside rear view mirrors

..................................

203

4-5. Opening, closing the win-

dows

Power windows ...........

206

4-6. Favorite settings

Driving position memory

..................................

209

My Settings .................

213

Subaru Solterra (2023 year). Manual in english - page 9
