EI-10

EXTERIOR/INTERIOR TRIM

GENERAL DESCRIPTION

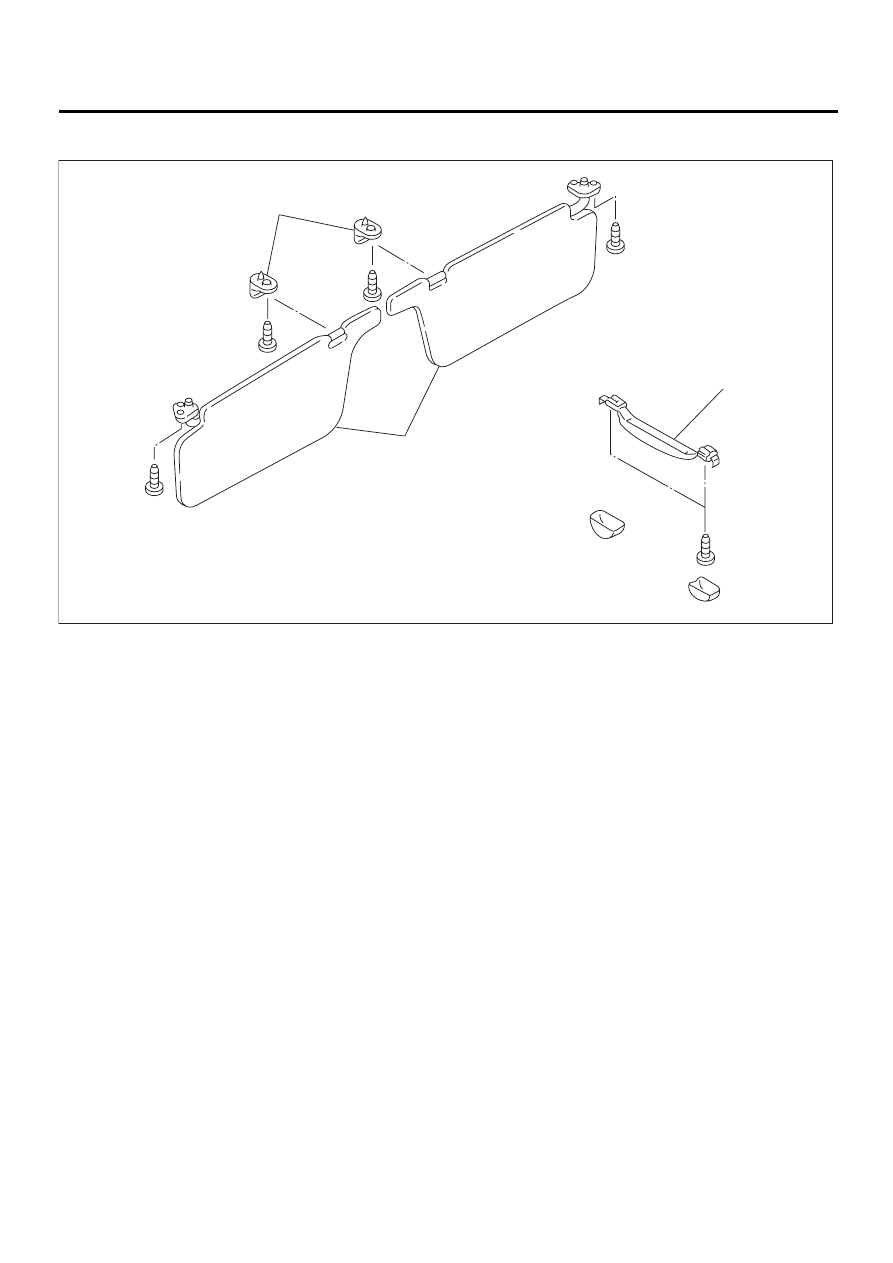

9. INNER ACCESSORIES

(1)

Hook

(2)

Sun visor

(3)

Assist grip

EI-00293

( 1 )

( 2 )

( 3 )

EI-11

EXTERIOR/INTERIOR TRIM

GENERAL DESCRIPTION

B: PREPARATION TOOL

TOOL NAME

REMARKS

Clip remover

Used for removal of trim.

Adhesive remover

Used for removal of side protector.

Primer

Used for installation of side protector.

Infrared lamp

Used for disassembly/assembly of side protector.

Tow-sided tape

Used for installation of side protector.

TORX

®

 T30

Used for disassembly/assembly of crossbar.

EI-12

EXTERIOR/INTERIOR TRIM

FRONT GRILLE

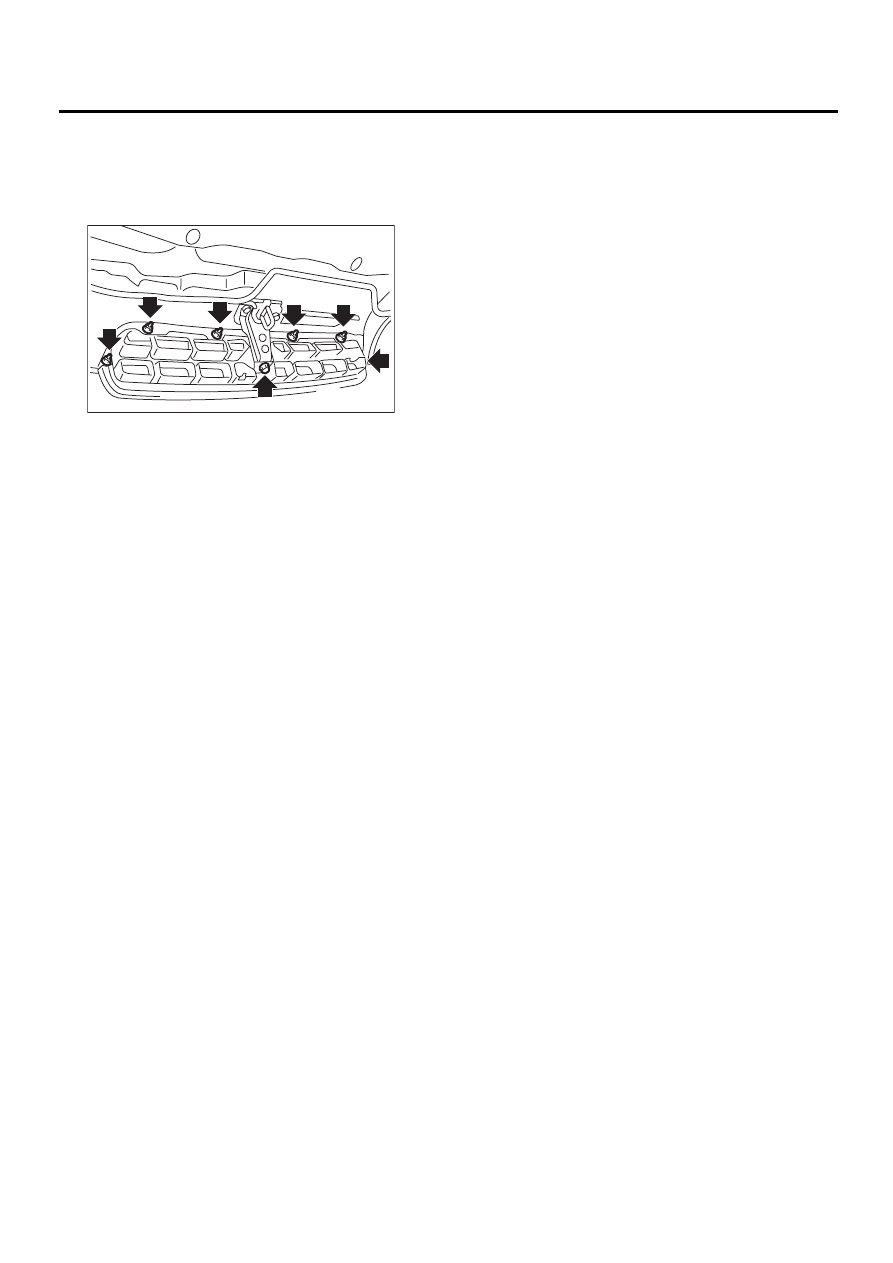

2. Front Grille

A: REMOVAL

1) Open hood.
2) Loosen bolts and nuts to remove front grill.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

A (Nut): 4.4±1.5 N·m (0.45±0.15 kgf-m,
3.3±1.1 ft-lb)
B (Bolt): 0.9±2.0 N·m (0.7±0.2 kgf-m,
5.1±1.4 ft-lb)

EI-00125

A

B

EI-13

EXTERIOR/INTERIOR TRIM

FRONT UNDER COVER

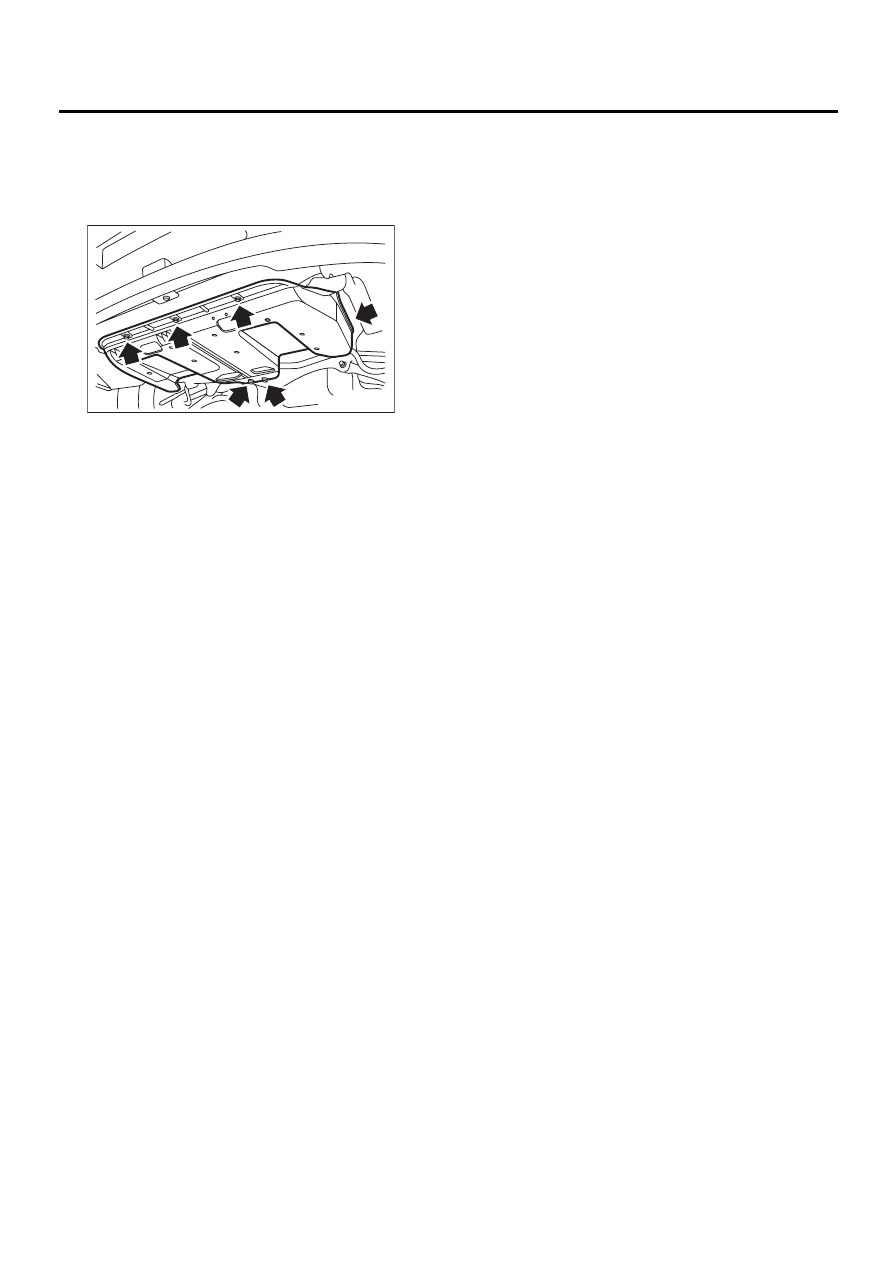

3. Front Under Cover

A: REMOVAL

1) Lift-up the vehicle.
2) Loosen bolts and clips to remove under cover.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

18.4 N·m (1.88 kgf-m, 13.6 ft-lb)

EI-00126
