EI-2

EXTERIOR/INTERIOR TRIM

GENERAL DESCRIPTION

1. General Description

A: COMPONENT

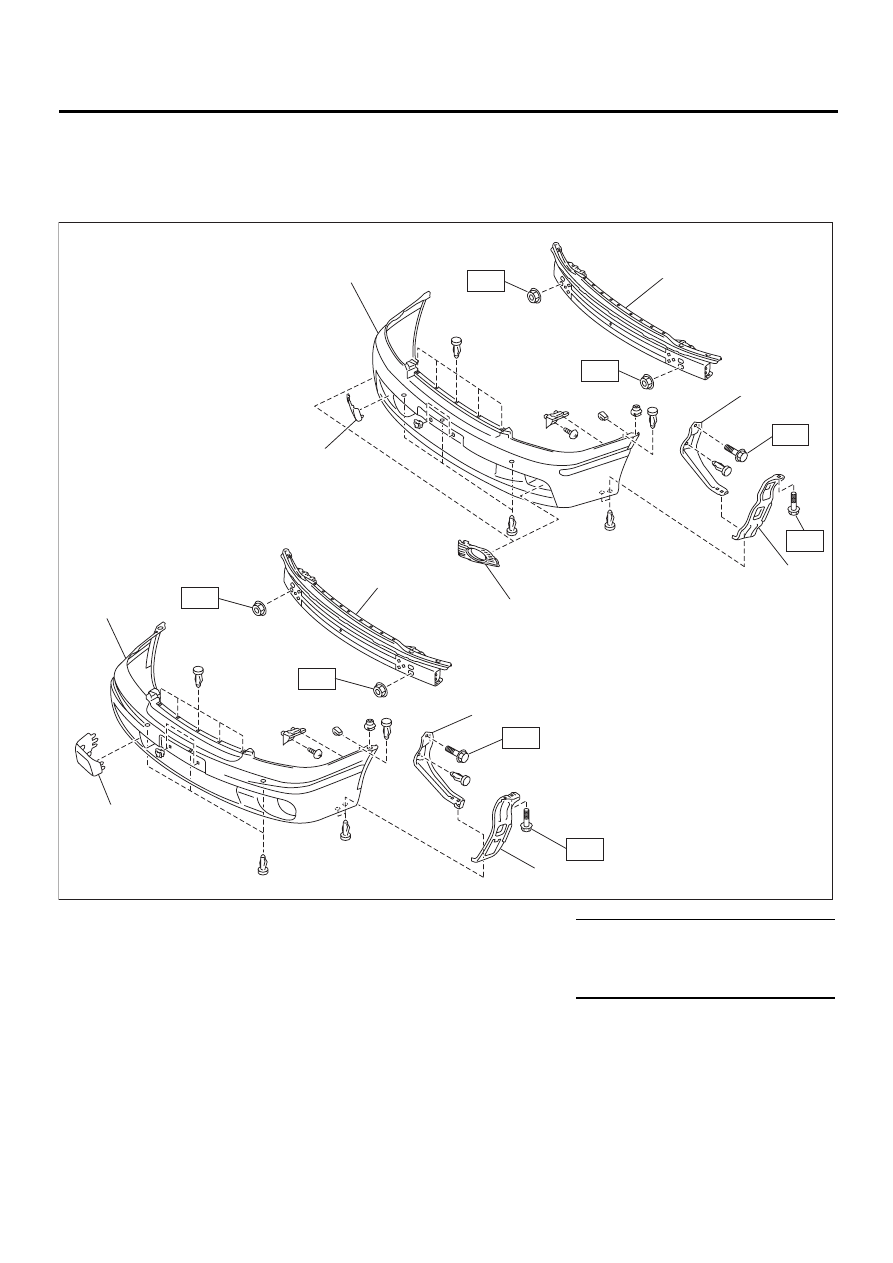

1. FRONT BUMPER

(1) Bumper face (Except  OUTBACK)

(6) Cover

Tightening torque: N·m (kgf-m, ft-lb)

(2) Bumper face (OUTBACK)

(7) Toeing hook cover (Except OUT-

BACK)

T1: 30 (3.1, 22)

(3) Bumper beam

T2: 17.7 (1.8, 13.0)

(4) Side stay

(8) Toeing hook cover (OUTBACK)

T3: 7.4 (0.75, 5.4)

(5) Side bracket

EI-00402

( 1 )

( 3 )

( 4 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 5 )

T2

T3

T3

T2

T1

T1

T1

T1

EI-3

EXTERIOR/INTERIOR TRIM

GENERAL DESCRIPTION

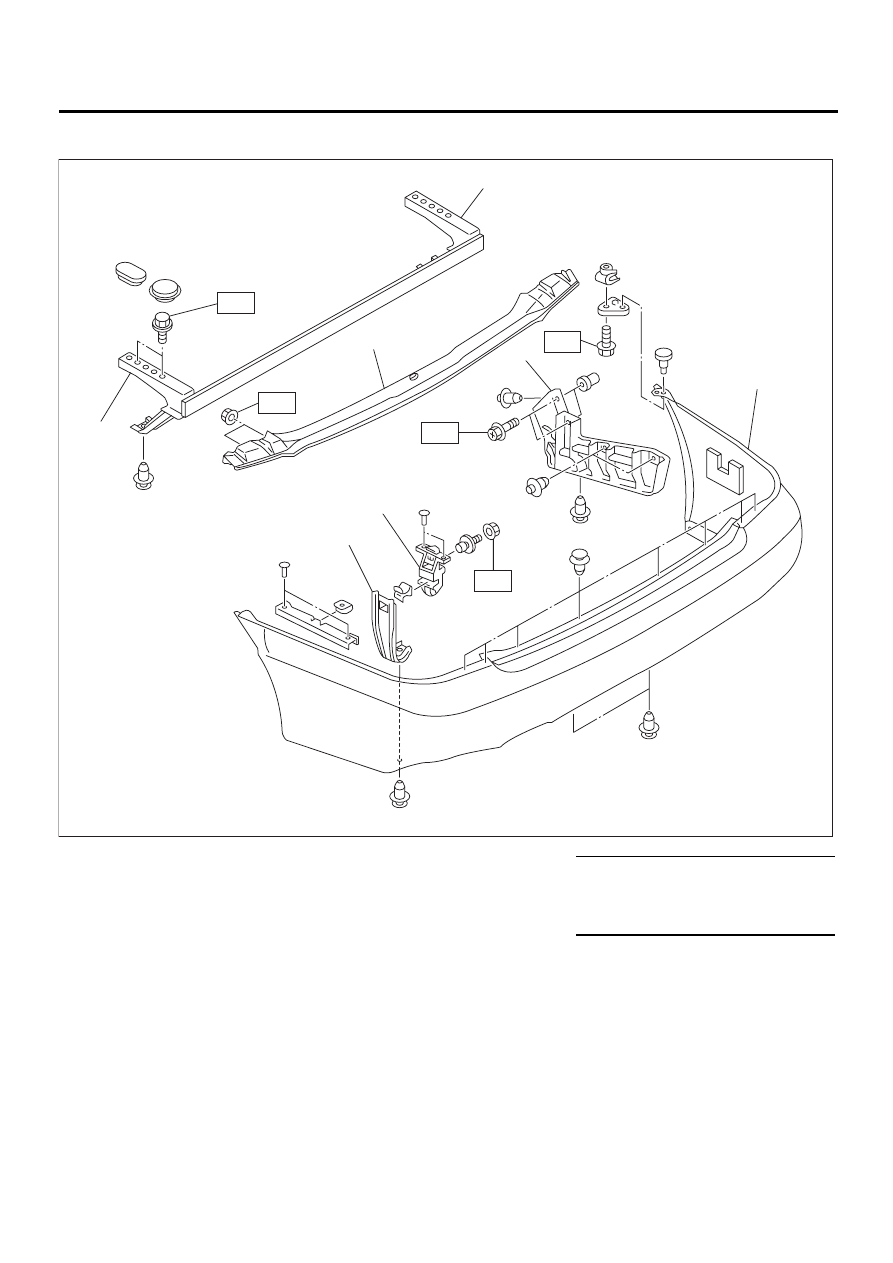

2. REAR BUMPER (SEDAN)

(1) Bumper beam

(4) Side stay

Tightening torque: N·m (kgf-m, ft-lb)

(2) Side bracket

(5) Hook

T1:  93 (9.5, 69)

(3) Bumper face

(6) Bracket

T2:  7.4 (0.75, 5.4)

T3:  2 (0.2, 1.4)

EI-00403

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 6 )

T1

T2

T2

T2

T3

EI-4

EXTERIOR/INTERIOR TRIM

GENERAL DESCRIPTION

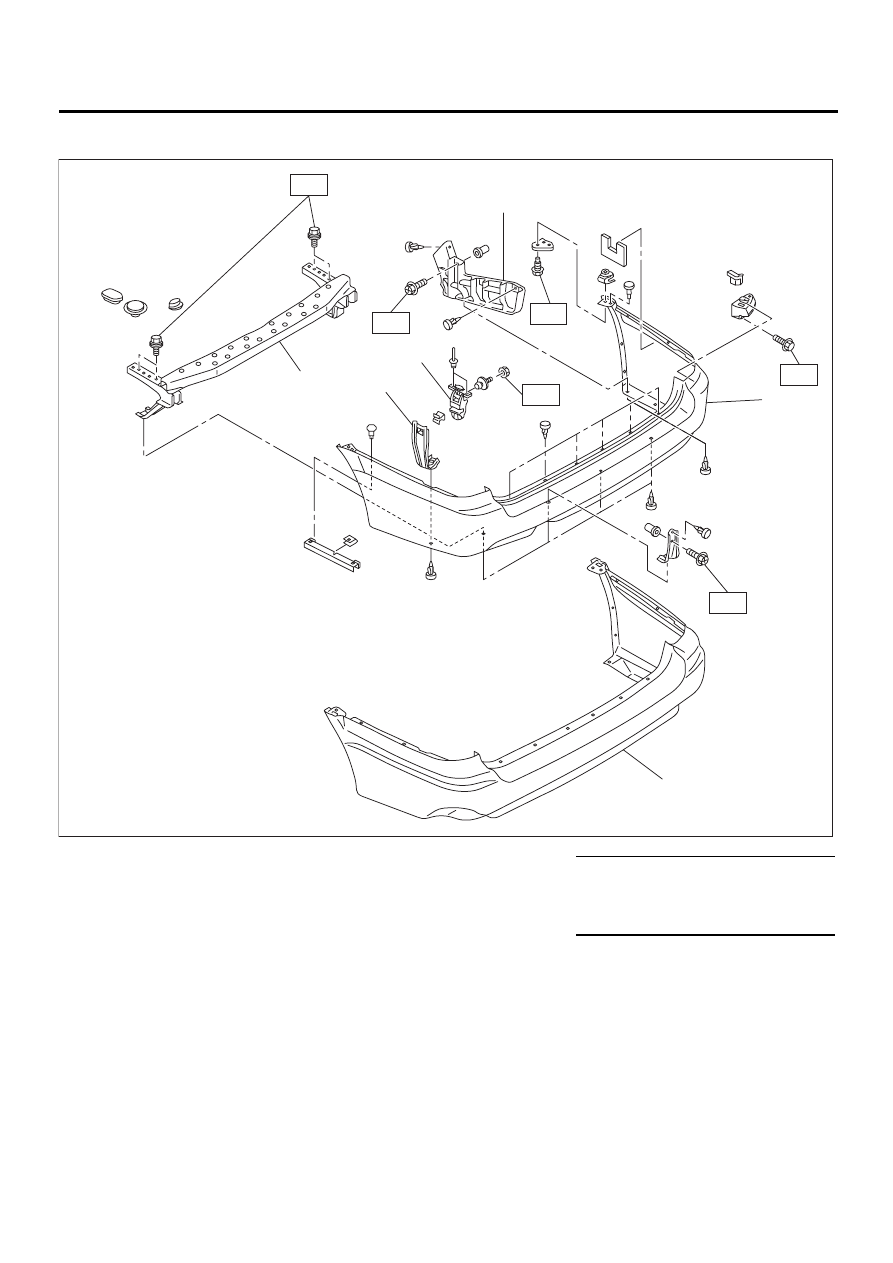

3. REAR BUMPER (WAGON)

(1) Bumper beam

(4) Bumper face (OUTBACK)

Tightening torque: N·m (kgf-m, ft-lb)

(2) Side bracket

(5) Side stay

T1:  93 (9.5, 96)

(3) Bumper face (Except OUTBACK)

(6) Hook

T2:  7.4 (0.75, 5.4)

T3:  2 (0.2, 1.4)

EI-00404

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

T1

T2

T2

T2

T3

T3

EI-5

EXTERIOR/INTERIOR TRIM

GENERAL DESCRIPTION

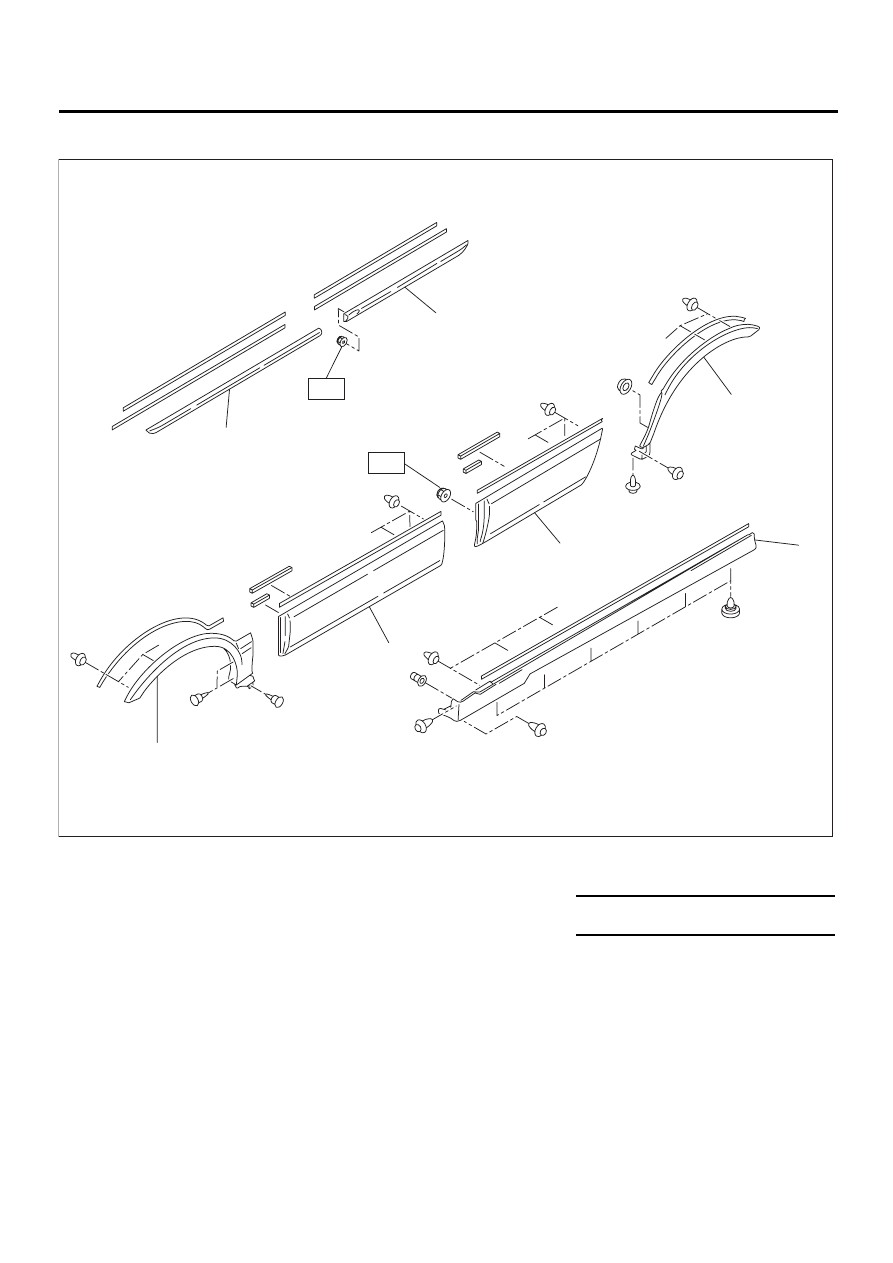

4. SIDE PROTECTOR

(A) Except OUTBACK

(3) Side protector (Front fender)

(7) Side protector (Side sill)

(B) OUTBACK

(4) Side protector (Front door)

(1) Front side protector

(5) Side protector (Rear door)

Tightening torque: N·m (kgf-m, ft-lb)

(2) Rear side protector

(6) Side protector (Rear quarter)

T:  4.3 (0.44, 3.2)

EI-00405

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( A )

( B )

T

T
