SR-12

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)

SUNROOF MOTOR

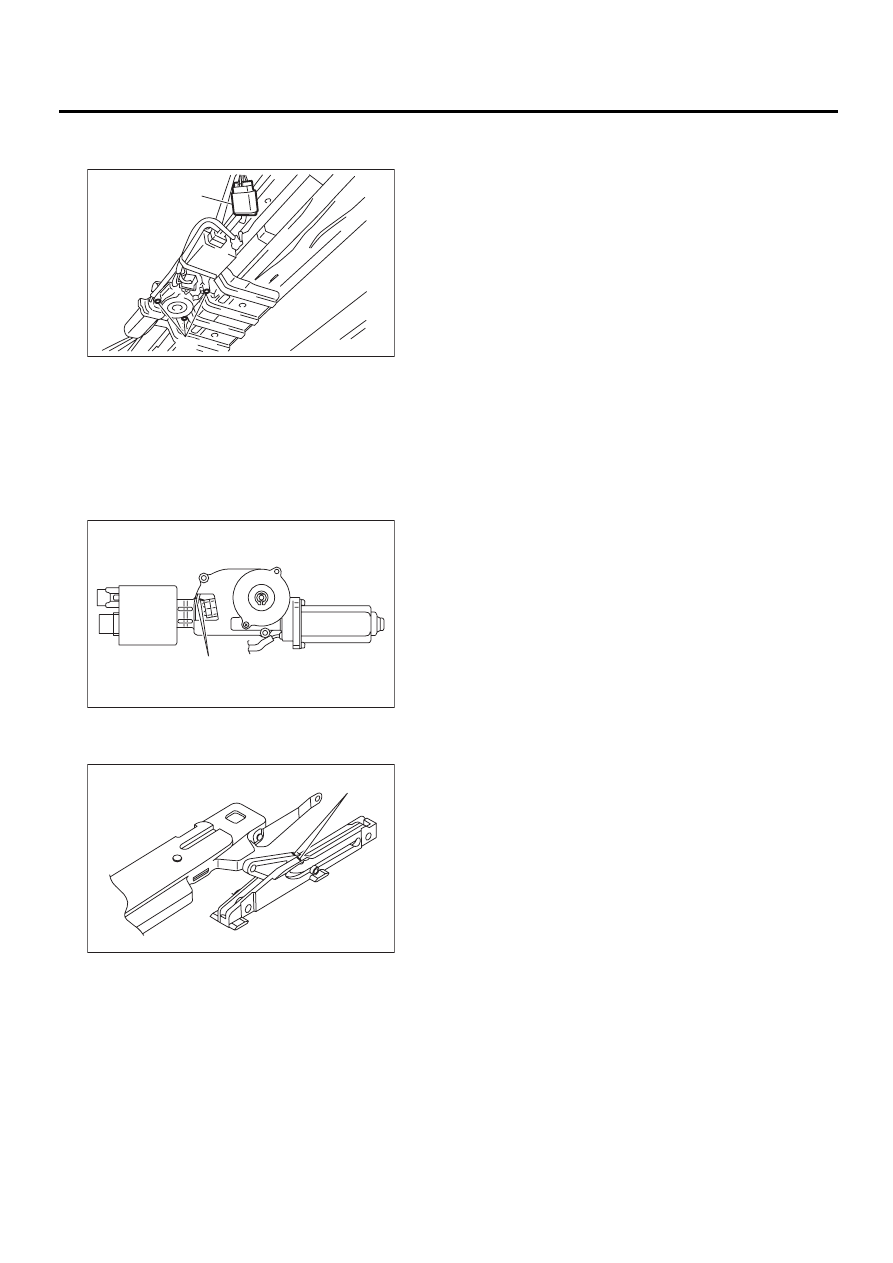

10) Disconnect harness connector (A) and remove
sunroof motor mounting screw (B).

B: INSTALLATION

CAUTION:
• Never rotate the sunroof motor while re-
moved.
• Be careful not to move the sunroof cable
when installing sunroof motor.
1) Check the matching mark (A) of sunroof motor.

2) Confirm the matching mark (A) of sunroof brack-
et link.

3) Install sunroof motor.
4) After installing the motor, reconfirm the matching
marks of motor side and sunroof bracket link side.
5) Connect sunroof motor harness connector and
then connect battery ground cable.
6) Check the sunroof operation with the procedure
as shown in the table.

SR-00037

( A )

( B )

SR-00038

( A )

SR-00035

( A )

SR-13

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)

SUNROOF MOTOR

SEDAN

WAGON

7) Install trims in the reverse order of removal.

Operation

Switch position

(1) Completely close sunroof.

Closed

(2) Tilt-up sunroof to most upper position.

Tilt-up

(3) Lower sunroof completely.

Tilt-down

(4) Open sunroof to near the completely open position.

Open

(5) Completely open sunroof.

Open

(6) Close sunroof 150 mm (5.91 in) away from completely closed position.

Closed

(7) Completely close sunroof.

Closed

Operation

Switch position

(1) Completely close front and rear sunroof.

Closed

(2) Tilt-up front sunroof to most upper position.

Open

(3) Open rear sunroof to near the completely open position.

Open

(4) Completely open front and rear sunroof.

Open

(5) Close rear sunroof 150 mm (5.91 in) away from completely closed position.

Closed

(6) Completely close rear sunroof.

Closed

(7) Lower front sunroof and completely close front and rear sunroof.

Closed

SR-14

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)

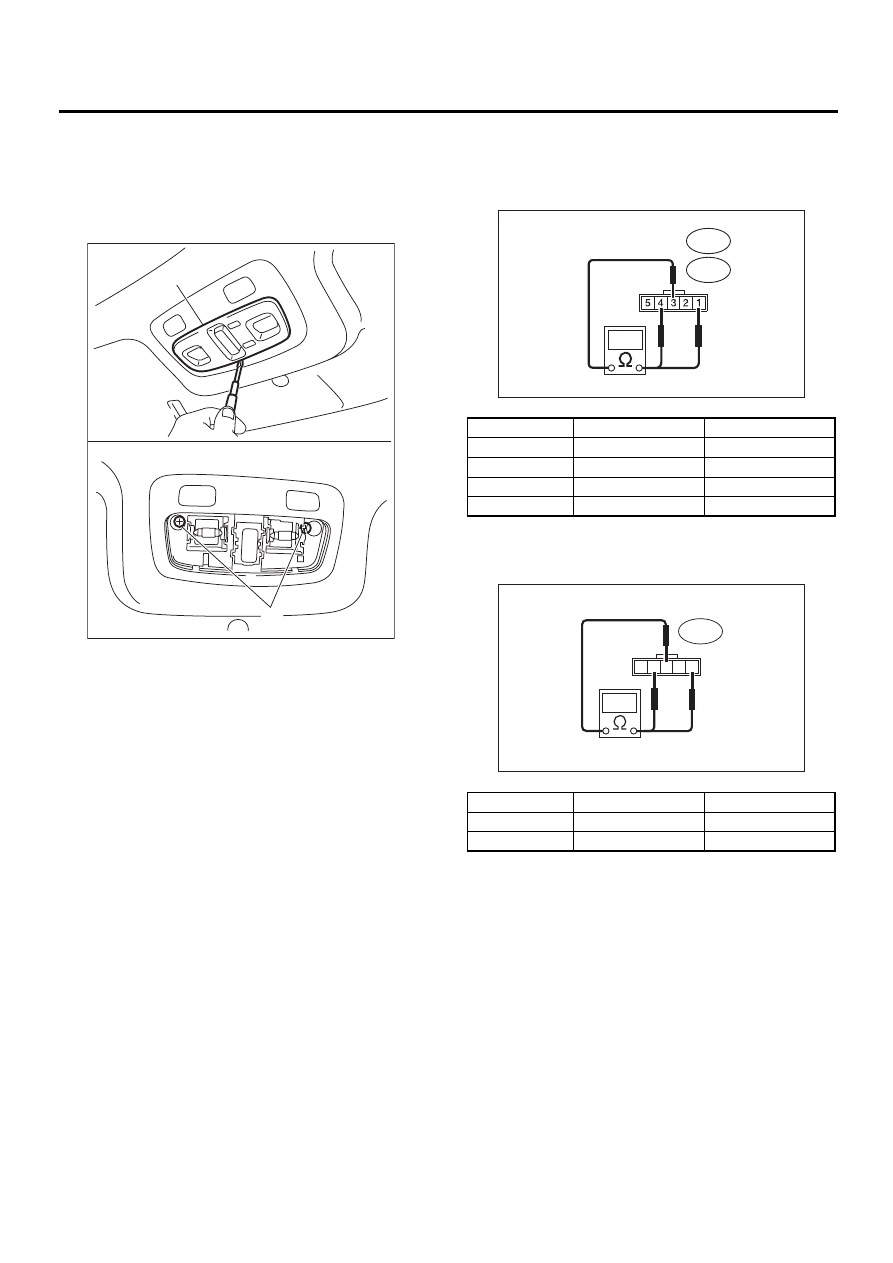

SUNROOF SWITCH

6. Sunroof Switch

A: REMOVAL

1) Disconnect ground cable from battery.
2) Remove spot light lens (A) and sunroof switch
mounting screw (B).

3) Disconnect harness connectors and remove
sunroof switch.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1. SEDAN

Measure sunroof switch resistance.

2. WAGON

Measure sunroof switch resistance.

SR-00039

( A )

( B )

Switch position

Terminal No.

Standard

Open

S1: 3 and 4

Less than 1

Ω

Close

S1: 1 and 3

Less than 1

Ω

Tilt-up

S2: 3 and 4

Less than 1

Ω

Tilt-down

S2: 1 and 3

Less than 1

Ω

Switch position

Terminal No.

Standard

Open

3 and 4

Less than 1

Ω

Close

1 and 3

Less than 1

Ω

SR-00040

S1

S2

SR-00041

R128

3

4

5

1

2
