Subaru Legacy III (2000-2003 year). Manual - part 976

EI-6

EXTERIOR/INTERIOR TRIM

GENERAL DESCRIPTION

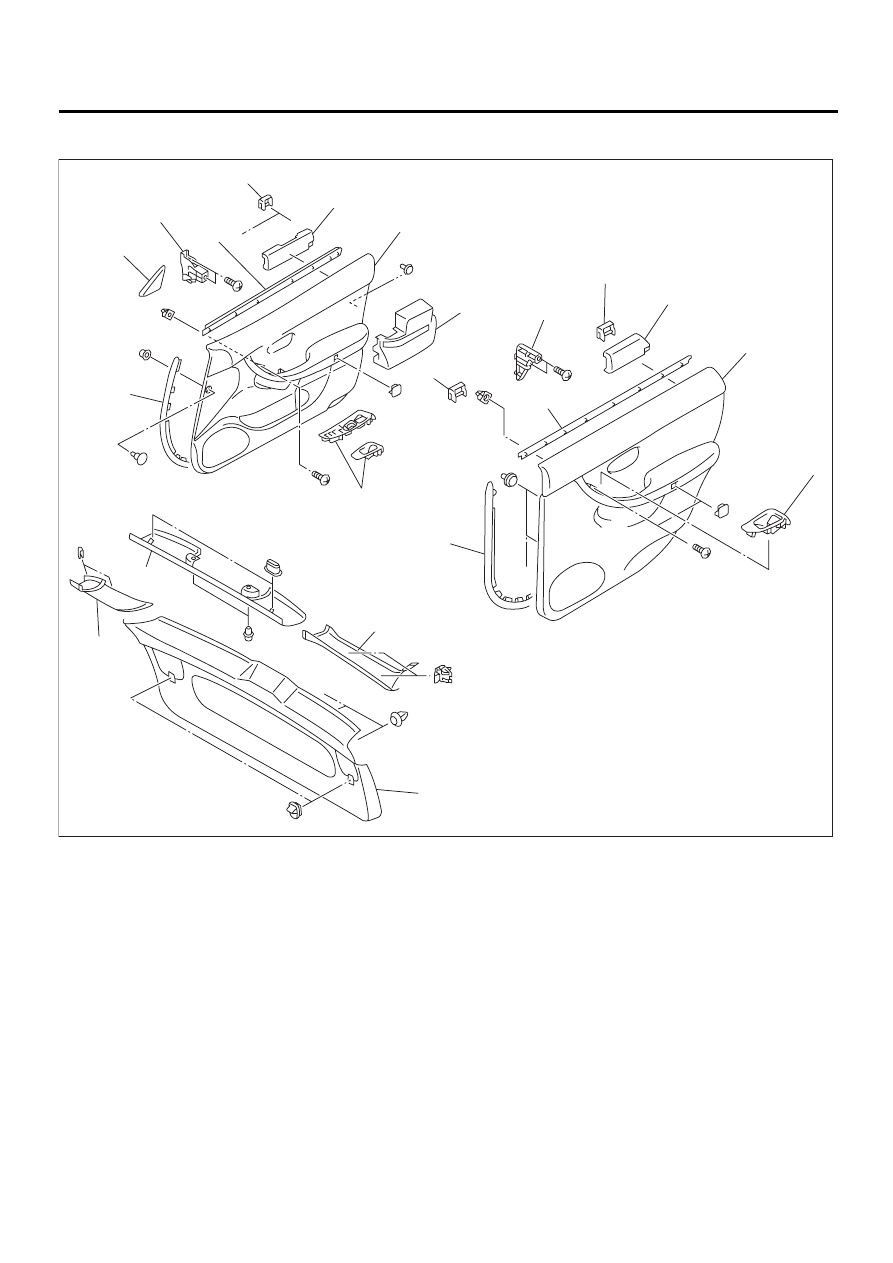

5. DOOR TRIM

(A) Front door

(3) Weatherstrip upper

(8) Weatherstrip lower

(B) Rear door

(4) Clip

(9) Upper trim

(C) Rear gate

(5) Pad

(10) Side trim

(1) Gusset cover

(6) Trim panel

(11) Lower trim

(2) Bracket

(7) Power window switch cover

EI-00287

( 1 )

( 2 )

( 2 )

( 3 )

( 3 )

( 4 )

( 4 )

( 4 )

( 5 )

( 5 )

( 5 )

( 6 )

( 6 )

( 7 )

( 7 )

( 8 )

( 8 )

( 9 )

(10)

(11)

( A )

( B )

( C )

(10)

EI-7

EXTERIOR/INTERIOR TRIM

GENERAL DESCRIPTION

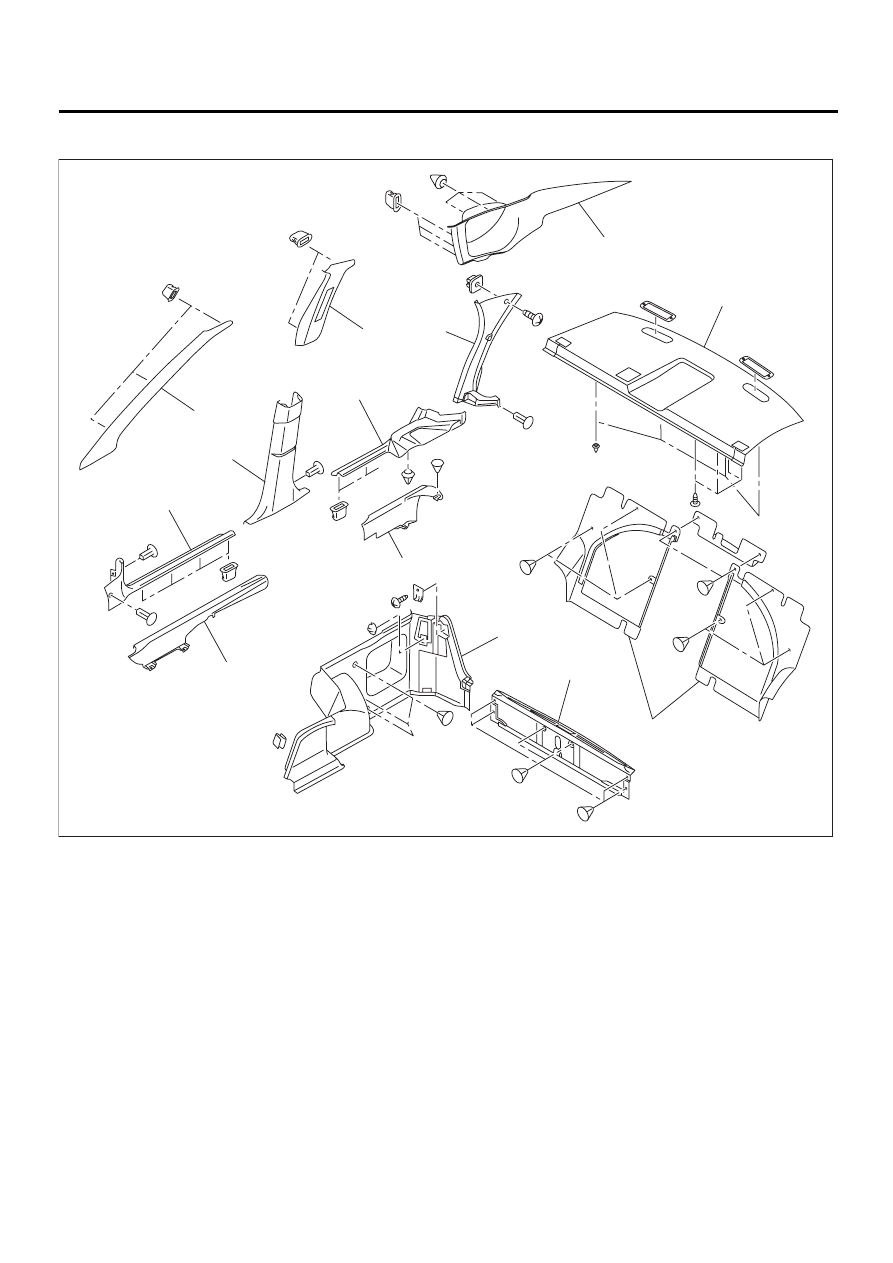

6. INNER TRIM (SEDAN)

(1) Front pillar upper trim

(6) Trunk rear trim

(11) Side sill rear lower cover

(2) Center pillar upper trim

(7) Trunk side trim

(12) Front pillar lower trim

(3) Rear pillar upper trim

(8) Rear pillar lower trim

(13) Side sill front lower cover

(4) Rear shelf trim

(9) Side sill rear upper cover

(5) Rear bulk trim

(10) Center pillar lower trim

EI-00290

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

(12)

(13)

EI-8

EXTERIOR/INTERIOR TRIM

GENERAL DESCRIPTION

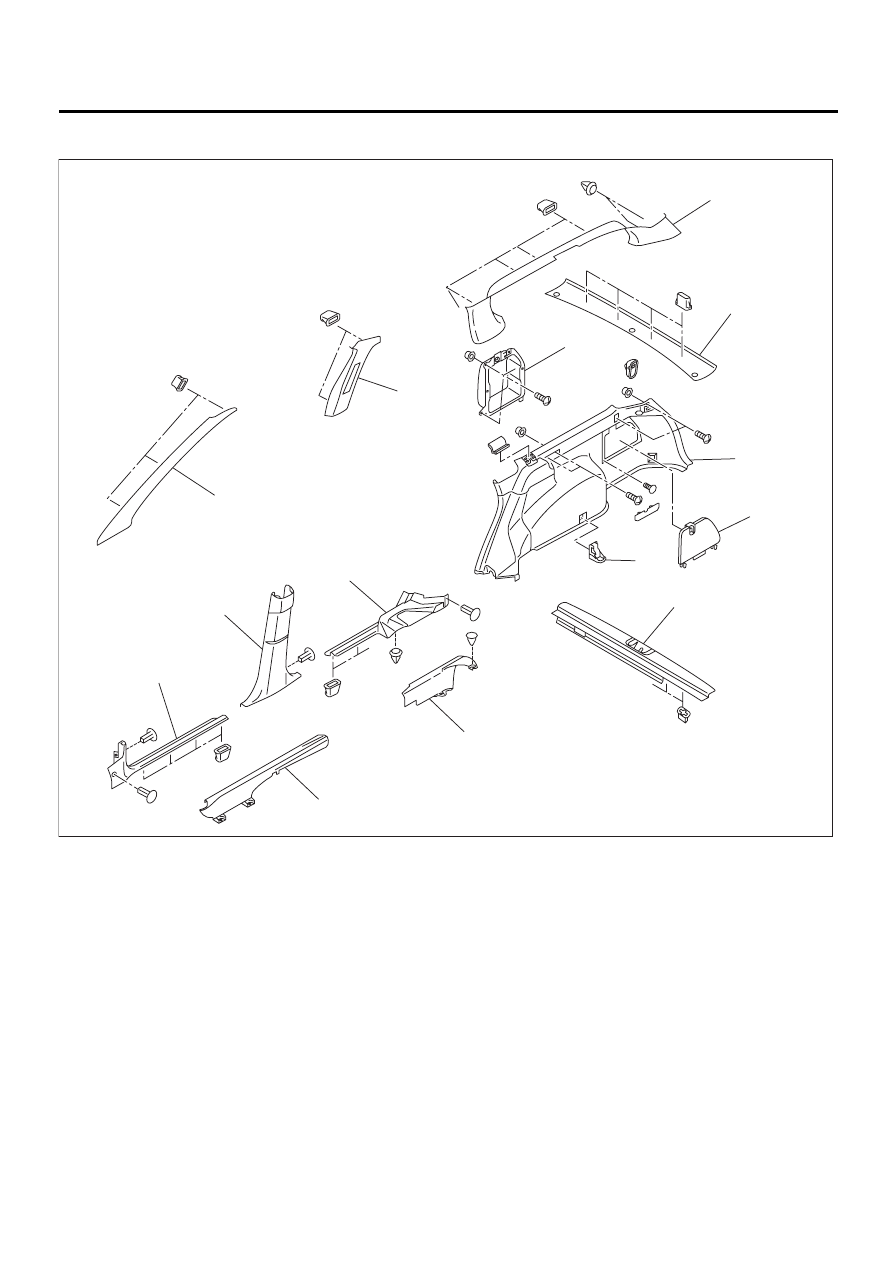

7. INNER TRIM (WAGON)

(1) Front pillar upper trim

(6) Rear quarter lower trim

(11) Center pillar lower trim

(2) Center pillar upper trim

(7) Lid

(12) Side sill rear lower cover

(3) Rear pillar upper trim

(8) Rear skirt trim

(13) Front pillar lower trim

(4) Rear rail trim

(9) Hook

(14) Side sill front lower cover

(5) Pocket

(10) Side sill rear upper cover

EI-00291

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

(12)

(13)

(14)

EI-9

EXTERIOR/INTERIOR TRIM

GENERAL DESCRIPTION

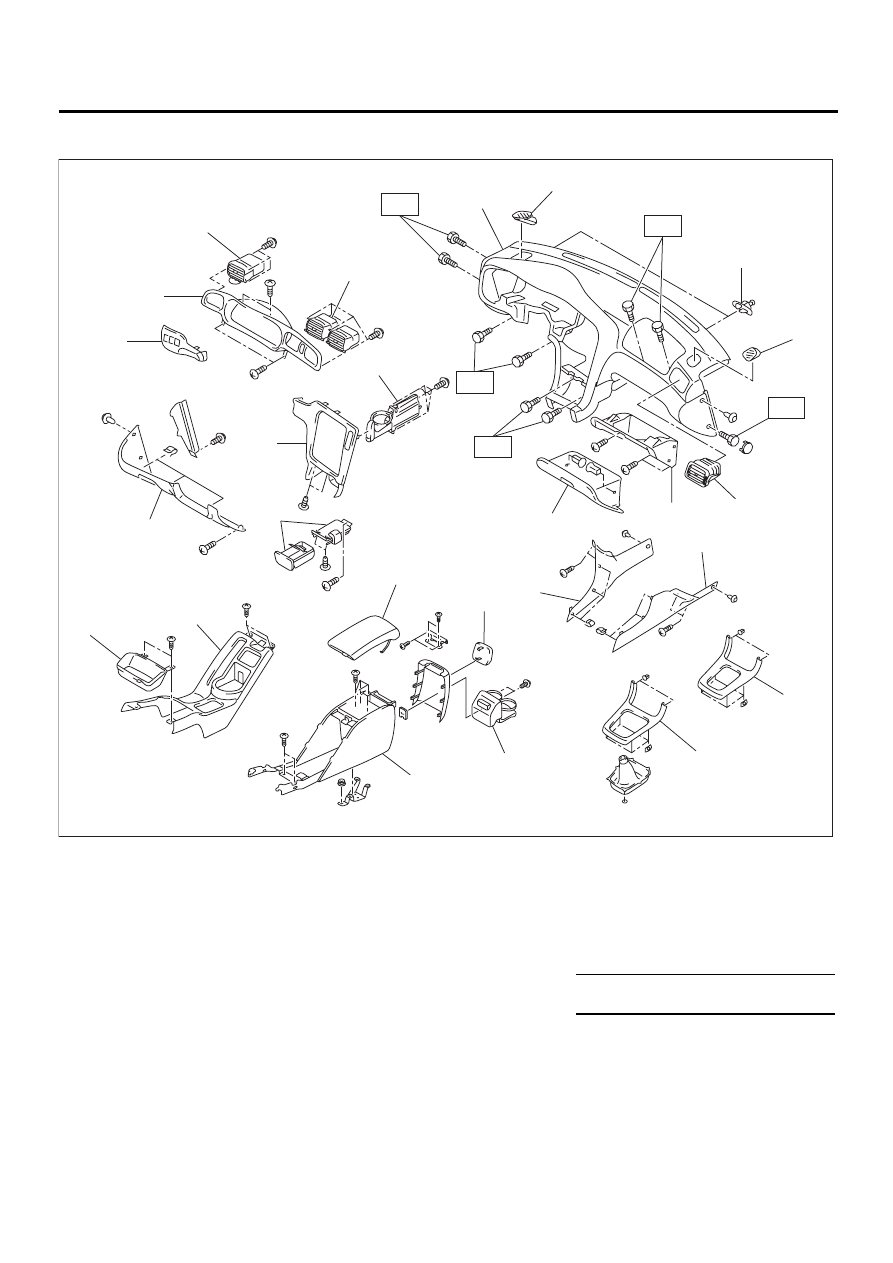

8. INSTRUMENT PANEL

NOTE:
This illustration is for LHD model.
The location for RHD model is symmetrically opposite.

(1) Pad & frame

(11) Front cover (MT)

(21) Front cup holder

(2) Grille side (D)

(12) Rear cup holder

(22) Switch panel

(3) Hook

(13) Console box

(23) Meter visor

(4) Grille side (P)

(14) Rear ash tray

(24) Grille vent (D)

(5) Grille vent (P)

(15) Console lid

(25) Grille center

(6) Glove box panel

(16) Console cover

(7) Glove box lid

(17) Tray

Tightening torque: N·m (kgf-m, ft-lb)

(8) Center panel side (D)

(18) Ash tray

T: 7

±±±±

1 (0.7

±±±±

0.1, 5.1

±±±±

0.7)

(9) Center panel side (P)

(19) Lower cover

(10) Front cover (AT)

(20) Center panel

EI-00292

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

(12)

(13)

(14)

(15)

(16)

(17)

(18)

(19)

(20)

(21)

(25)

(24)

(23)

(22)

T

T

T

T

T
