Subaru Legacy III (2000-2003 year). Manual

BS-3

BODY STRUCTURE

DATUM POINTS

2. Datum Points

A: LOCATION

NOTE:
• Datum points are specified for body repair.
• Guide holes, locators, and indents are provided to facilitate panel replacement and to increase alignment
accuracy.
• Both right and left reference points are symmetrical.

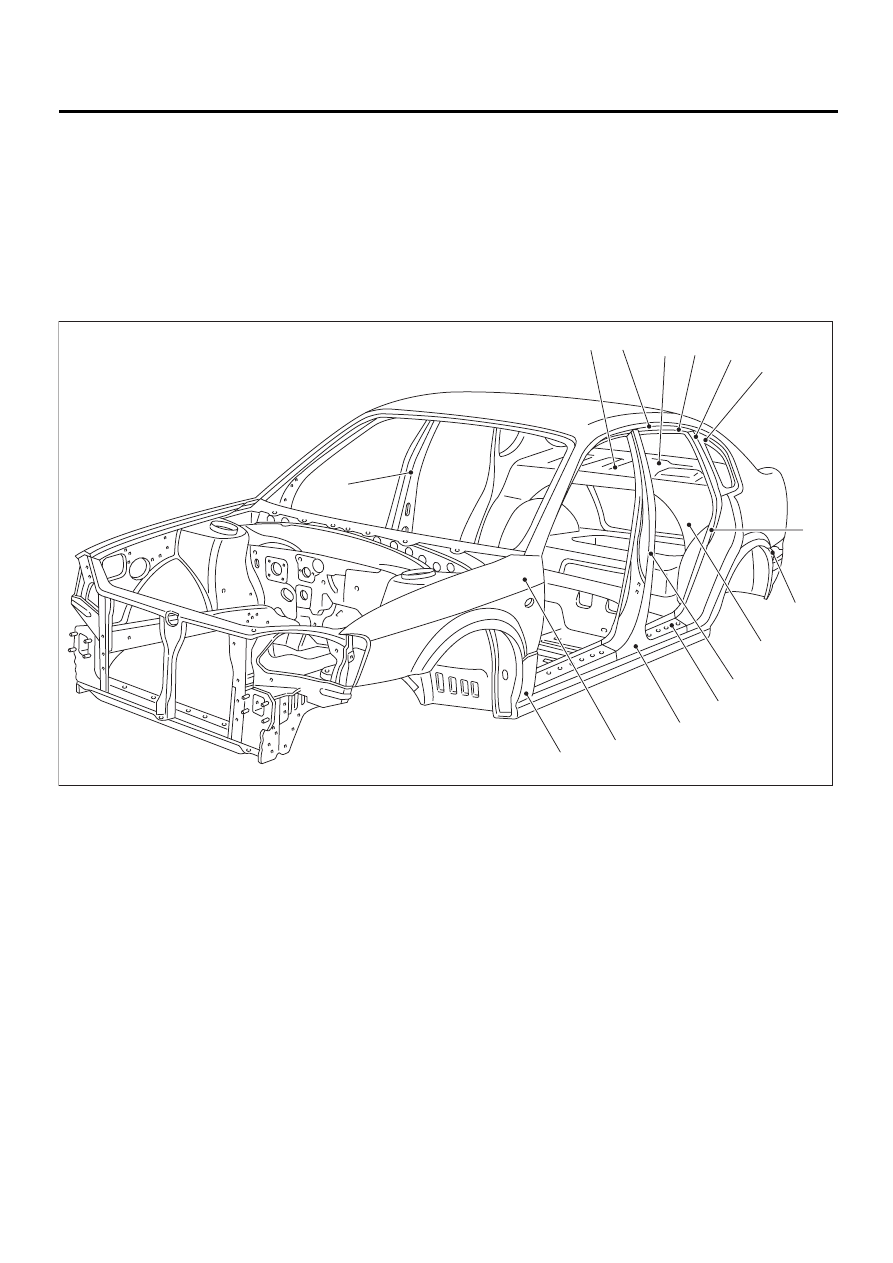

1. ROOM SECTION

(13) Front fener attaching hole at front

pillar center portion M6

(23) Rear quarter outer door switch

attaching hole 20 mm (0.79 in)
dia.

(87) Six light glass attaching hole 6.2

mm (0.244 in) dia.

(14) Front fender attaching hole at

front pillar lower portion M6

(88) Retainer attaching square hole at

side rail outer 8

8 mm (0.31

0.31 in)

(64) Center pillar (LWR) gauge hole 16

mm (0.63 in) dia.

(19) Retainer attaching hole at side rail

outer 3.2 mm (0.126 in) dia.

(81) Panel rear center (UPR) gauge

hole 8 mm (0.31 in) dia.

(89) Retainer attaching square hole at

rear quarter outer 8

8 mm (0.31

0.31 in)

(20) Center pillar outer hole 14 mm

(0.55 in) dia.

(82) Bulk head rear trim clip hole 7 mm

(0.28 in) dia.

(21) Front seat belt adjust plate attach-

ing hole M10

(92) Rear panel center hole (UPR) 6

mm (0.24 in) dia.

(85) Rear quarter outer gauge hole 20

mm (0.79 in) dia.

(22) Side sill outer hole 20 mm (0.79

in) dia.

BS-00064

(20)

(22)

(14)

(19)

(13)

(81)

(89)

(23)

(64)

(85)

(82)

(87)

(88)

(92)

(21)
