Subaru Legacy III (2000-2003 year). Manual - part 944

GW-36

GLASS/WINDOWS/MIRRORS

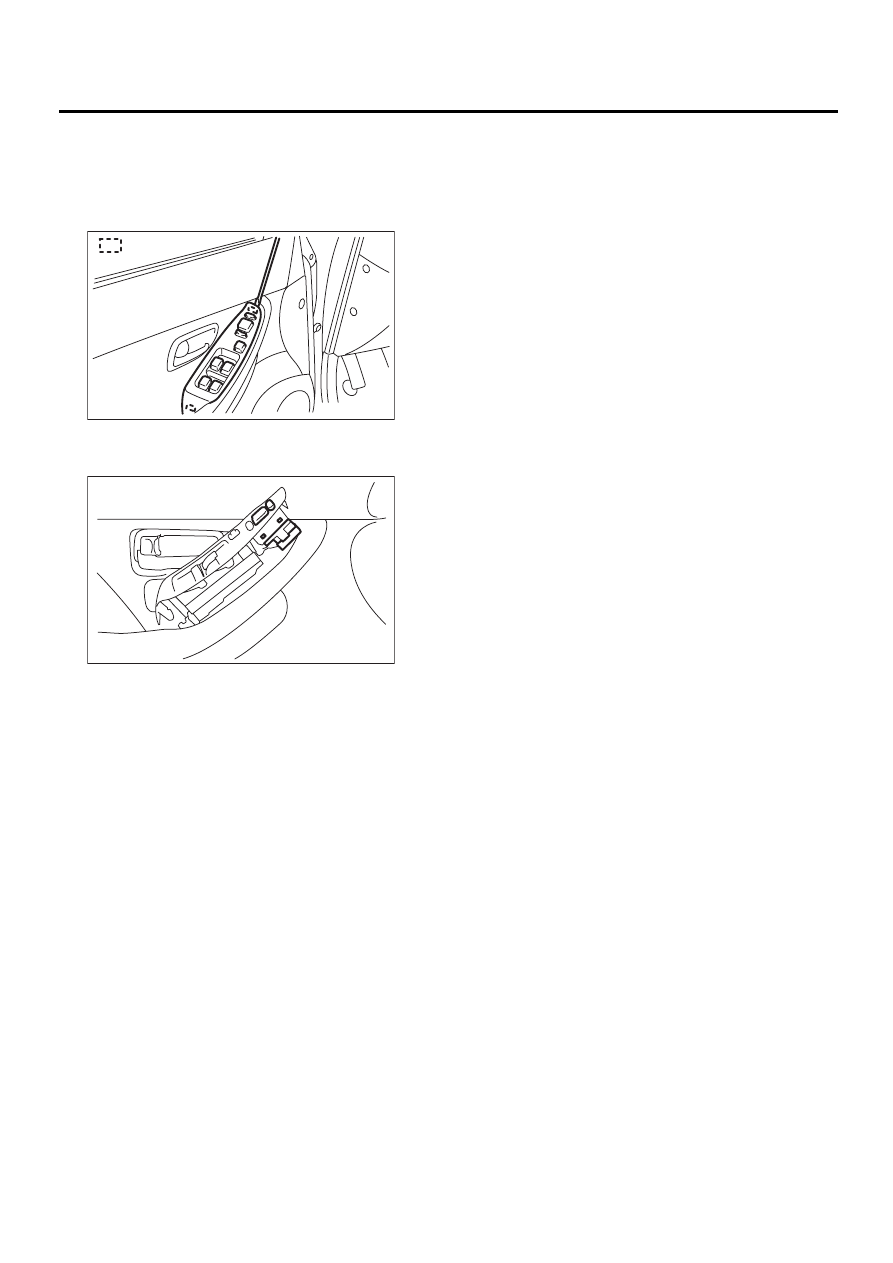

REMOTE CONTROL MIRROR SWITCH

21.Remote Control Mirror

Switch

A: REMOVAL

1) Remove power window main switch panel.

2) Remove four hook to remove remote control mir-
ror switch.

B: INSTALLATION

Install in the reverse order of removal.

GW-00123

: ( A )

GW-00133

GW-37

GLASS/WINDOWS/MIRRORS

REMOTE CONTROL MIRROR SWITCH

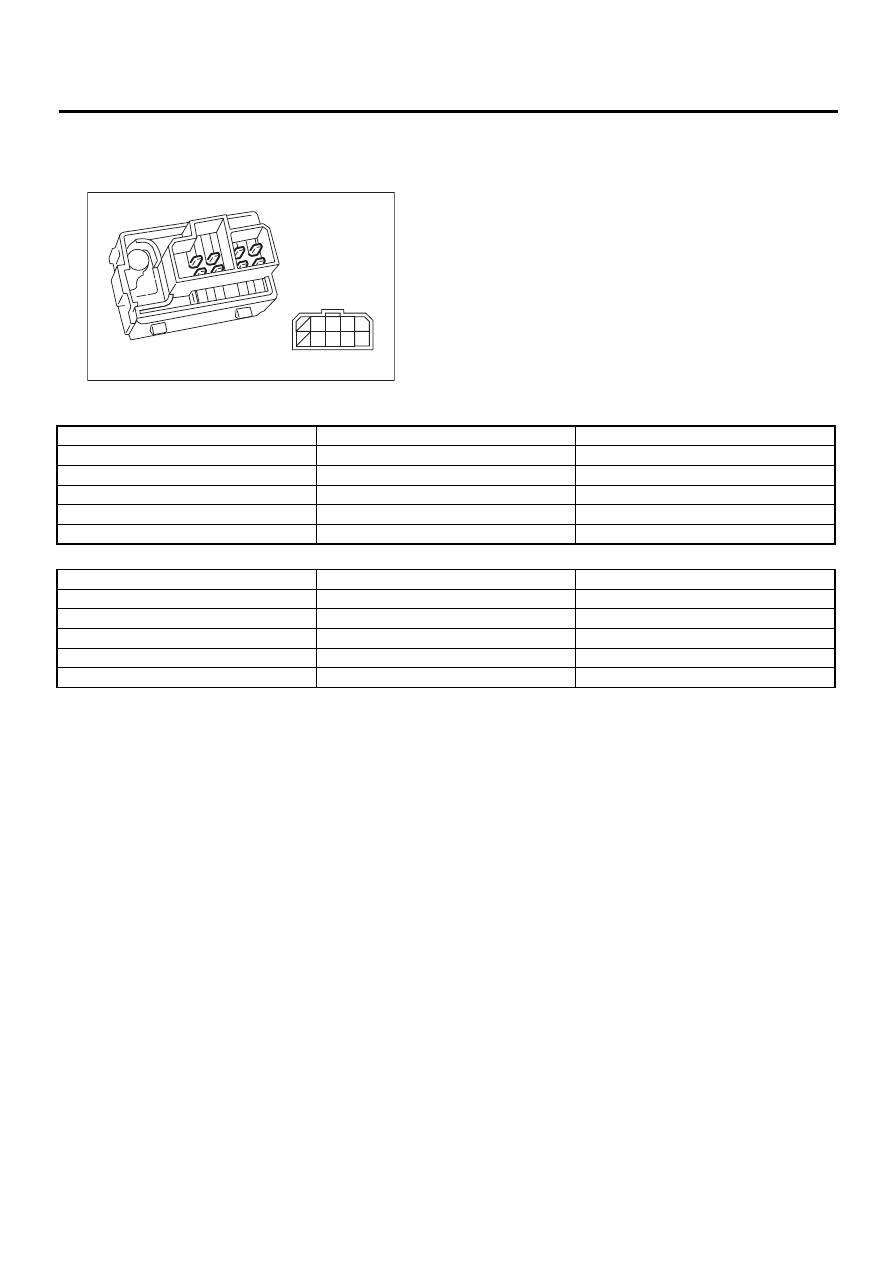

C: INSPECTION

Move rearview mirror switch to each position and
check continuity between terminals.

Change over switch left position:

Change over switch right position:

If NG, replace the switch.

GW-00134

4 3 2

6

9 8 7

1

Switch position

Terminal No.

Standard

OFF

—

More than 1 M

Ω

UP

7 and 4, 2 and 1

Less than 1

Ω

DOWN

7 and 2, 4 and 1

Less than 1

Ω

LEFT

9 and 4, 2 and 1

Less than 1

Ω

RIGHT

9 and 2, 4 and 1

Less than 1

Ω

Switch position

Terminal No.

Standard

OFF

—

More than 1 M

Ω

UP

6 and 4, 2 and 1

Less than 1

Ω

DOWN

6 and 2, 4 and 1

Less than 1

Ω

LEFT

8 and 4, 2 and 1

Less than 1

Ω

RIGHT

8 and 2, 4 and 1

Less than 1

Ω

GW-38

GLASS/WINDOWS/MIRRORS

WIPER DEICER

22.Wiper Deicer

A: INSPECTION

Refer to INSPECTION under Rear Window Defog-
ger. <Ref. to GW-32, INSPECTION, Rear Window
Defogger.>

B: REPAIR

Refer to REPAIR under Rear Window Defogger.
<Ref. to GW-32, REPAIR, Rear Window Defog-
ger.>

GW-39

GLASS/WINDOWS/MIRRORS

WIPER DEICER SWITCH

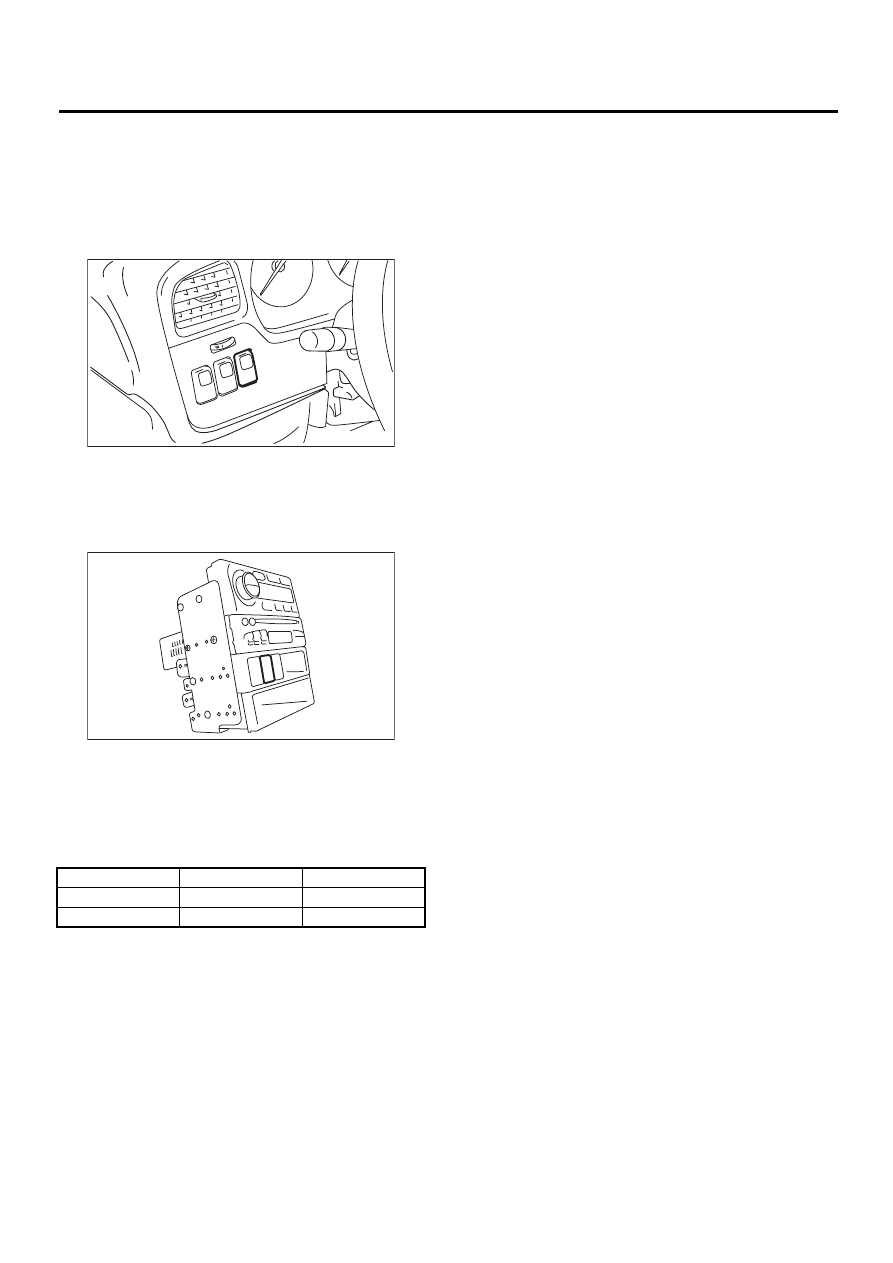

23.Wiper Deicer Switch

A: REMOVAL

1. RHD MODEL

Remove driver side switch panel, and then remove
wiper deicer switch.

2. LHD MODEL

Remove radio bracket, and then remove wiper de-
icer switch. <Ref. to ET-5, REMOVAL, Radio
Body.>

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

Move wiper deicer switch to each position and
check continuity between terminals.

If NG, replace the switch.

Switch position

Terminal No.

Standard

OFF

—

More than 1 M

Ω

ON

3 and 5

Less than 1

Ω

GW-00135

GW-00143
