CL-8

CLUTCH SYSTEM

GENERAL DESCRIPTION

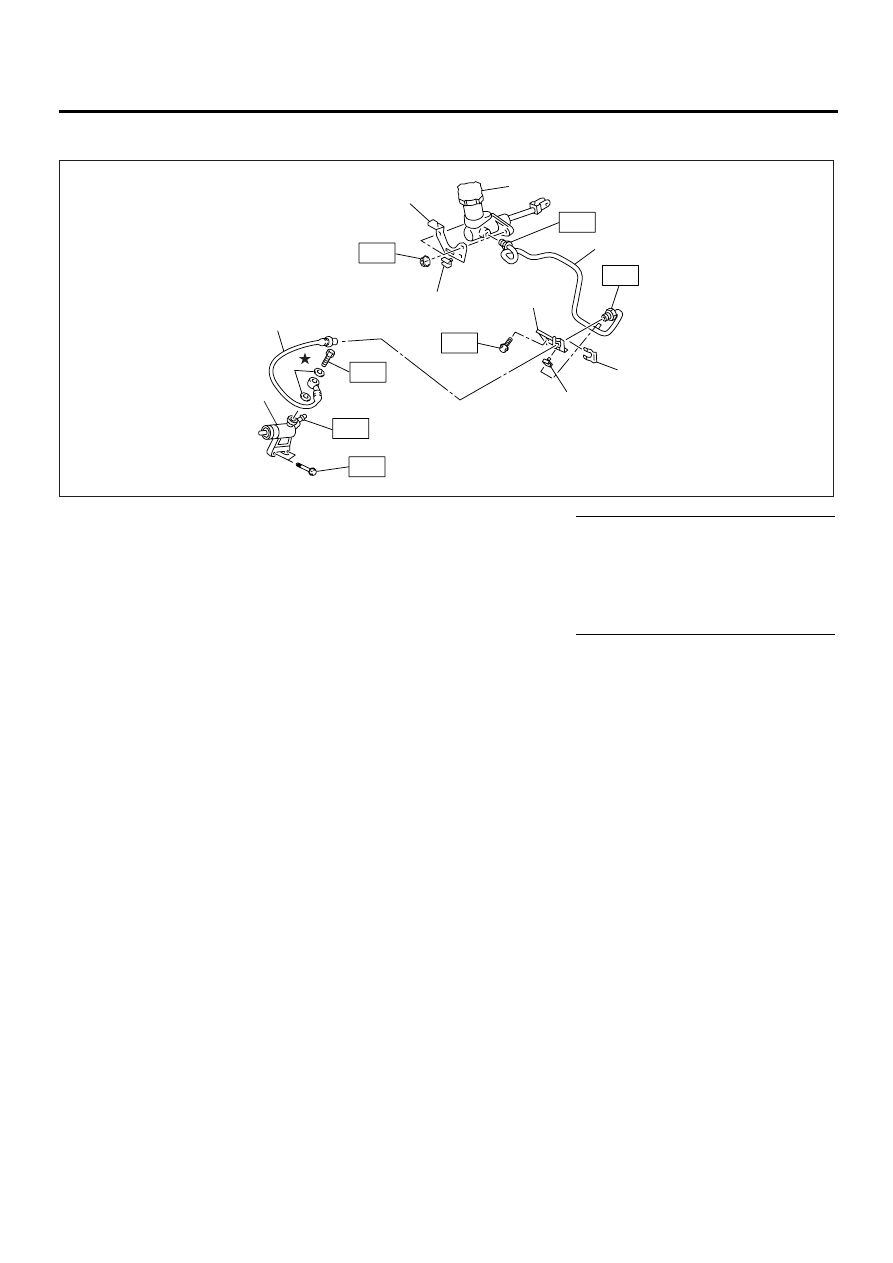

5. CLUTCH PIPE AND HOSE (TURBO MODEL)

(1) Clip

(7) Clutch hose

Tightening torque: N·m (kgf-m, ft-lb)

(2) Bracket A

(8) Washer

T1: 8 (0.8, 5.8)

(3) Master cylinder ASSY

(9) Operating cylinder

T2: 15 (1.5, 10.8)

(4) Clutch pipe

T3: 18 (1.8, 13.0)

(5) Clamp

T4: 25 (2.5, 18.1)

(6) Bracket B

T5: 37 (3.8, 27.5)

CL-00172

(1)

(5)

 (6)

(4)

(3)

(2)

(1)

(7)

(8)

(9)

T2

T2

T3

T4

T5

T5

T1

CL-9

CLUTCH SYSTEM

GENERAL DESCRIPTION

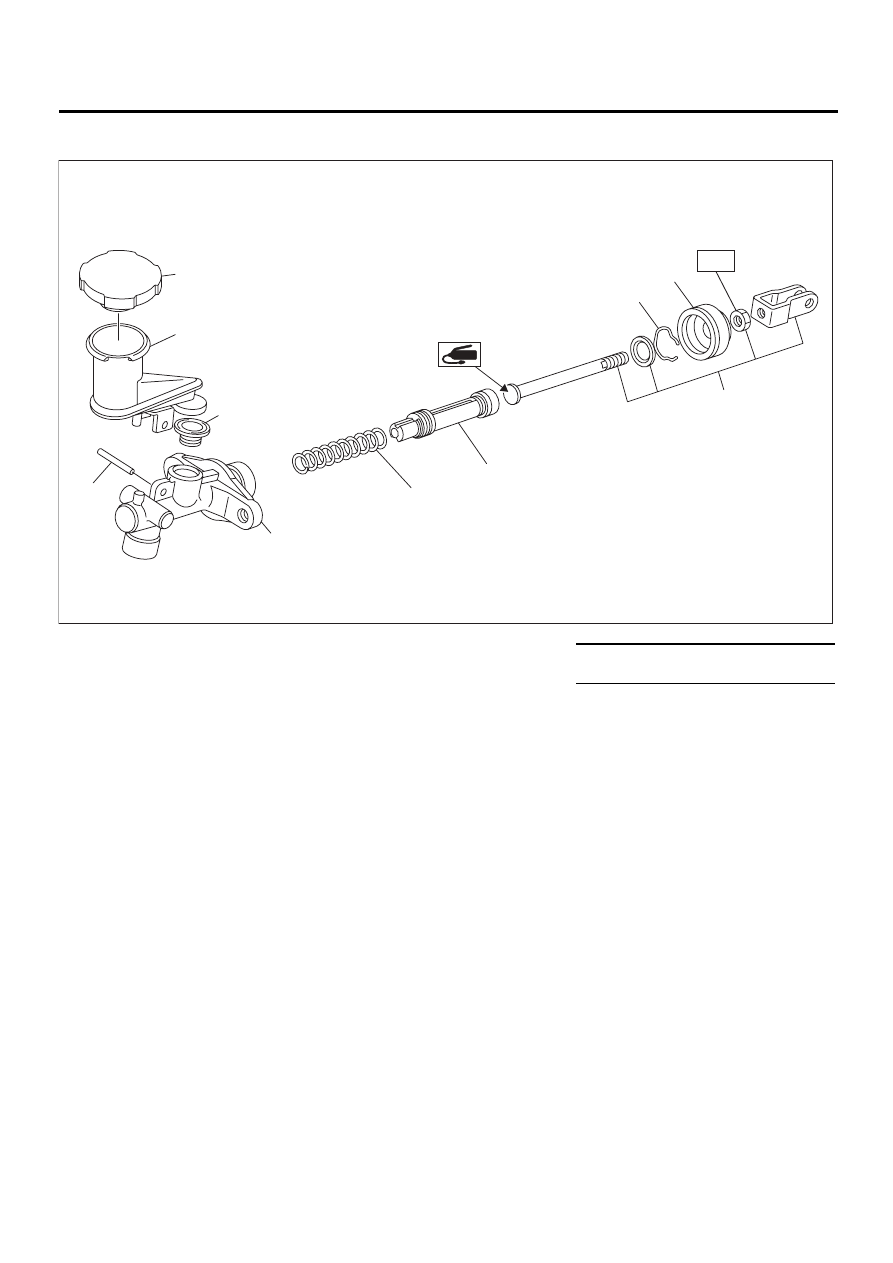

6. MASTER CYLINDER (NON-TURBO MODEL)

(1) Reservoir cap

(6) Return spring

Tightening torque: N·m (kgf-m, ft-lb)

(2) Reservoir tank

(7) Piston

T: 10 (1.0, 7)

(3) Oil seal

(8) Push rod

(4) Straight pin

(9) Piston stop ring

(5) Master cylinder

(10) Cylinder boot

CL-00151

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

T

CL-10

CLUTCH SYSTEM

GENERAL DESCRIPTION

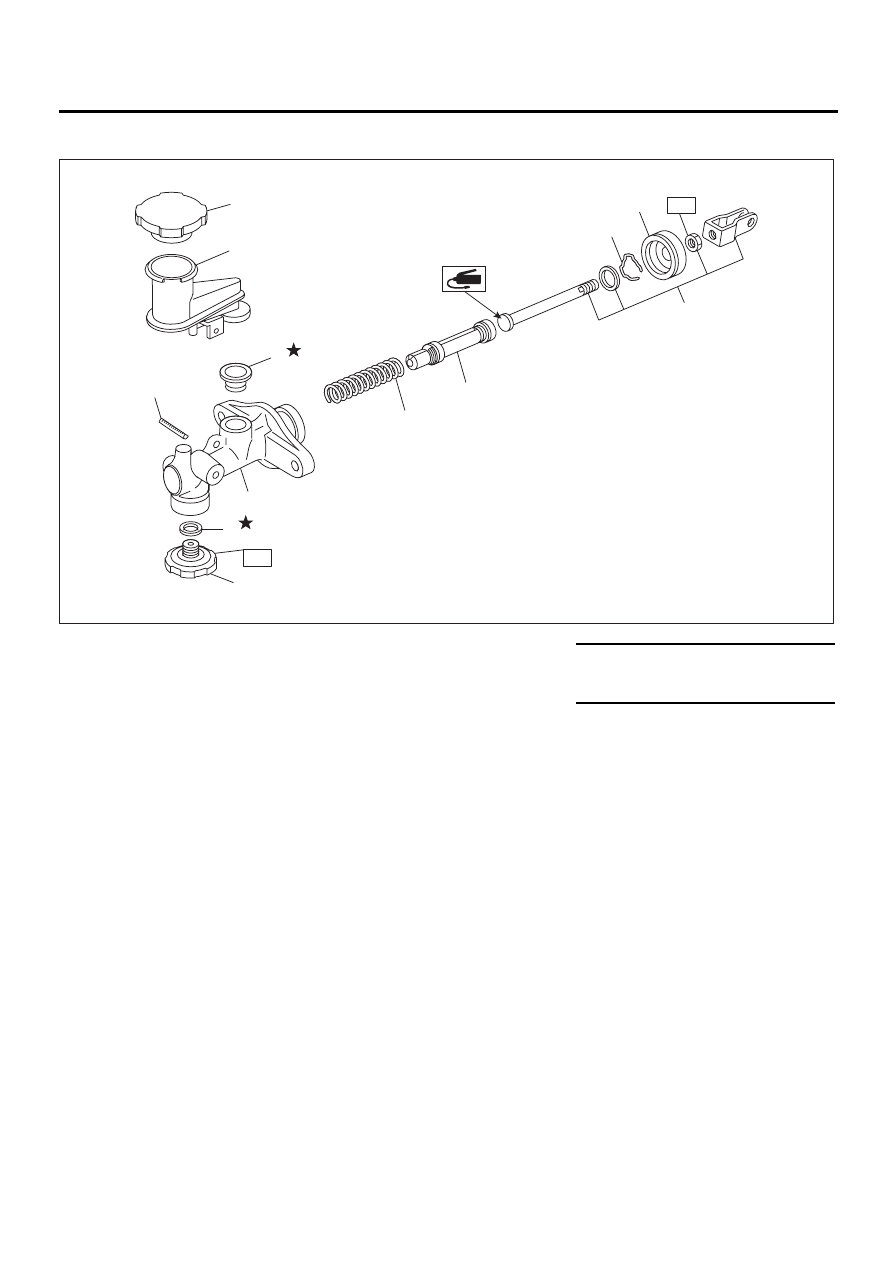

7. MASTER CYLINDER (TURBO MODEL)

(1) Reservoir cap

(7) Gasket

Tightening torque: N·m (kgf-m, ft-lb)

(2) Reservoir tank

(8) Return spring

T1: 10 (1.0, 7)

(3) Oil seal

(9) Piston

T2: 46.6 (4.75, 34.4)

(4) Straight pin

(10) Push rod

(5) Master cylinder

(11) Piston stop ring

(6) Clutch damper

(12) Cylinder boot

CL-00173

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

T2

T1

(9)

(10)

(11)

(12)

CL-11

CLUTCH SYSTEM

GENERAL DESCRIPTION

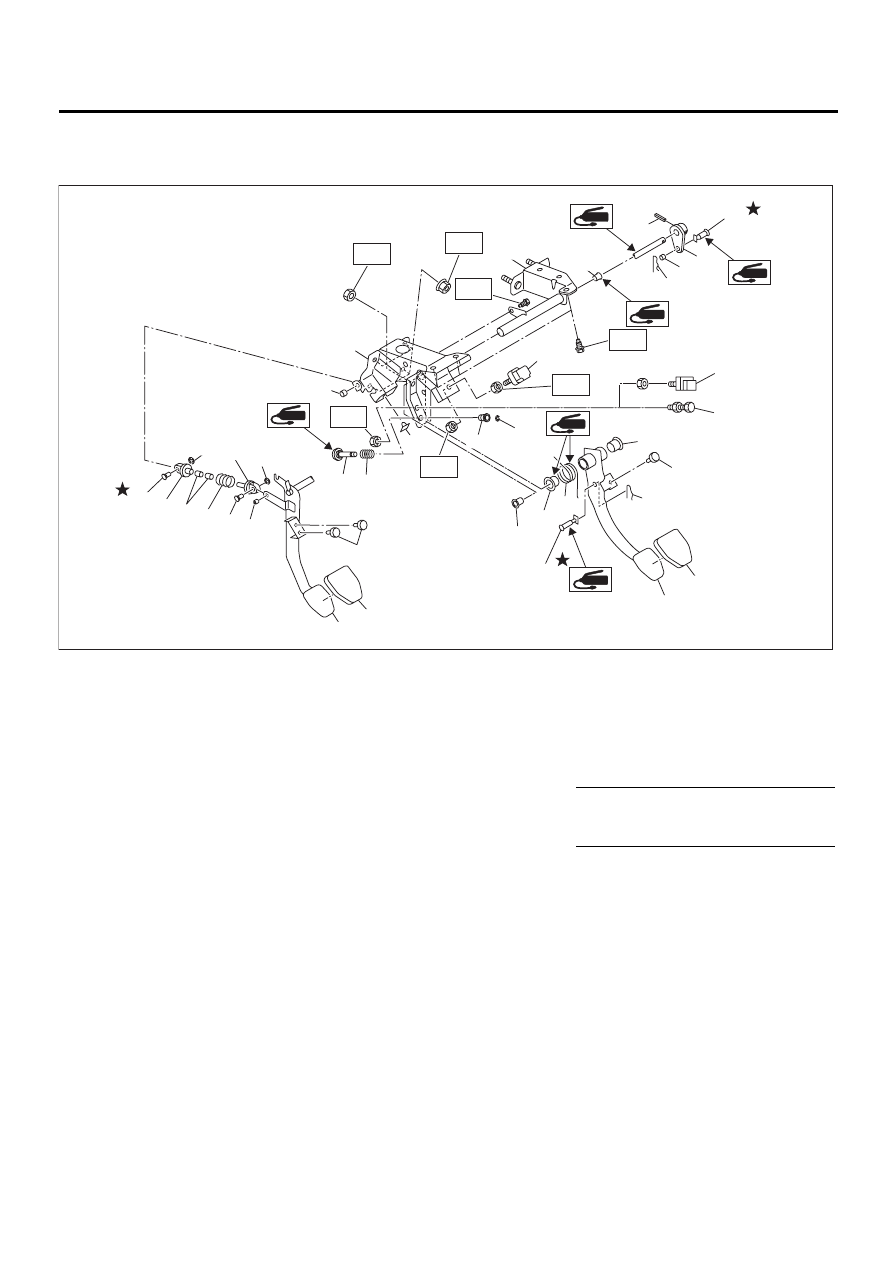

8. CLUTCH PEDAL

• LHD Model

(1) Stopper

(12) Clutch clevis pin

(23) Pedal bracket

(2) Bushing

(13) Assist rod A

(24) Clutch master cylinder bracket

(3) Spring pin

(14) Clip

(25) Lever

(4) Snap pin

(15) Assist spring

(26) Adjusting bolt

(5) Brake pedal pad

(16) Assist bushing

(27) Clutch switch (With cruise control)

(6) Brake pedal

(17) Assist rod B

(7) Clevis pin

(18) Spring A (If equipped)

Tightening torque: N·m (kgf-m, ft-lb)

(8) Brake pedal spring

(19) Rod  (If equipped)

T1: 8 (0.8, 5.8)

(9) Clutch pedal pad

(20) Bushing B  (If equipped)

T2: 18 (1.8, 13.0)

(10) Clutch pedal

(21) Clip  (If equipped)

(11) Bushing C

(22) Stop light switch

CL-00174

( 1 )

( 4 )

( 2 )

( 2 )

( 2 )

( 1 )

( 2 )

( 3 )

( 4 )

( 7 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

( 1 )

(10)

(11)

(12)

(13)

(14)

(14)

(15)

(16)

(17)

(12)

(18)

(19)

(20)

(21)

(23)

(11)

(22)

(25)

(24)

(11)

T1

T1

T1

T1

T2

T2

T2

(26)

(27)
