CL-4

CLUTCH SYSTEM

GENERAL DESCRIPTION

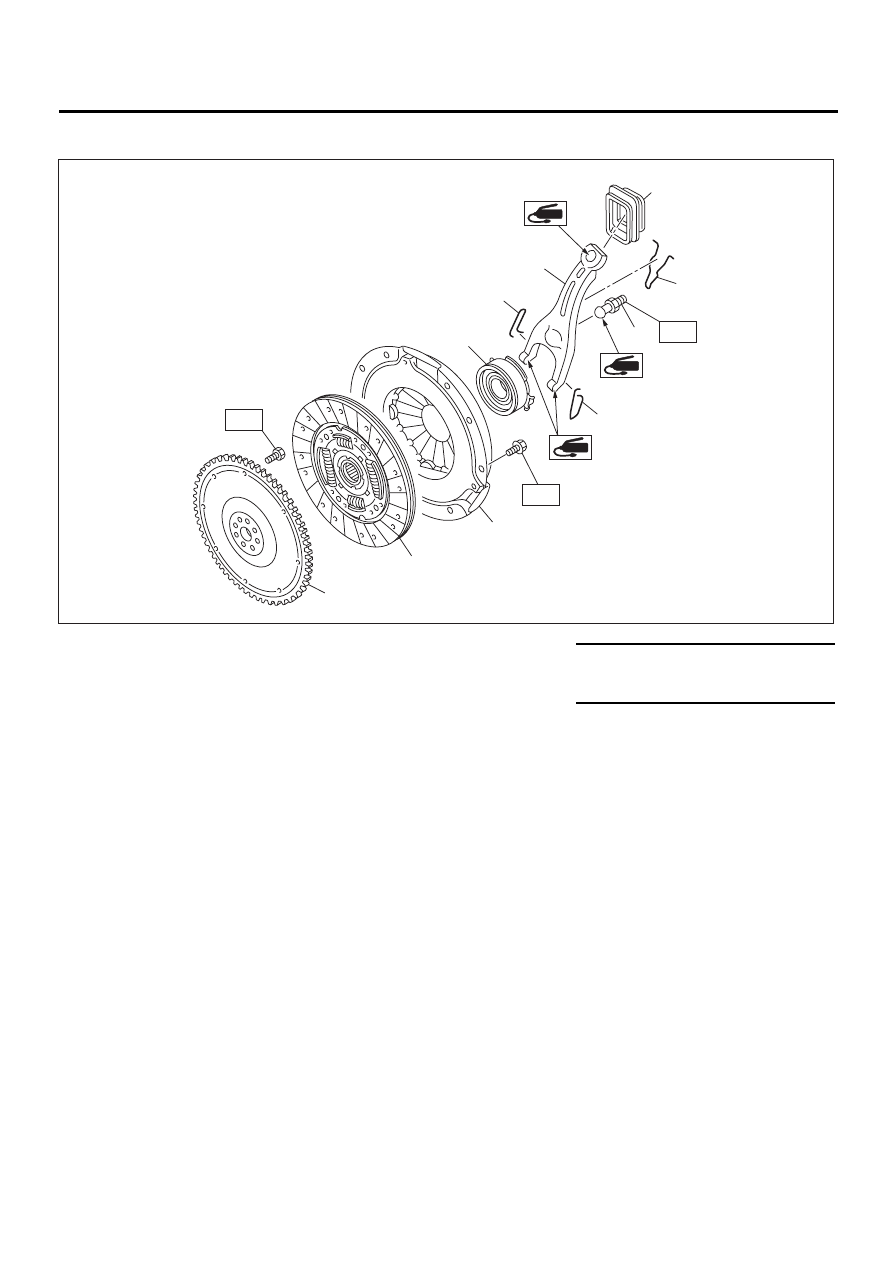

2. CLUTCH ASSEMBLY FOR EXCEPT EUROPE AND AUSTRALIA NON-TURBO MODELS

(1) Clutch release lever sealing

(6) Clutch release bearing

Tightening torque: N·m (kgf-m, ft-lb)

(2) Retainer spring

(7) Clutch cover

T1: 15.7 (1.6, 11.6)

(3) Pivot

(8) Clutch disc

T2: 72 (7.3, 52.8)

(4) Clutch release lever

(9) Flywheel

(5) Clip

CL-00135

T2

( 9 )

( 8 )

( 7 )

T2

( 5 )

T1

( 3 )

( 2 )

( 1 )

( 4 )

( 5 )

( 6 )

CL-5

CLUTCH SYSTEM

GENERAL DESCRIPTION

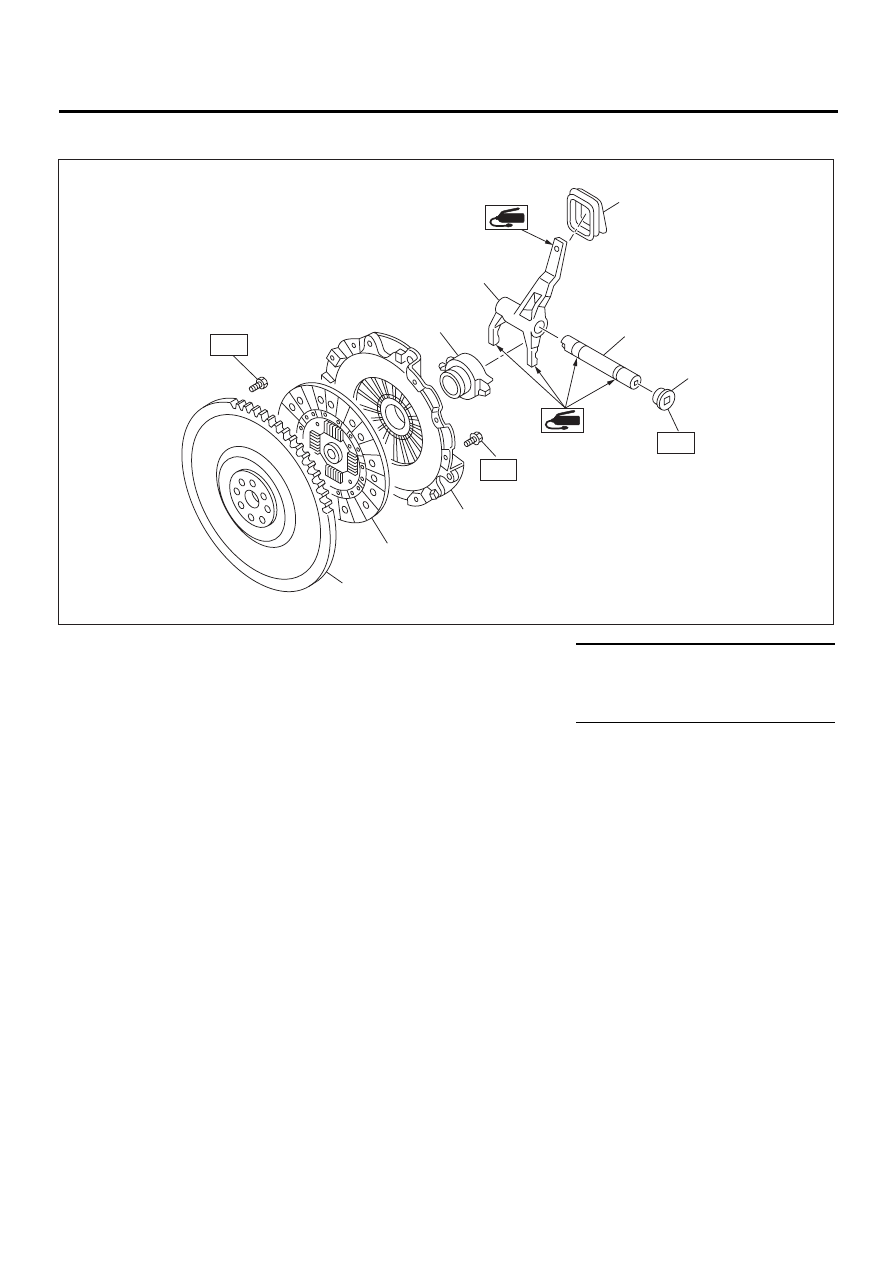

3. CLUTCH ASSEMBLY (TURBO MODEL)

(1) Clutch release lever sealing

(6) Clutch cover

Tightening torque: N·m (kgf-m, ft-lb)

(2) Clutch release lever

(7) Clutch disc

T1: 15.7 (1.6, 11.6)

(3) Clutch release lever shaft

(8) Flywheel

T2: 44 (4.5, 32.5)

(4) Plug

T3: 72 (7.3, 52.8)

(5) Clutch release bearing

CL-00002

T3

T1

T2

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

CL-6

CLUTCH SYSTEM

GENERAL DESCRIPTION

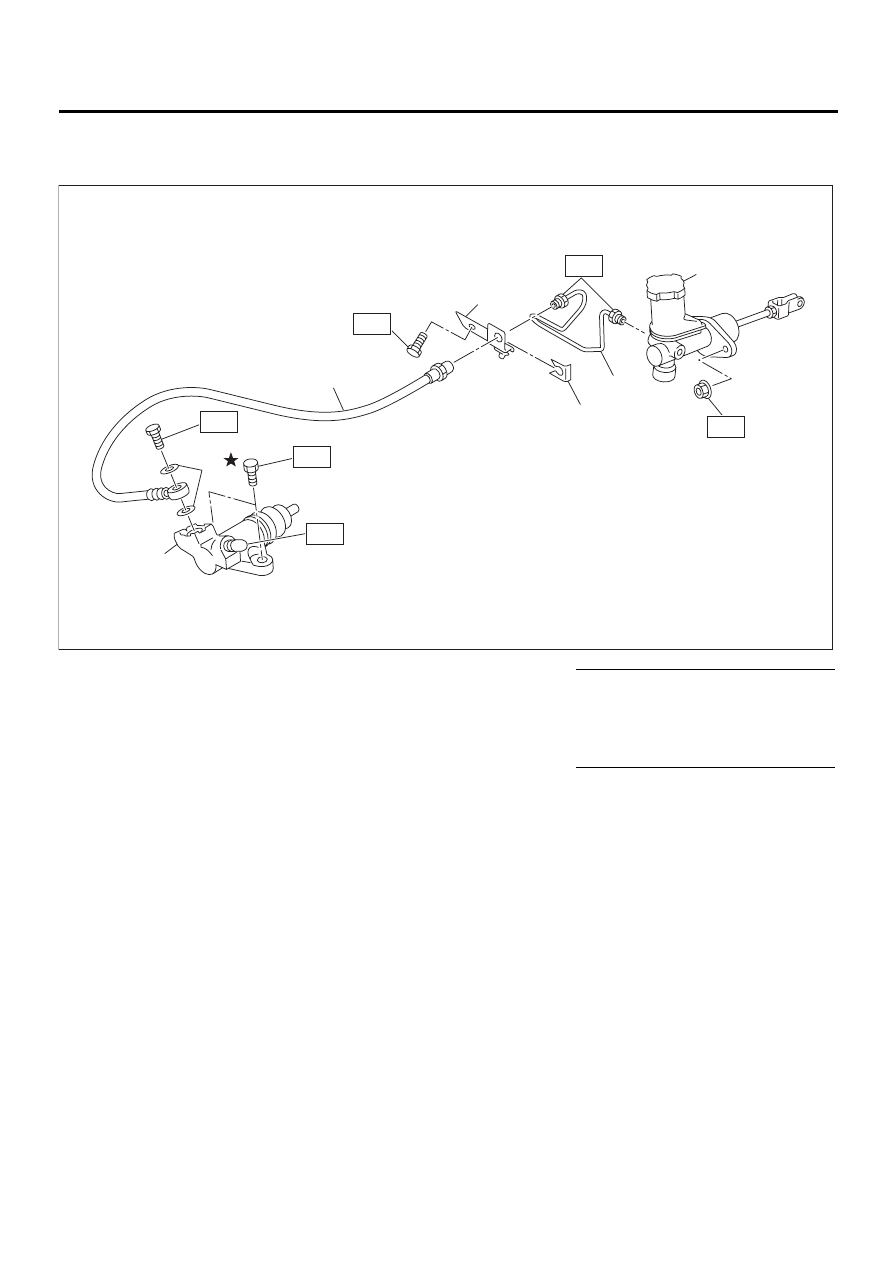

4. CLUTCH PIPE AND HOSE (NON-TURBO MODEL)

• LHD Model

(1) Master cylinder ASSY

(6) Washer

Tightening torque: N·m (kgf-m, ft-lb)

(2) Clutch pipe

(7) Operating cylinder

T1: 8 (0.8, 5.8)

(3) Clamp

T2: 15 (1.5, 10.8)

(4) Bracket

T3: 18 (1.8, 13.0)

(5) Clutch hose

T4: 37 (3.8, 27.5)

CL-00150

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

T1

T4

T4

T2

T3

T3

CL-7

CLUTCH SYSTEM

GENERAL DESCRIPTION

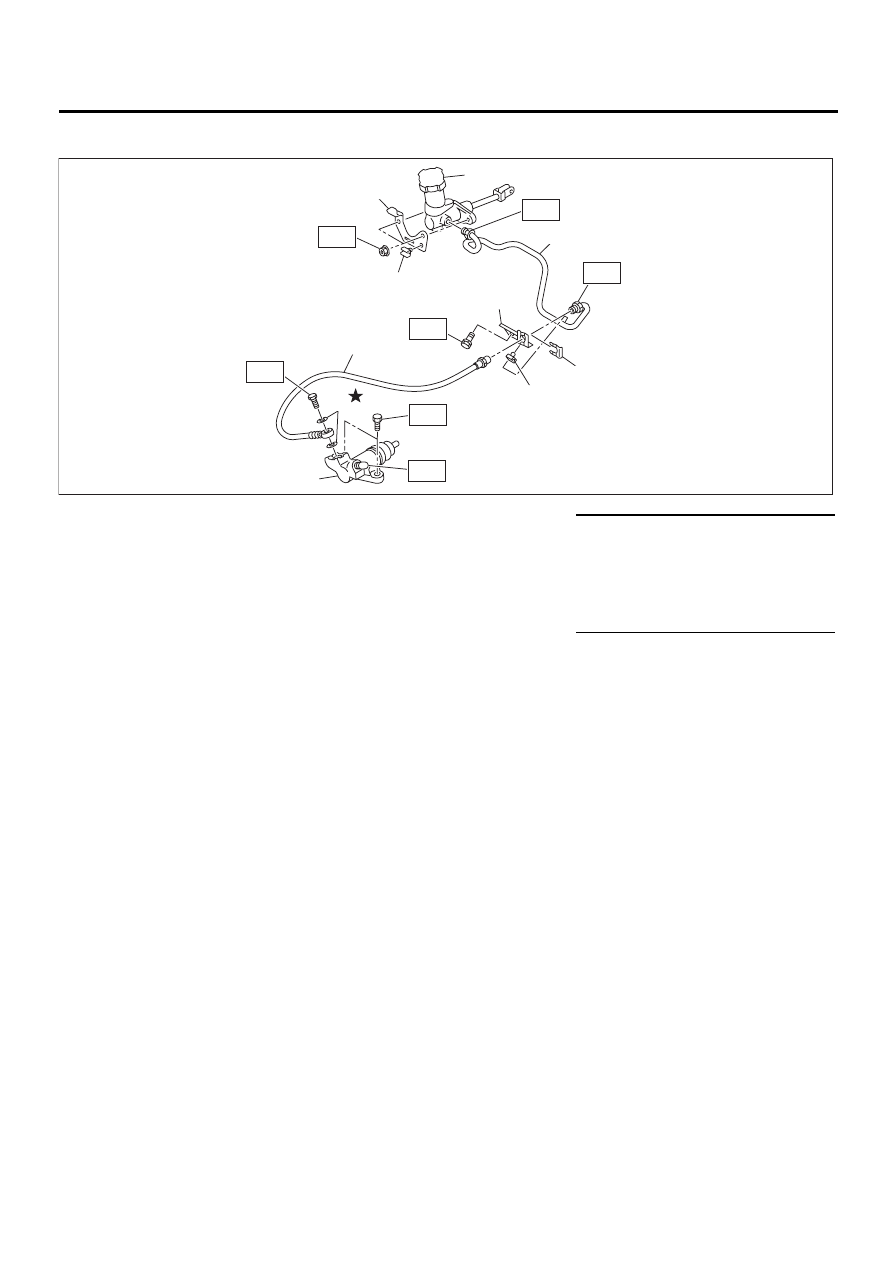

• RHD Model

(1) Clip

(7) Clutch hose

Tightening torque: N·m (kgf-m, ft-lb)

(2) Bracket A

(8) Washer

T1: 8 (0.8, 5.8)

(3) Master cylinder ASSY

(9) Operating cylinder

T2: 15 (1.5, 10.8)

(4) Clutch pipe

T3: 18 (1.8, 13.0)

(5) Clamp

T4: 25 (2.5, 18.1)

(6) Bracket B

T5: 37 (3.8, 27.5)

CL-00171

( 1 )

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

T1

T2

T3

T2

T5

T4

T5
